XGZ030
1-Port XGS-PON Terminal
- Symmetrical 10G Connectivity: XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously.*
- 10G Wired Connections: 1× 10 GbE LAN port enables ultra-fast network sharing and connections.
- Ease of Use: Quick and hassle-free installation and setup.
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.

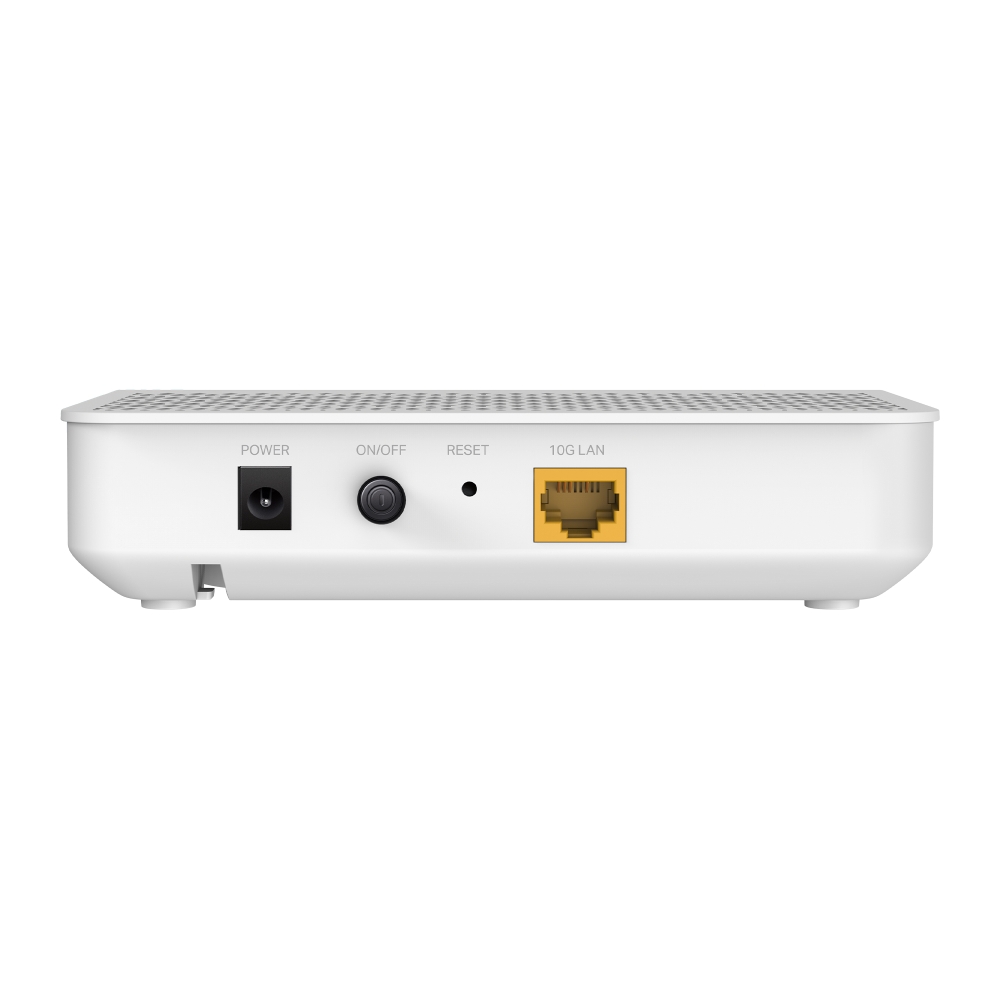

| Interface | 1× XGS-PON Port1× 10 GbE LAN Port |
|---|---|
| Button | Power On/Off ButtonReset Button |
| External Power Supply | 12V/1A |
| IEEE Standards | IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1wIEEE 802.3, 802.3.u, 802.3ab, 802.3x |
| Data Rates | Downstream Speeds: 10 Gbps*Upstream Speeds: 10 Gbps* |
| Wave Length | Upstream: 1270 nmDownstream: 1577 nm |
| Dimensions ( W x D x H ) | 6.19 × 4.42 × 1.46 in (157.2 × 112.4 × 37.0 mm |
| Distance | 0–20 Km Max |
| GPON Standards | ITU-T G.9907.1, ITU-T G.988 |
| Optical Module | Class E1 |
| Receiver | Super-TIA |
| Transmitter | DFB laser |
| Advanced Features | Upstream and Downstream FEC, Dynamic Bandwidth Allocation (DBA) support NSR/SRUp to 32 T-CONTs and 256 GEM portsOptical power detectionDying GaspTerminal Silent mechanism802.3az EEE energy conservationSchedule RebootLED Schedule |
|---|---|
| VLAN | 802.1Q tag VLAN, Q in Q VLANVLAN transparent mode/VLAN translationmode/VLAN trunk modeAuthentication based on SN and password |
| Security | AES encryptionPacket filter based on VLAN |
| Management Features | Local management: WebGUI, TelnetRemote management: OMCI |
| IGMP | IGMP v1/v2/v3 |
| Package Content | XGS-PON TerminalPower AdapterRJ45 Ethernet CableQuick Installation Guide |
|---|---|
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
