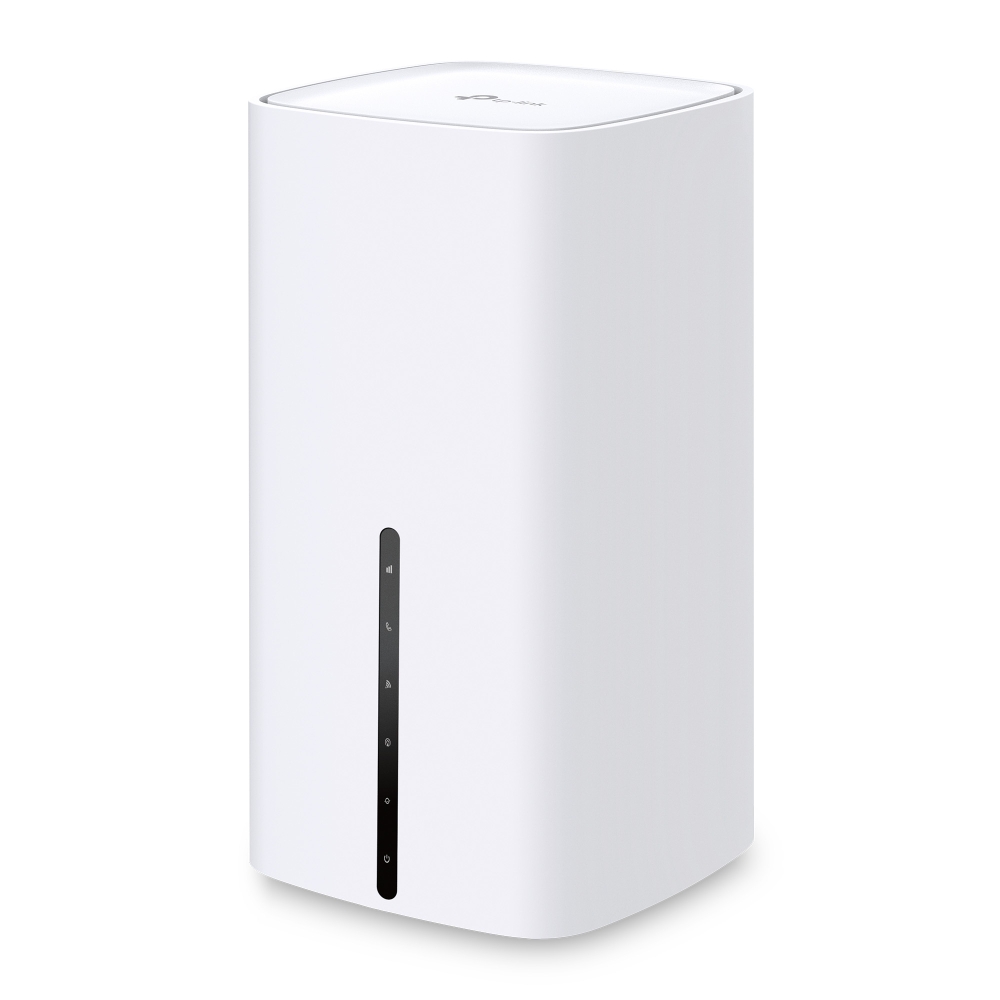

NX540v
5G AX3000 Wi-Fi 6 Telephony Router
- Boost Your 5G Speed: Take advantage of your advanced 5G network with download speeds up to 6.47 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
- AX3000 Dual-Band Wi-Fi 6 Speed: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†
- VoLTE/VoNR: With 1× Voice port, users can make or receive phone calls over the internet simply by connecting the device to their existing telephone set.
- Plug & Play: Enjoy 5G network right after inserting a SIM card.
- Support EasyMesh: Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.*
- Fully Gigabit Ports for Consummate Connectivity: Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS, and more.
- Easy Remote Management: TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported.
| CPU | 1 GHz Dual-Core CPU |
|---|---|

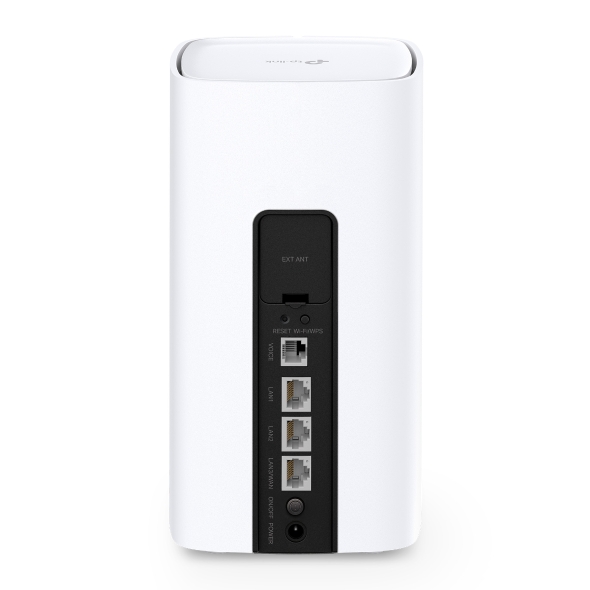

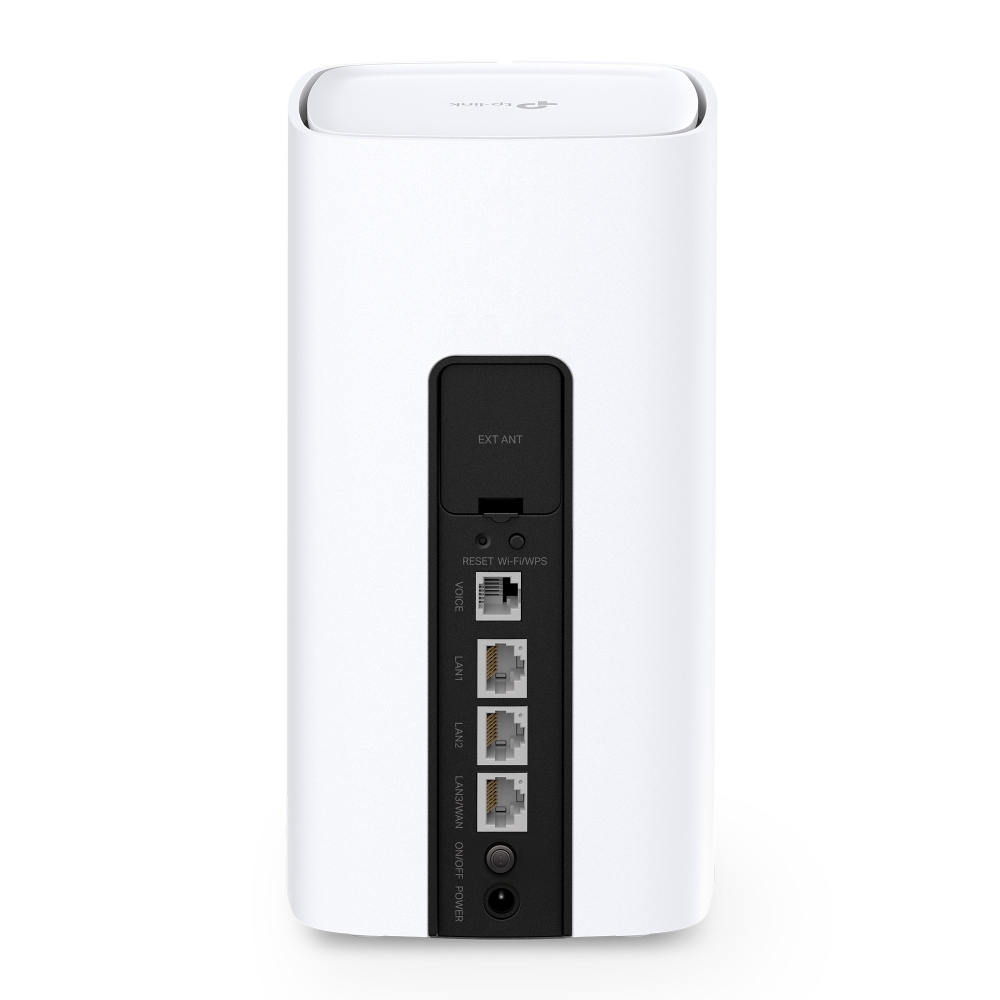

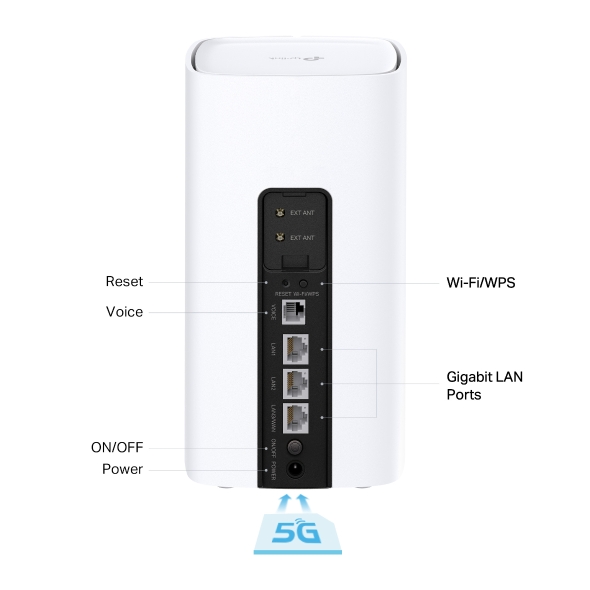

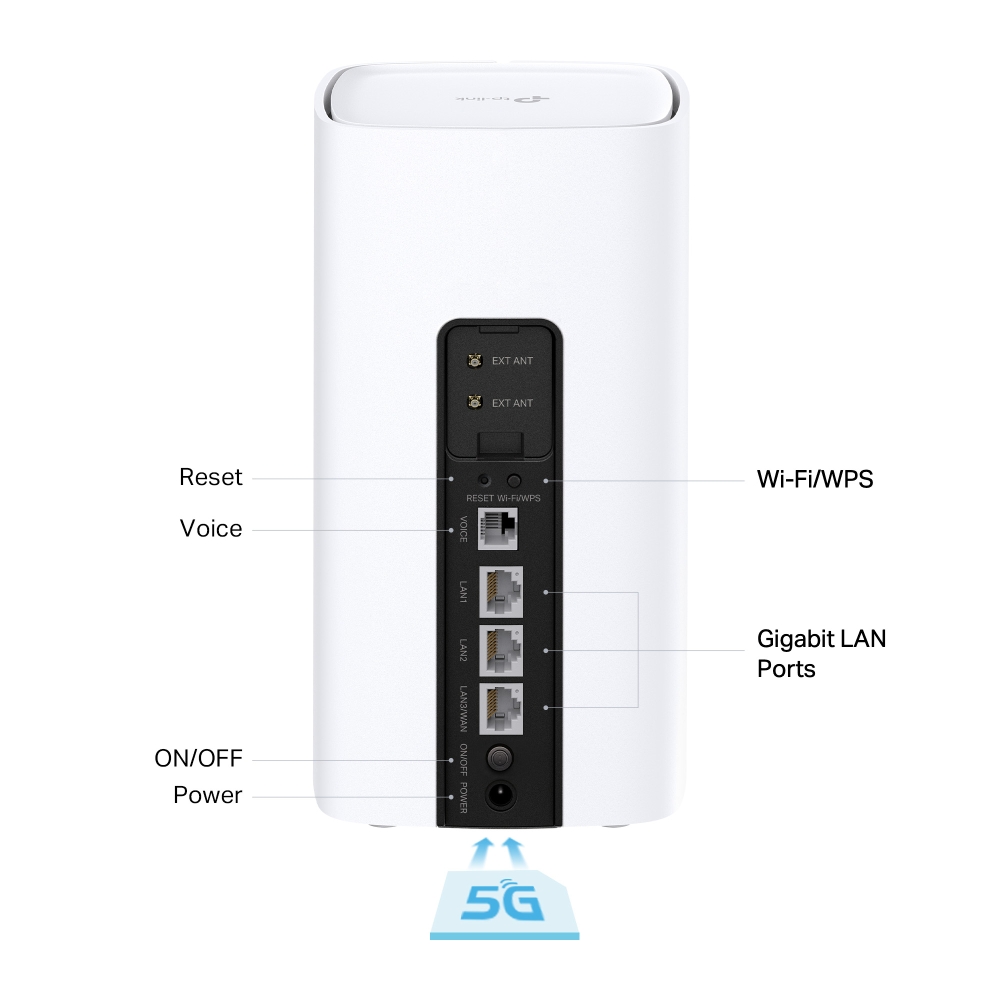

| Interface | 1× Gigabit RJ45 WAN/LAN Ports2× Gigabit RJ45 LAN Ports |
| Button | WIFI/WPS, RESET, ON/OFF, Power |
| External Power Supply | Output: 12V/2.5AInput: 100-240V~50-60Hz 0.8A |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 7.56 in (99 × 99 × 192mm) |
| Antenna | Internal Antennas, 2x TS-9 Ports |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz,IEEE 802.11b/g/n/ax 2.4GHz |
|---|---|
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5G: 6.47 Gbps(downstream) / 1.25 Gbps(upstream)LTE: 2 Gbps(downstream) / 211 Mbps(upstream) |
| Wireless Security | WPA/WPA2-PSK/WPA3 encryption |
| Transmission Power | CE:≤20dbm(2.4GHz);≤23dbm(5G band1/band2);≤30dbm(5G band3)RCM: ≤30dbm(2.4GHz);≤23dbm(5G band1/band2);≤30dbm(5G band3/band4) |
| Network Type | 5G:n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n66/n67/n71/n75/n76/n77/n784G: B1/B3/B5/B7/B8/B20/B26/B28/B32/B66/B67/B71/B38/B40/B41/B42/B43/B483G:B1/B3/B5/B8 |
| Mesh Technology | 802.11k/v/r, support EasyMesh |
| Working Mode | 5G/4G/3G, Wi-Fi Router |
|---|---|
| Multi SSID | 3 more 2.4GHz/5GHz Network |
| Features | Parental Controls, QoS (Quality of Service), AddressReservation, Port Forwarding, Dynamic DDNS, SIMManagement, SMS, Cloud Upgrade, EasyMesh*, VoLTE/VoNR, IPTV,IPv6, NAT Forwarding, Firewall, LED Control, NetworkDiagnosic, CWMP, SNMP, Traffic Statistic, WPS,1024-QAM,OFDMA, IPSEC VPN, WEB Remote Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Protocols | Supports IPv4 and IPv6 |
| Certification | CE, RoHS |
|---|---|
| Package Content | 5G AX3000 WiFi 6 Telephony Router NX540v1 RJ45 Ethernet Cable1 Power Adapter1 RJ11 Cable1 Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux InternetExplorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers orhigher. |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F)Storage Temperature: -40°C~70°C (-40°F ~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
△Use of Wi-Fi6 (802.11ax), and features including OFDMA, 1024-QAM, HE160, WPA3, and MU-MIMO requires clients to also support the corresponding feature.
§Maximum 5G/4G download and upload speeds depend on external factors such as the local network coverage, data plan, real-time network capacity, client limitations, and environmental factors. Actual supported 5G/4G frequency bands may vary slightly in different regions due to certification.
*This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.
**VoNR/VoLTE telephony may only be enabled for certain carriers. It also requires the user to enable the corresponding services on the service plan for the SIM card used with this device.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
Features and specifications may vary by region, provider, and version. For details on your model, contact your purchasing platform or channel.
