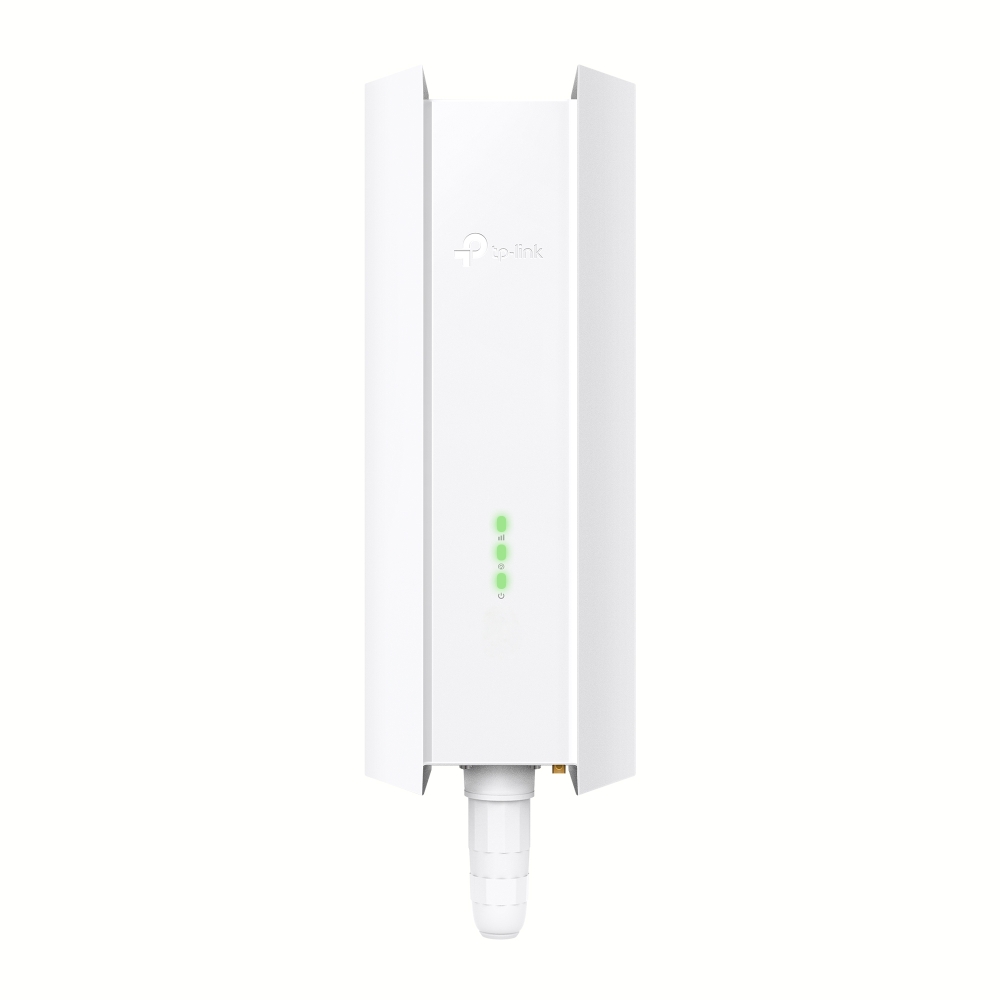

NE211-Outdoor
5G Outdoor Gateway
-
Unrivaled Speed with 5G: Download speeds reach up to 3.4 Gbps—22× faster than 4G.
-
LTE-Advanced Cat 19: Download speeds up to 1600 Mbps.
-
Performance-Driven for Outdoor Environments: 1× 2.5GE PoE Port.
-
IP67 Weatherproof: Withstands environments with rain and dust.
-
Plug and Play: No configuration needed. Compatible with SIM cards in 100+ countries.
-
Remote Management: TR-069 and TR-369 protocols are supported.
Unrivaled Speed, Feel No Lag
5G
3.4 Gbps
4G+
1.6 Gbps
IP67
6KV
Lightning
Protection
15KV
ESD
Protection
Plug &
Play
PoE Powered
Support
Remote
Management
TR-069/TR-369
Simple and Efficient Deployment
Unrivaled Speed with 5G,
Revolutionary Experience
5G greatly boosts the download speed up to 3.4 Gbps–22x faster
than 4G LTE. It brings fast responsive network connections to
tomorrow’s mobile devices, with only 1 ms latency.§
5G

4G-LTE Advanced

4G-LTE

-
Higher
Speed -
Lower
Latency -
Larger
Capacity

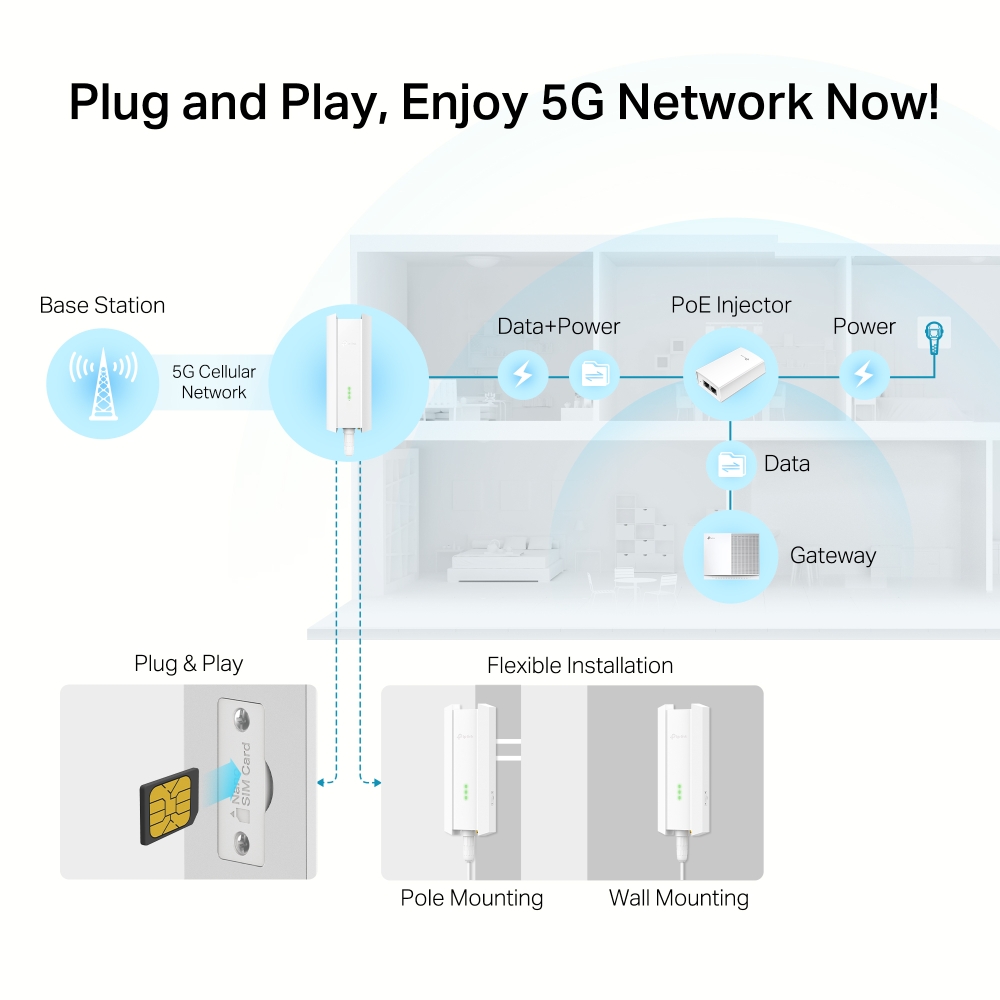

Plug and Play, Enjoy 5G Network Now!
NE211-Outdoor ensures a comfortable and no-block network installation via SIM card and PoE powered supply. Plug in your
SIM card, connect the injector and gateway, and enjoy high-speed internet!
Network

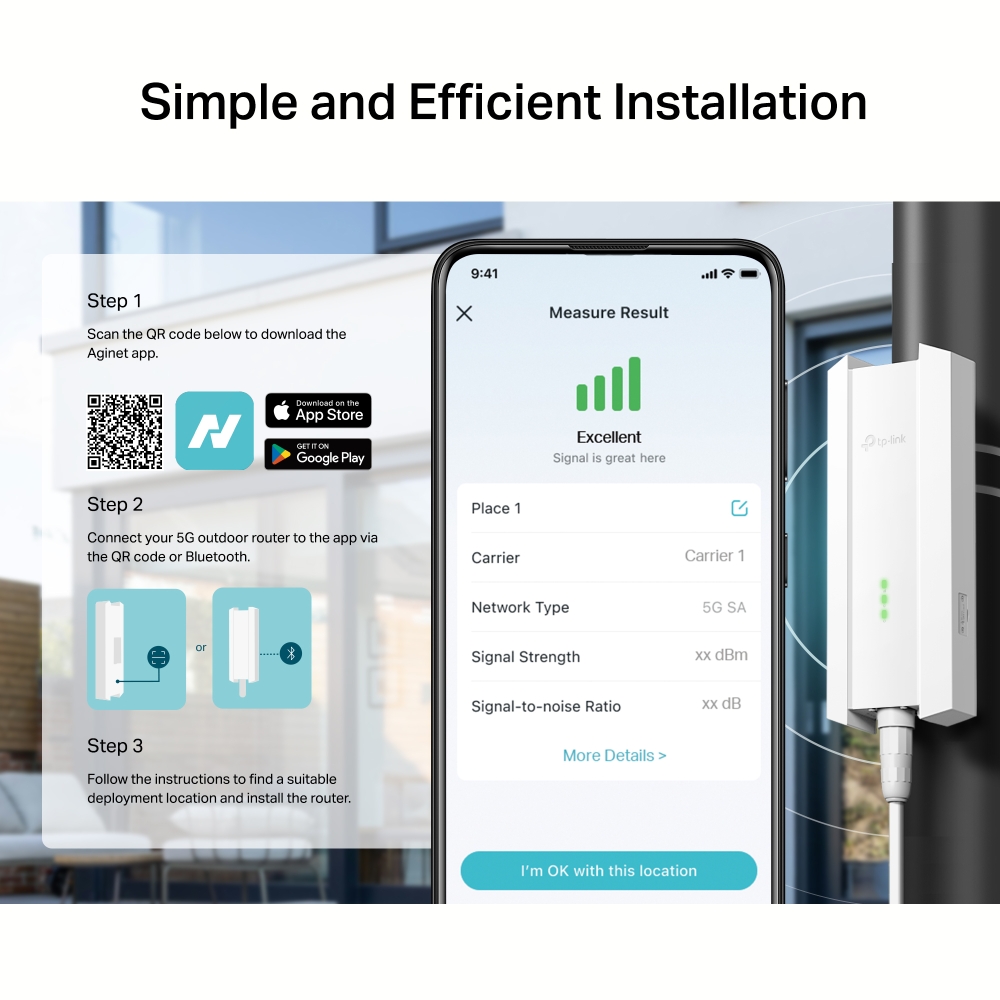

Simple and Efficient Installation
Connect your router to the smart phone, and follow the instructions on the free Aginet app to efficiently find a suitable deployment location and install the router.
IP67 Weatherproof Enclosure for Outdoor Environments
NE211-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.

6: Completely dust-tight. No ingress of dust.
7: Protection against full immersion in water up to 1 meter deep for half an hour.
-
6KV Lightning Protection and
15KV ESD Protection -
No Ingress of Dust
-
Waterproof Enclosure
Interface | 1× 2.5GE PoE/LAN Port + 1 Nano SIM |
---|---|
Button | 1 RESET button |
External Power Supply | • 802.3at PoE• 48V Passive PoE (PoE Adapter Included) |
Dimensions ( W x D x H ) | 11.0 × 4.2 × 2.2 in ( 280.4 × 106.5 × 56.8 mm) |
Antenna | Internal 5G NR/LTE Antennas |
Protection | IP67 |

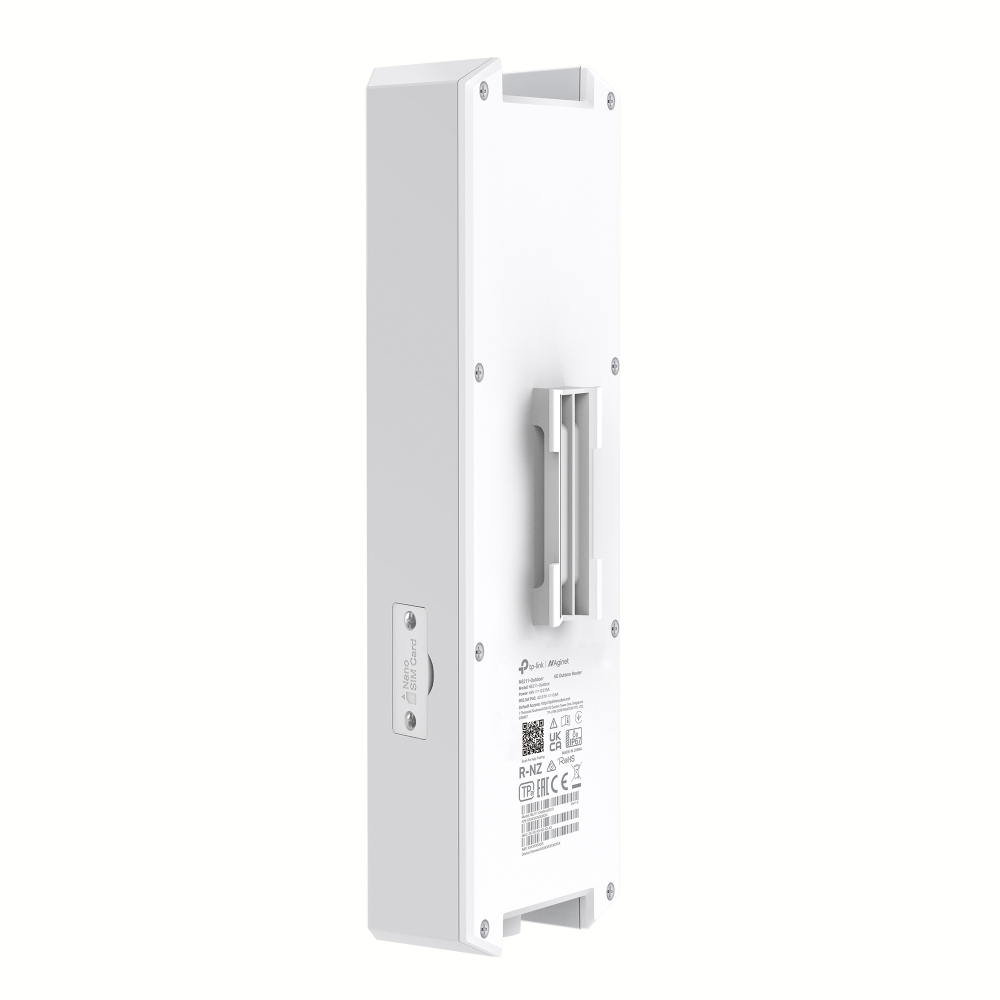

Mounting | Pole/Wall Mounting |
Bluetooth version | v5.4 Supported |
Network Type | 5G:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32TDD-LTE: B38/B40/B41/B42/B433G: B1/B5/B8 |
---|
Protocols | IPv6 Compatible |
---|
Package Content | 1× NE211-Outdoor1× PoE Adapter1× RJ45 Ethernet Cable1× Quick Installation GuidePole/Wall Mounting Kits |
---|
