HB210

BE3600 Whole Home Mesh WiFi 7 System

  • 3.6 Gbps Dual Band WiFi 7: 4-stream dual band WiFi enables gaming, streaming, and high-speed downloading on multiple devices—all at the same time.*
  • Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across two bands.
  • Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
  • Whole Home Coverage: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
  • Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide a personalised and safer online experience.
  • Gigabit Wired Speeds: 1× Gigabit WAN/LAN port and 1× Gigabit LAN port ensure fast wired connections and strong Ethernet backhaul.
  • Easy Setup and Use: Set up your mesh network in minutes with the powerful Aginet app.
  • Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Super Mesh-Powered WiFi 7

BE3600 Whole Home Mesh WiFi 7 System

HB210
wifi7 icon

3.6 Gbps Dual Band WiFi
2 + 2 Simultaneous Spatial Streams

4K-QAM

Multi-Link Operation

EasyMesh-Compatible

Seamless Roaming

Parental Controls

Enhanced Security

Gigabit Wired Connectivity

Aginet Solution
End-to-End
Management Platform

TR-069/TR-369
Remote Management

Wi-Fi 7 — Revolutionize Your WiFi Experience

WiFi 7 has arrived with unprecedented performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

  • Extremely High Throughput

    wifi7
  •
    Wi-Fi 6
  •
    Wi-Fi 5
  • 4K-QAM

    Packs 120% data for
    higher speeds

  • Multi-Link Operation

    Increases throughput, reduces latency, and improves reliability

  • Multi-RUs

    Make full use of every resource for maximum efficiency

3.6 Gbps Dual Band WiFi 7

Both 2.4 GHz and 5 GHz bands are upgraded to the latest WiFi technology with faster speeds and higher efficiency, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive gaming, and blazing-fast downloads.*

2.4 GHz

688 Mbps

5 GHz

4 Spatial
Streams

2880 Mbps

Extensive WiFi Coverage and Stronger Signals

A high-performance antenna array and beamforming technology combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

Beamforming

4× High-Gain Antennas

Whole Home Coverage Backed by a Robust Backhaul

Empowered by EasyMesh technology, HB210 delivers strong WiFi signals to every corner of your home. Wireless backhaul and ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HB210 unit wherever you want.

  • Ranch-Style Home
    Ranch-Style Home
  • Multi-Story Home
    Multi-Story Home
  • L-Shaped Home
    L-Shaped Home

Wireless Backhaul

Across 2.4 GHz and 5 GHz

Ethernet Backhaul

Up to 1 Gbps connections

Seamless Roaming with One WiFi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.

  • Mesh System

  • Traditional Router with Extender

  • Web Browsing

  • Smart Home Devices

  • IP Camera Streaming

  • 4K Streaming


  • 8K Streaming

  • Online Gaming

  • 720P Streaming

  • 1080P Streaming

  • High-speed Downloading

*Testing of multiple applications and devices is conducted in TP-Link labs with one unit. Actual results may vary.

More Connections,
No More Buffering

Enhanced by WiFi 7 and featuring OFDMA and Multi-link operation (MLO), you can connect 200+ devices simultaneously to build a fully connected home. Enjoy a more efficient network that loads faster without dragging down performance.

Connects
200+
devices*

Robust Network Protection

  • WPA3 Security

    Higher password safety and enhanced protection against attacks**

  • Parental Controls

    Block inappropriate content and restrict time spent online

  • Multi-SSID

    Create separate networks for visitors and keep your main network secure

2-in-1 Router and
Access Point

The versatile and multi-purpose HB210 features options to serve as either a router or access point. Select the mode that suits your requirements for adaptable wireless and wired networking.

  • Router Mode

    Create a private wireless and wired network

  • Access Point Mode

    Create WiFi access for your existing wired network

Gigabit Wired Connectivity

Each unit features two Gigabit Ethernet ports, a WAN/LAN port, and a LAN port, ensuring fast and stable wired connectivity for internet access and Ethernet backhaul to strengthen the mesh network.

Access Way 1
  • Gigabit Internet Access
Access Way 2
  • Gigabit Wired Connections

Easy to Set Up and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your mesh network from a smartphone or tablet.

Supports TR-069/TR-369 Remote Management

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols. While the home user can enjoy more efficient service experiences.

TR-069/TR-369

Remote Management

TR-181 TR-111 TR-143

TR-069/TR-369

Aginet Solution:
An End-to-End Management Platform for ISPs

The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.

Learn More about the Aginet Solution >

lifestyle-image-1 lifestyle-image-2



lifestyle-image-1 lifestyle-image-2

HARDWARE FEATURES

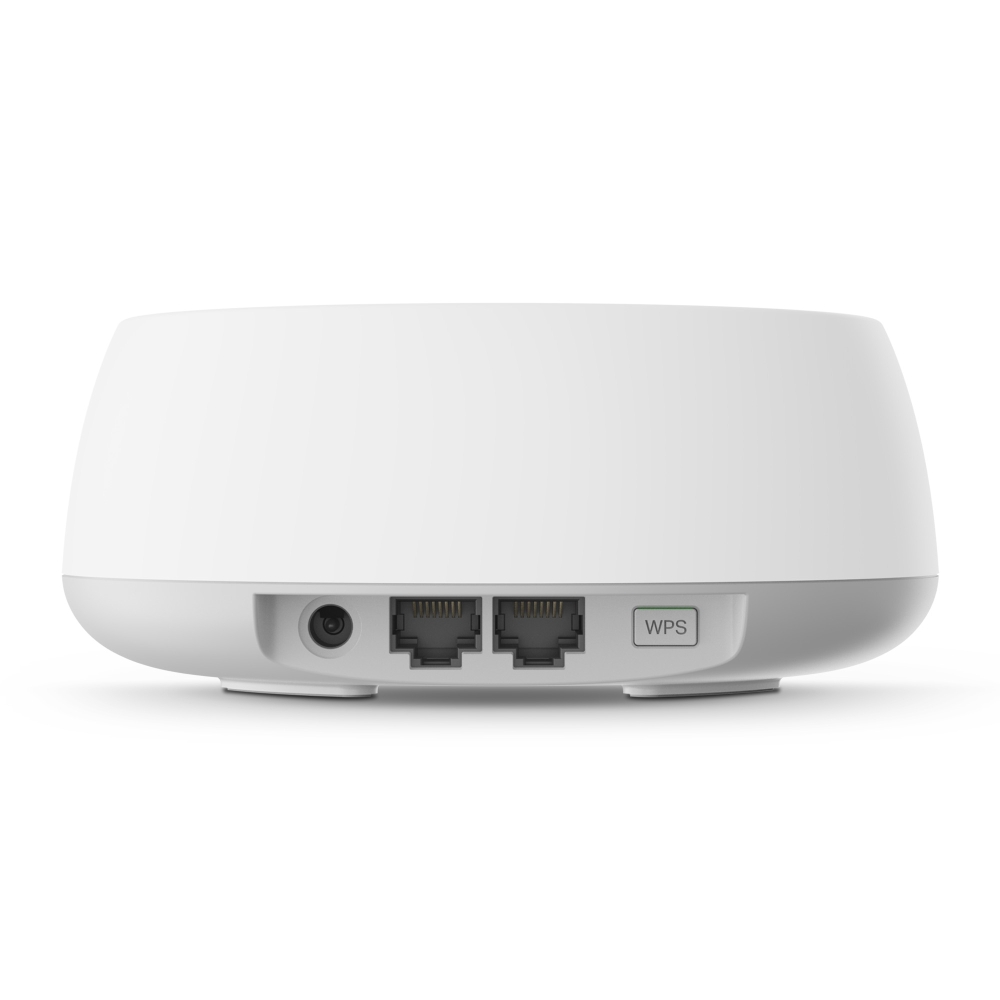

Interface 1× GbE WAN/LAN Port
1× GbE LAN Port

*Per Unit
Button WPS Button
Reset Button
External Power Supply 12V/1.5A
Dimensions ( W x D x H ) 5.91 × 5.91 × 2.44 in
(150 × 150 × 62 mm)

WIRELESS FEATURES

Wireless Standards IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/g/b 2.4 GHz
Frequency 2.4 GHz, 5 GHz
Signal Rate BE3600
5 GHz: Up to 2880 Mbps (EHT160)
2.4 GHz: Up to 688 Mbps (EHT40)*
Wireless Security WPA/WPA2/WPA3-Personal
Transmission Power FCC:
<30 dBm (2.4 GHz)
<30 dBm(5 GHz)

CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
Multi-SSID 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Mesh Technology EasyMesh compatible and supports 802.11k/v/r

SOFTWARE FEATURES

Quality of Service WMM
Advanced Features Multi-Link Operation (MLO), 4K-QAM, Multi-RU, OFDMA, Beamforming, BSS Color
QoS (Quality of Service), Port Forwarding, CWMP
Parental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic
WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management Features Local management: WebGUI, Aginet app (for end users)

Remote management:
TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 for service providers
Aginet App for end users (need to log in with TP-Link ID and bind your device to it)

Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Protocols IPv4
IPv6
VPN Server PPTP, OpenVPN, IPSec
Working Modes Router Mode
Access Point Mode

OTHERS

Package Content HB210 (1-Pack)
1× HB210 Unit
1× Power Adapter
1× RJ45 Ethernet Cable
1× Quick Installation Guide

HB210 (2-Pack)
2× HB210 Units
2× Power Adapters
1× RJ45 Ethernet Cable
1× Quick Installation Guide
Certifications CE
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Use of WiFi 7 (802.11be), WiFi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, BSS Color, and WPA3 requires clients to also support the corresponding features. The 160 MHz bandwidths might not be available on the 5 GHz band in some regions/countries due to regulatory restrictions.

A mesh network requires two or more devices.  This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. It supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds.  Clients need to support 802.11 k/v and may require additional setup.  Performance may vary depending on the client device.

△ 1 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
