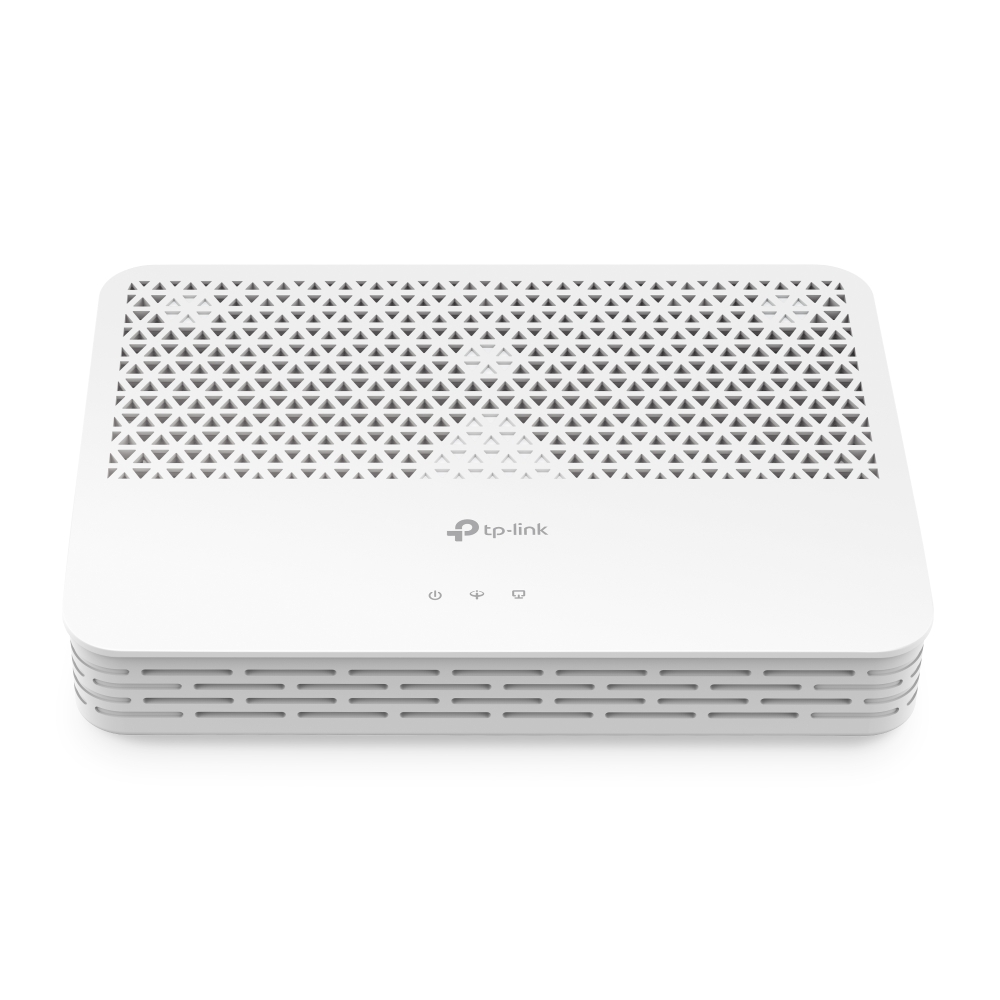

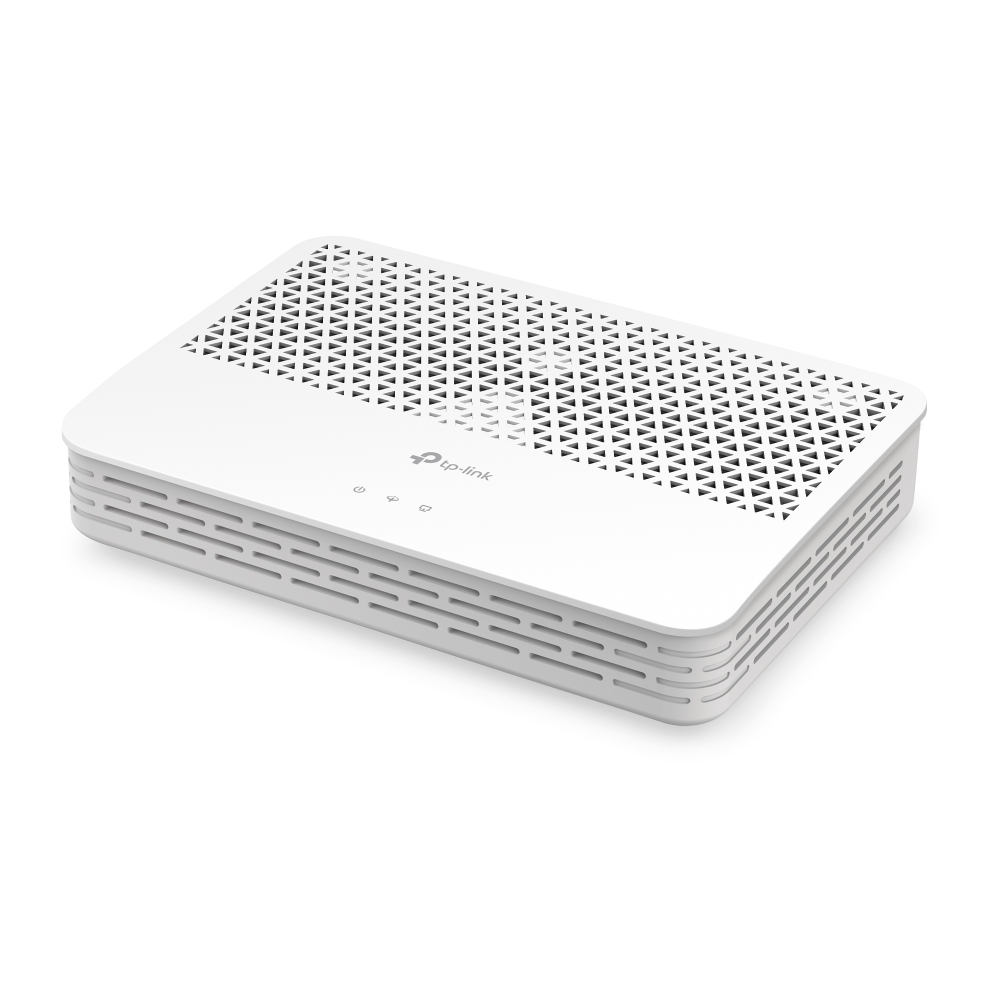

XGZ032
1-Port XGS-PON Terminal
- Symmetrical 10G Connectivity: XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously.*
- 2.5G Wired Connections: One 2.5 GbE LAN port enables fast network sharing and reliable connections.*
- Ease of Use: Quick and hassle-free installation and setup.
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.
Next-Level Connectivity with 10G Symmetrical Speeds
1-Port XGS-PON Terminal
XGZ032
10G Symmetrical Fiber Access
2.5G Multi-Gig Connectivity
Backed by a Comprehensive FTTH Solution
Works with Any Service Provider
OMCI Remote Management
10G Symmetrical Fiber Access
XGZ032 delivers up to 10 Gbps of simultaneous uplink and downlink bandwidth via fiber access, meeting your demands for high-speed, bandwidth-intensive applications. Enjoy ultra-fast data transfers and seamless HD streaming with high-performance forwarding.*
GPON
Downstream
10G Symmetrical
Upstream
XGS-PON
Downstream
2.5 Gbps
Upstream
1.25 Gbps
2.5G Wired Connectivity
XGZ032 features a 2.5 GbE LAN port delivering transmission speeds of up to 2.5 Gbps to support triple play services—high-speed broadband, television, and low-latency telephone services—ideal for Fiber to the Home (FTTH) applications.*
XGZ032
Ethernet Router/AP
Centralized Remote Management
Service providers can remotely configure and manage devices using the Auto Configuration Server (ACS), which is based on the TR-069 standard, or the ONU Management Control Interface (OMCI) protocol. This capability enhances service delivery efficiency while simultaneously improving the customer experience for home users.
ACS
OSS/BSS
Service Servers
OLT
TR-069
OMCI
TR-069
Backed by a Comprehensive FTTH
(Fiber-to-the-Home) Solution
Under the Aginet flagship, TP-Link offers comprehensive one-stop solutions for FTTH applications to service providers, whether based on GPON or XGS-PON. Service providers can roll out their service plans with reduced operation and maintenance costs and increase ARPU with improved user satisfaction, while home users can enjoy a better networking experience.
ISP’s OSS/BSS Systems
Network and Device Data Exchange
Inventory Data Exchange
IPTV Internet VoIP
XGS-PON XGS-PON OLT
GPON GPON OLT
WiFi Router
/Mesh AP
XGS-PON SFU
Splitter
Mesh AP
XGS-PON Router
WiFi Router
/Mesh AP
Mesh AP
GPON Router
GPON SFU
Splitter

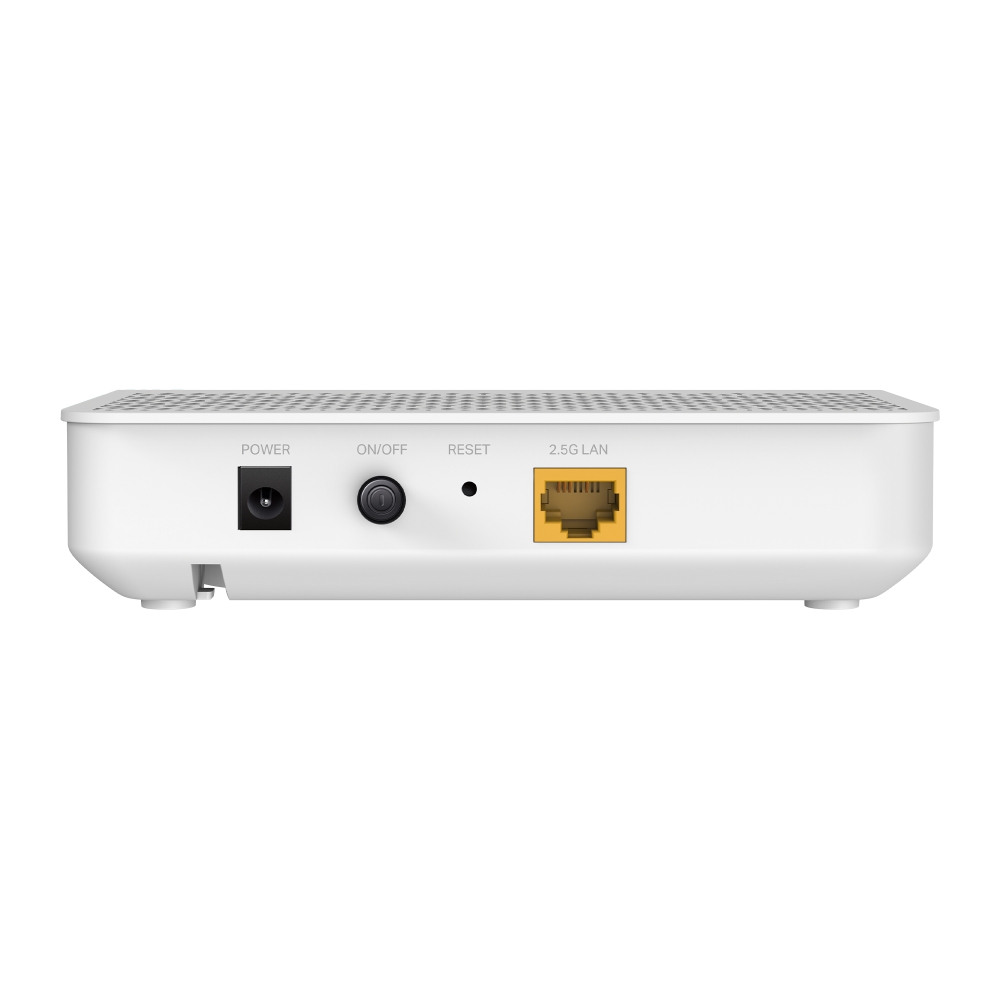

| Interface | 1× XGS-PON Port1× 2.5 GbE LAN Port |
|---|---|
| Button | Power On/Off ButtonReset Button |
| External Power Supply | 12V/1A |
| IEEE Standards | IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1wIEEE 802.3, 802.3.u, 802.3ab, 802.3x |
| Data Rates | Downstream Speeds: 10 Gbps (9953 Mbps)*Upstream Speeds: 10 Gbps (9953 Mbps)* |
| Wave Length | Upstream: 1270 nmDownstream: 1577 nm |
| Dimensions ( W x D x H ) | 6.19 × 4.42 × 1.46 in (157.2 × 112.4 × 37.0 mm) |
| Distance | 0–20 Km Max |
| GPON Standards | ITU-T G.9907.1, ITU-T G.988 |
| Optical Module | Class E1 |
| Receiver | Super-TIA |
| Transmitter | DFB laser |
| Advanced Features | Upstream and Downstream FEC, Dynamic Bandwidth Allocation (DBA) support NSR/SRUp to 32 T-CONTs and 256 GEM portsOptical power detectionDying GaspTerminal Silent mechanism802.3az EEE energy conservationSchedule RebootLED Schedule |
|---|---|
| VLAN | 802.1Q tag VLAN, Q in Q VLANVLAN transparent mode/VLAN translationmode/VLAN trunk modeAuthentication based on SN and password |
| Security | AES encryptionPacket filter based on VLAN |
| Management Features | Local management: WebGUI, TelnetRemote management: OMCI & TR-069 |
| IGMP | IGMP v1/v2/v3 |
| Package Content | XGS-PON TerminalPower AdapterRJ45 Ethernet CableQuick Installation Guide |
|---|---|
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
