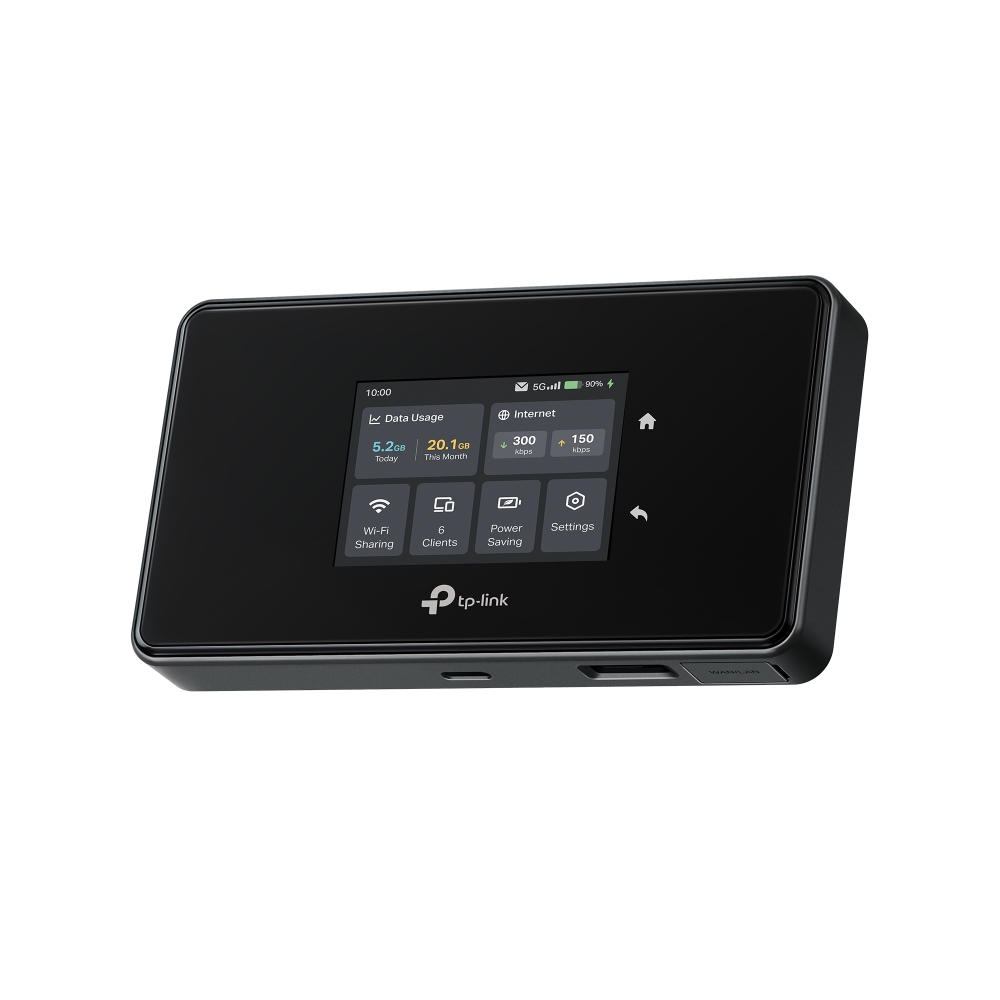

M8550

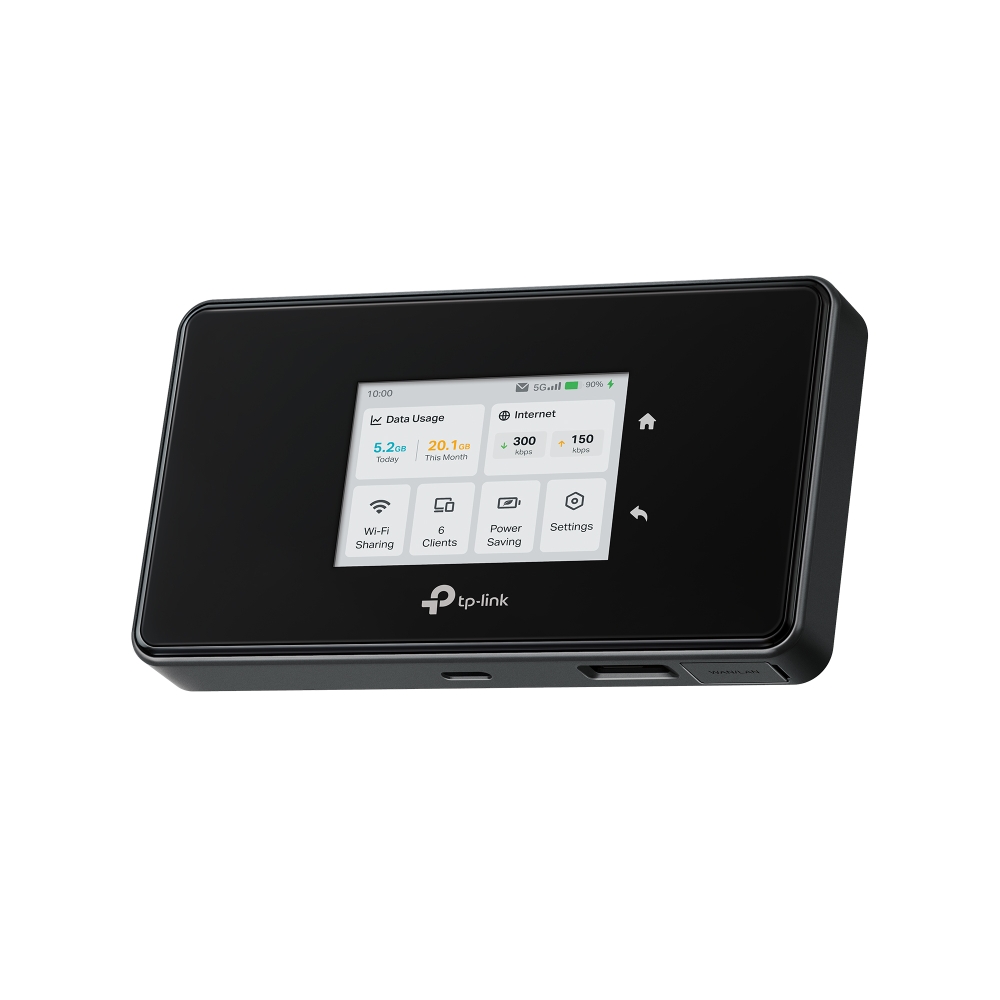

5G Mobile Wi-Fi M8550
-
Superior 5G - Up to 3.4 Gbps Download Speed
-
Powerful Wi-Fi 6E - Tri-Band AXE3600 Network
-
Gigabit WAN/LAN Port - Provide Stable and Versatile Wired Connection
-

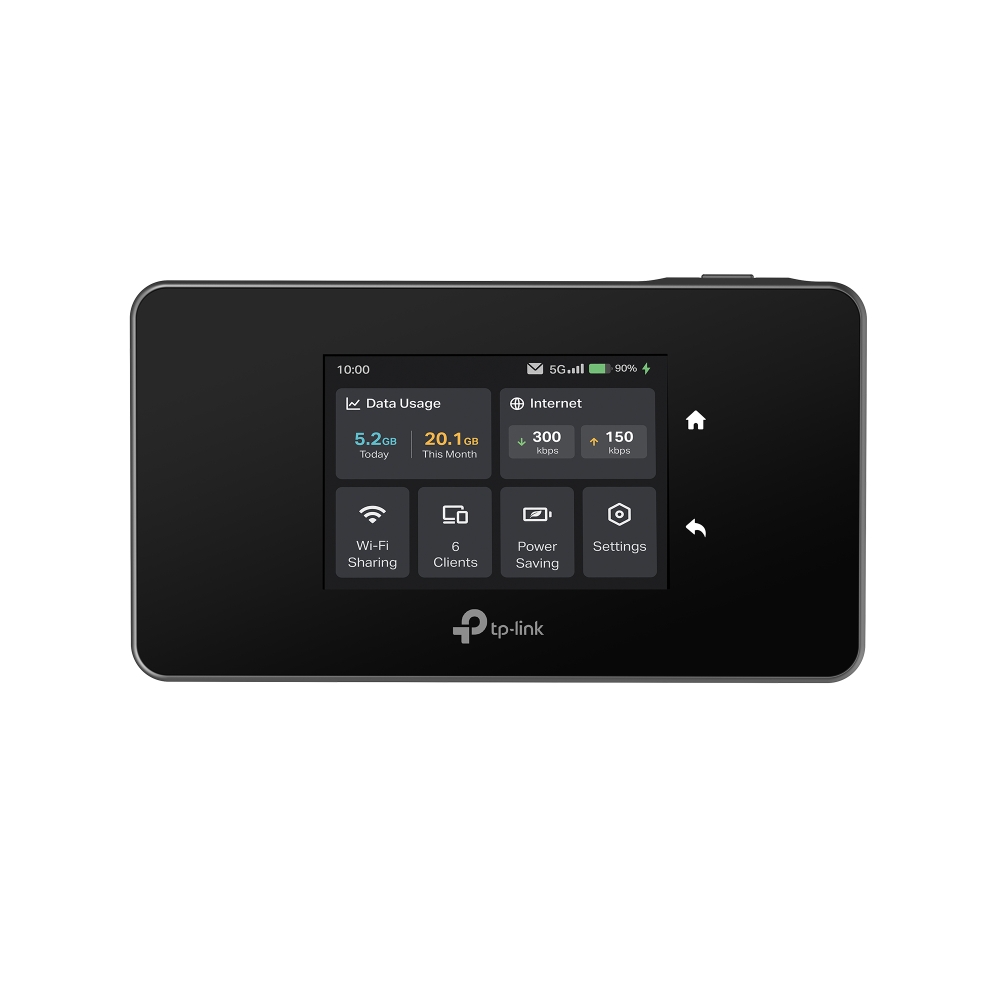

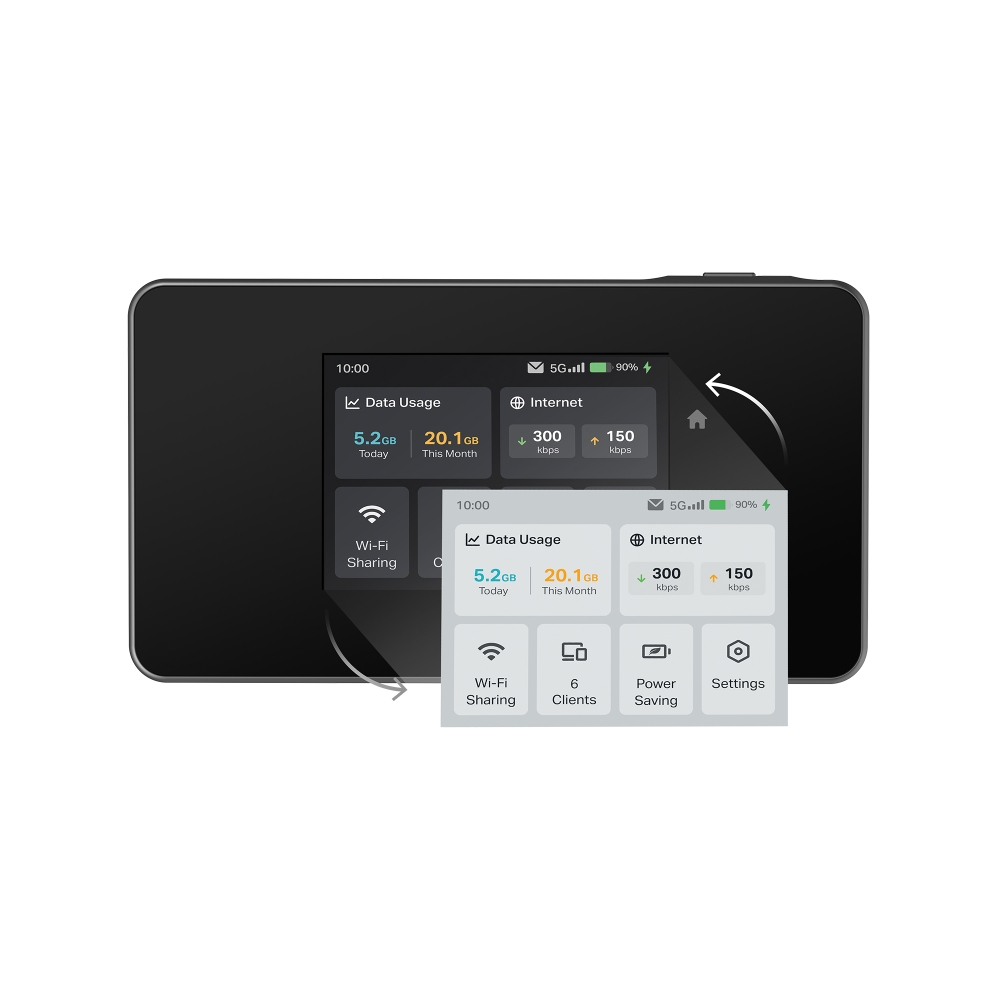

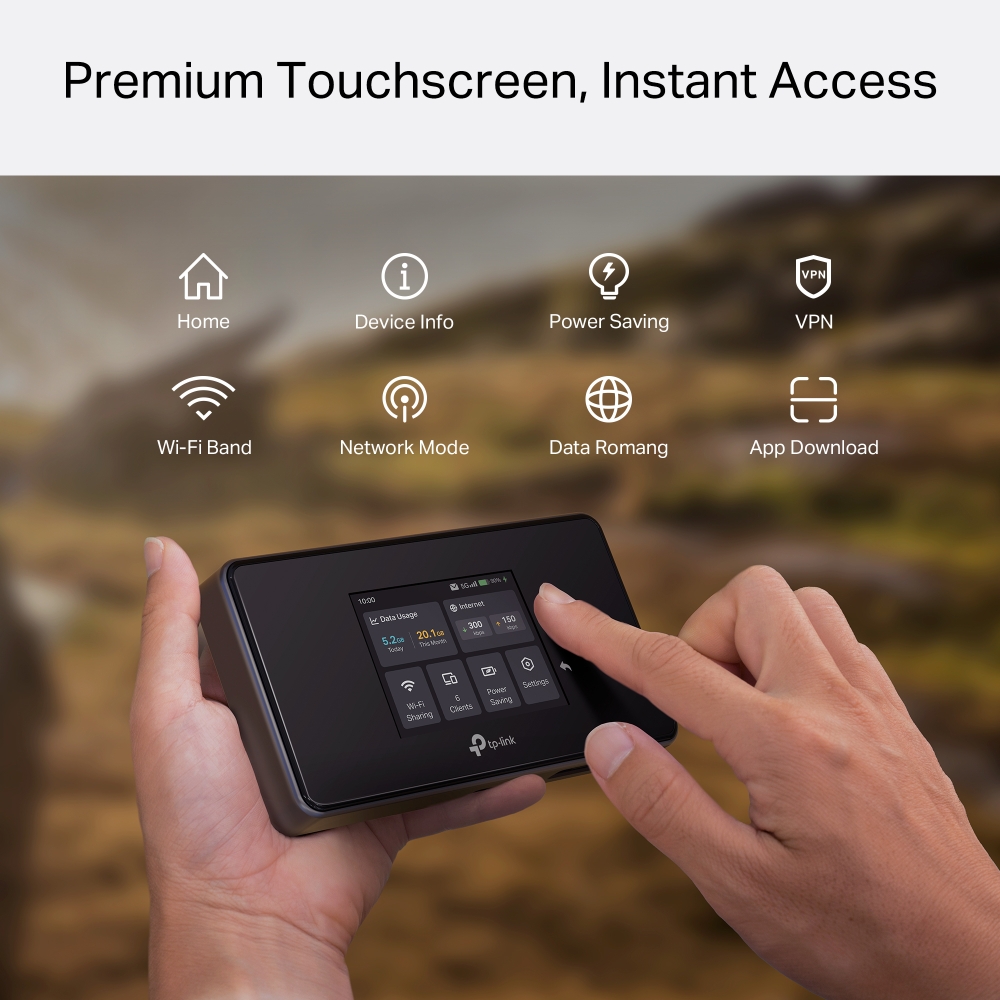

Touch Screen - Easy Management at your fingertip
-
VPN Encryption - Secure Access to Remote Servers
-
Easy Network Sharing - Supports up to 64 devices simultaneously
Breakthrough 5G Cellular Network
Improve user experience with higher speeds, lower latency and greater capacity. Ideal for businesses and consumers for live video conferencing, online gaming, larger file downloads, especially in crowded WiFi areas. At the same time, M8550 is backward compatible with 4G mode.
-
5G
-
4G
-
Higher Speed
-
Lower Latency
-
Larger Capacity
Type-C Interface
With Type-C interface, M8550 provides reliable, warp-speed 5G connections for high-intensive wired devices. It can also be used for fast charging.
-
High Speed Data Transfer
-
Fast Charging

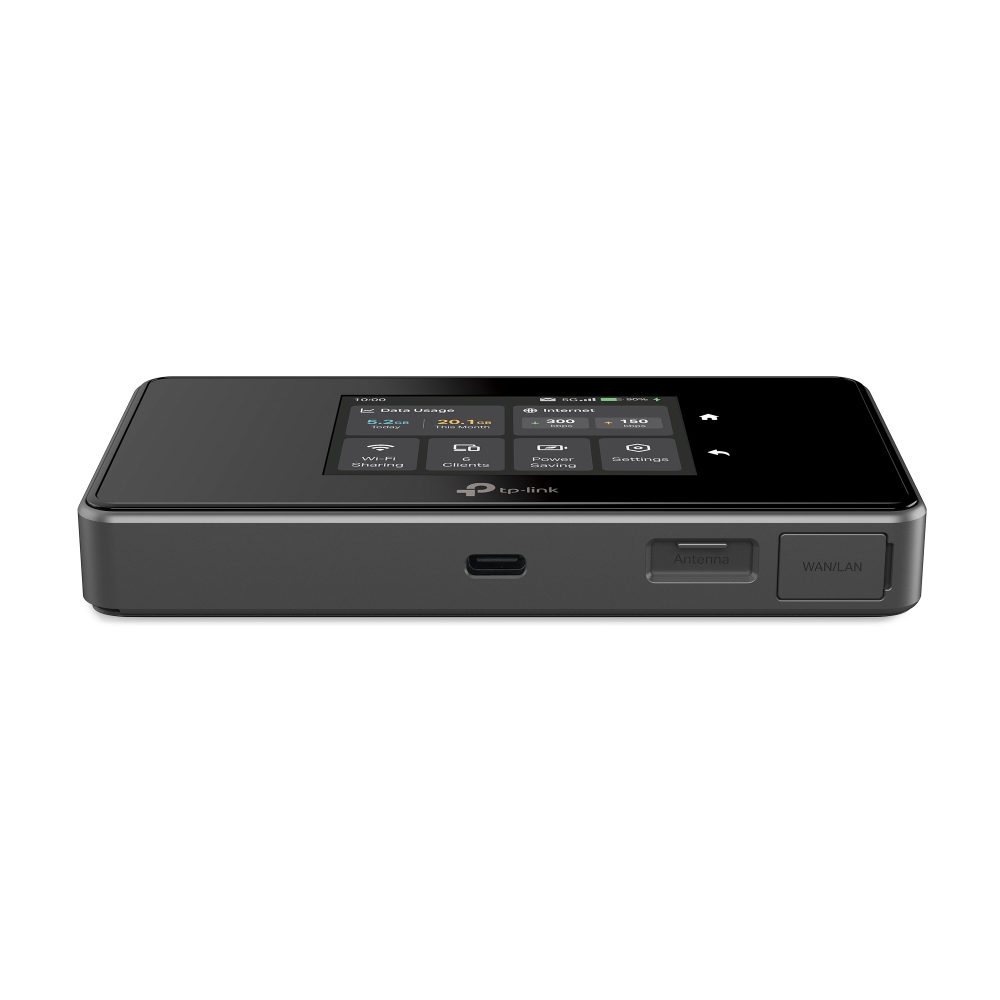

Antenna Interface
Through the external antenna, the signal is enhanced and the signal coverage is expanded, allowing you to freely enjoy the 5G network outdoors.
-
Signal Enhancement

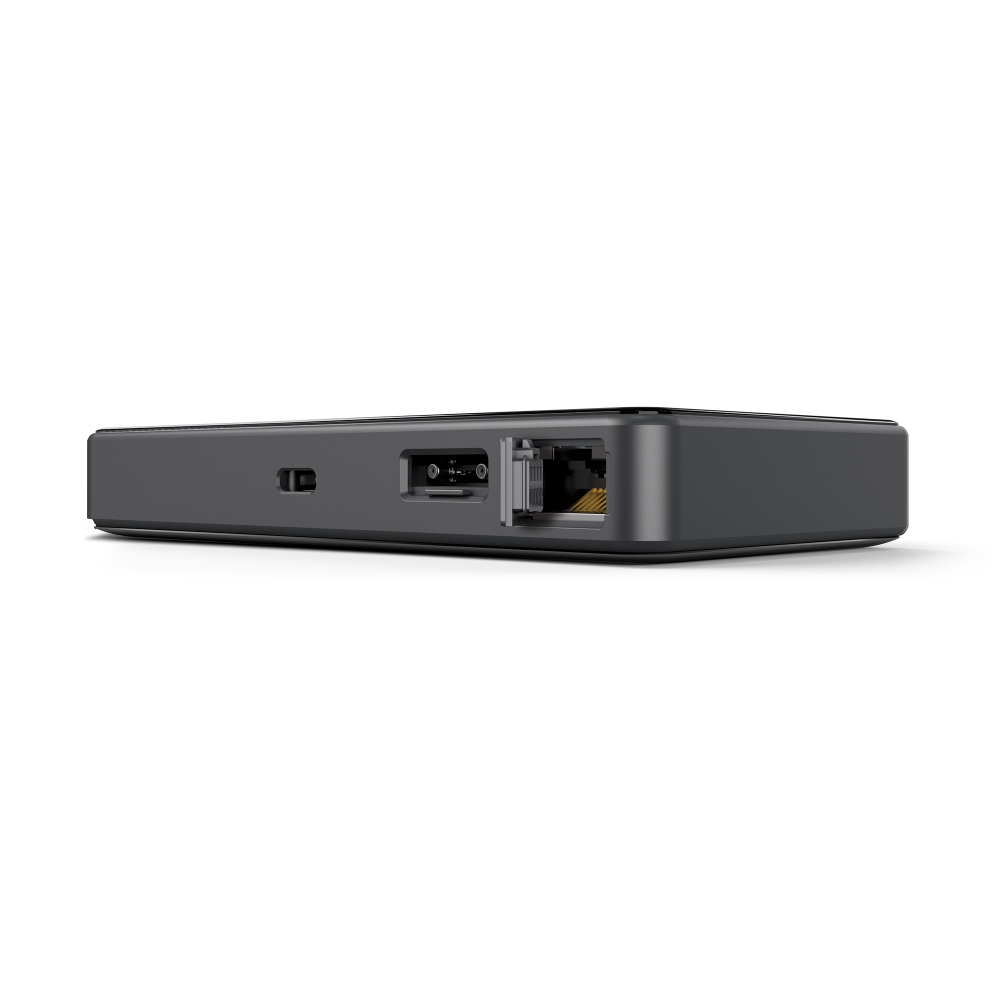

Gigabit WAN/LAN Port
The M8550 provides 5G/4G networking to your PC or router via a gigabit LAN connection. Also works as a traditional wireless router, compatible with cable, fiber, and DSL modems over gigabit WAN connection.
-
Router Mode
-
Gigabit Port
| Interface | 1× USB-C Port for Power Supply1× Gigabit WAN/LAN Port1× Nano SIM Card Slot1× Micro SD Card Slot2× TS-9 Antenna Ports |
|---|---|
| Button | Power On/Off |
| Power Supply | 4700 mAh Rechargeable BatteryCharge Voltage: 5V-3A, 9V-2A, 12V-1.5A |
| Network Type | US Version • 5G: N2/N5/N25/N41/N66/N71/N77• 4G: B2/B4/B5/B7/B12/B13/B14/B25/B29/B30/B38/B41/B46/B48/B66/B71EU Version • 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78• 4G: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43• 3G: B1/B5/B8 |

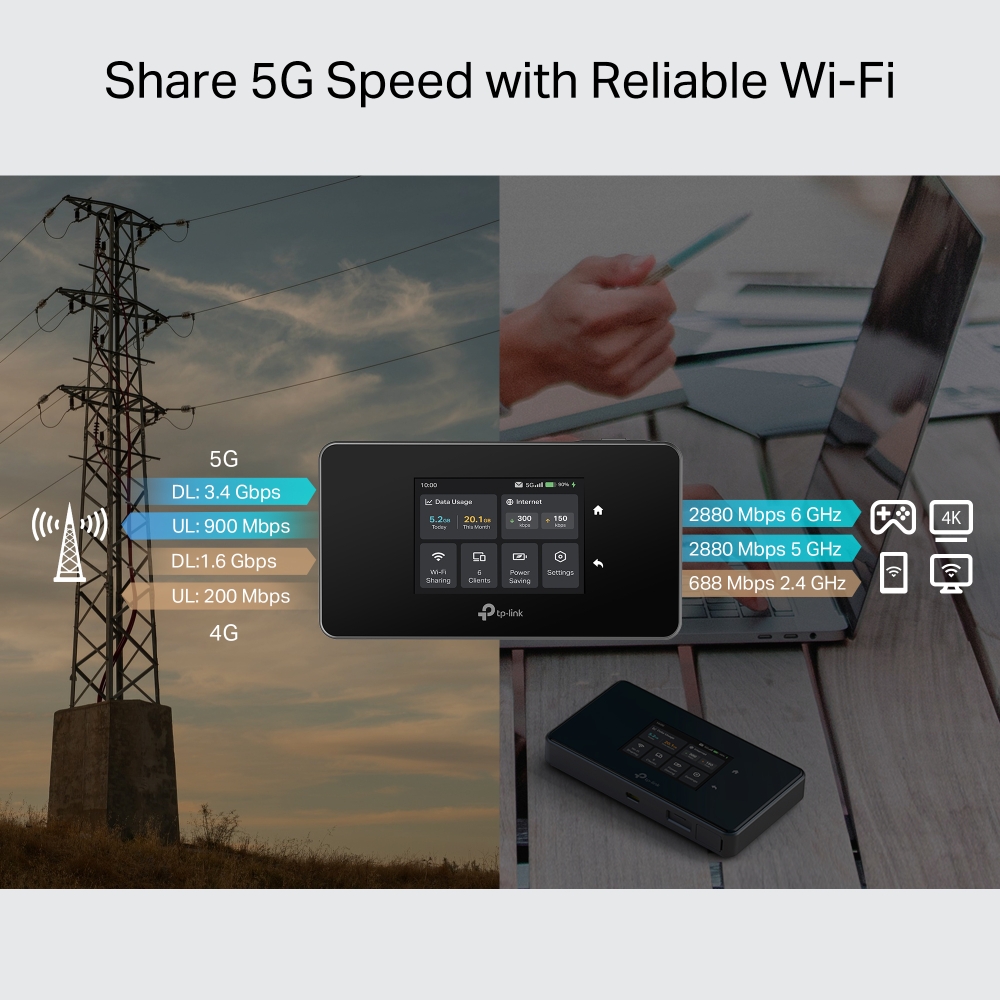

| Data Rates | 5G • Downlink: 3.4 Gbps• Uplink: 900 MbpsLTE/4G • Downlink: 1.6 Gbps• Uplink: 200 Mbps |
| Dimensions ( W x D x H ) | 135 × 40 × 20.4 mm |
| Antenna | Internal Antenna |
| Micro SD Card Reader | Up to 2 TB (*SD card sold separately) |
| Screen Display | 1.44 inch TFT Touch Screen |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax• 688 Mbps at 2.4 GHz• 2880 Mbps at 5 GHz• 2880 Mbps at 6 GHz |
|---|---|
| Frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Wireless Modes | • 2.4 GHz Only• 5 GHz Only• 6 GHz Only• 2.4 GHz & 5 GHz• 2.4 GHz & 6 GHz |
| Wireless Security | Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| DHCP | DHCP server, DHCP Client List |
| Transmission Power | 2.4G < 20dbm, 5G < 23dbm |
| VPN Item | • PPTP pass-through• L2TP pass-through• IPSec pass-through• OpenVPN• PPTP VPN• VPN Client |
|---|---|
| Certification | CE, RoHS |
|---|---|
| Package Content | 5G AXE3600 Mobile Router M8550Power AdapterUSB-C Cable4700 mAh BatteryQuick Installation Guide |
| System Requirements | Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone |
| Power Supply | 5V-3A, 9V-2A, 12V-1.5A |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
*Actual battery time may vary due to different user environments.
*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
