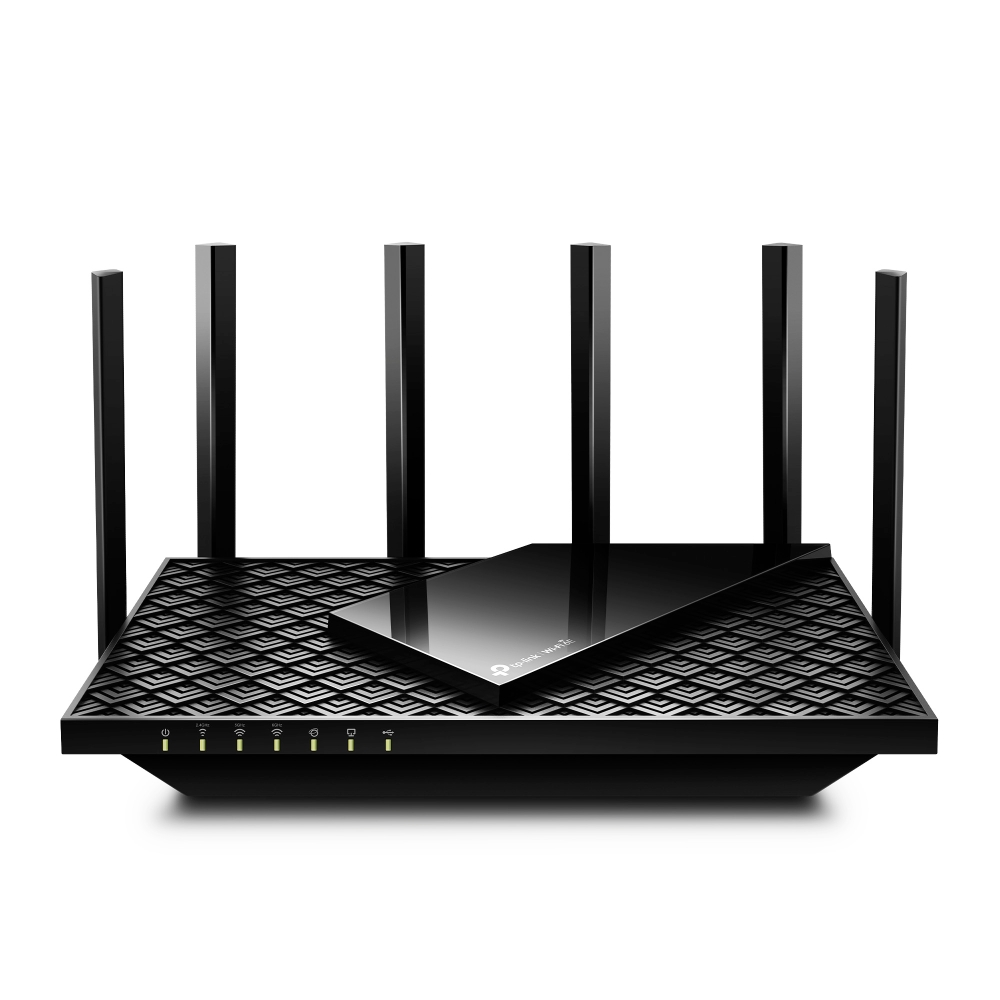

Archer AXE75

Hot Buys

AXE5400 Tri-Band Gigabit Wi-Fi 6E Router

  • AXE5400 Tri-Band – AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.
  • Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.
  • SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0.
  • Wi-Fi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
  • HomeShield – Customize your home network with enhanced security and control.*
  • OneMesh – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
  • Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
  • Ultra-Low Latency—Enables more responsive gaming and video chatting.
  • Compatible with Alexa Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Reaching New
Peaks of Performance

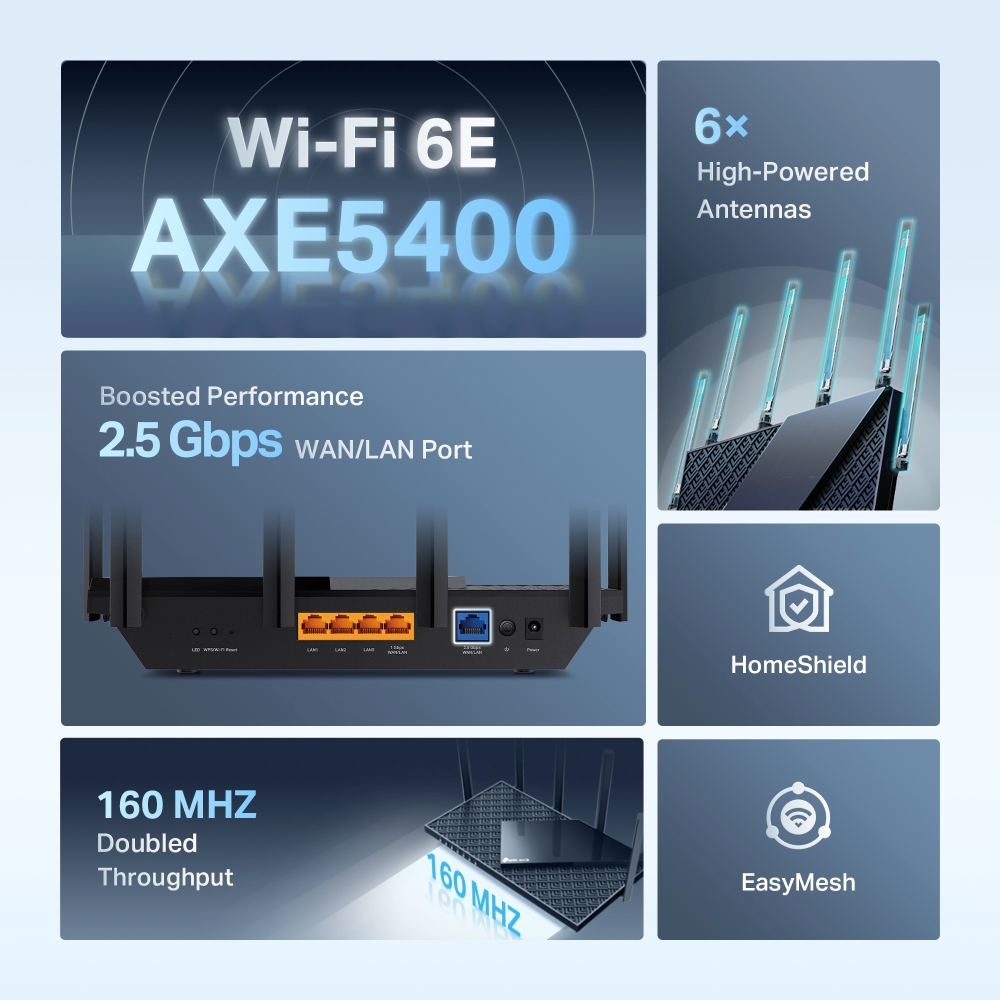

Archer AXE75

AXE5400 Tri-Band Wi-Fi 6E Router

Wi-Fi 6E

AXE5400

160 MHZ

Doubled

Throughput

512 MB  RAM

Premium WiFi 6E

High-Powered

Antennas

Full Gigabit Ports

USB 3.0 Port

HomeShield

OneMesh™

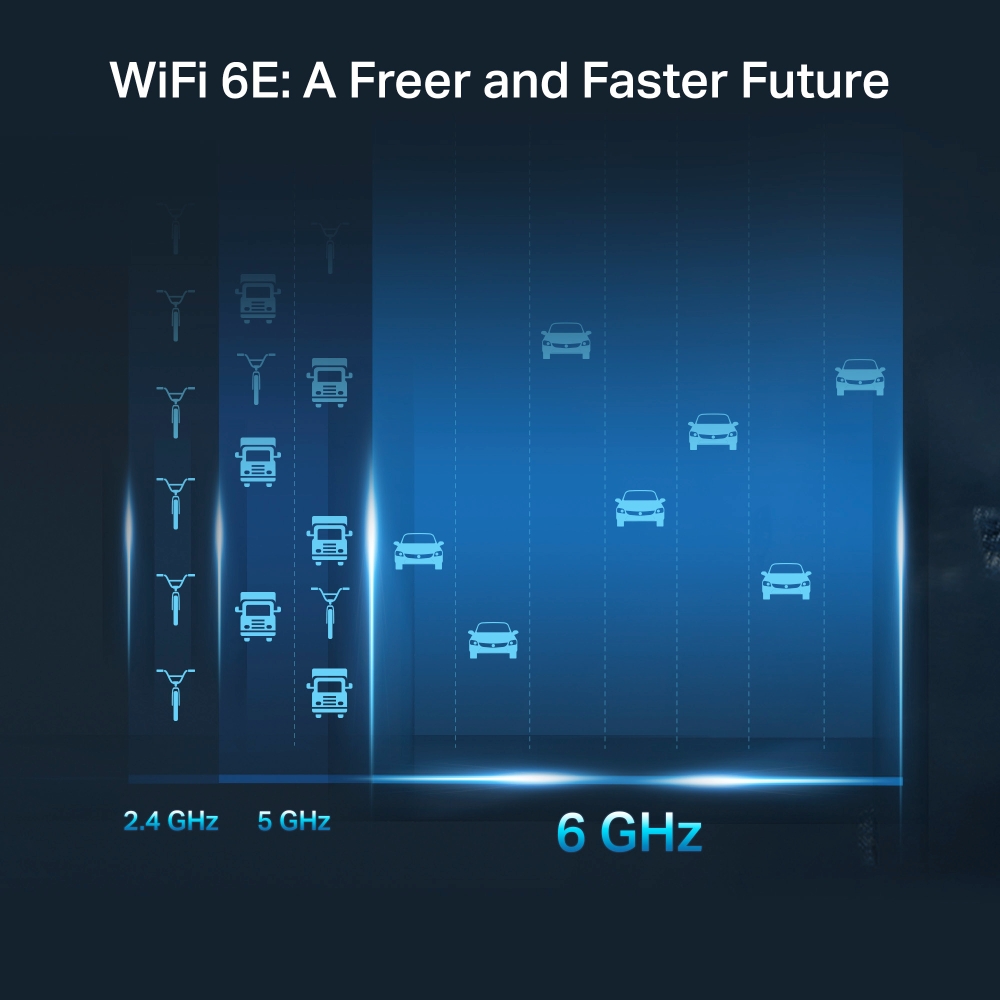

WiFi 6E: A Freer and Faster Future

WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.

Maximize All Your Device Speeds

Archer AXE75 provides WiFi speeds up to 5400 Mbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

AX3000 Wi-Fi 6 Router 2976 Mbps

Archer AXE75 5378 Mbps

2× Faster

More RAM, Better Processing

With an advanced chipset and high memory, experience fast connections with minimal latency even under heavy loads. Every click and tap on your laptop or phone responds quicker.

  • 1.7 GHz

    64-Bit Quad-Core CPU

  • 512 MB

    High-Speed Memory

Connect More Stay Fast

The number of IoT devices today creates greater demands on home WiFi. Archer AXE75 future-proofs your home network with a much higher capacity of devices. OFDMA and other advanced tech cut down the clutter throughout your frequency bands, eliminating latency and jitter.

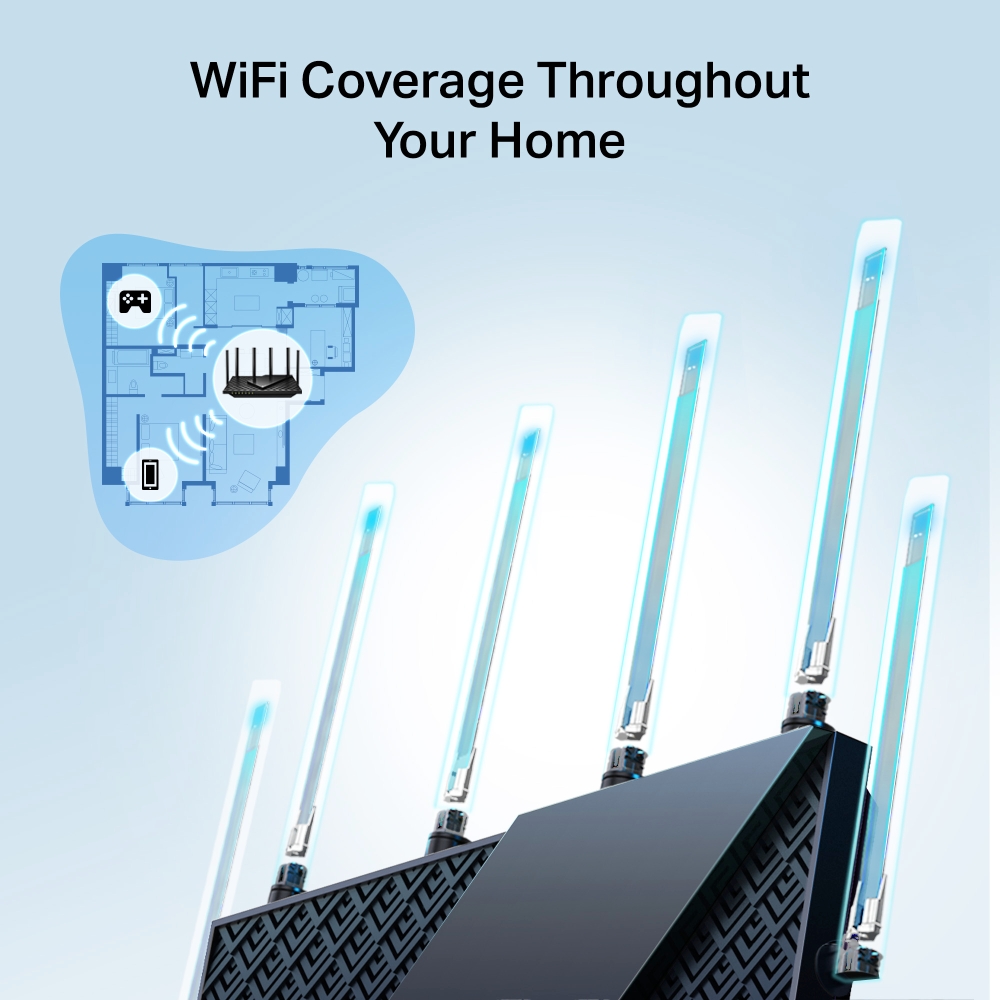

WiFi Coverage Throughout Your Home

6× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.

USB 3.0

Easily share files between connected devices with an external drive. Or create your own personal cloud storage for simple, secure access from anywhere.*

TP-Link OneMesh™
Flexibly Create Whole Home WiFi with Archer AXE75

OneMesh™ is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching for a stable connection.

  •

    WiFi Dead Zone Killer

    Eliminate weak signal areas with WiFi coverage for the whole house

  •

    Smart Roaming

    Uninterrupted streaming when moving around your home

  •

    One WiFi Name

    No more switching WiFi network names

  •

    Unified Management

    Manage your whole home WiFi from the central node via the Tether app/Web UI

TP-Link HomeShield:
Advanced Security for Your Everyday Devices

With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.

  • Home Network Scanner

    Real-time network scanner to detect potential threats and security issues.

  • Parental Controls

    Manage time online and block inappropritate content keeping your family safe online.

  • Quality of Service

    Assign your favorite devices to have the fastest connections for top performance.

Upgrade to HomeShield Pro

(Subscription fees apply)

  • DDoS Attack
    Prevention

  • IoT Device
    Protection

  • Advanced Parental
    Controls including
    Time Rewards

  • 1-Month
    Free Trial

WPA3: Stronger Security for Your Network

The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network**.

  •

    Brute-Force Attack Protection

  •

    Stronger WiFi Encryption

  •

    (IoT looks off) Add Devices Safely

Easy Setup and Use

Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AXE75 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.

Protect Your Children

Block inappropriate content for your children, and customize a time range for better online habits.



New Connection Notification

You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.



Easy Firmware Upgrade

Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.


WIRELESS
Standards IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz,
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AXE5400
6 GHz: 2402 Mbps (802.11ax)
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 2-3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 6 GHz Guest Network,
1× 5 GHz Guest Network,
1× 2.4 GHz Guest Network
VPN Server OpenVPN Server
PPTP VPN Server
L2TP VPN Server
VPN Client Open VPN Client
PPTP VPN Client
L2TP VPN Client
WiFi Encryption WPA,
WPA2,
WPA3,
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor 1.7 GHz Quad-Core CPU

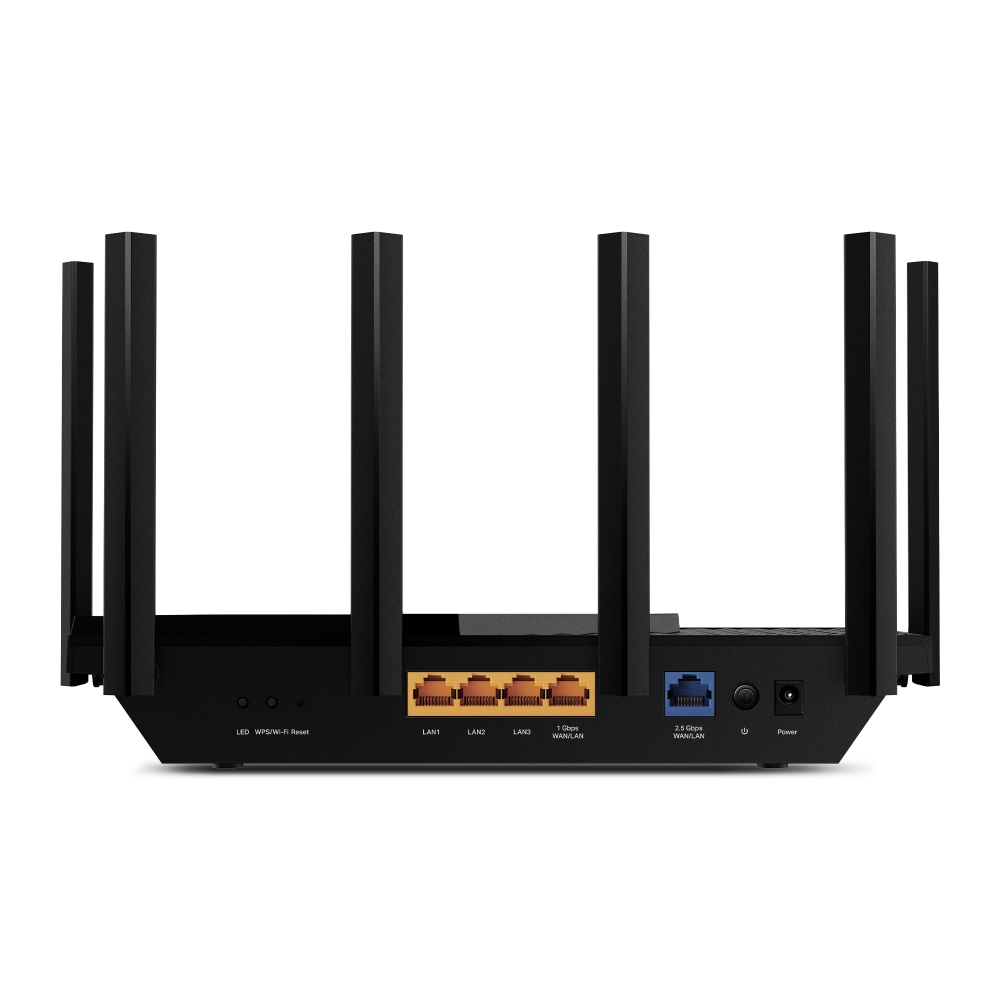

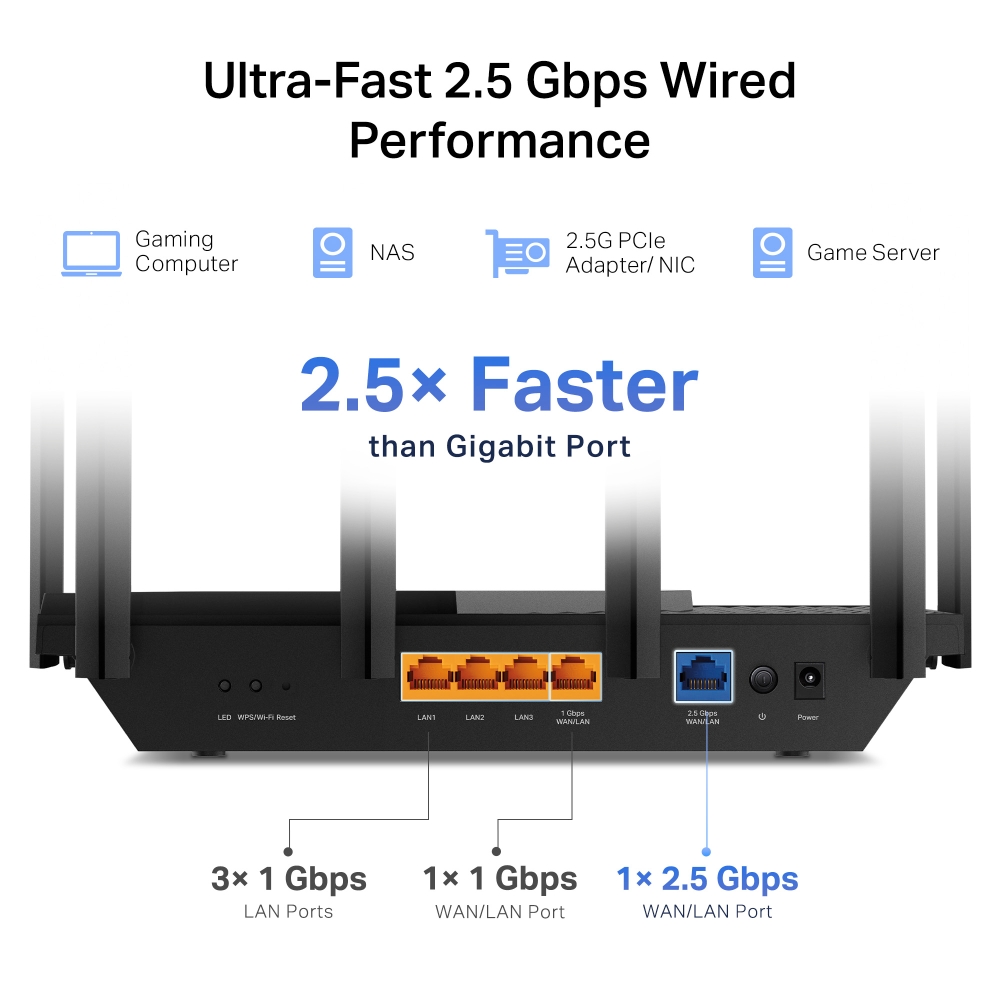

Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
USB Support 1× USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ⎓ 2.5 A
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
TEST DATA
WiFi Transmission Power FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz)
CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)
WiFi Reception Sensitivity 2.4 GHz:
11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm
5 GHz:
11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm
11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm
11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm
6 GHz:
11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm
11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm
PHYSICAL
Dimensions (W×D×H) 10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm)
Package Contents Wi-Fi Router Archer AXE75
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, 1024-QAM, and HE160 require clients to also support the corresponding features. Seven 160MHz channels may not be all available in the 6 GHz band in some regions/countries due to regulatory restrictions.

Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors.

*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.

**Use of WPA3 requires clients to also support the corresponding feature.

*** This router may not support all the mandatory features as ratified in IEEE 802.11ax specification.

****Further software upgrades for feature availability may be required.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
