TL-PA8010 KITEnd of Life
AV1200 Gigabit Powerline Starter Kit
- HomePlug AV2 standard compliant*
- Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connections
- Gigabit port provides secure wired networks for desktops, smart TVs or games consoles
- Plug and play, no configuration required
- Patented Power-Saving Mode automatically reduces power consumption by up to 85%**
Perfect for Bandwidth Demanding Activities
Advanced HomePlug AV2 technology means the TL-PA8010 KIT supports 2x2 MIMO* , delivering ultra-fast* data transfer speed. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously*, online gaming and large file transfers.
*The MIMO functionality within HomePlug AV2 significantly improves data transfer rates especially during peak periods.
MIMO Technology maximizes the performance on the independent streams, which improves coverage* throughout the home, particularly for previously hard to reach outlets.
Long Distance Long Distance
Higher Transmission Capacity & More Stable Connections
MIMO Technology means the TL-PA8010 KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.
- Neutral Wire
- Line Wire
- Ground Wire
MIMO - Multi-input Multi-output
SISO - Single-input Single-output
for Ultra-fast Data Transfer
With one Gigabit Ethernet port, TL-PA8010 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA8010 KIT the perfect home entertainment companion.

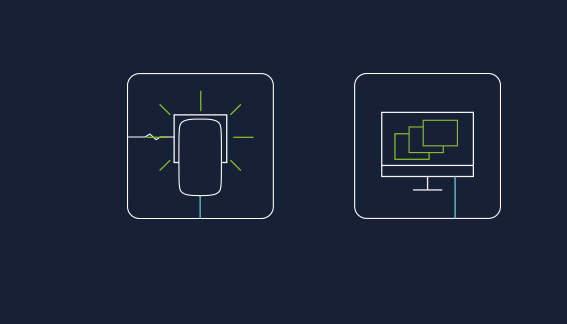

Plug and Play,
No Configuration Required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!
Power Save by Up to 85%
TL-PA8010 KIT is a new-generation of Powerline adapter.
Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.
- Working mode
- Power-Saving mode
|Standards and Protocols||HomePlug AV2, HomePlug AV, IEEE 1901,
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
|Interface||1 * Gigabit Ethernet Port|
|Power Consumption||Maximum: 5.7W Typical: 4.7W Standby: 1.4W|
|LED Indicator||PWR, PLC, ETH|
|Dimensions ( W x D x H )||4.85*2.68*1.18 in. (123*68*30 mm)|
|Range||300 Meters over electrical circuit|
|Modulation Technology||OFDM (PLC)|
|Encryption||Powerline Security: 128-bit AES
|Certification||FCC, RoHS, UL|
|Package Contents||Powerline Ethernet Adapter
6.5 ft. (2 m) CAT.5eEthernet cable (RJ45)
Quick Installation Guide
|System Requirements||Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux|
|Environment||Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
*The terms “AV1200” and “1200Mbps” are derived from applicable specifications and refer to the theoretical maximum physical-layer data transfer rate. Those terms are used on this product solely to indicate its compatibility with other “AV1200” or “1200Mbps” powerline devices. Actual data speeds vary and may be limited by the product’s Ethernet port and other network conditions such as data traffic, electrical noise, and wiring issues. For better performance, powerline devices should be deployed on the same electrical circuit and rated for the same HomePlug standard. A minimum of two powerline devices are required to establish a powerline connection. If you are uncertain about your network conditions, you should consult an IT professional to assist in selecting a networking product.
**Actual power saved varies based on network conditions and environmental factors.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
