Troubleshooting guide of no internet access with TP-Link Wireless 4G LTE Router working as 3G/4G Router Mode

Troubleshooting
Updated 11-19-2021 10:05:42 AM 16175
This Article Applies to:

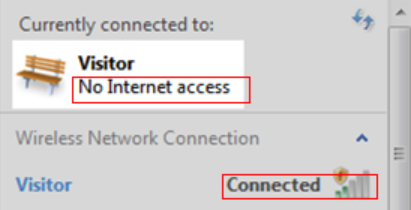

Note: This article is applied in the following situation: you can connect to the wireless network of 4G LTE Router, but none of your devices can get internet access and you might see the following icon on your computer.

https://static.tp-link.com/image001_1559208240412f.png

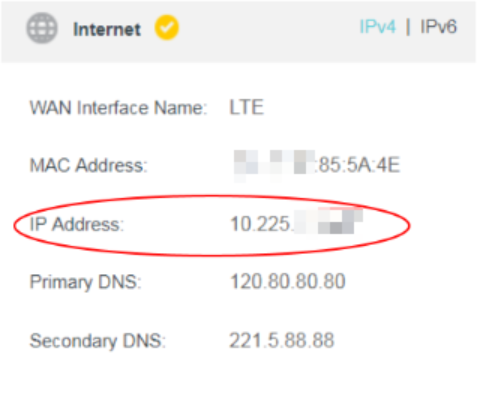

Preparation: Refer to this FAQ to log in to the web interface->check the IP address in the Internet window on Status page under Advanced.

https://static.tp-link.com/image002_1559208261176g.png

Case 1. If the Internet IP Address is 0.0.0.0

If the IP address is 0.0.0.0, it means the router is not connected to the internet yet. The reason can be that the SIM card’s supporting BAND is not the same as this router’s or the router’s pre-configured APN profile doesn’t match with your SIM card etc.

Solution

1: SIM card’s supporting band doesn’t match with the router

The phenomenon can be that SIM card has been detected but Network Type shows “No Service” on the Status page.

Solution: Make sure the SIM card itself works fine on another 4G router or your phone. Reset the router to factory defaults by holding the reset button for about 10s. If still the same, check with your SIM card carrier to confirm the Network Type and Band supported by the SIM card, then you may compare them with Network Type and Band supported by the 4G router displayed on our Official Web Site (Use Archer MR200 as an example).

2. The SIM Card is locked by PIN code.



Solution: Enter the PIN code of your SIM card to unlock it, you have three chances of mistyping it, if you are not sure about it, contact your SIM card carrier to confirm it.

3: The router’s pre-configured APN profile doesn’t match with your SIM card

APN profile of known carriers are pre-configured in the router, but sometimes, your carrier may change their APN without our notice, or the carrier may have different APN profiles for different SIM card packages

Solution: Choose other available profiles in the Profile Name list or create a profile manually.

If there are no other available profiles, the following information will be needed to create a profile manually, if you are not sure about it, contact your SIM card carrier to confirm it:

After you do the above troubleshooting, if still no internet access, you may update the firmware to the latest one for a try, please refer to this FAQ.



Case 2. If the IP address is NOT 0.0.0.0

If the IP address is not 0.0.0.0, then the reason you don’t have internet access may be DNS, unstable 3G/4G network etc. Please refer to the following instruction to do troubleshooting.

Solution

1: Unstable 3G/4G network.

Solution:  make sure that the SIM card is working properly when it’s inserted in your phone at the same place.

2: DNS problem.

Sometimes, the default DNS server assigned by the SIM card carrier might not work due to some unclear reasons.

Solution: go to Advanced->Network->LAN Settings, change “Primary DNS” to “8.8.8.8”, change the “Secondary DNS” to  “8.8.4.4”, then save it.

After you do the above troubleshooting, if still no internet access, you may update the firmware to the latest one for a try, please refer to this FAQ.

To get to know more details of each function and configuration please go to Download Center to download the manual of your product.
