Archer AX90

New

AX6600 Tri-Band Wi-Fi 6 Router

  • Faster AX6600 Tri-Band Wi-Fi - 4804Mbps (5 GHz) + 1201Mbps (5 GHz) + 574Mbps (2.4 GHz).
  • Ultra Connectivity - 1×2.5Gbps WAN/LAN port + 1×1Gbps WAN/LAN port + 3×Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.
  • Maximized Coverage - Eight high-gain antennas equipped with Beamforming ensure vast coverage.
  • More Devices with Less Lag - OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.
  • TP-Link HomeShield - Enhanced security defends against the latest cyber threats.*
  • Powerful CPU - 1.5GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
  • Refined Security—WPA3 reinforces Wi-Fi encryption for improved security.**
  • What is Wi-Fi 6?

Faster. Broader. Unstoppable.

AX6600 Tri-Band Gigabit Wi-Fi 6 Router
Archer AX90 WiFi 6

Upgrade Your WiFi to 6

Ideal for Your Latest Phones and Laptops

The new generation of phones—such as iPhone 11, Galaxy Note 10, and Galaxy S10—and laptops already support WiFi 6, with many more on the way. Your router should, too. WiFi 6 holds great promise to future-proof your home network for the next several years. Now is the best time to embrace this new technology.

Why Upgrade to WiFi 6?

  •   4× Larger
    Capacity
  •   3× Faster
    Speed
  •   Save Devices’
    Power
  •   Backwards
    Compatible

Powerful and Exquisite

Combining Tri-band WiFi with high-tech WiFi 6, Archer AX90 provides eight simultaneous data streams to open up more bandwidth and help your devices operate at full speed. Eight high gain antennas not only deliver boosted WiFi signals to every corner of your home, but also bring a sense of aesthetics.

  •
    Tri-Band
  •
    8 Streams

Go Faster—
Wired or Wireless

In addition to stunning wireless speeds of more than 6.6 Gbps, AX90 also provides premium wired connections. A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s needs.

Your Security is Our Priority

HomeShield
Let the Experts Secure Your Home

Customize your home network with enhanced security using TP-Link HomeShield's kit of built-in features. Whether you're identifying network security holes, limiting the time your children spend online, or blocking websites, HomeShield gives you the tools you need to fully manage your network.

Discover More about HomeShield


Home Network Scanner

The security threats to your home network are continually evolving as your WiFi usage grows. HomeShield provides a home network scanner for your private WiFi to detect potential threats and alert you of security issues.


Parental Controls

Whether you want to block inappropriate websites, set daily limits for the total time spent online, see which sites your kids are using, or pause the internet, you can do it with parental controls—all from the convenience of an app.


Quality of Service

Choose devices or activities you want to prioritize on your network with Quality of Service (QoS). In just a few taps, make sure your laptop or movie stream is first in line for WiFi or Ethernet.

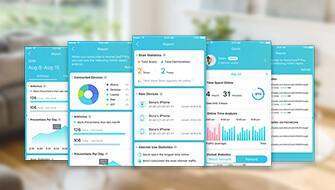

Comprehensive Reports

HomeShield constantly monitors your home network security, keeps an eye on your WiFi usage, and generates weekly and monthly reports. This helps you gain insight and better control of your home network.

WPA3—Stronger Security for Your Network

Building on the widespread adoption of WPA2, the latest WPA3 brings new capabilities to improve cybersecurity.

Discover More about WPA3

  •   Protection against Brute-Force Attacks
  •   Improved Systems for Adding Devices
  •   Stronger Wi-Fi Encryptions

TP-Link OneMesh™ :
Flexibly Create Whole Home WiFi with Archer AX90

OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless wholehome coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.

Learn More about OneMesh™ >>



Wi-Fi Dead-Zone Killer

Eliminate weak signal areas with Wi-Fi coverage for the whole house



Smart Roaming

Uninterrupted streaming when moving around your home



One Wi-Fi Name

No more switching Wi-Fi network names



Unified Management

Manage the whole-home Wi-Fi by managing the central node via Tether app/Web UI

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6600
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz-1 Guest Network
1× 5 GHz-2 Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
VPN Client • Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor 1.5 GHz Quad-Core CPU
Ethernet Ports 1× 2.5 Gbps WAN/LAN Port
1× 1 Gbps WAN/LAN Port
3× 1 Gbps LAN Ports
USB Support 1× USB 3.0 Port
1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ⎓ 3.3 A
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<24dBm{5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity 2.4GHz:
11n HT20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS11:-62dBm
5GHz-1:
11ac VHT20 MCS0:-92dBm
11ax HE20 MCS11:-61dBm
11ax HE40 MCS11:-58dBm
11ax HE80 MCS11:-55dBm
5GHz-2:
11ac VHT20 MCS0:-95dBm
11ax HE20 MCS11:-61dBm
11ax HE40 MCS11:-58dBm
11ax HE80 MCS11:-55dBm
11ax HE160 MCS11:-53dBm
PHYSICAL
Dimensions (W×D×H) 12.2 × 8.1 × 6.8 in
(311 × 207 × 174 mm)
Package Contents Wi-Fi Router Archer AX90
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, 1024-QAM or HE160 require clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in some regions/countries due to regulatory restrictions

§2.5 Gbps internet speeds require compatible service plans and equipment.

Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors.

*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.

**Use of WPA3 requires clients to also support the corresponding feature.

***This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11ax specification.

****Further software upgrades for feature availability may be required.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
