RE603X

New

AX1750 Wi-Fi Range Extender

  • RE603X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
  • Creates a Mesh network by connecting to a TP-Link OneMesh™ router for seamless whole-home coverage.
  • Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
  • Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
  • AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
  • TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
  • Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
  • What is Wi-Fi 6?

One Mesh

Expand Your Ultimate WiFi Experience

AX1750 WiFi 6 Range Extender

RE603X

Get More Range with Your Existing Router

A single router has limited WiFi coverage and always causes WiFi dead zones. RE603X wirelessly connects to your existing router and boosts more WiFi signals throughout your home, allowing you to enjoy smooth WiFi 6 network experiences everywhere with great speed, capacity, and coverage.

WiFi 6: More Connections with Better Performance

The latest Wi-Fi 6 technology is built for today’s devices, eliminating lag, endless loading, and dead spots. It fully satisfies your network needs especially for bandwidth-intensive tasks like cloud gaming or 4K UHD video.

  •
    Higher Speed
  •
    Larger Capacity
  •
    Ultra-Low Latency
1201Mbps
5 GHz Band
1201 Mbps
574Mbps
2.4 GHz Band
574 Mbps

AX1750 Dual Band WiFi
Meeting All Your Different Networking Needs

TP-Link OneMesh:
Optimize for Smoothest WiFi Experience

OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.

Learn more about OneMesh™

  •
    Smart Roaming
    Uninterrupted streaming when moving around your home
  •
    One Wi-Fi Name
    No more switching Wi-Fi network names
  •
    Easy Creation
    OneMesh™ Router and OneMesh™ Range Extenders pair instantly
  •
    Unified Management
    Manage the entire network all from the TP-Link Tether app
  • Traditional Router with Extender
  • OneMesh™ Router + Range Extender

Enjoy an AX Mesh Network with Your Existing Router

Want a Mesh network? Hesitating whether you should replace your current router with a new Mesh set?

1 Update your existing TP-Link router’s firmware to the OneMesh™ version—no need to replace anything.

2 Connect the RE603X to the router.

3 Enjoy your Mesh network
Router
+
RE603X
=
OneMesh
Existing Router

RE603X

Whole Home Mesh Wi-Fi

Advanced Features Made for Speed

  • Adaptive Path Selection

    Keeps your network running at top speed by automatically choosing the fastest connection path to the router.

    Without Adaptive Path Selection
    Adaptive Path Selection
    2.4 GHz
    5 GHz
    2.4 GHz
    5 GHz
    Adaptive Path Selection

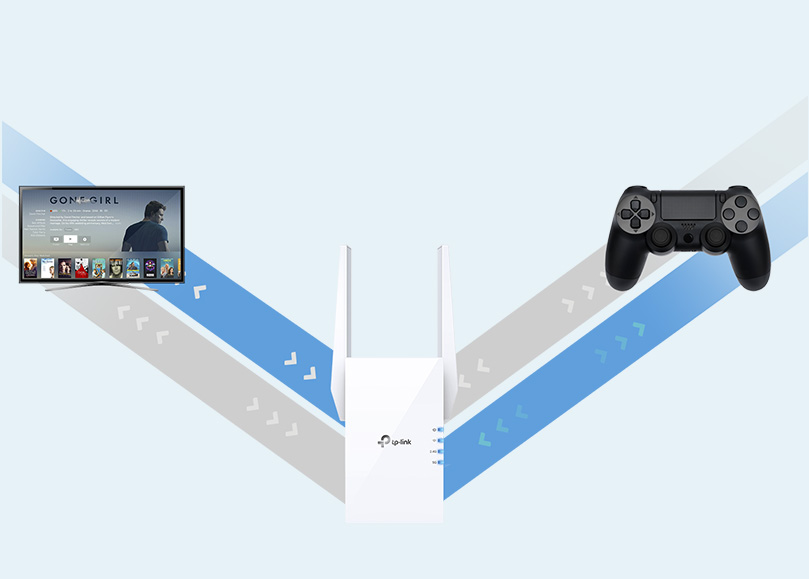

  • High Speed Mode

    Use both WiFi bands to enjoy super-fast connections—ideal for HD streaming and gaming.

    100%
    Boosted Speed
    2.4 GHz
    5 GHz
    2.4 GHz
    5 GHz
    High Speed Mode

Built-In Access Point Mode

RE603X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MU-MIMO dual band wireless access point.

Gigabit Wired Speed
  •
    4K HDTV
  •
    Game
  •
    PC
  •
    Printer
Smart Signal Indicator
Easy Installation with WPS Button

Control at Your Fingertips

Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

QRcode
App
Apple Store Google Store
HARDWARE FEATURES
Ports 1 Gigabit Ethernet Port
Button WPS Button, Reset Button
Input Power 100-240V~50/60Hz
Power Consumption 10W
Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Antenna 2 External Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
Frequency 2.4GHz and 5GHz
Signal Rate 574 Mbps at 2.4GHz, 1201 Mbps at 5GHz
Reception Sensitivity 5 GHz:
11ax HE80 MCS0: -87dBm, 11ax HE80 MCS11: -56dBm
11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm

2.4 GHz:
11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm
11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
Transmit Power CE: 2.4 GHz ≤15dBm, 5 GHz ≤21dBm
Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2-PSK encryptions
Transmission Power CE: 2.4 GHz ≤15dBm, 5 GHz ≤21dBm
OTHERS
Certification FCC, RoHS
Package Contents Wi-Fi Range Extender RE603X
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications FCC, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
