AV1000 2-port Gigabit Passthrough Powerline Starter Kit TL-PA7020P KIT

  • HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1000Mbps, supports all your online needs*
  • 2 Gigabit ports create secure wired networks for desktops or IPTVs
  • Integrated power socket ensures no power outlet goes to waste
  • Plug and play, no configuration required
  • Patented Power-Saving Mode automatically reduces power consumption by up to 85%*

AV1000 Powerline Kit

Bring Your Home Network Into New Era

HomePlug AV2

AV1000 2-Port Gigabit Passthrough

Powerline Starter Kit

TL-PA7020P KIT

1000Mbps!

Perfect for Bandwidth
Demanding Activities

Coming with advanced HomePlug AV2 technology, TL-PA7020P KIT provides users with
high-speed data transfer rates of up to 1000Mbps, which is ideal for bandwidth intensive
applications such as multiple HD/3D/4K video streaming, online gaming and large file transfers.




2 Gigabit Ports
for Maximum Connectivity

With 2 gigabit Ethernet ports, TL-PA7020P KIT can simultaneously connect up to 2
wired-only devices. This makes the TL-PA7020P KIT the perfect home entertainment
companion. Connect any 2 devices from smart TVs and games consoles to NAS boxes
and computers to the Internet at the same time. Just plug the Ethernet cable into the
powerline and away you go!

  • Game Console
  • 4K TV
  • Computer

Plug and Play,
No Configuration Required

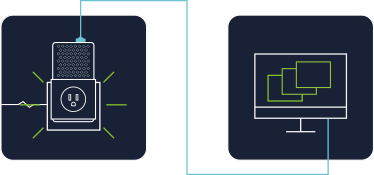

Connect a powerline adapter to the router; plug another
powerline adapter into a wall socket in another room,
and connect it to your Internet enabled device via
Ethernet - and you’re done!

Extra Power Socket for Additional Devices

Where sockets are at a premium, the TL-PA7020P KIT with an integrated AC pass-through power socket, means the powerlines can be
used like a traditional electrical socket. Plug your smart TV or games consoles into the powerlines, as if it were a normal plug socket. No
socket needs to go to waste. The built-in noise filter helps to prevent electrical signal noise from affecting powerline performance.

*Power output of up to 16A is suitable for high-power
 electrical appliances to be connected.

Power Save by Up to 85%

TL-PA7020P KIT, a new-generation of powerline adapter, with
its practical design and sophisticated Power-Saving Mode, will
automatically switch from its regular "Working" mode to
"Power-Saving" mode reducing its energy consumption by
up to 85%*

*Actual data will vary in different network conditions and environments.

85%
LESS

  • Working mode
  • Power-Saving mode

Related Products

  TL-PA8030P TL-PA8010P AV1300 Gigabit Passthrough Powerline Starter Kit TL-PA8010P KIT
HomePlug AV2 Standard
Powerline Speed 1300Mbps 1300Mbps
Ethernet Port 3 Gigabit Ports 1 Gigabit Port
Extra Power Socket
One Button Security
Power Saving Mode 85% 85%

*The terms “AV1000” and “1000Mbps” are derived from applicable specifications and refer to the theoretical maximum physical-layer data transfer rate. Those terms are used on this product solely to indicate its compatibility with other “AV1000” or “1000Mbps” powerline devices. Actual data speeds vary and may be limited by the product’s Ethernet port and other network conditions such as data traffic, electrical noise, and wiring issues. For better performance, powerline devices should be deployed on the same electrical circuit and rated for the same HomePlug standard. A minimum of two powerline devices are required to establish a powerline connection. If you are uncertain about your network conditions, you should consult an IT professional to assist in selecting a networking product.





*Actual power saved varies based on network conditions and environmental factors.





HARDWARE FEATURES
Plug Type EU, UK, FR
Interface 2 * Gigabit Ethernet Port, Power Socket
Button Pair Button
Power Consumption Maximum: 6W (220V/50Hz)
Typical: 6W (220V/50Hz)
Standby: 0.5W (220V/50Hz)
LED Indicator PWR, PLC, ETH
Dimensions ( W x D x H ) 5.2×2.8×1.7 in. (131×72×42 mm)
Range 300 Meters over electrical circuit
Power Output to Integrated Socket 16 A
SOFTWARE FEATURES
Modulation Technology OFDM (PLC)
Encryption Powerline Security:
128-bit AES
OTHERS
Certification RoHS
Package Contents Powerline Ethernet Adapter
6.5 ft. (2 m) Ethernet cable (RJ45)
Resource CD
Quick Installation Guide
System Requirements Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
