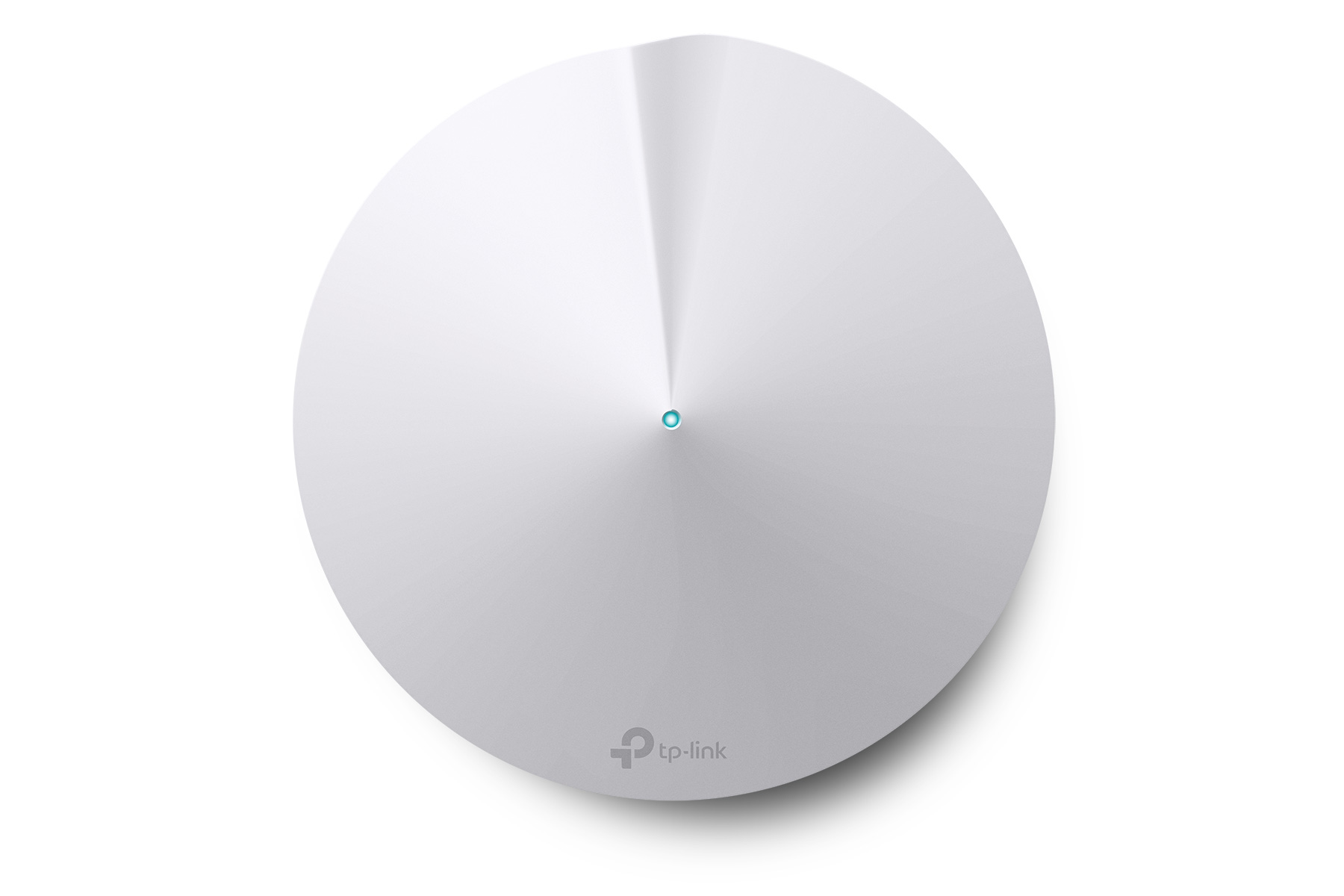

Deco M5

Hot Buys

Deco Whole-Home WiFi

  • Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
  • With advanced Deco Mesh Technology, units work together to form one unified whole-home network with the same network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.
  • A Deco M5 three-pack delivers Wi-Fi to an area of up to 5500 square feet, while a Deco M5 two-pack delivers up to 3800 square feet. And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
  • Deco M5 provides fast and stable connections with speeds of up to 1267Mbps and works with any internet service provider (ISP) and modem.
  • Deco can handle traffic from even the busiest of networks, providing lag-free connections for over 100 devices.
  • A free lifetime subscription of TP-Link HomeCareTM provides a suite of personalized and secure features, including Parental Controls, built-in Antivirus and Quality of Service (QoS).**
  • Setup is easier than ever with the Deco app there to walk you through every step.

WiFi That’s Always Strong Everywhere

Experience WiFi Like Never Before

Deco M5 uses new technology to cover your entire home in powerful WiFi. With multiple units working together seamlessly, Deco M5 creates a home network like nothing you've ever experienced.

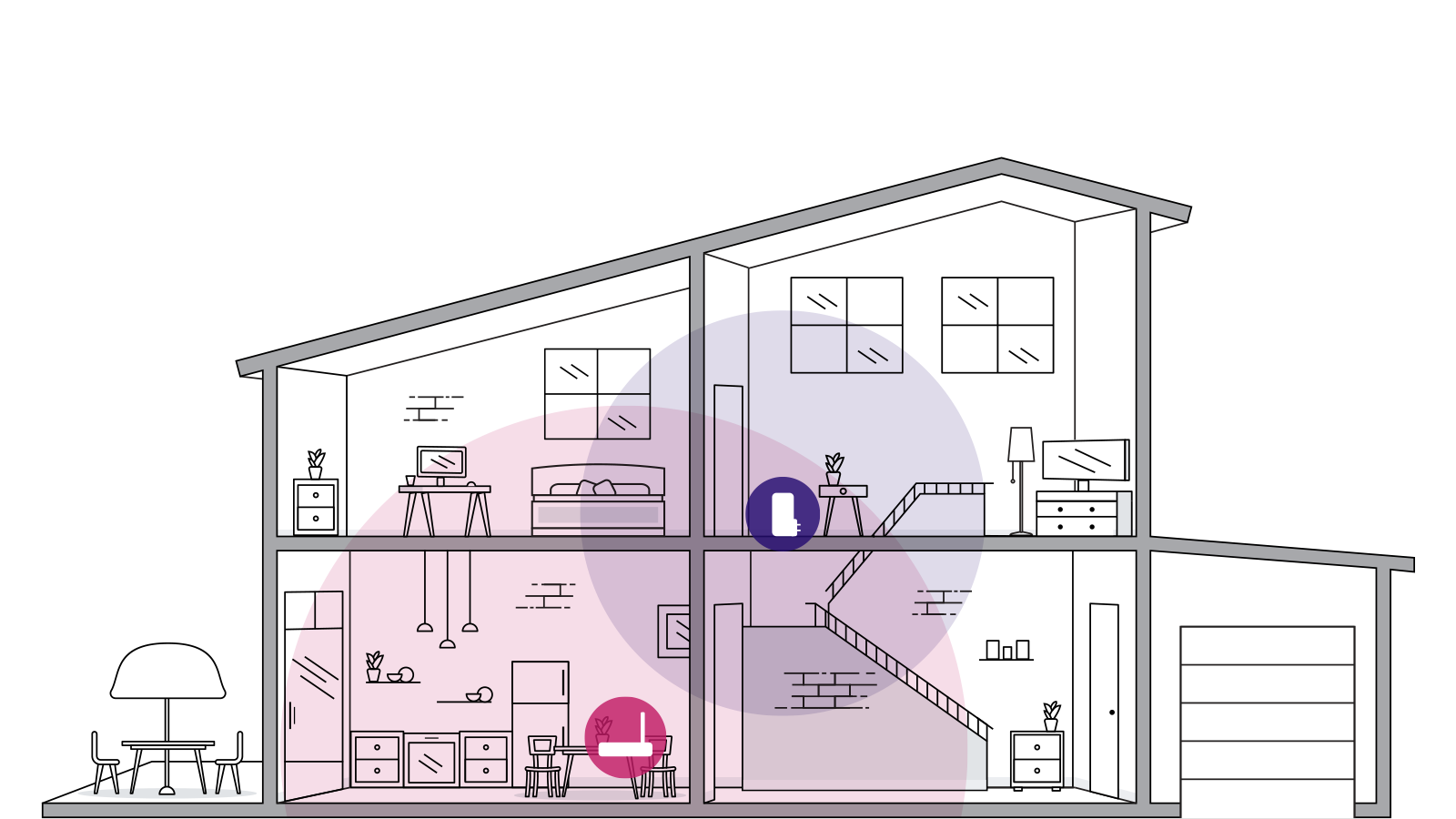

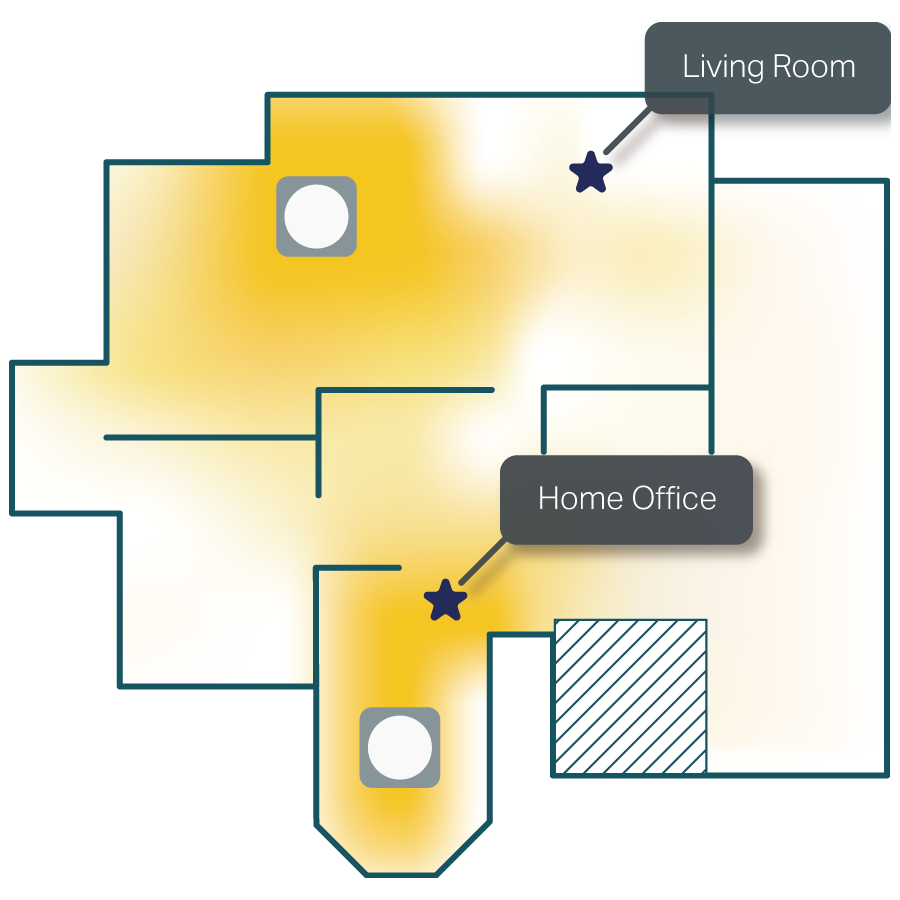

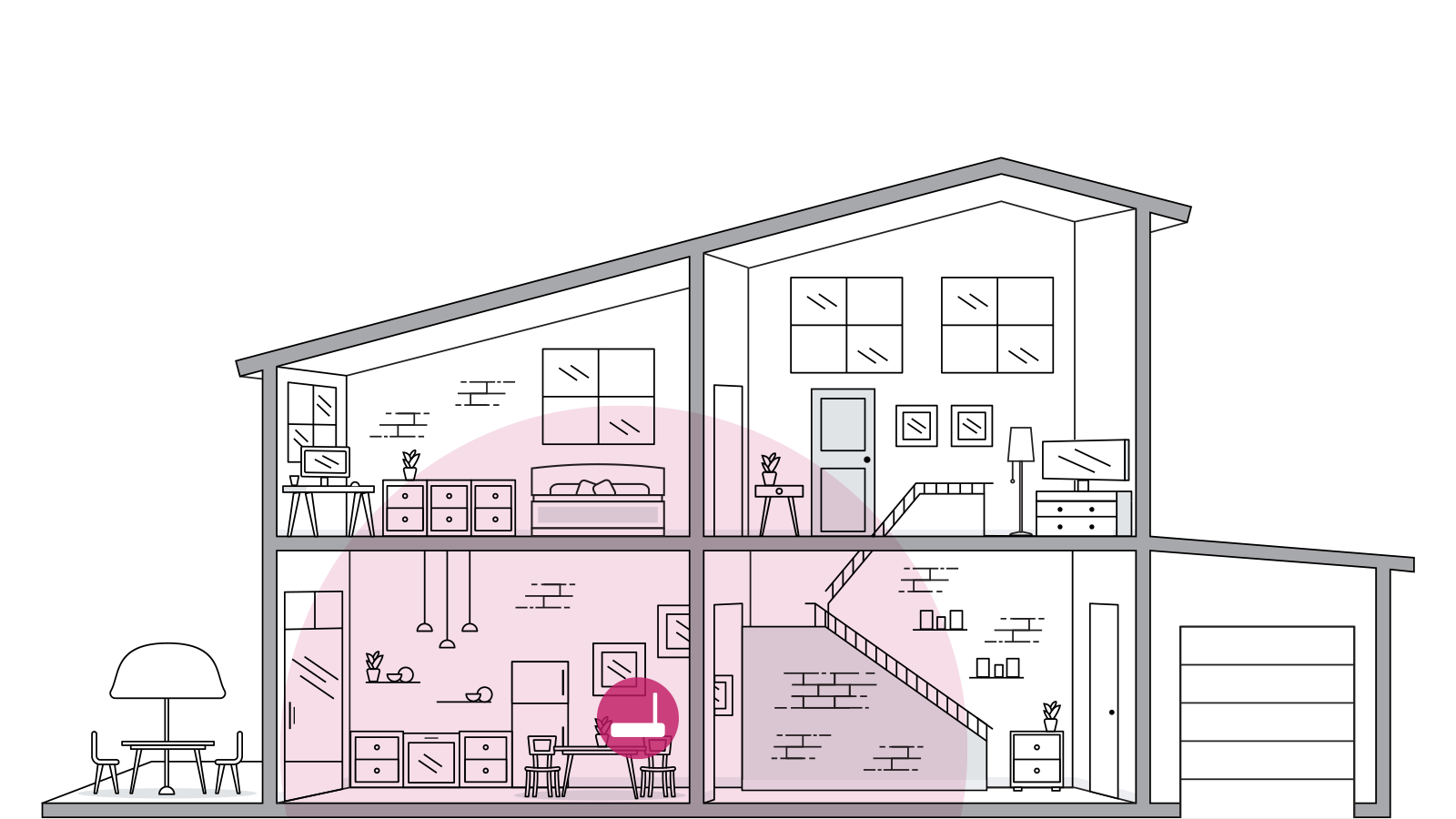

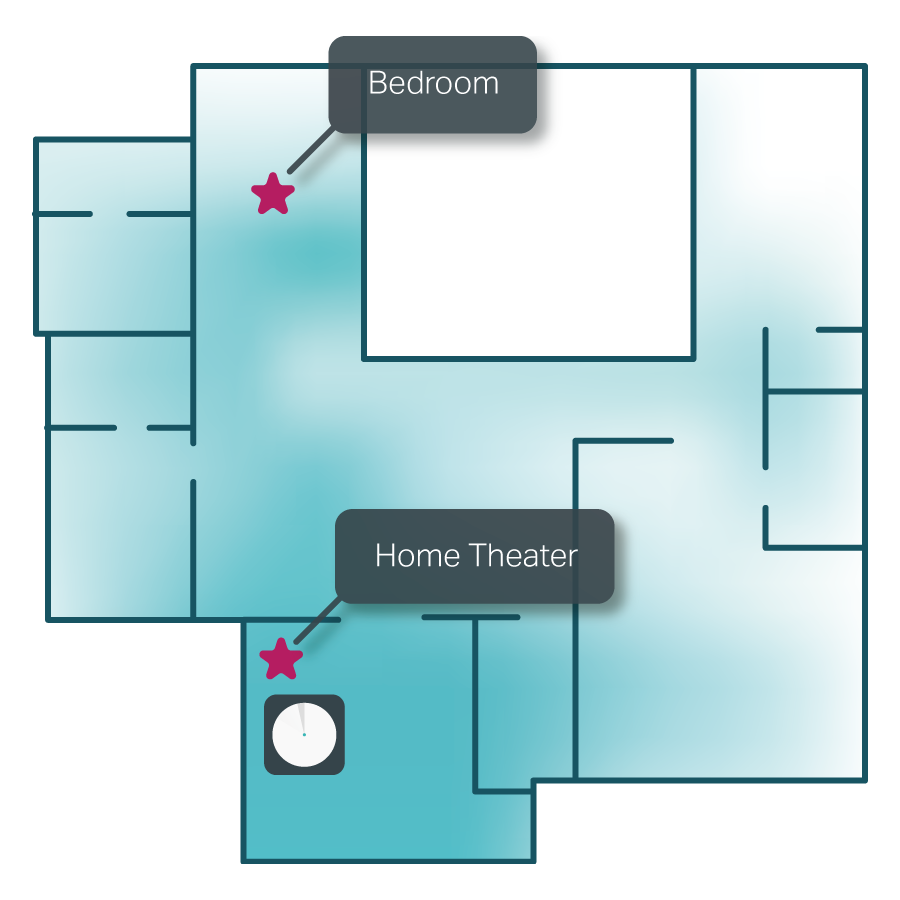

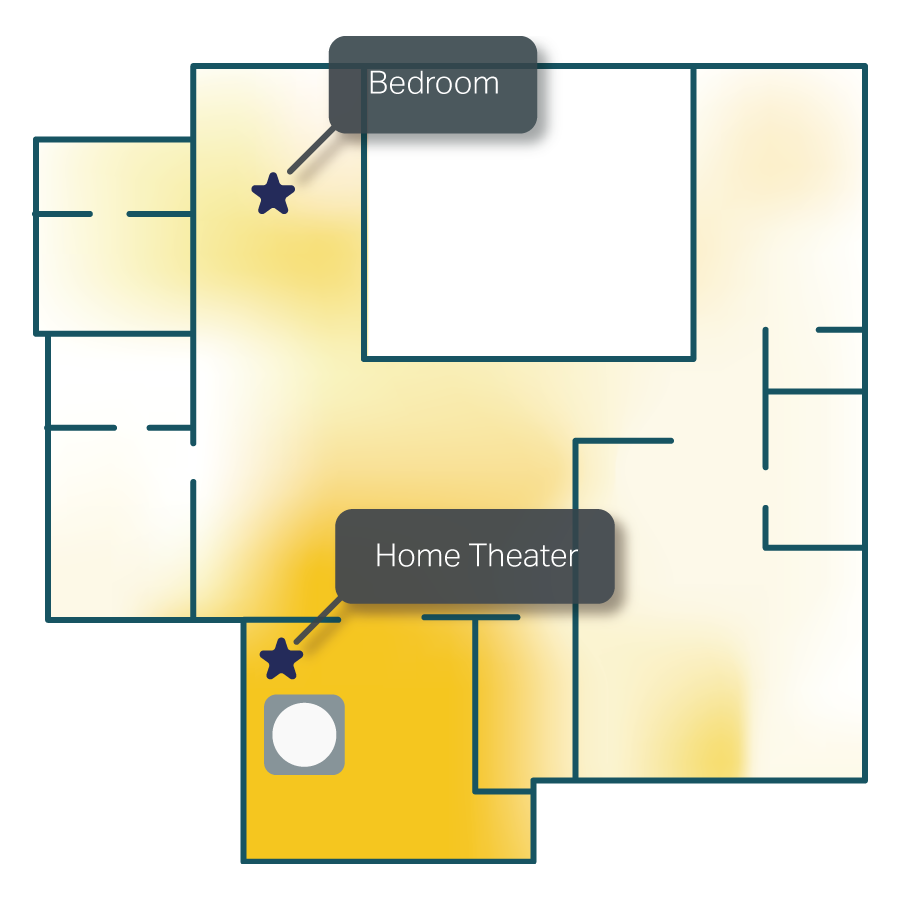

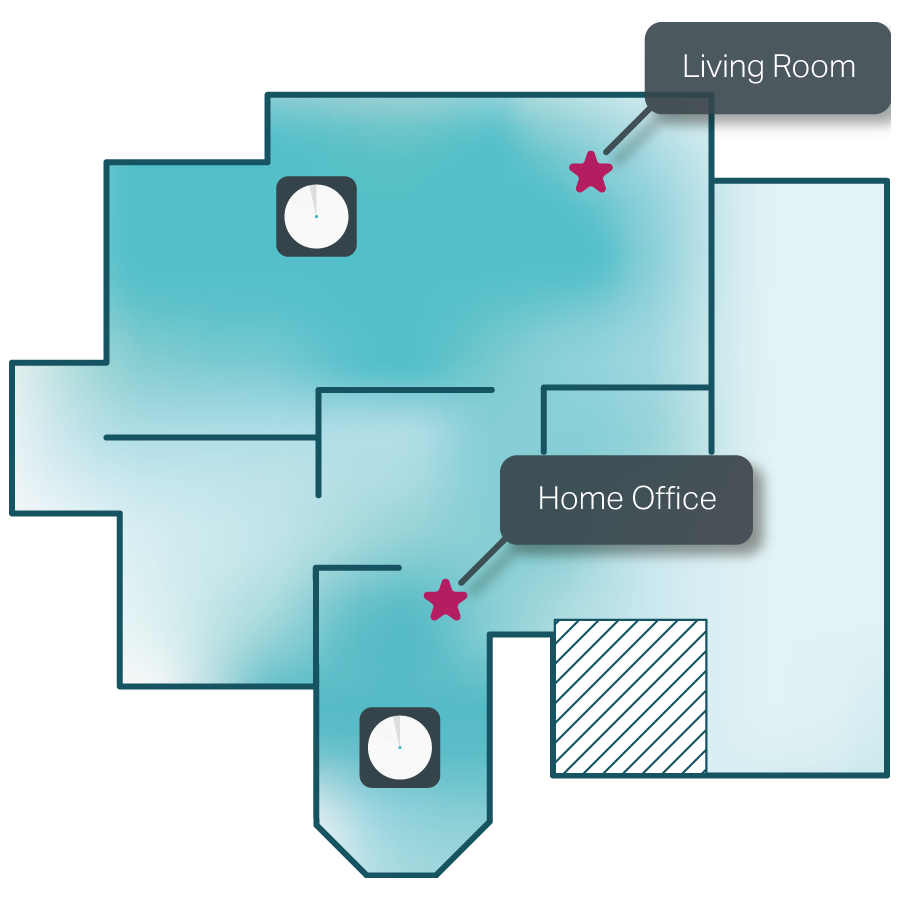

  • No More Dead Zones

    Deco M5 delivers WiFi up to 5,500 sq. ft. to cover homes of all sizes and shapes, from the corner bedroom to the backyard.*

  • High-Speed WiFi

    Every Deco unit acts like a router to keep your Wi-Fi running fast, and a Deco M5 system can keep 100-plus devices connected at once.*

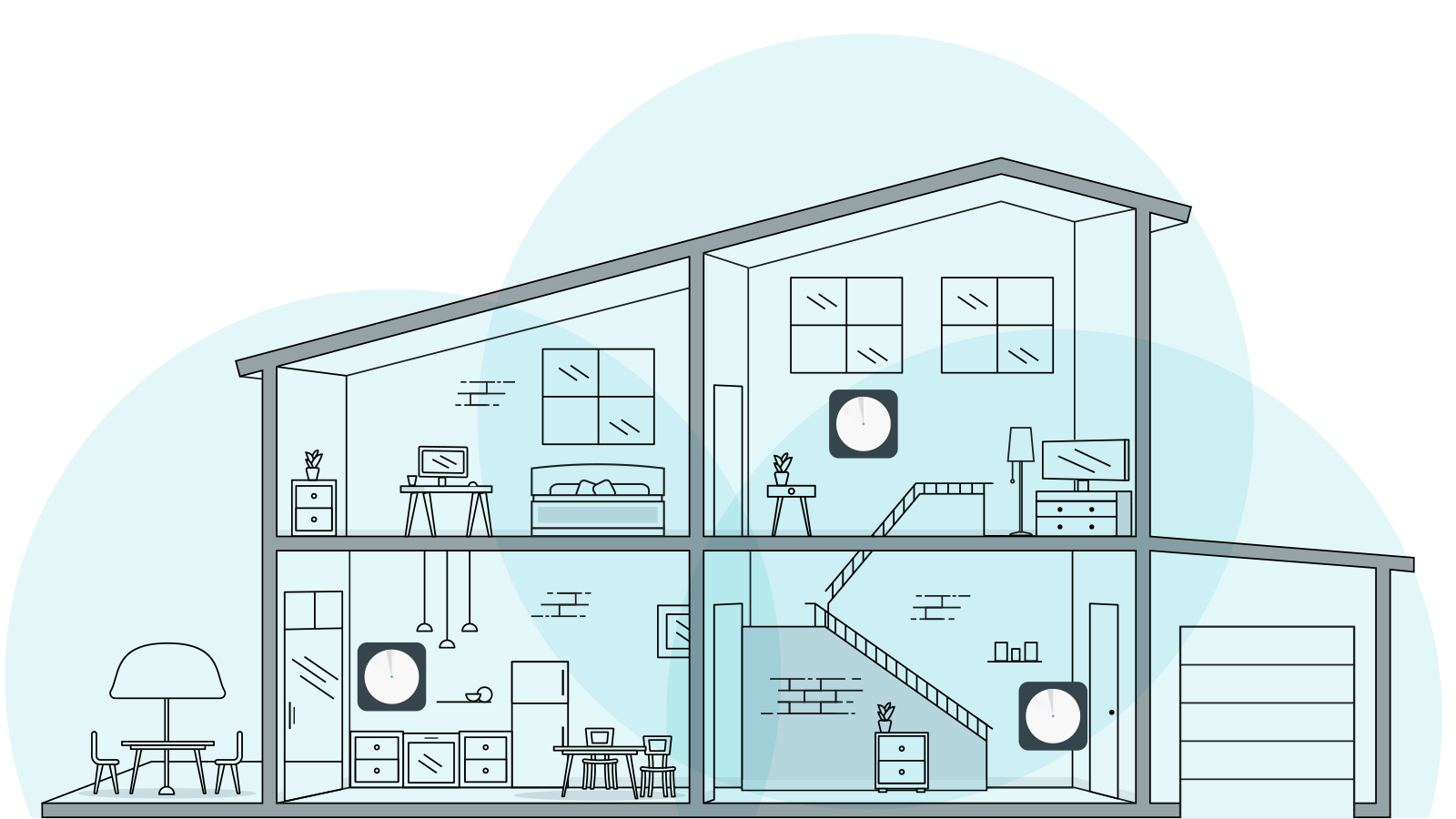

  • One Network, One Name

    With Deco M5, you can walk from room to room with your smartphone or tablet and stay connected on a single Wi-Fi network.

A More Secure WiFi System

Deco M5 protects your personal data and every connected device from online threats like viruses and malware. The system also makes it easy to customize WiFi access for guests and family.

  •   Advanced
    WPA2 Security
  •   Antivirus Powered
    by HomeCare**
  •   Robust Family
    WiFi Controls

WiFi Made Easy

  • Hands-Off WiFi

    Deco M5 adjusts automatically to give you the best connections when you add devices or walk around the house.

  • App-Based Setup

    Set up in minutes through the Deco app, and never fear—Deco M5 works with any modem or ISP.

  • Voice Control

    When paired with Alexa, you can control Deco M5 with simple voice commands.

  • Easy Management

    In just a few taps, monitor and manage your WiFi settings at home or away with the Deco app.

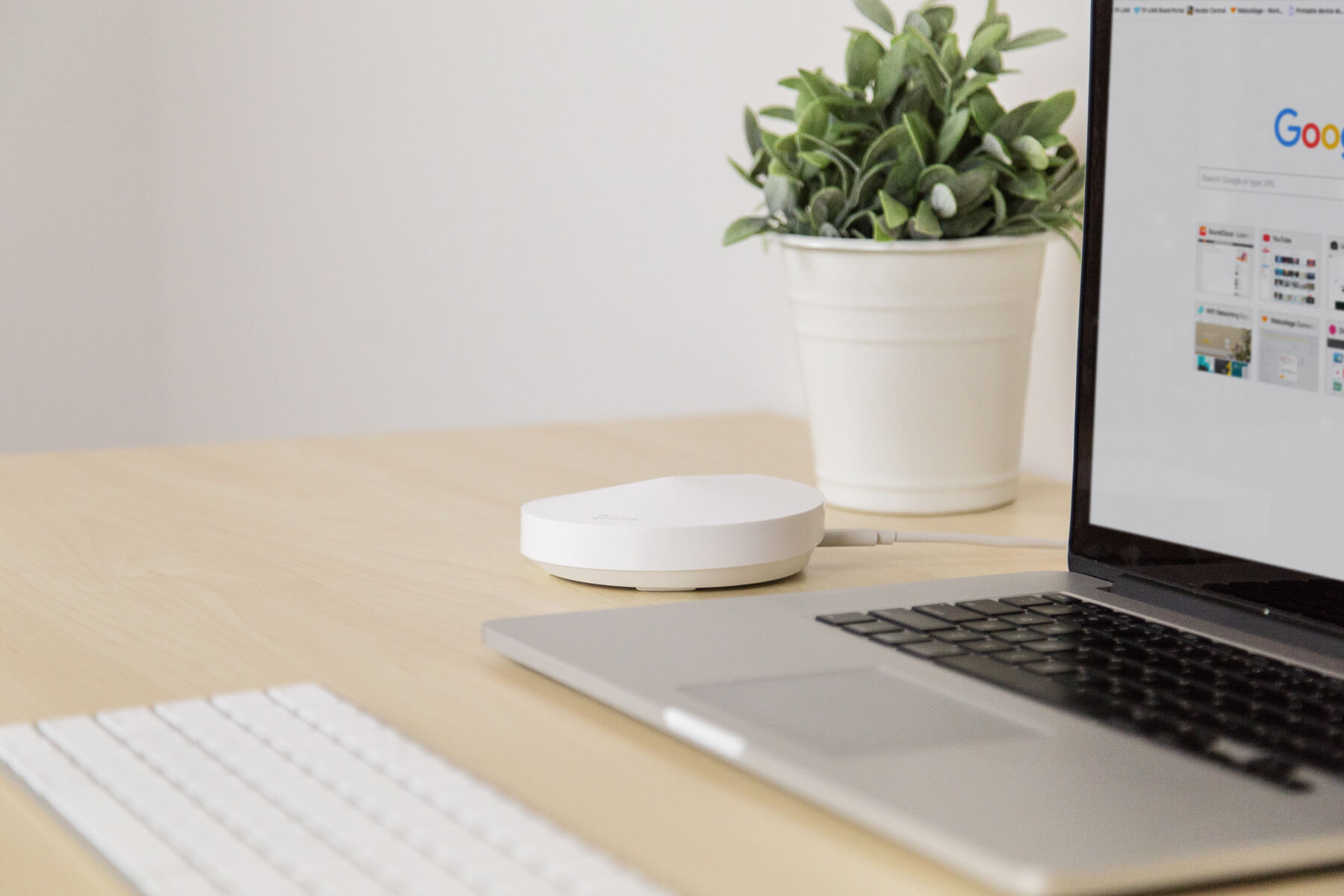

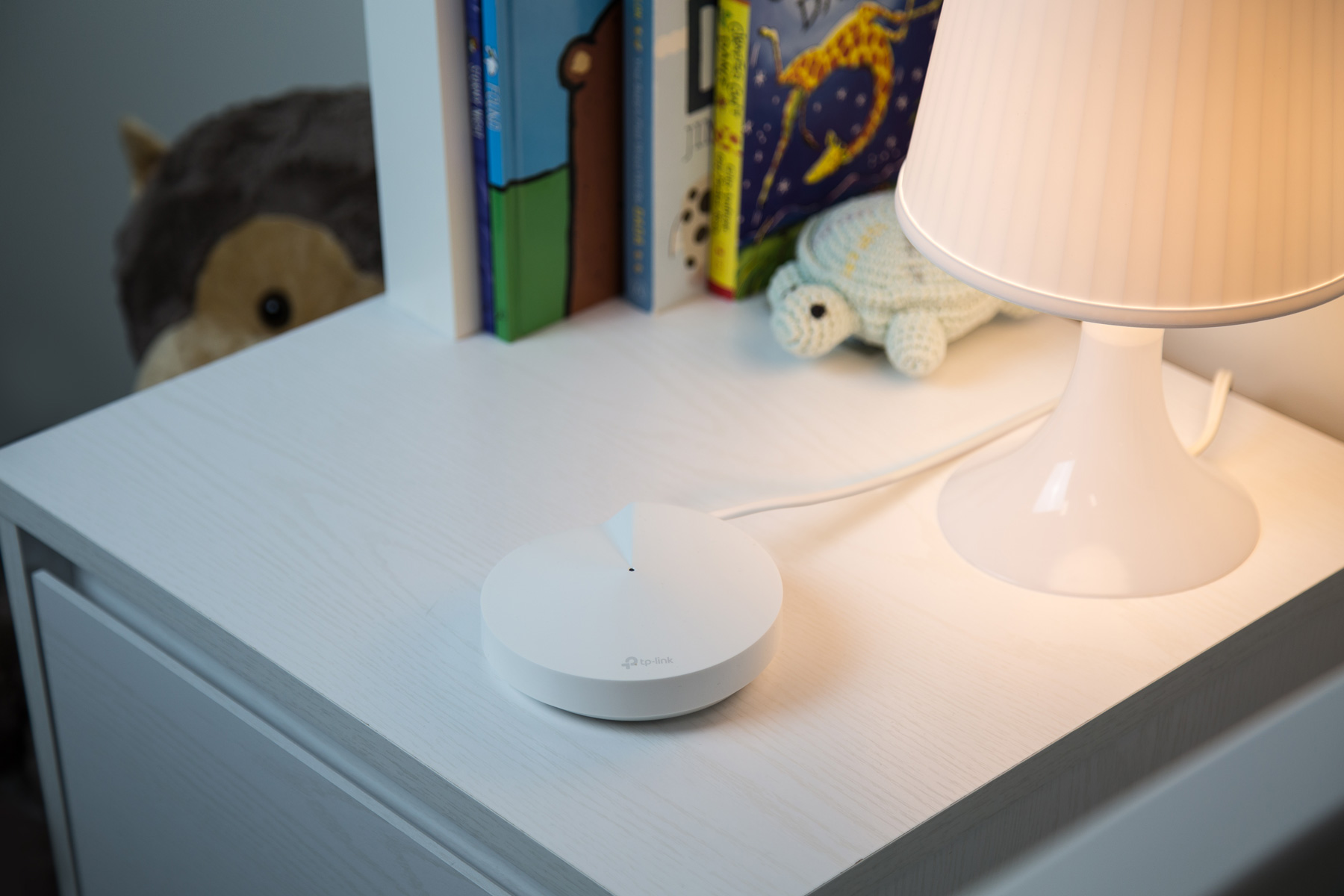

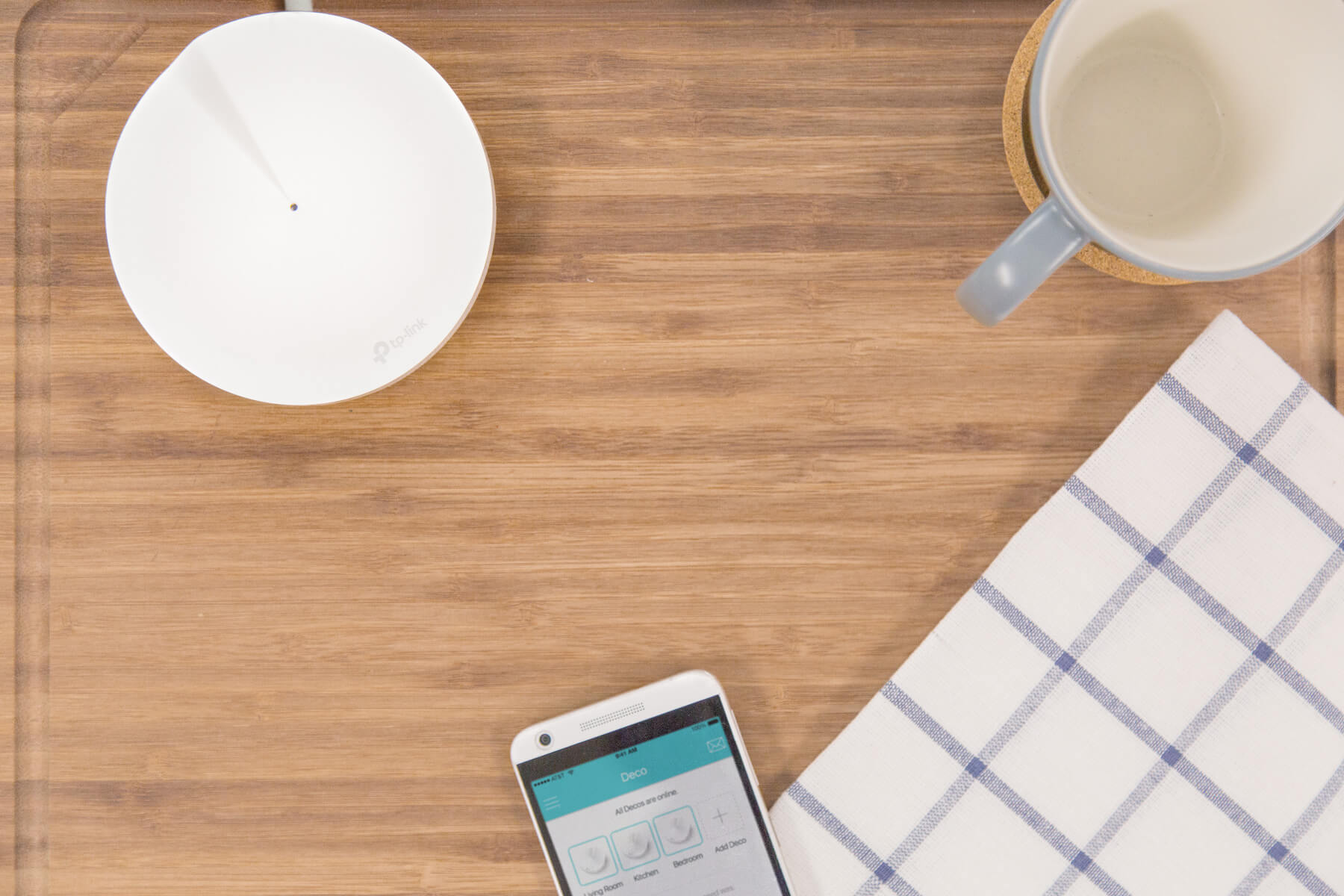

Looks Good Wherever It Goes



*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Capability to connect 100 devices is based on testing using a mixed combination of devices. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.

**Free lifetime subscription to TP-Link HomeCare™ is included with purchase on select TP-Link routers at no additional cost. “Lifetime Subscription” refers solely to the life of the purchased device and can not be transferred. TP-Link reserves the right to modify the service and feature at any time. Please visit and check: www.tp-link.com/homecare

***According to a 2018 study by Allion USA in a 3,000 sq. ft., two-story home.

POWER
AC adapter input 100-240V ~ 50/60Hz 0.4A
AC adapter output 12V ⎓ 1.2A
HARDWARE FEATURES
Processor Quad-core CPU
Interface 2 LAN/WAN Gigabit Ethernet Ports
Button 1 Reset button on the underside
External Power Supply 12 V/1.2 A
Dimensions Φ4.7 in. x 1.5 in. (Φ120 mm x 38 mm)
Antenna 4 internal antennas per Deco unit
Bluetooth version 4.2 and above
WIRELESS FEATURES
Wireless Standards IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 400 Mbps on 2.4 GHz
867 Mbps on 5 GHz
Transmit Power FCC: <30 dBm
CE: <20 dBm (2.4 GHz)
<23 dBm (5 GHz)
Wireless Security WPA-PSK/WPA2-PSK
Advanced Functions ● Router/ Access Point Mode
● Optional Ethernet Backhaul
● TP-Link Mesh Technology:
MU-MIMO
Auto Path Selection
Self-Healing
AP Steering
Band Steering
Beamforming
SOFTWARE FEATURES
Quality of Service WMM
IPv6 Support
WAN Type Dynamic IP/Static IP/PPPoE
Management Local Management, Remote Management
DHCP Server, Client
Port Forwarding Support
Access Control Blacklist
Firewall Security SPI Firewall
Protocols Supports IPv4 and IPv6
Advanced Features Homecare:
Antivirus
Parental Controls
Quality of Service
Advanced Functions Speedtest
Monthly Usage Reports
Auto FW Update
Expand for more deco
Guest Network 2.4 GHz guest network * 1
5 GHz guest network * 1
Beamforming Support
APP Easy setup by Deco App
OTHERS
Certification CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
Package Contents ● Deco M5 (3-pack):
3 Deco units
1 RJ45 Ethernet Cable
3 Power Adapters

● Deco M5 (1-pack):
1 Deco unit
1 RJ45 Ethernet Cable
1 Power Adapter
Smartphone/Tablet Requirements iOS 9.0 or later
Android 4.4 or later
Bluetooth 4.0 or later
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
