Deco E3
AC1200 Whole Home Mesh Wi-Fi System
- Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
- A Deco E3 three-pack (1 router—Deco E4R and 2 extender—Deco M3W) delivers Wi-Fi to an area of up to 3,500 square feet (EU version).

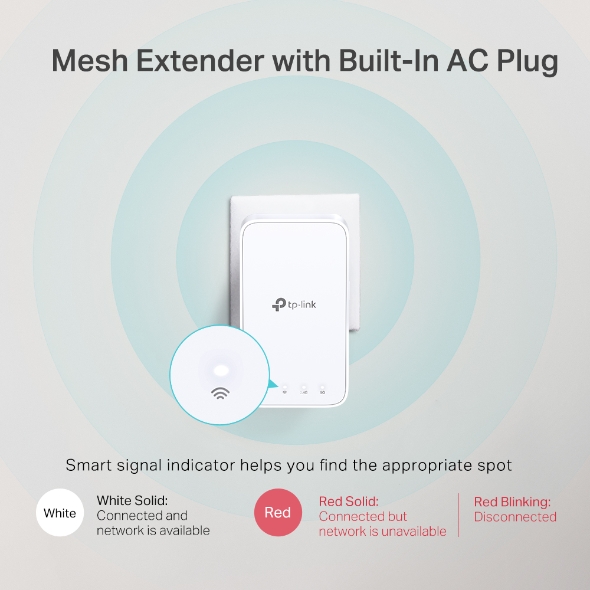

- Get further mesh Wi-Fi coverage by simply plugging in more Deco add-on extender Deco M3W into the wall outlet.
- With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.
- Deco E3 provides fast and stable connections with speeds of up to 1167 Mbps and works with the major internet service provider (ISP) and modem.
- Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.
- Parental Controls limit online time and block inappropriate websites according to unique profiles created for each family member.
- Setup is easier than ever with the Deco app there to walk you through every step.
Fast. Stable. Everywhere.
Whole Home Mesh Wi-Fi System
AC1200 Dual-Band Wi-Fi
Deco E4

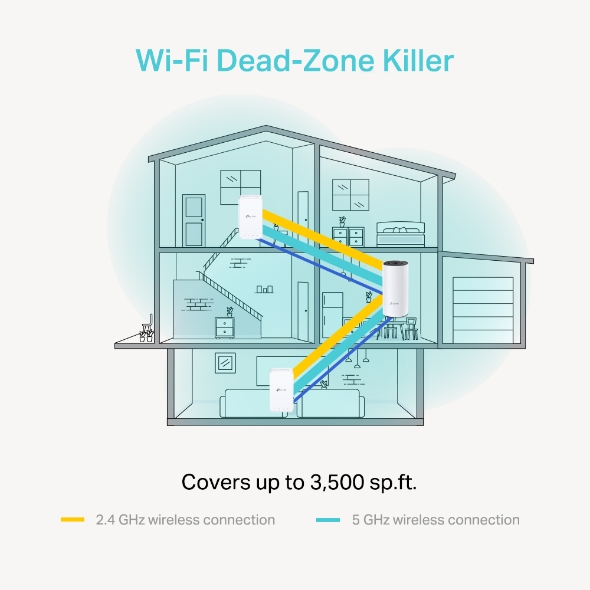

Wi-Fi Dead-Zone Killer
Deco E4 is the simplest way to guarantee a strong Wi-Fi signal in every corner of your home up to 4000 Square feet(3-pack).Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage.Want more coverage? Simply add another Deco.
Seamless Roaming with One Wi-Fi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
No More Buffering
Network speeds three times faster than previous generation routers, thanks to 802.11ac wireless technology, make Deco capable of providing a lag-free connection to up to 100 devices.
Multiple 3-in-1 Router, Access Point and Range Extender Modes
Flexible and multifunctional, the Deco E4 includes a variety of features allowing it to serve as a router, access point or range extender. Just choose the mode for your actual network demands and experience the maximum wireless flexibility.
-
Router (Default)
Instantly generate a private
wireless network. -
Access Point
Create Wi-Fi access for any
existing wired network. -
Range Extender
Extend Wi-Fi range to
eliminate dead zones.
Robust Parental Controls
Simple, intuitive parental controls make it easy to
keep your children safe while they’re online.
-
Easily create a profile for each family member and set custom time limits and online time allowances.
-
Keep your family safe online with one-touch security settings that block websites based on age-appropriateness.
-
Set limits on how much time each person in your family can spend online.
-
Check out which sites your children visit and how much time they spend on each to ensure your children are safe while they’re having fun online.
-
Take a break from Wi-Fi for dinner and family game nights. Just tap a button to suspend internet access for everyone in your home.
All Decos Can Work Together
Deco E4 is compatible with every other Deco model to form a Mesh network. Expand Mesh Wi-Fi coverage anytime by simply adding more Decos.
Wi-Fi Made Easy
-
App-Based Setup
Installing Deco E4 is fast and easy. Just unpack the system, download the Deco app and follow its onscreen directions.
Learn how to set up the Deco system >> -
Easy Management
Manage your Wi-Fi at home or away in the Deco app, including seeing the connected devices, prioritizing your devices, setting up a guest network and more.
-
Voice Control
Pair with Alexa to control Deco E4 with simple voice commands. Enjoy the convenient life.
| POWER | |
|---|---|
| AC adapter input | Deco E4R: 100-240V~ 50/60Hz 0.3ADeco M3W: 100-240V~ 50/60Hz 0.3A |
| AC adapter output | Deco E4R: 12V ⎓ 1A; Deco M3W: N/A |
| HARDWARE FEATURES | |
|---|---|
| Ports | Deco E4R: 2 10/100Mbps WAN/LAN Ports, 1 Power Port; Deco M3W: N/A |
| Button | Deco E4R: 1 Reset button; Deco M3W: 1 Reset button |
| Flash | Deco E4R: 16 MB; Deco M3W: 8 MB |
| SDRAM | Deco E4R: 128 MB; Deco M3W: 128 MB |
| Dimensions | Deco E4R: 7.5 × 3.6 × 3.6 in. (190.5 × 90.7 × 90.7 mm)Deco M3W (without plug): 4.9 × 2.7 × 1.4 in. (124 × 69 × 35 mm) |
| Antenna Type | Deco E4R: 2 internal dual-band antennasDeco M3W: 2 internal dual-band antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz |
| Transmit Power | FCC: <30 dBm, CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
| Wireless Security | WPA-PSK/WPA2-PSK |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM |
| IPv6 | Support |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management | Local Management, Remote Management |
| DHCP | Server, Client |
| Port Forwarding | Support |
| Firewall Security | SPI Firewall |
| Protocols | Supports IPv4 and IPv6 |
| Advanced Features | Parental ControlsQuality of Service (Deco E4R) |
| Advanced Functions | Monthly ReportsAuto FW UpdateExpand Wi-Fi by adding more Deco units |
| Guest Network | 1 |
| APP | Easy setup via Deco App |
| Working Modes | Router, Access Point |
| OTHERS | |
|---|---|
| Certification | CE, FCC, IC, NCC, BSMI, IDA,RCM, JPA, JRF, VCCI, KC, RoHS |
| Package Contents | 1 router Deco E4R2 wall-plug extenders Deco M3W1 RJ45 Ethernet cable1 power adapter1 quick installation guide |
| Smartphone/Tablet Requirements | iOS 9.0 or later, Android 4.4 or later |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and the maximum number of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
