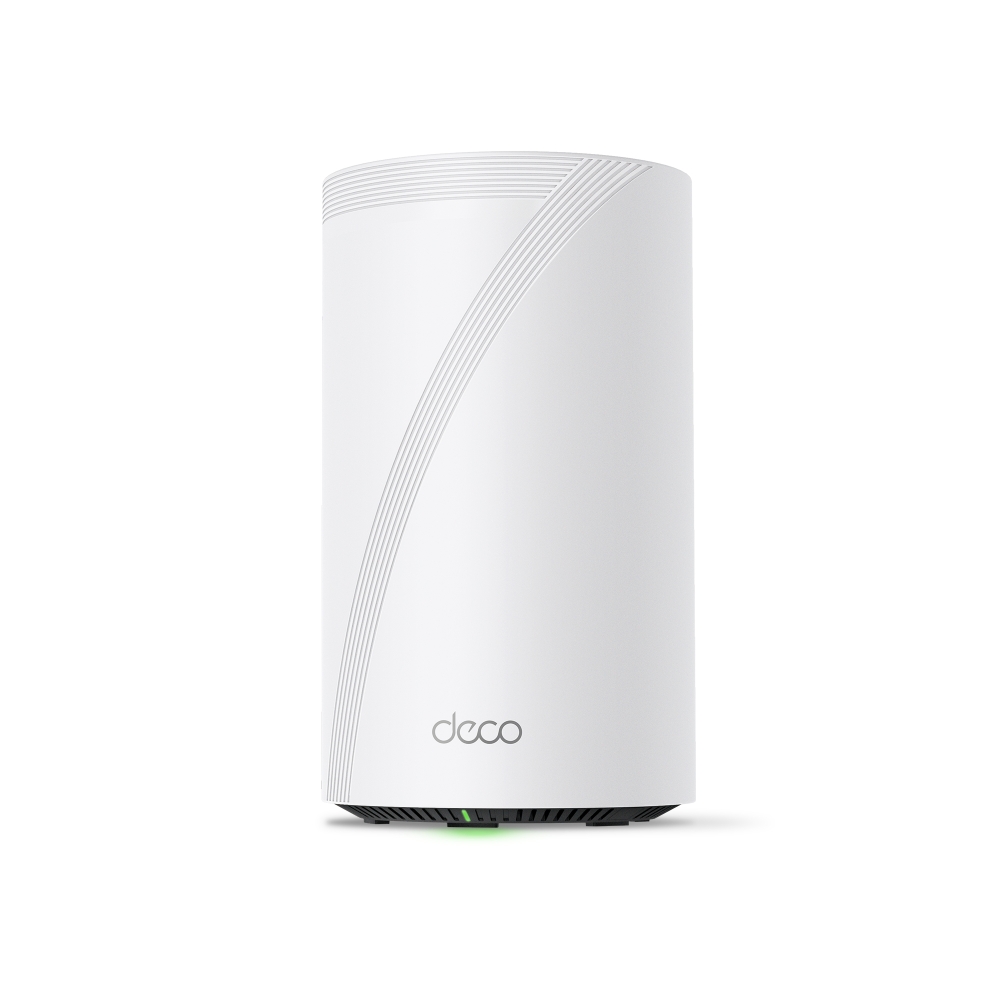

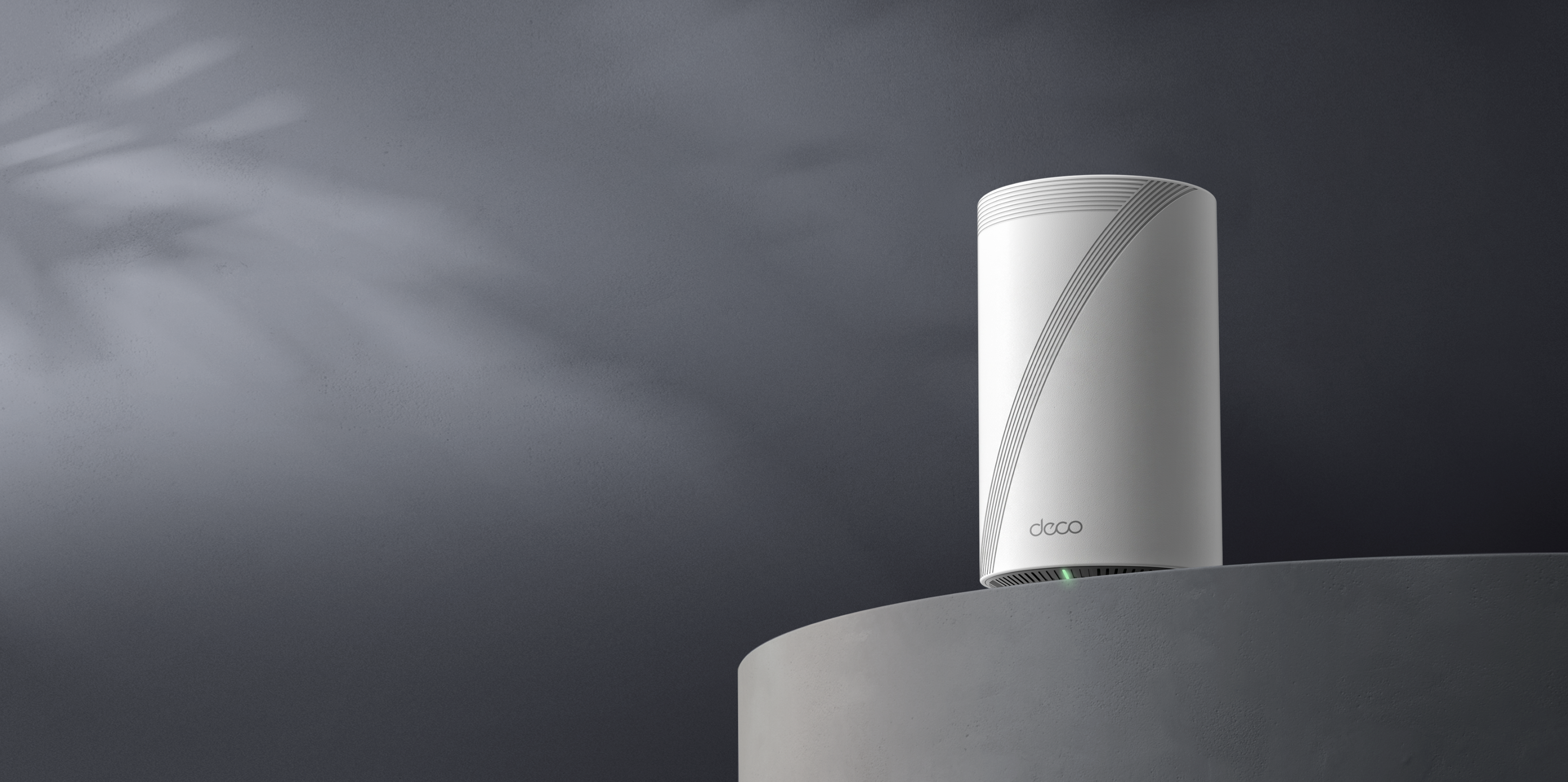

Deco BE85Coming Soon
BE22000 Whole Home Mesh WiFi 7 System
- 12-Stream 22 Gbps Tri-Band WiFi – 11520 Mbps (6 GHz) + 8640 Mbps (5 GHz) + 1376 Mbps (2.4 GHz).†

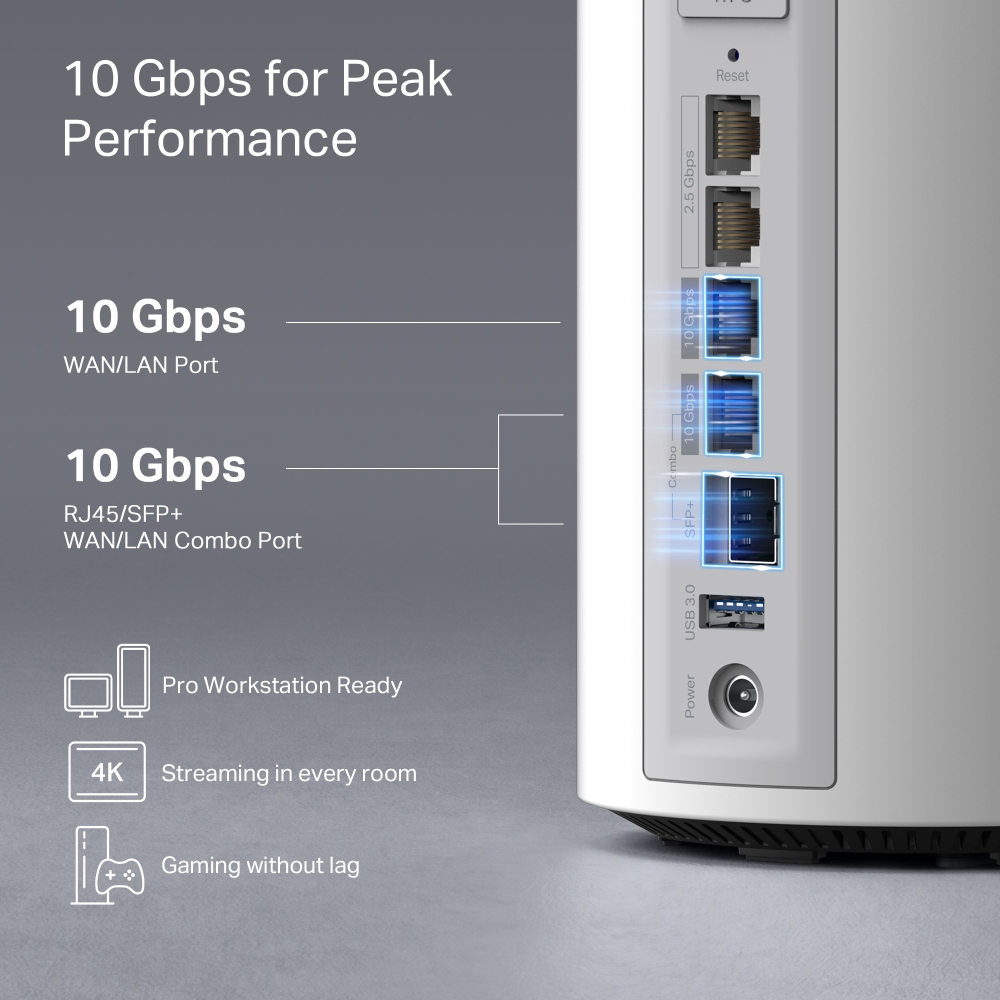

- Multi-Gig 10 Gbps Network – 2× 10 Gbps WAN/LAN ports + 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.§

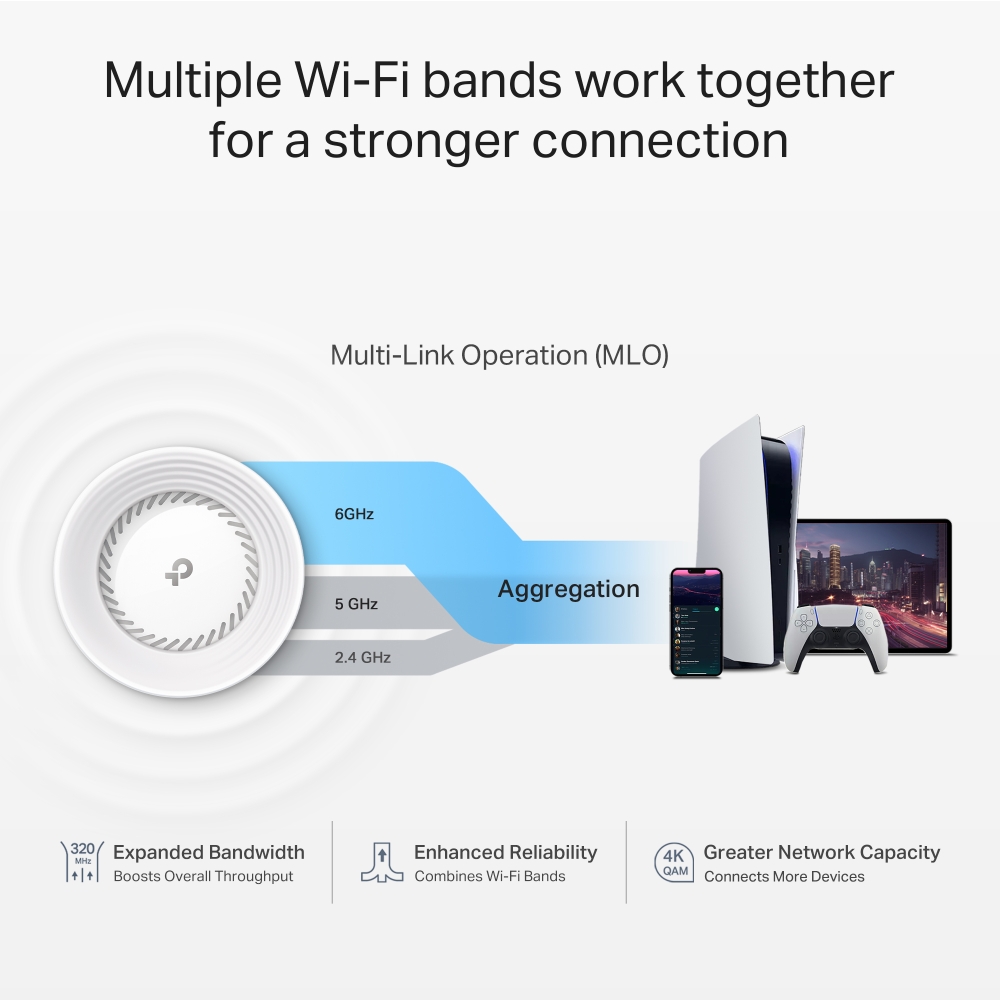

- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△
- Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△

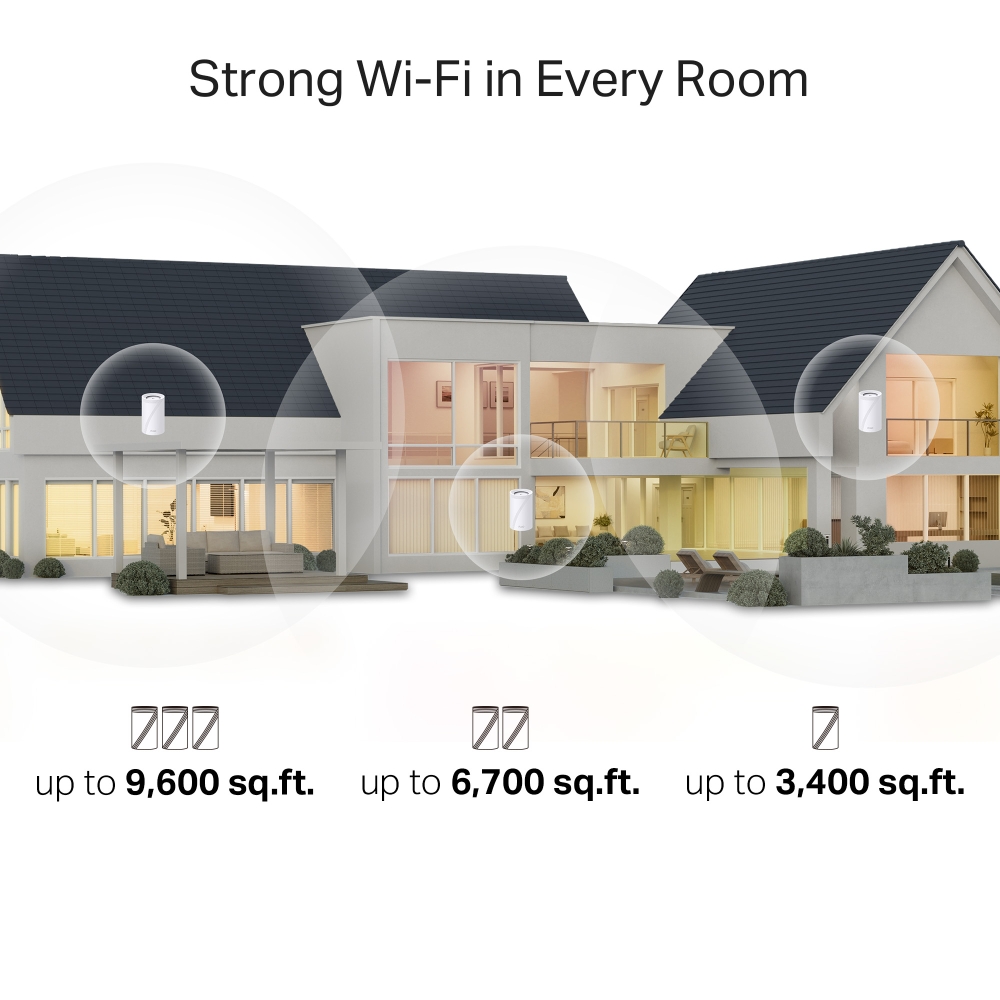

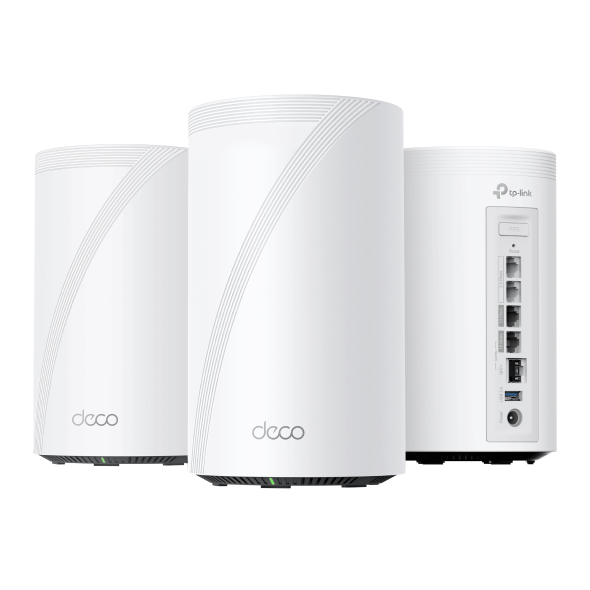

- Boosted Seamless Coverage – Mesh WiFi coverage for over 9,000 ft2 / 840 m2 (3-pack).†
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.

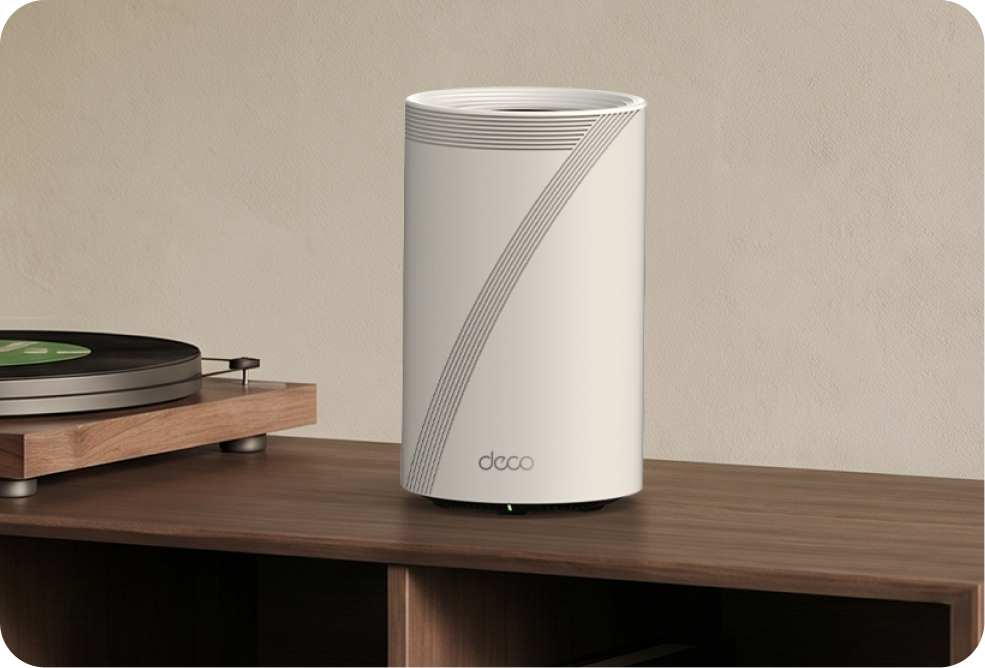

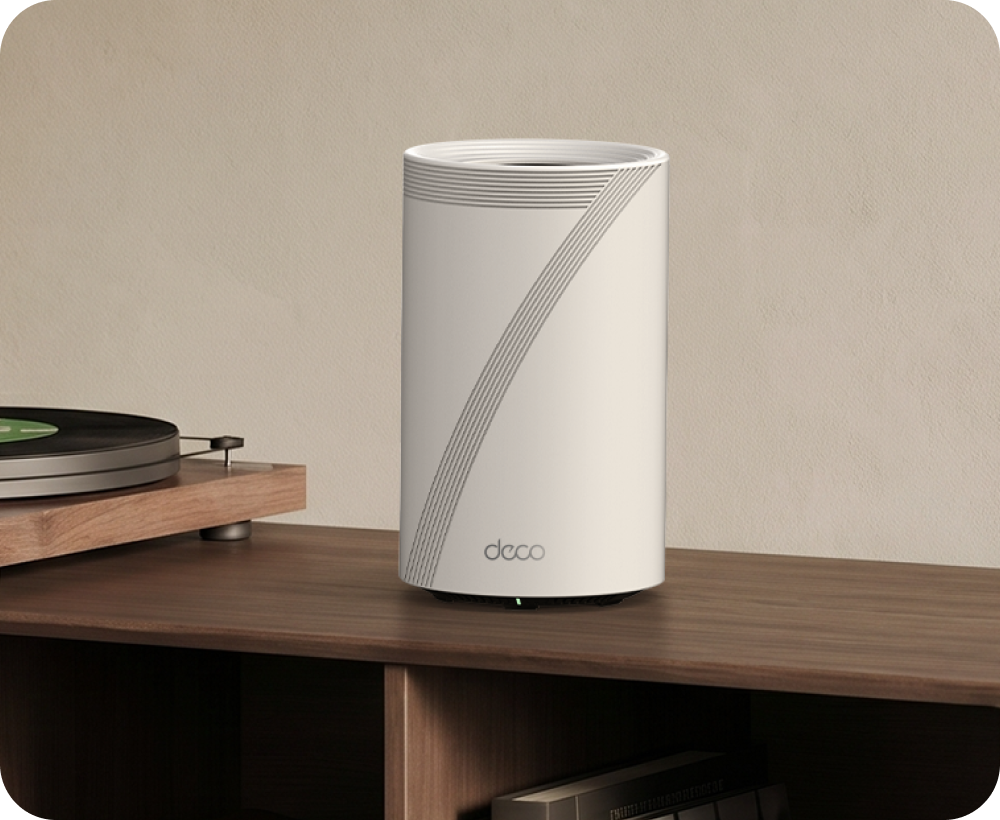

A True Whole Home
Multi-Gig Mesh WiFi
BE22000 Whole Home Mesh WiFi 7 System
Tri-Band WiFi 7 Speeds up to 22 Gbps
Two 10G WAN/LAN Ports
Enhanced Security with HomeShield
|Standards||Wi-Fi 7IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/b/g 2.4 GHz|
|WiFi Speeds||BE220006 GHz: 11520 Mbps (802.11be)5 GHz: 8640 Mbps (802.11be)2.4 GHz: 1376 Mbps (802.11be)|
|WiFi Range||Broader Whole Home Coverage
TP-Link Mesh Technology

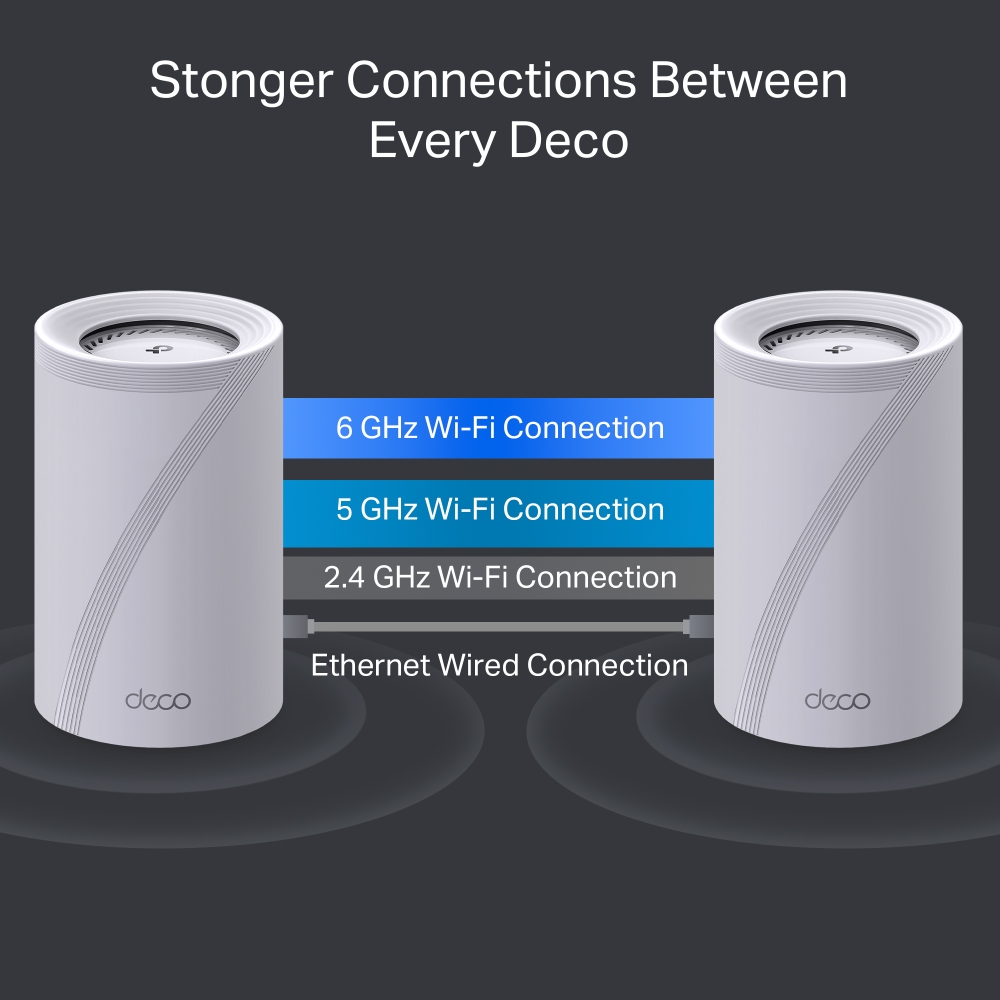

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
8× High-Gain Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
The greenfield 6 GHz band brings more bandwidth and faster speeds
|WiFi Capacity||Very High
Quad-BandDistribute devices to different bands for optimal performance4×4 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsOFDMASimultaneously communicates with multiple WiFi 7 clients12 StreamsMore than enough bandwidth for connected devices
|Working Modes||Router ModeAccess Point Mode|
|Advanced Functions||• Multi-Link Operation (MLO)• 320 MHz Channel• 4K-QAM• Multi-RUs• Works with Alexa and Google Assistant• IoT Network|

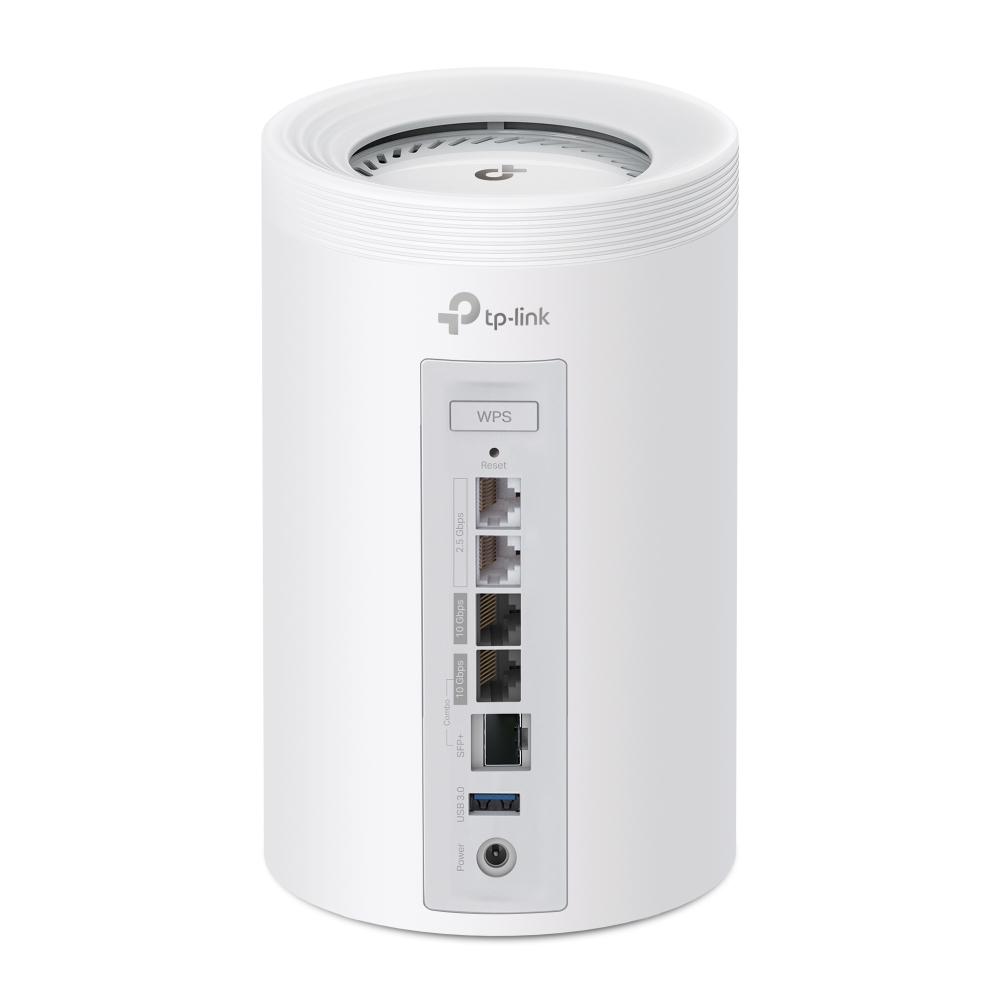

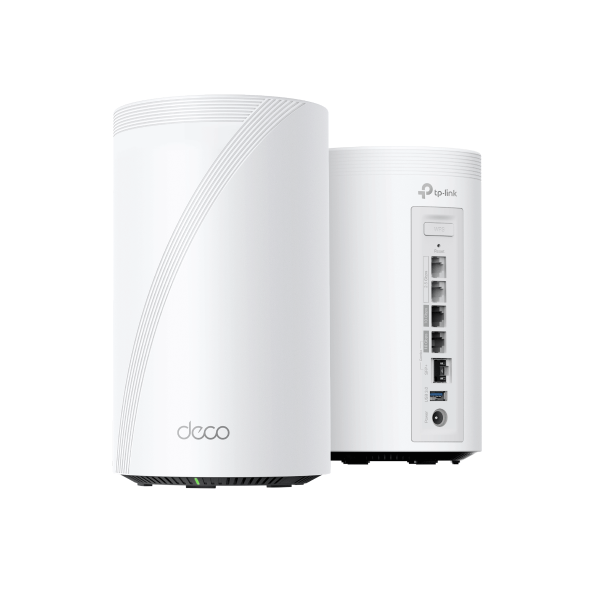

|Ethernet Ports||• 2× 10 Gbps• 2× 2.5 Gbps*Per Deco Unit Supports WAN/LAN auto-sensing|
|USB Support||1× USB 3.0 Port|
|Buttons||1× Reset Button1× WPS|
|Network Security||SPI FirewallAccess ControlHomeShield Security
Real-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner
|Guest Network||1× 6 GHz Guest Network1× 5 GHz Guest Network1× 2.4 GHz Guest Network|
|Service Kits||HomeShieldLearn More>|
|Parental Controls||HomeShield Parental Controls
Custom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports
|WAN Types||Dynamic IPStatic IPPPPoEPPTPL2TP|
|Quality of Service||HomeShield QoS
QoS by Device
|Cloud Service||OTA Firmware UpgradeTP-Link ID DDNS|
|NAT Forwarding||Port Forwarding
|IPTV||IGMP ProxyIGMP SnoopingBridge Tag VLAN|
|DHCP||Address ReservationDHCP Client ListServer|
|Dimensions (W×D×H)||5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm)|
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), and other features including MLO, 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, and BSS Color requires clients to also support the corresponding features. Not all 320 MHz channels may be available in the 6 GHz band in some regions/countries due to regulatory restrictions. The 320 MHz bandwidth is only available on the 6 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh.
§10 Gbps internet speeds require compatible service plans and equipment. 10 Gbps and 2.5 Gbps ports cannot be concurrently configured as WAN ports.
◊Use of WPA3 requires clients to also support the corresponding feature.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
**Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax.
Google, Google Home, and Google Play are trademarks of Google.
This Deco may not support all the mandatory features as ratified in IEEE 802.11be specification.
Further software upgrades for feature availability may be required.
