Deco BE13000

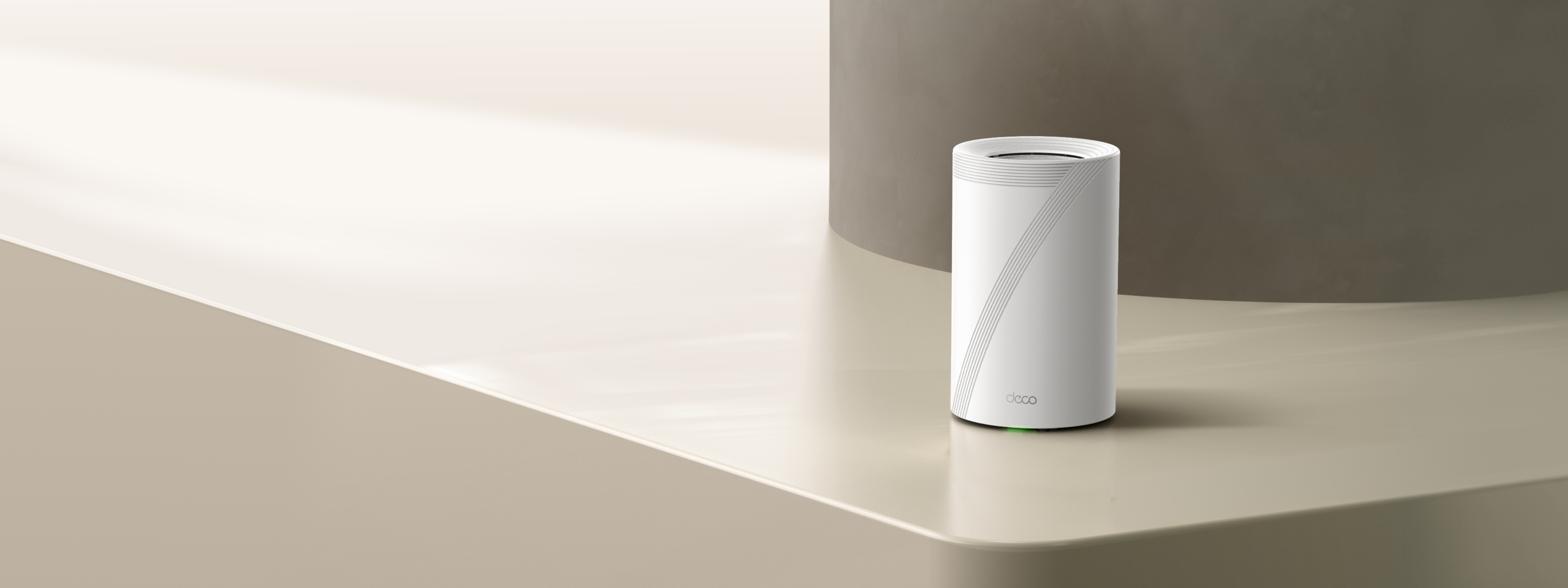

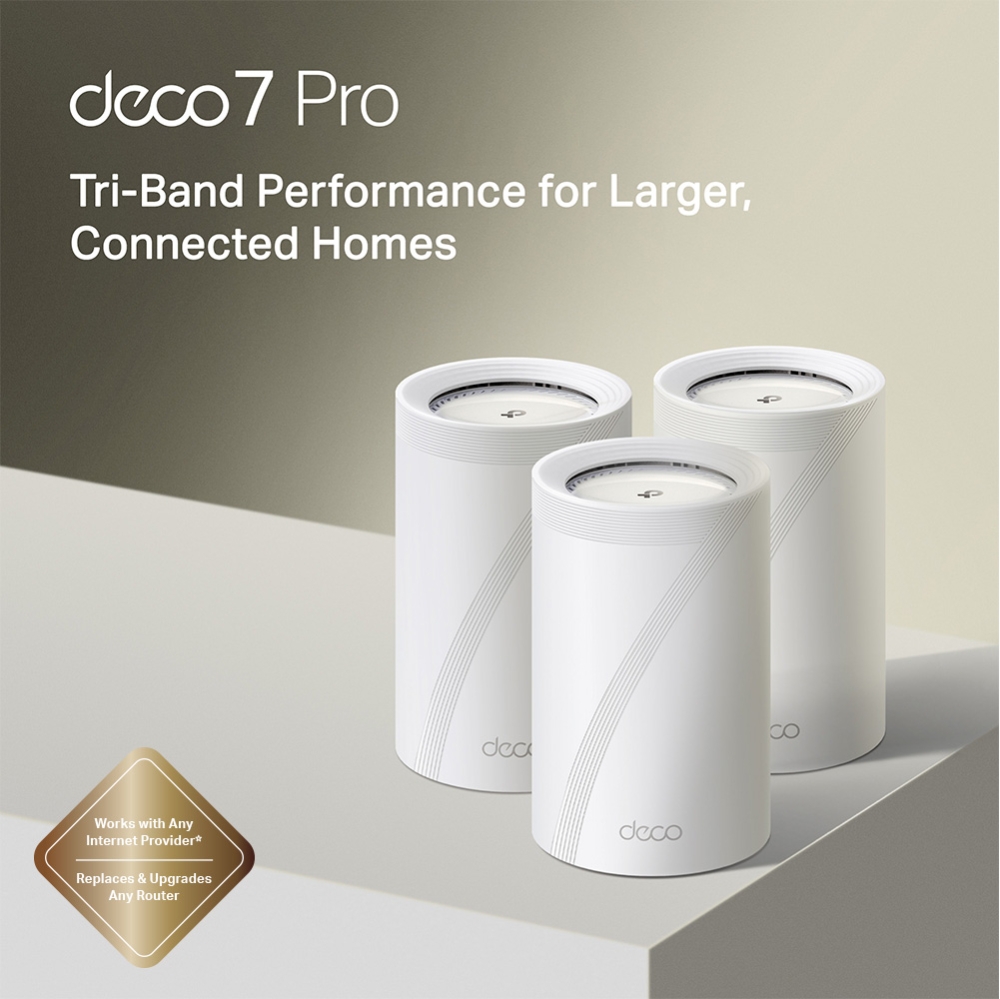

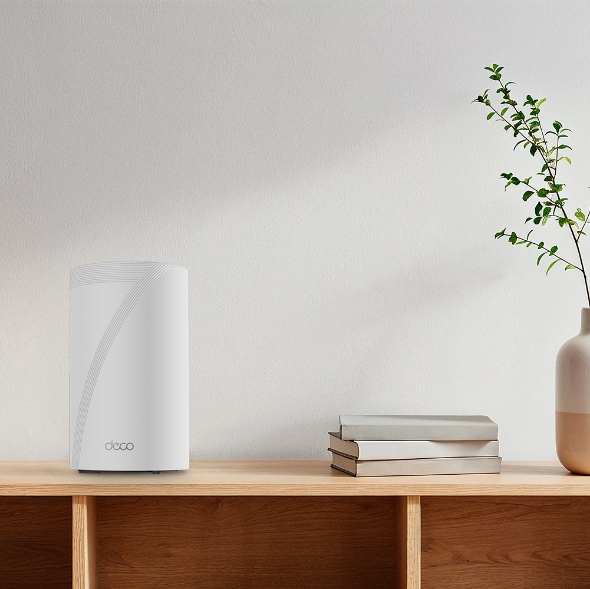

Deco 7 Pro BE13000 Tri-Band Whole Home Mesh WiFi 7 System
- 8-Stream 13 Gbps Tri-Band WiFi – 8647 Mbps (6 GHz) + 3891 Mbps (5 GHz) + 688 Mbps (2.4 GHz).†
- Unprecedented 10 Gbps Network – 1× 10 Gbps WAN/LAN port + 1× 2.5 Gbps WAN/LAN port + 1× 1.0 Gbps port ensure max flexibility and boosted throughput.§
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△
- Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△
- 1-Year HomeShield Total Security Included – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.☆
Pro-Grade Wi-Fi Powering Every Corner of Your Home
Deco BE13000 Whole Home Mesh Wi-Fi 7 System
Deco BE13000
Pro-Grade Wi-Fi Powering Every Corner of Your Home
Deco BE13000 Whole Home Mesh Wi-Fi 7 System
Deco BE13000
Wi-Fi that reaches every room.

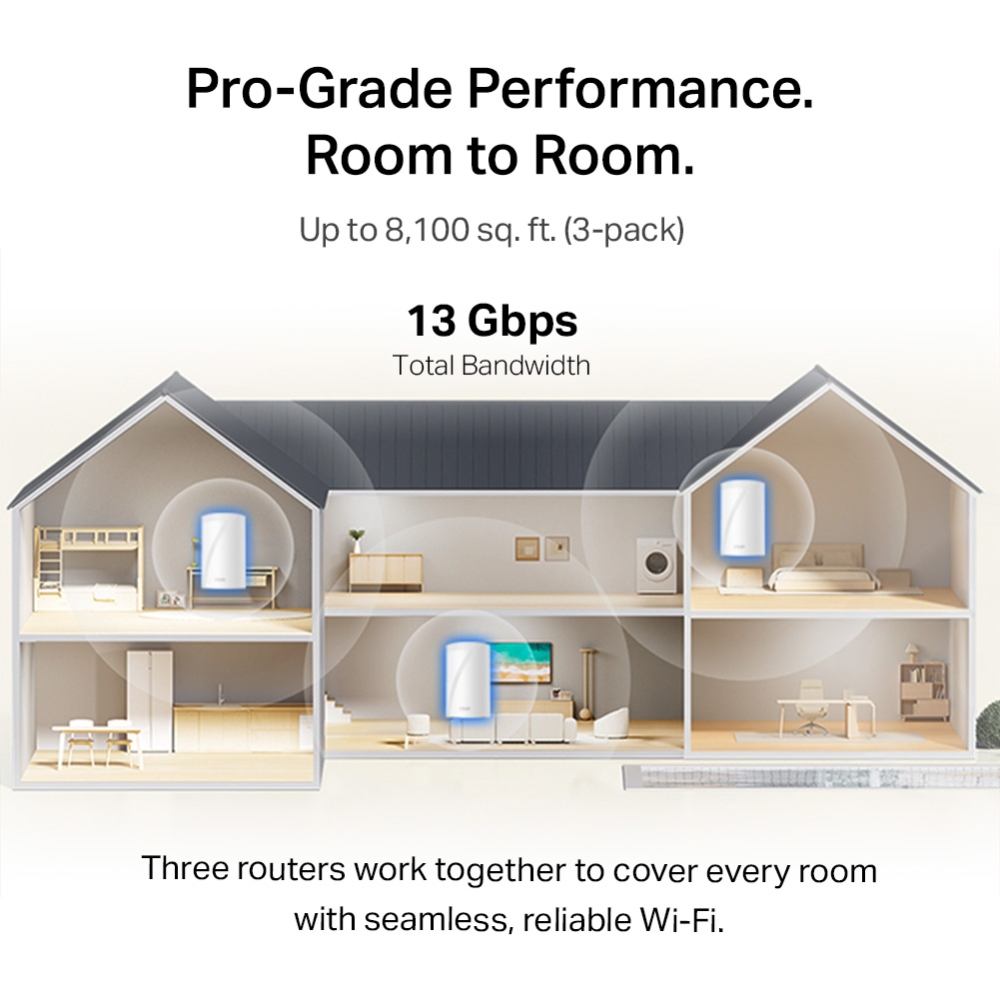

Covers up to 8,100 sq. ft (3-pack)
Ready for
multi-gig
internet
13 Gbps Tri-Band
Wi-Fi 7
Easy setup with
the Deco app
Connect up to
200 devices
Smart
Roaming
Wi-Fi 7
Multi-Link
6 GHz + 320
MHz
Bandwidth
4K QAM
Flexible
Backhaul
HomeShield -
Advanced Security

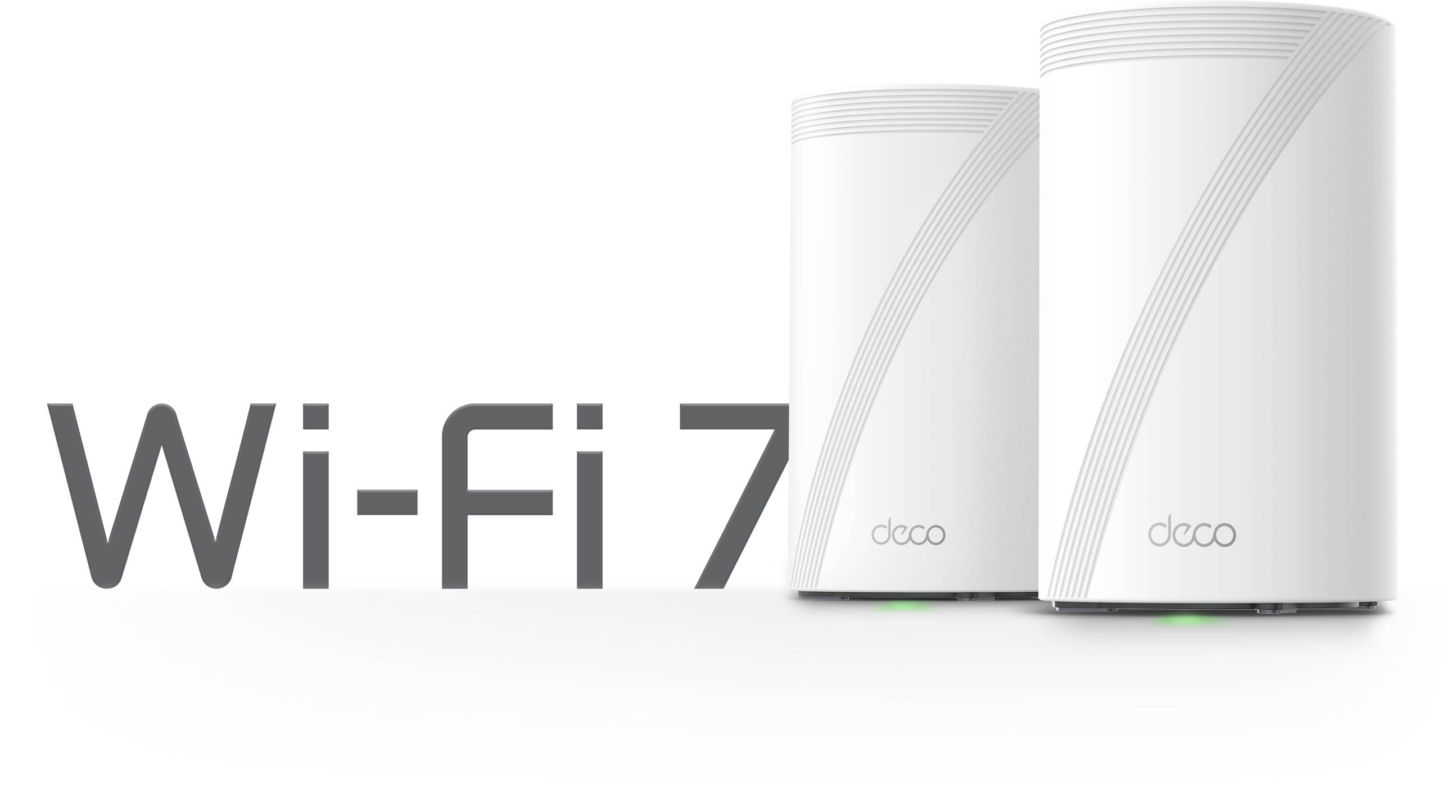

Wi-Fi Like Never Before
Wi-Fi 7 delivers faster speeds and smoother connections for today's connected homes. Deco 7 Pro makes next-generation Wi-Fi simple, reliable, and ready for everything you do online.
More Wi-Fi. Less interference.
The 6 GHz band keeps your network clear when every device in the home is running at once.
Performance Wi-Fi for Homes That Demand More
No more buffering, dropped calls, or slowdowns when everyone's online. Deco 7 Pro is built for busy homes, delivering smooth streaming and dependable connections in every room.

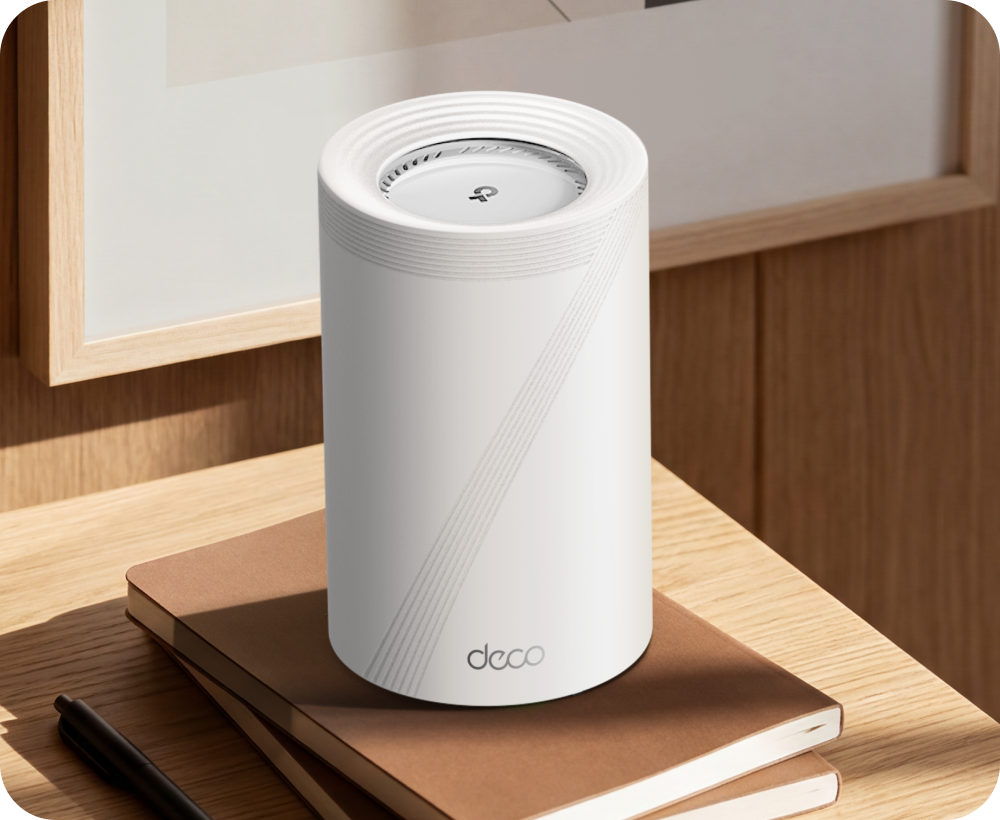

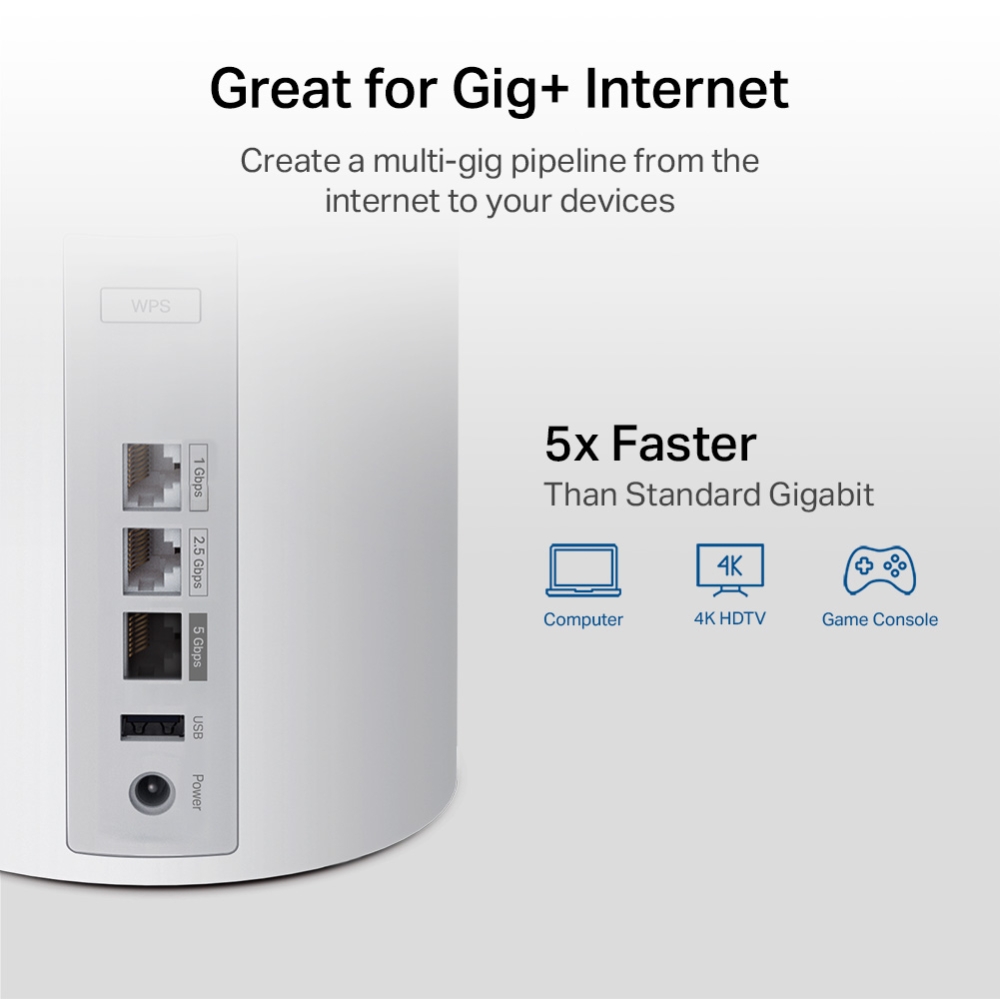

Built for multi-gig Internet.
When your internet plan gets faster, your Wi-Fi should keep up. Deco 7 Pro supports 5 Gbps wired connections, helping reduce bottlenecks and slowdowns as more devices connect throughout your home.
5 Gbps
WAN / LAN Ports
Work from home
Streaming in every room
Gaming without lag

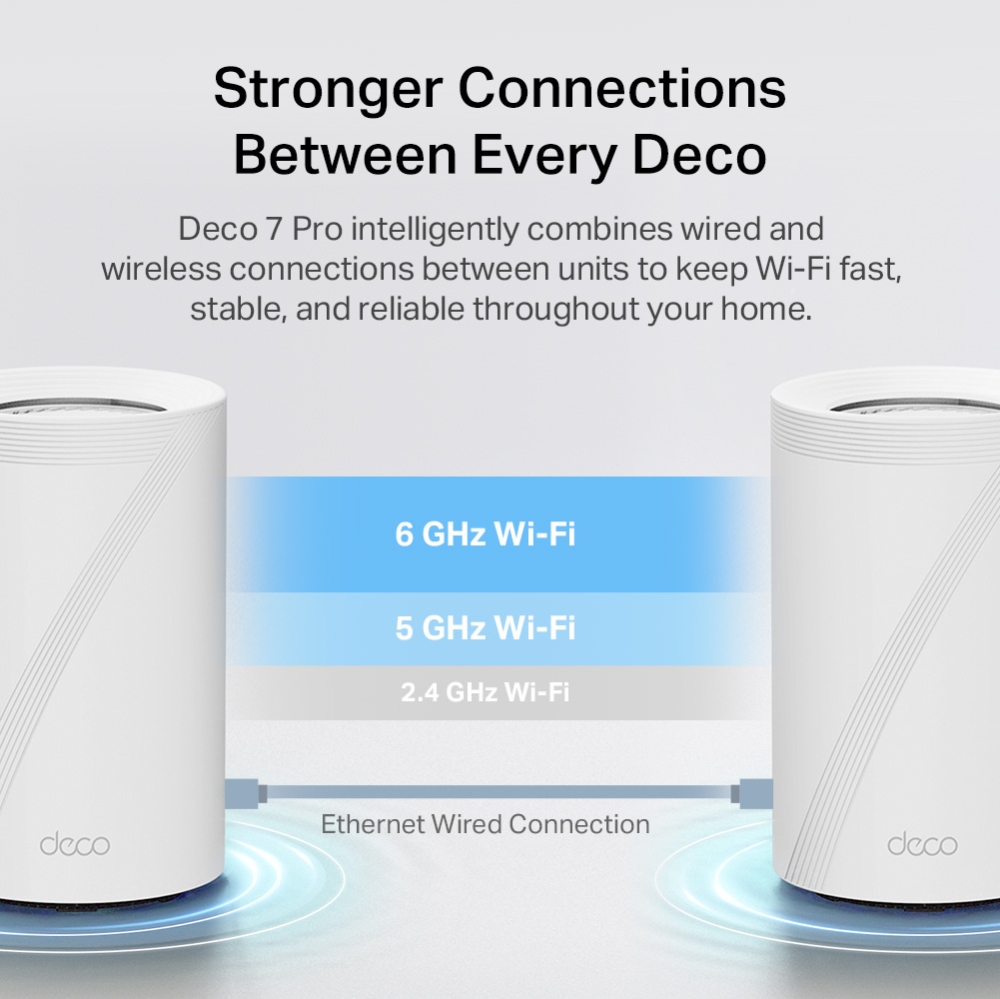

Stronger Connections Between Every Deco

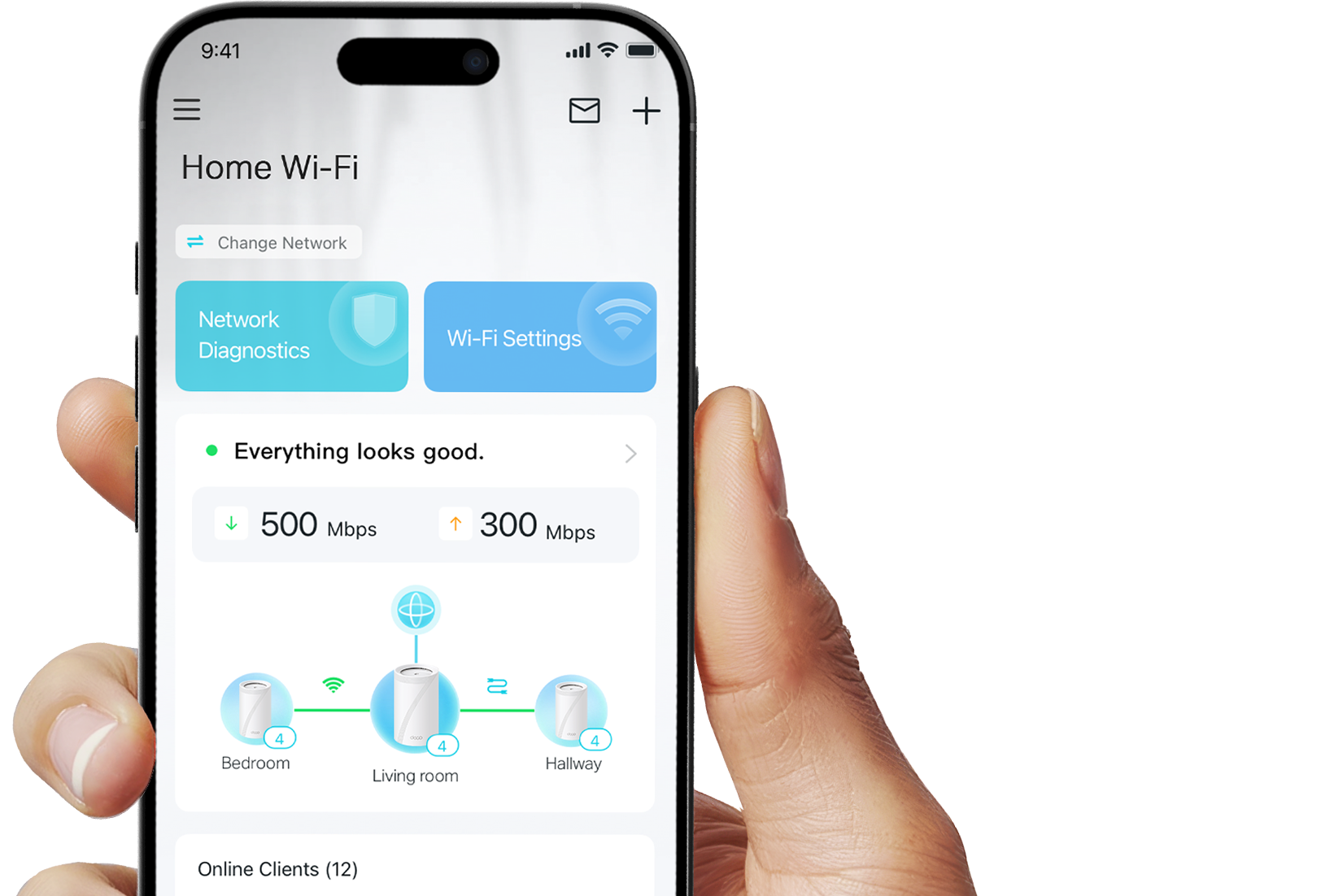

Deco 7 Pro is designed to be effortless from the start. Set up in minutes with the Deco app, then enjoy strong, reliable Wi-Fi throughout your home.
Simple. Easy. Powerful.
Deco 7 Pro is designed to be effortless from the start. Set up in minutes with the Deco app, then enjoy strong, reliable Wi-Fi throughout your home.
Simple. Easy. Powerful.
Deco 7 Pro is designed to be effortless from the start. Set up in minutes with the Deco app, then enjoy strong, reliable Wi-Fi throughout your home.
① Connect
to a modem and power on both.
② Download
and launch the Deco app.
③ Configure
by following the in-app instructions.
Built-In Security for Everyday Life
HomeShield helps protect every device on your network — automatically — so your family can connect with confidence at home and beyond.
Learn more about HomeShield >
Advanced Network Protection
Get automatic protection for your entire home network, designed to help block online threats so you can browse, stream, and connect with confidence.
Parental Controls
Use simple tools to manage screen time and filter content, designed to support healthier online habits for kids while giving parents more control.
Protection that goes with you
Keep your devices protected at home and on the go, with security that stays with you wherever life happens.
Advanced Network Protection
Get automatic protection for your entire home network, designed to help block online threats so you can browse, stream, and connect with confidence.
Parental Controls
Use simple tools to manage screen time and filter content, designed to support healthier online habits for kids while giving parents more control.
Protection that goes with you
Keep your devices protected at home and on the go, with security that stays with you wherever life happens.

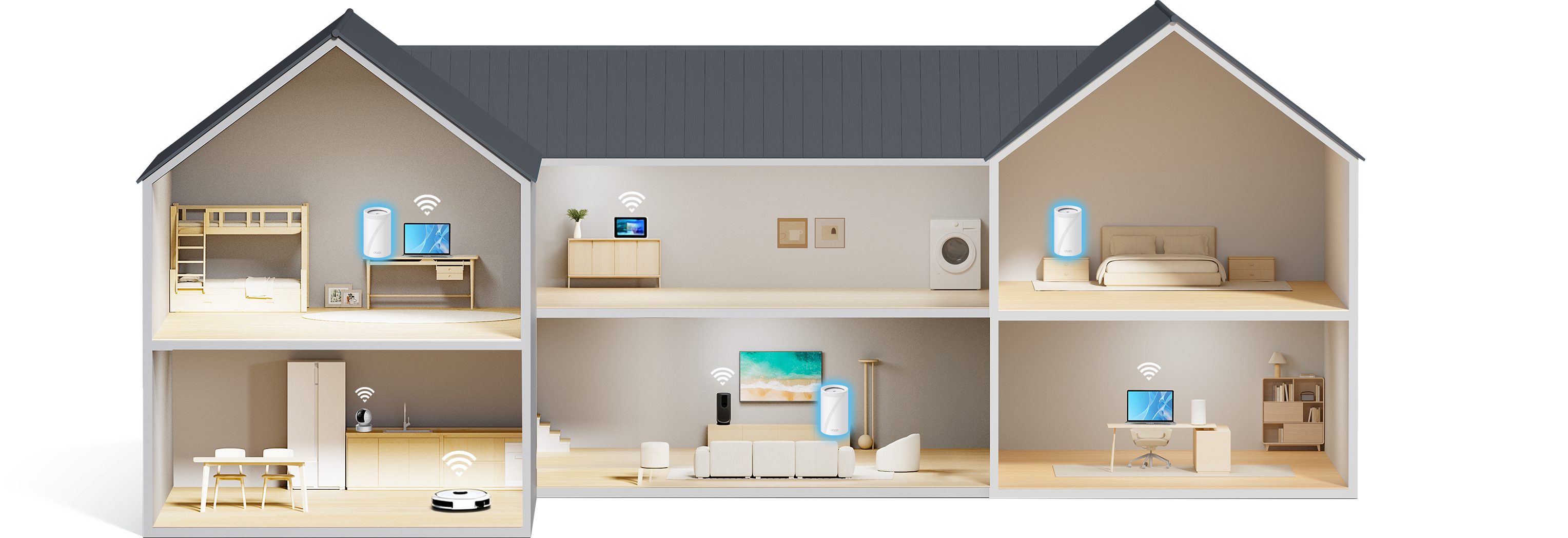

Private IoT Network for More Security
Set up a separate Wi-Fi network for IoT devices, with built-in HomeShield protection and advanced WPA3 encryption to help better protect your home network and connected devices.
Smart Features Included with Every Deco 7 Pro System
"Alexa, pause Wi-Fi for Juliet's tablet"
Hands-Free Voice Control
Use Amazon Alexa or Google Assistant-enabled devices to control your Deco system with simple voice commands, making it easy to manage your Wi-Fi hands-free.

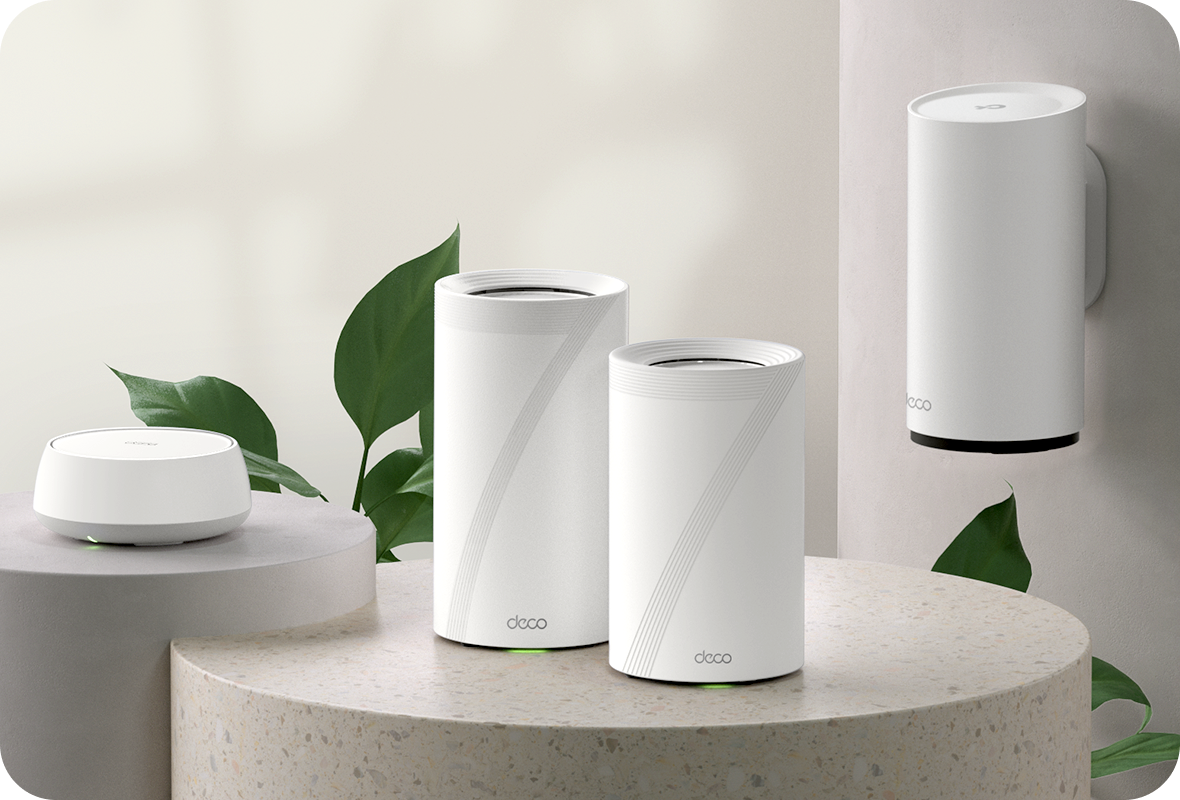

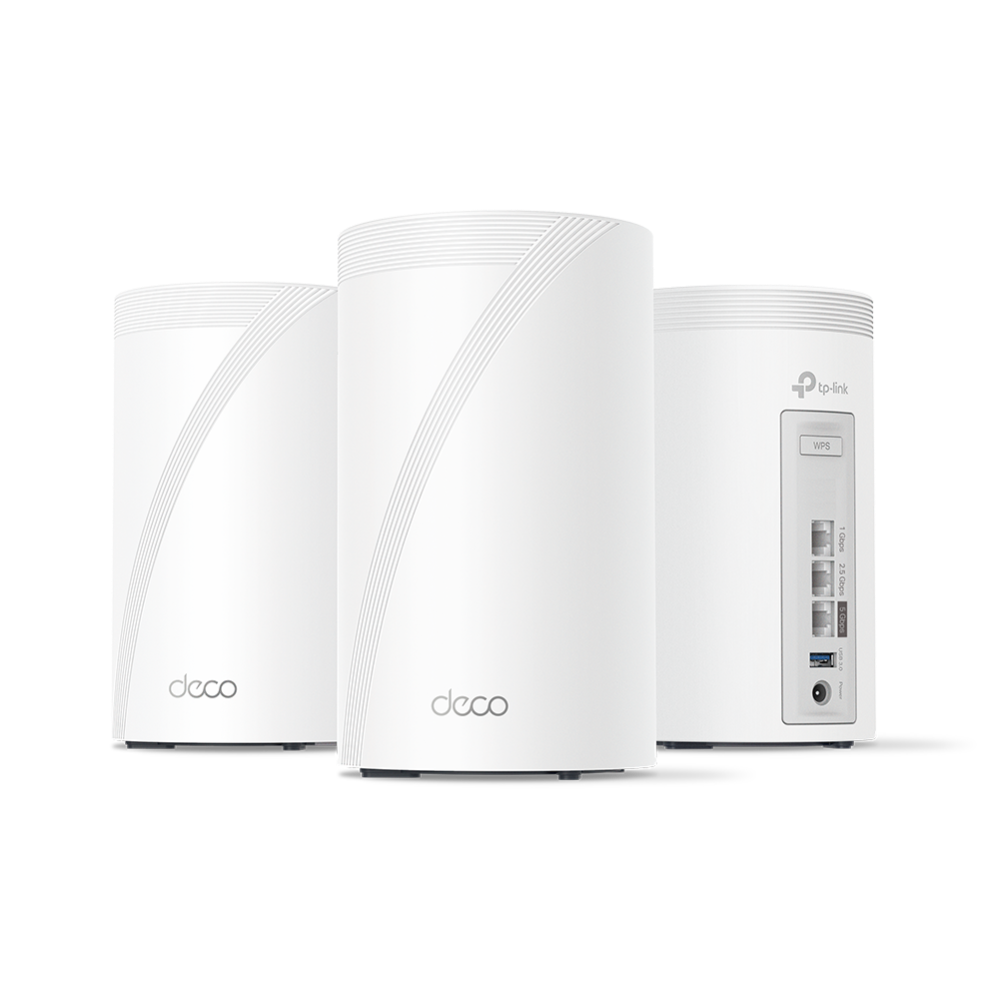

All Decos Work Together
All Deco devices work together to form one seamless mesh network. Expand your Wi-Fi coverage anytime by adding more Decos to keep every corner of your home connected.
| Standards and Protocols | Wi-Fi 7IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/b/g 2.4 GHz |
|---|---|
| WiFi Speeds | BE140006 GHz: 8647 Mbps (802.11be)5 GHz: 4324 Mbps (802.11be)2.4 GHz: 688 Mbps (802.11be) |
| WiFi Range | Broader Whole Home Coverage TP-Link Mesh TechnologyOptional Ethernet backhaul work together to link Deco units to provide seamless coverageAI-Driven MeshIntelligently learns the network environment to provide ideal Wi-Fi unique to your home8× High-Gain Antennas (Internal)Multiple antennas form a signal-boosting array to cover more directions and large areasTri-BandThe greenfield 6 GHz band brings more bandwidth and faster speeds |
| WiFi Capacity | Very High Tri-BandDistribute devices to different bands for optimal performance3×3 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsOFDMASimultaneously communicates with multiple WiFi 7 clients8 StreamsMore than enough bandwidth for connected devices |
| Working Modes | Router ModeAccess Point Mode |
| Advanced Features | • Multi-Link Operation (MLO)• 320 MHz Channel• 4K-QAM• Multi-RUs• Works with Alexa and Google Assistant |
| Network Security | SPI FirewallAccess ControlHomeShield Security Real-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner |
|---|---|
| Guest Network | 1× 6 GHz Guest Network1× 5 GHz Guest Network1× 2.4 GHz Guest Network Effective TimeBandwidth Control |
| VPN Server | • OpenVPN Server• PPTP VPN Server• L2TP/IPSec VPN Server• WireGuard VPN Server |
| VPN Client | • OpenVPN Client• PPTP VPN Client• L2TP/IPSec VPN Client• WireGuard VPN Client |
| WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |

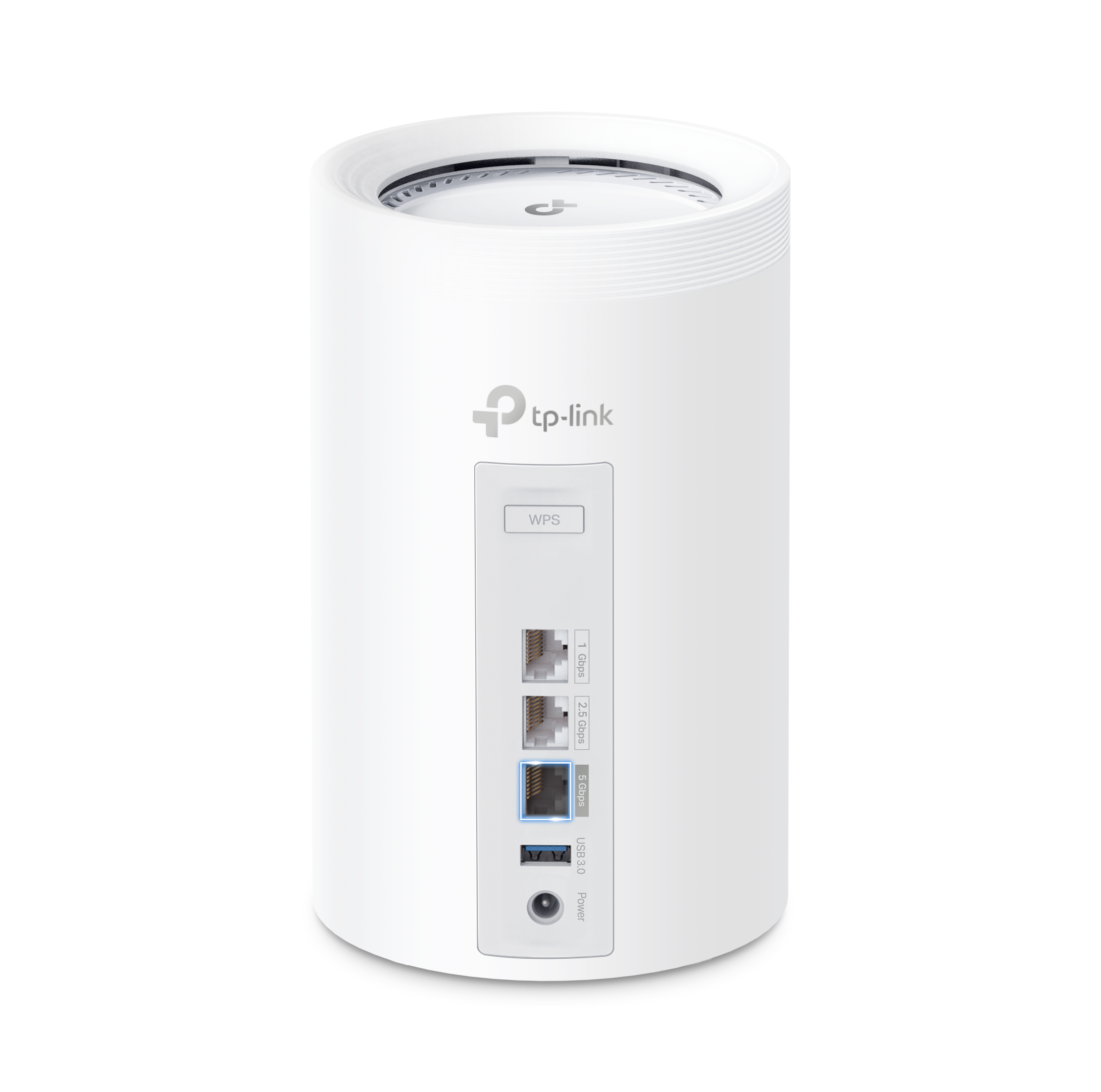

| Ethernet Ports | • 1× 10 Gbps• 1× 2.5 Gbps• 1× 1.0 Gbps*Per Deco UnitSupports WAN/LAN auto-sensing |
|---|---|
| USB Support | 1× USB 3.0 Port FTP ServerMedia ServerSamba Server |
| Buttons | 1× Reset Button1× WPS |
| Advanced Features | • Reboot Schedule• Tapo/Kasa Onboarding• IoT network & Device Isolation• Static Route Function• Node/Band Connection Preference |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShieldLearn More> |
| Parental Controls | HomeShield Parental Controls Youtube RestrictionSafeSearchCustom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports |
| WAN Types | Dynamic IPStatic IPPPPoEPPTPL2TP |
| Quality of Service | HomeShield QoS QoS by Device |
| Cloud Service | OTA Firmware UpgradeTP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP ProxyIGMP SnoopingBridge Tag VLAN |
| DHCP | Address ReservationDHCP Client ListServer |
| DDNS | TP-Link |
| Management Features | Deco App |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCP DNS DNS• Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP)• Port: 67 Protocol: UDP App management Manage and configure device through app• Port: 22 Protocol: TCP• Port: 20001 Protocol: TCP• Port: 30001 Protocol: TCP• Port: 20002 Protocol: UDP |
|---|---|
| Dimensions (W×D×H) | 4.23 × 4.23 × 6.93 in (107.5 × 107.5 × 176 mm) |
|---|---|

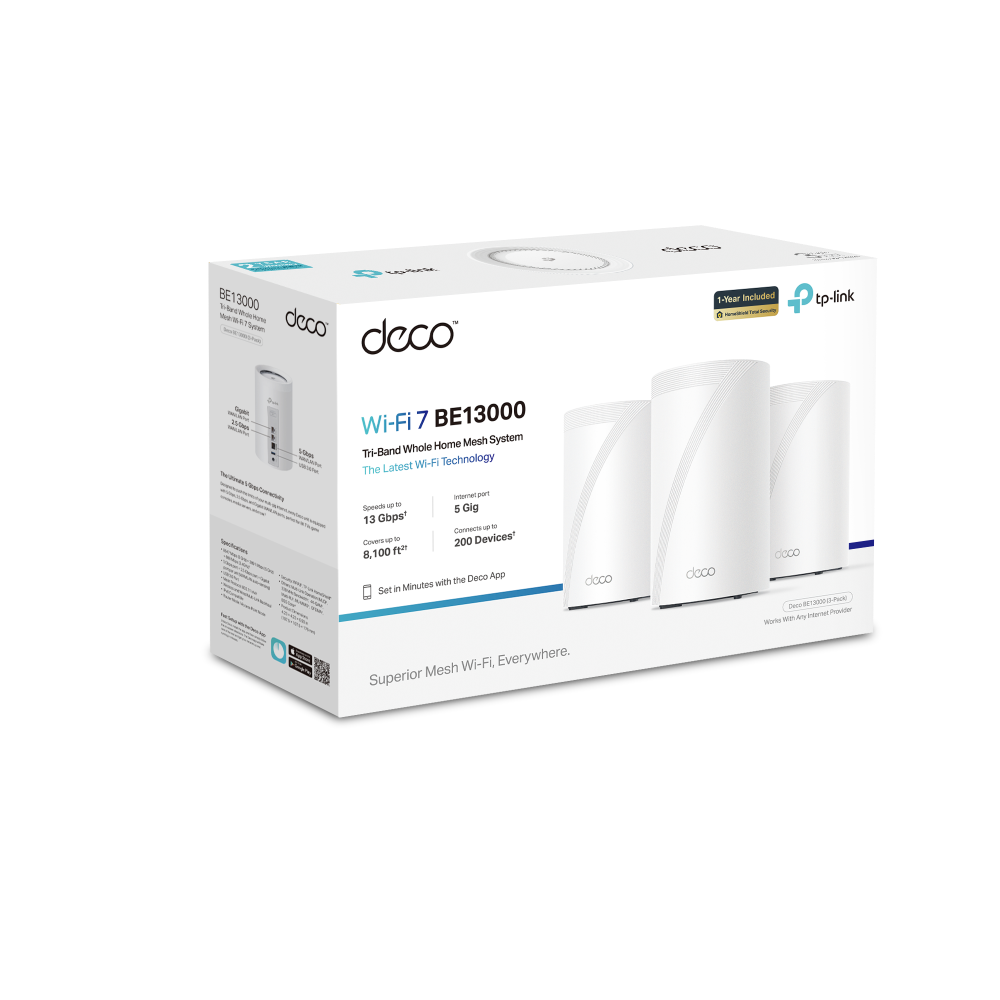

| Package Content | Deco BE68 (3-pack)3 Deco BE68 units1 RJ45 Ethernet cable3 Power adaptersQuick Installation GuideDeco BE68 (2-pack)2 Deco BE68 units1 RJ45 Ethernet cable2 Power adaptersQuick Installation GuideDeco BE68 (1-pack)1 Deco BE68 unit1 RJ45 Ethernet cable1 Power adapterQuick Installation Guide |
| Certifications | CE, FCC, RoHS |
|---|---|
| Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F)Storage Temperature: -40°C~60°C (-40 °F~140 °F)Operating Humidity: 10%~90% RHStorage Humidity: 5%~90% RH |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh.
§10 Gbps and 2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. Some features are under development and will be supported with subsequent software updates.
**Use of WAP3 requires clients to also support the corresponding feature.
☆WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This Deco may not support all the mandatory features as ratified in IEEE 802.11be specification.
Further software upgrades for feature availability may be required.
