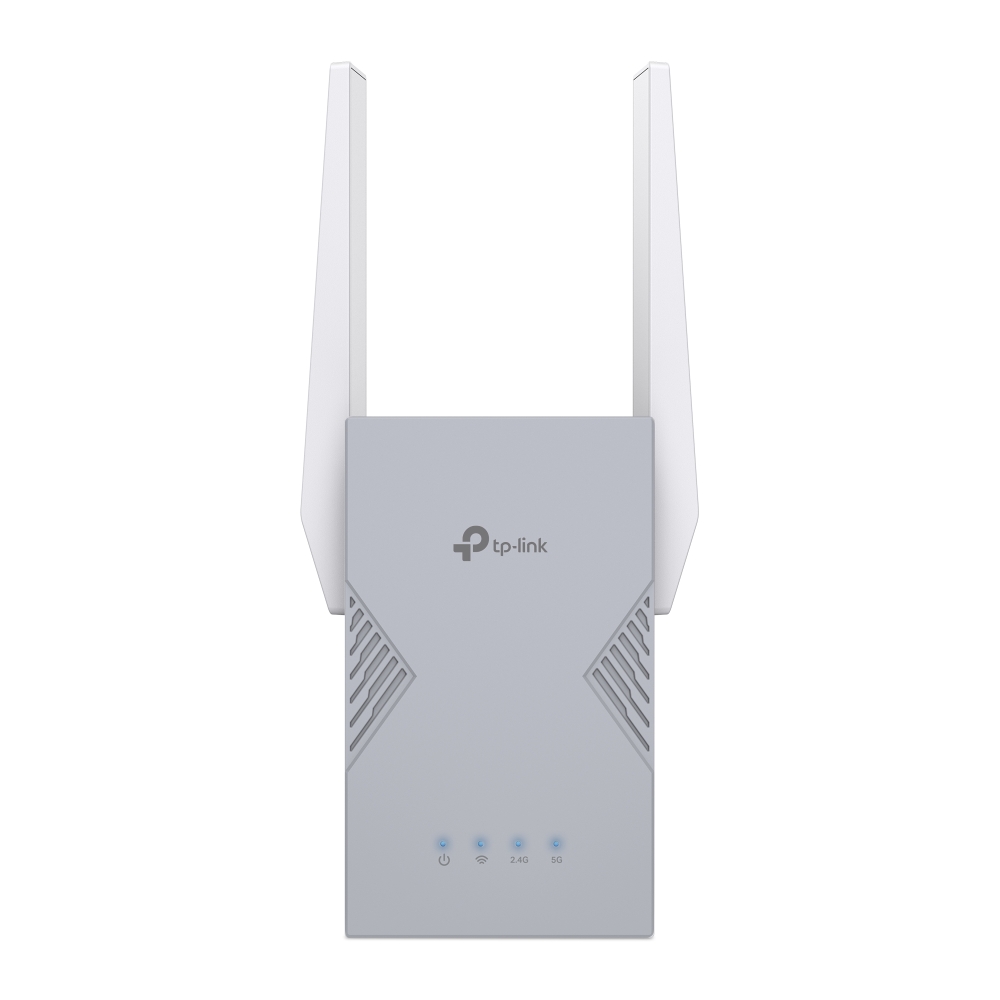

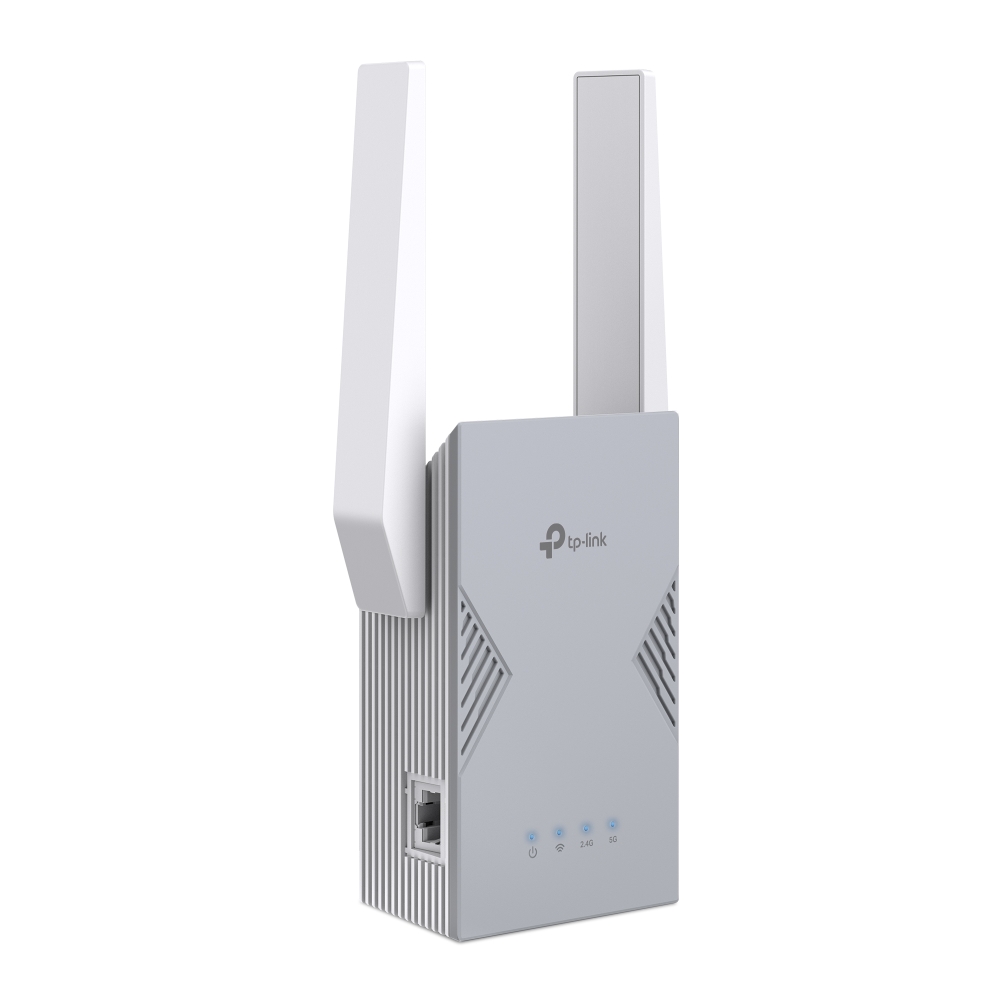

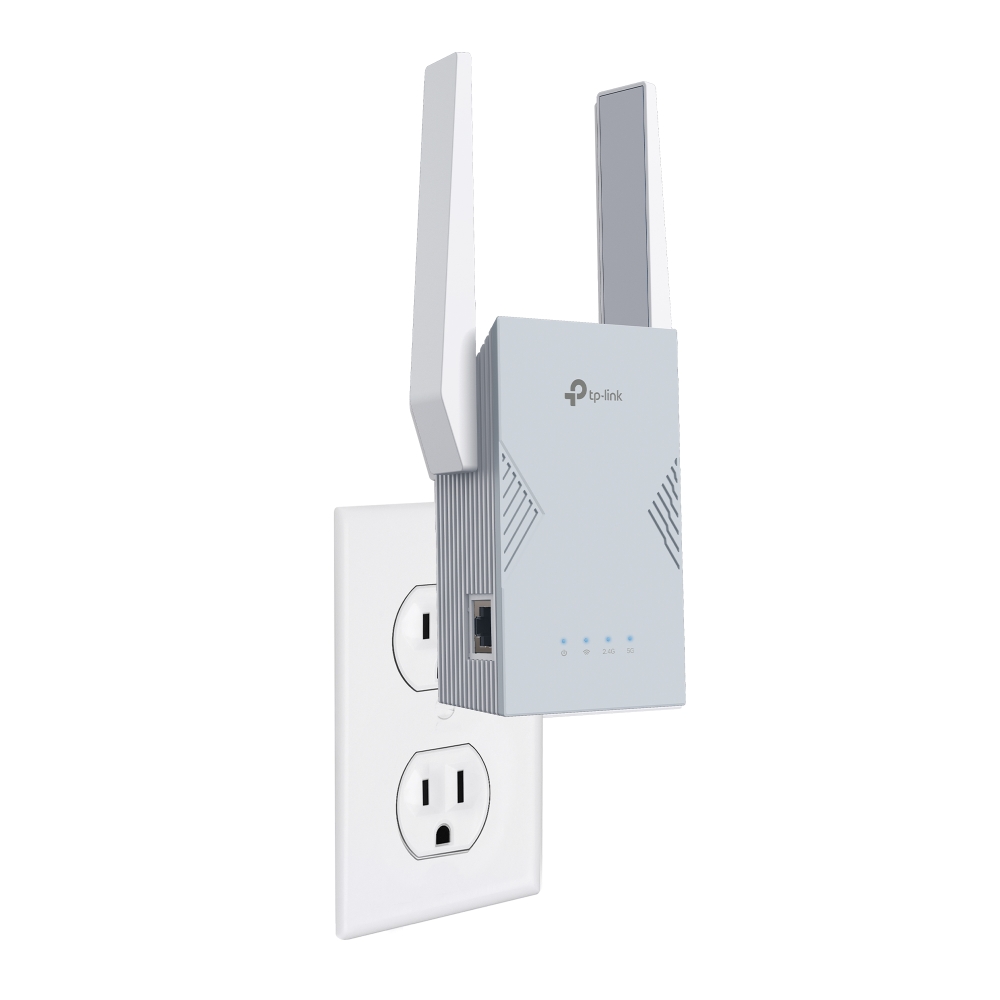

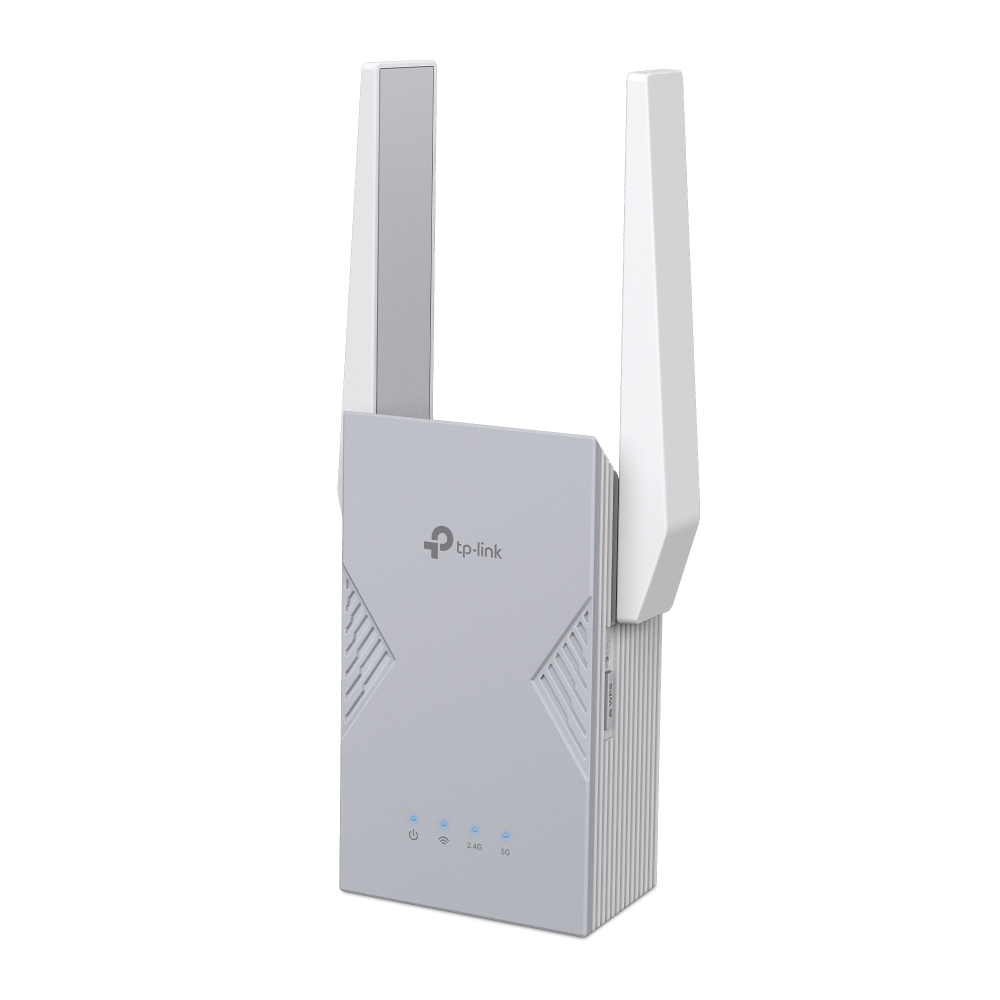

RE3200BE

BE3600 Dual-Band Wi-Fi 7 Range Extender

  • 3.6 Gbps Dual-Band Wi-Fi 7: Delivers up to 3.6 Gbps speed(2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz),providing consistent performance for daily streaming, browsing, and multitasking.
  • Multi-Link Operation (MLO): Supports MLO technology to improve throughput, reduce latency, and increase link reliability.
  • Gigabit Ethernet Port: Provides faster wired connections to smart TVs, computers, and gaming consoles.
  • Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
  • EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*
  • Quick and Simple Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
  • Great Compatibility: Works with all Wi-Fi generations and devices and all internet providers.***

Uninterrupted Connections, Unmatched Performance

BE3600 Dual-Band Wi-Fi 7 Range Extender

RE225BE

2.5g icon
wifi7 icon

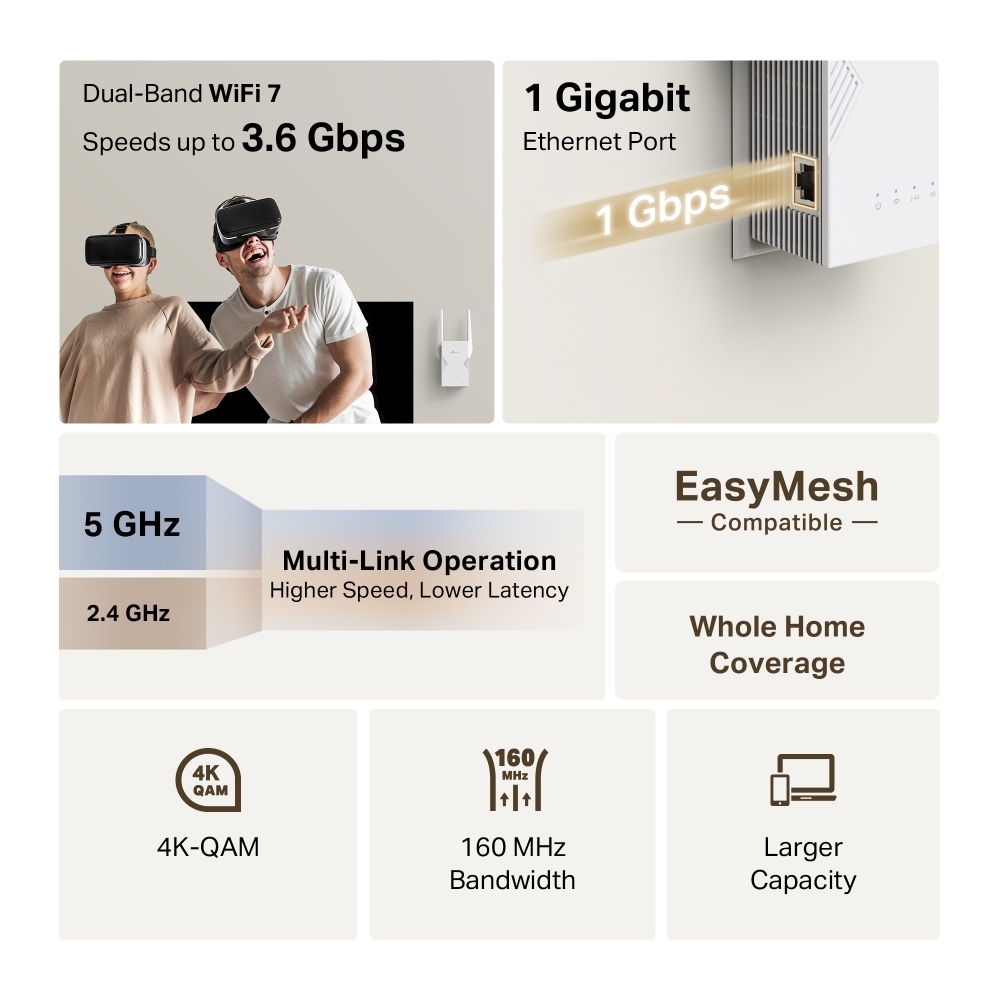

Dual-Band WiFi 7

Speeds up to 3.6 Gbps

1 Gigabit

Ethernet Port

Whole Home Coverage

5 GHz

2.4 GHz

Multi-Link Operation

Higher Speed, Lower Latency

4K-QAM

160 MHz Bandwidth

Larger Capacity

WiFi 7 — WiFi Like Never Before

WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

Wi-Fi 7
Extremely High Throughput
Wi-Fi 6
Wi-Fi 5
Online Gaming
Video Conferencing
4K/8K Streaming
VR/AR

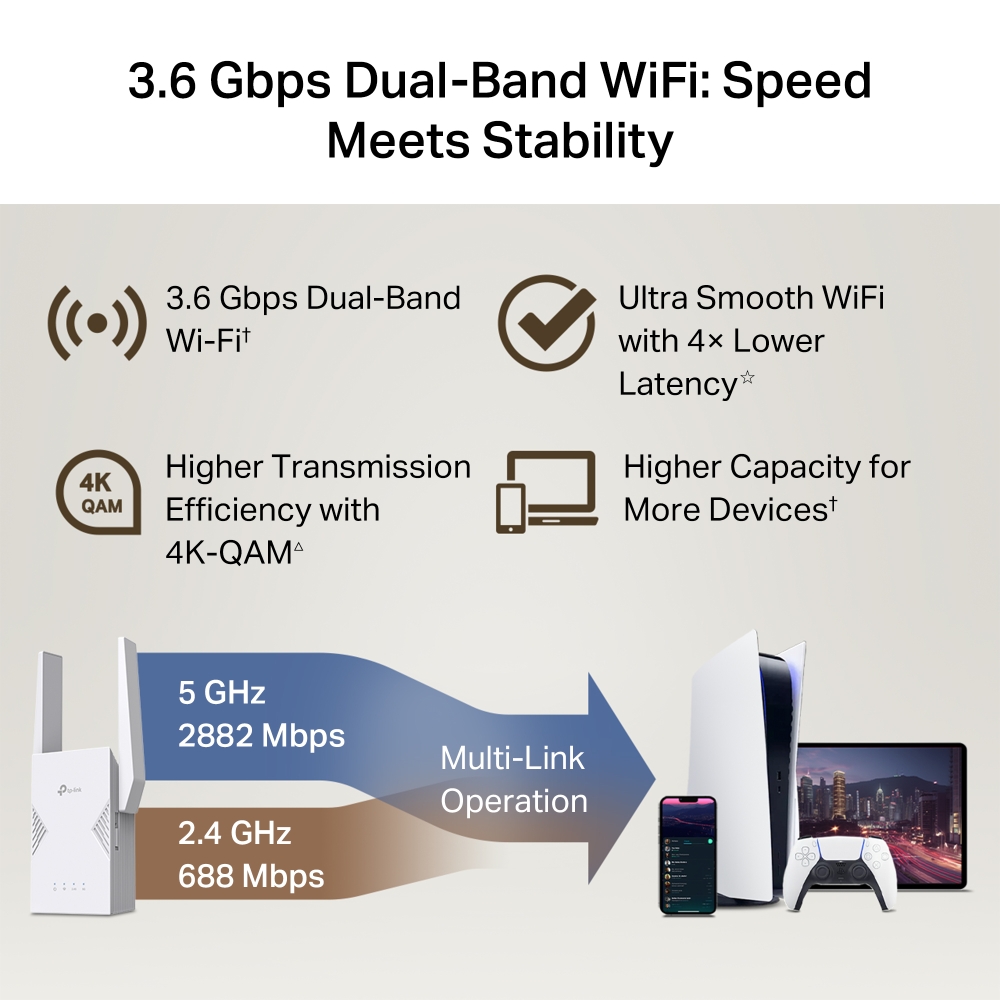

3.6 Gbps Dual-Band WiFi: Speed Meets Stability

Enjoy next-generation performance with a Dual-Band WiFi 7 range extender, offering blazing-fast speeds of up to 3.6 Gbps to ensure seamless connectivity in every corner of your home, keeping you connected with unmatched reliability and efficiency.

3.6 Gbps Dual-Band Wi-Fi

Ultra Smooth Wi-Fi with 4× Lower Latency

Higher Transmission Efficiency with 4K-QAM

Higher Capacity for More Devices

5 GHz 2882 Mbps
2.4 GHz 688 Mbps
Multi-Link Operation

Extend Reliable WiFi 7 to Eliminate Dead Zones

Transform more areas of your home or office into connected spaces with the RE225BE Range Extender. By seamlessly connecting to your existing router, it amplifies and extends your WiFi signal to reach even hard-to-cover spots. Enjoy reliable, uninterrupted coverage with reduced interference, ensuring a smoother and more consistent connection wherever you go.

external antennas

RE225BE

Router

1 Gbps Wired Connection

  • arrow icon Range Extender Mode

    Plug your PC, smart TV, or game console into the 1 Gbps port for a blazing-fast wired connection.

    Router

    RE225BE

    1 Gbps

  • arrow icon Access Point Mode

    Connect RE225BE with a router to easily turn that 1G wired connection into a high-speed tri-band wireless signal.

    Router

    RE225BE

    1 Gbps

EasyMesh – Create Whole-Home Wi-Fi with Your Existing Router

The RE225BE is EasyMesh-compatible. Pair with an EasyMesh-compatible router to eliminate weak spots and create seamless whole-home WiFi, ensuring every corner of your home stays connected.

  • WiFi Dead Zone Killer

    WiFi Dead Zone Killer
    Eliminate weak signal areas with WiFi coverage for the whole house

  • Smart Roaming

    Smart Roaming
    Uninterrupted streaming when moving around your home

  • One WiFi Name

    One WiFi Name
    No more switching WiFi network names

  • EasyMesh Devices (Router+Range Extender)

    product-1 product-2
  • Traditional Router with Extender WiFi

Control at Your Fingertips

Set up and manage your WiFi, including TP-Link routers and range extenders, from your Android or iOS phone with the TP-Link Tether app.

Tether QRcode
Tether App
Apple Store Google Store
HARDWARE FEATURES
Interface 1 Gbps Ethernet Port
Button • WPS Button
• Reset Button
Input Power 100-240V~50/60Hz 0.3A
Max. Power Consumption 15W
Dimensions ( W x D x H ) 3.8 × 1.8 × 6.2 in (97 × 46 × 158 mm)
Antenna 2 External Antennas
WIRELESS FEATURES
Wireless Standards Wi-Fi 7
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz
Frequency • 5 GHz
• 2.4 GHz
Signal Rate • 2882 Mbps at 5 GHz
• 688 Mbps at 2.4 GHz
Working Modes Range Extender/Access Point
Reception Sensitivity 5GHz:
11be EHT20 MCS0:-96dBm
11be EHT40 MCS0:-94dBm
11be EHT80 MCS0:-91dBm
11be EHT160 MCS0:-88dBm
11be EHT20 MCS13:-59dBm
11be EHT40 MCS13:-57dBm
11be EHT80 MCS13:-54dBm
11be EHT160 MCS13:-51dBm

2.4GHz:
11be EHT20 MCS0:-95dBm
11be EHT40 MCS0:-93dBm
11be EHT20 MCS13:-58dBm
11be EHT40 MCS13:-56dBm
Wireless Security • WPA/WPA2-PSK encryptions
• WPA2/WPA3
Advanced Features • Multi-Link Operation (MLO)
• 160 MHz Channel
• 4K-QAM
• Multi-RUs
Transmission Power FCC:
• 2.4GHz < 30dBm
• 5GHz < 30dBm
Mesh Technology EasyMesh-Compatible
Wireless Function • LED Control
• Access Control
• Power Schedule
• Wi-Fi Coverage
OTHERS
Certification FCC, RoHS
Package Content • Wi-Fi 7 Range Extender RE235BE
• Quick Installation Guide
System Requirements Internet Explorer, Firefox, Chrome, Safari, or other
JavaScript-enabled browser
Environment • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Higher capacity is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

‡‡4x Lower Latency refers to the latency improvement of Wi-Fi 7 range extenders compared to Wi-Fi 6 range extenders, based on laboratory test data. The test conditions had the same 5 GHz single-frequency wireless interference and tested the maximum latencies of Wi-Fi 7 clients (with MLO turned on connecting to the 5GHz and 2.4 GHz bands of RE225BE (with MLO turned on) Connecting to the 5 GHz bands of a Wi-Fi 6 range extender (without the MLO function).

§Uninterrupted Streaming is designed for devices that support the 802.11k/v standard.

Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU, OFDMA, and MU-MIMO requires clients to also support the corresponding features. The 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions.

*TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.

**Unified management is available for TP-Link EasyMesh-compatible devices. This feature is not guaranteed for devices from other vendors.

***Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. All devices need to support 802.11 Wi-Fi protocols.



Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

This range extender may not support all the mandatory features as ratified in the IEEE 802.11be specification. Further software upgrades for feature availability may be required.
