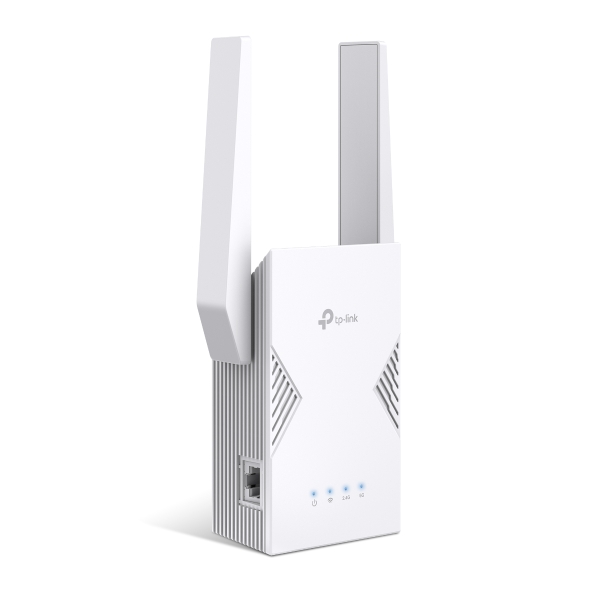

BE3200 Wi-Fi 7 Range Extender

Highlights

Wi-Fi 7 — Wi-Fi Like Never Before

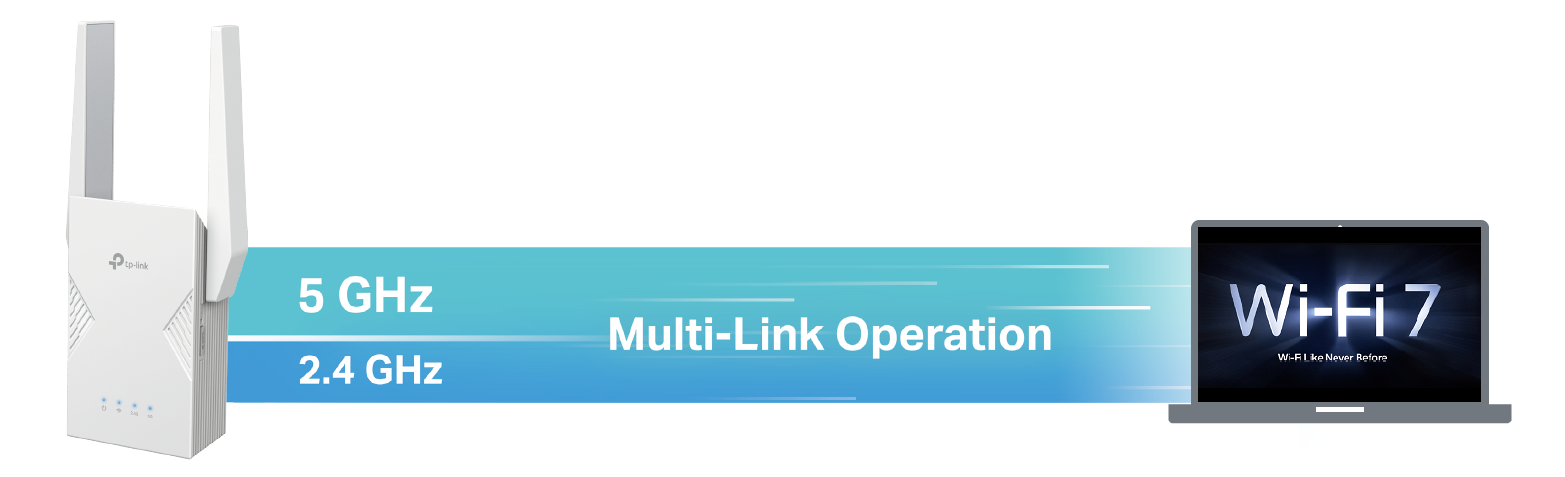

3.2 Gbps Dual-Band Wi-Fi Multi-Link Operation (MLO) enables RE3200BE to transmit data with Wi-Fi 7 clients across the 5 GHz and 2.4 GHz bands simultaneously, delivering faster Wi-Fi speeds than Wi-Fi 6/6E range extenders.△	Ultra Smooth Wi-Fi with 4× Lower Latency☆ 4× lower latency than Wi-Fi 6/6E range extenders enables emerging applications like VR/AR, video conferencing, and online gaming to always run at top performance.
Higher Transmission Efficiency with 4K-QAM△ 4K-QAM packs 120% data for higher speeds. Enjoy full access to 8K streaming and high speed downloading.†△	Higher Capacity for More Devices† Communicates with multiple devices via 4 streams and dual-band simultaneously. Combined with its powerful CPU, Wi-Fi 7 provides congestion-free signals to your laptop, TV, thermostat, and baby monitor.

Eliminate Wi-Fi Dead Zones with Unrivaled Wi-Fi 7

Flexible Whole Home Mesh Wi-Fi Connect with an EasyMesh-compatible router to create a mesh network for seamless whole home coverage or any other Wi-Fi router to boost your Wi-Fi range.‡ *
Wi-Fi Dead Zone Killer	Uninterrupted Streaming§
One Wi-Fi Name	Unified Management**

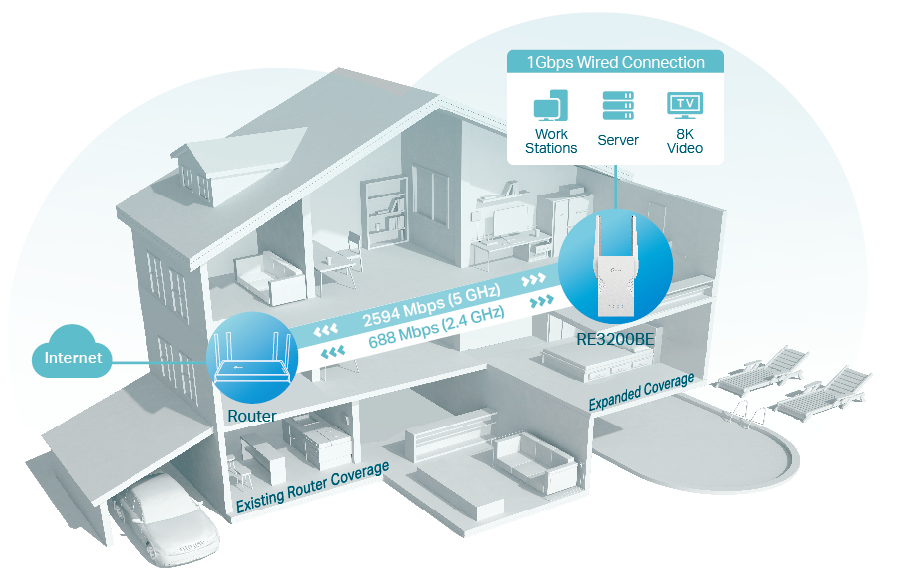

Maximum Network Coverage

	Eliminate Dead Zones with Wi-Fi 7 Expand your Wi-Fi with future-proof connectivity powered by Wi-Fi 7 Multi-Link Operation (MLO) and 4K-QAM.Δ
	Whole-Home Coverage Made Simple Pair with an EasyMesh-compatible* router to eliminate weak spots and create a seamless Wi-Fi network with a single Wi-Fi name.
	Enhanced Security with WPA3◇ Extend your Wi-Fi with confidence. WPA3 encryption keeps your home network safe and secure.
	Smart, Adaptive Networking Stay connected to the fastest, most stable path for seamless performance.
	Broad Compatibility*** Compatible with all Wi-Fi generations, devices, and routers for worry-free connectivity.

Specification

Hardware
Button	WPS Button, Reset Button
Port	1 Gigabit Ethernet Port
Antennas	2 External Antennas
Dimension	3.8 × 1.8 × 4.9 in (97.2 × 46.3 × 124mm)
Appearance
Wireless
Wireless Standards	IEEE 802.11a/n/ac/ax/be 5 GHz, IEEE 802.11b/g/ n/ax/be 2.4 GHz
Frequency	2.4 GHz and 5GHz
Signal Rate	688 Mbps at 2.4 GHz, 2594 Mbps at 5 GHz
Transmit Power	FCC: ≤ 30 dBm (2.4 GHz), ≤ 30 dBm (5 GHz)
Reception Sensitivity	2.4 GHz: 11be EHT 20 MCS0: -97dBm, 11be EHT 20 MCS13: -60dBm 11be EHT 40 MCS0: -95dBm, 11be EHT 40 MCS13: -58dBm 5 GHz: 11be EHT 20 MCS0: -97dBm, 11be EHT 20 MCS13: -60dBm 11be EHT 40 MCS0: -95dBm, 11be EHT 40 MCS13: -58dBm 11be EHT 80 MCS0: -92dBm, 11be EHT 80 MCS13: -55dBm 11be EHT 160 MCS0: -89dBm, 11be EHT 160 MCS13: -53dBm
Wireless Function	LED Control, Access Control, Power Schedule, Wi-Fi Coverage
Wireless Security	Enhanced Open, WPA/WPA-PSK2, WPA2/WPA3 encryptions
Others
Certification	FCC, RoHS
System Requirements	Microsoft Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version
Package Contents	Range Extender RE3200BE Quick Installation Guide
Environment
Operating Temperature	0℃~40℃ (32℉~104℉)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing

Disclaimer

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Higher capacity is based on laboratory test data, which analyzed the connections of different devices on the 5 GHz and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. The 160 MHz bandwidth might not be available on the 5 GHz band in some regions/countries due to regulatory limits on the spectrum, hence the theoretical speeds may vary.
^‡The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
^§Uninterrupted Streaming is designed for devices that support the 802.11k/v standard.
^△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RU, OFDMA, and MU-MIMO requires clients to also support the corresponding features.
*TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible feature is still being developed on some models and will be supported in subsequent software updates. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.
**Unified management is available for TP-Link EasyMesh-compatible devices. This feature is not guaranteed for devices from other vendors.
***Wi-Fi generations represent the wireless standard IEEE 802.11a/b/g/n/ac/ax/be. All devices need to support 802.11 Wi-Fi protocols.
^◇Use of WPA3 requires clients to also support the corresponding feature.
^☆4× Lower Latency refers to the latency improvement of Wi-Fi 7 range extenders compared to Wi-Fi 6 range extenders, based on laboratory test data. The test conditions had the same 5 GHz single-frequency wireless interference and tested the maximum latencies of Wi-Fi 7 clients (with MLO turned on) connecting to the 5 GHz and 2.4 GHz bands of RE3200BE (with MLO turned on) simultaneously and to the 5 GHz bands of a Wi-Fi 6 range extender (without the MLO function).
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This range extender may not support all the mandatory features as ratified in the IEEE 802.11be specification.
Further software upgrades for feature availability may be required.
