EH310_V1_Datasheet

1 to 3 Gigabit Ethernet Splitter

Highlights

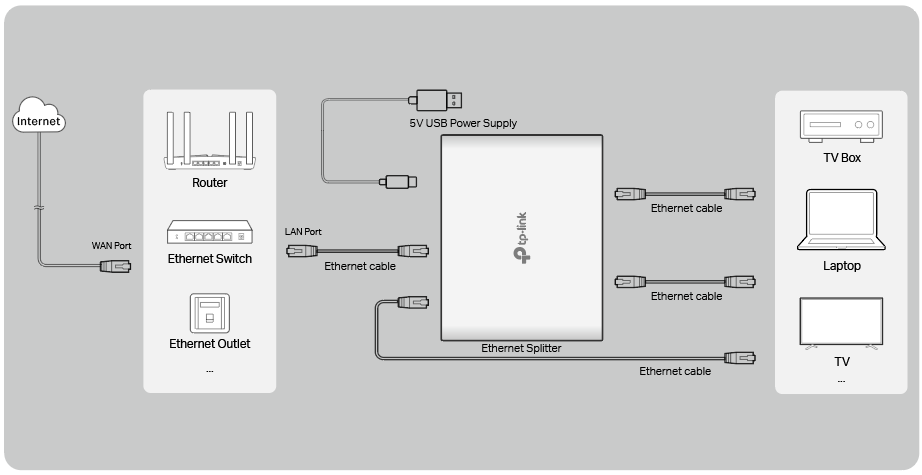

Simultaneous Internet Access for Three Devices

EH310 is compatible with Cat 8/7/6/5e/5 network Ethernet cables and can be used with hubs, switches, routers, computers, and more.

*This product cannot be used without a power source.

Specifications

Hardware

· Ethernet Ports: 4× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation, Auto MDI/MDIX, Half and Full Duplex)
· Power: USB-C, 5VDC / 0.3A
· LED: 1× Power, 4× Ports

Physical

· Dimension (W×D×H): 2.63×1.83×0.72 in (66.68×46.6×18.3 mm)
· Cable: Cat 8, Cat 7, Cat 6, Cat 5e, Cat 5
· Package Contents:
1× Ethernet Splitter (EH310)
1× USB Power Cable
1× Cat 5e Ethernet Cable
Quick Installation Guide

Others

· Supported Systems: Windows, iOS, macOS, iPadOS, Chrome OS, Linux, Android
· Certification: CE, FCC, RoHS, BSMI
· Operating Temperature/Humidity: 0°C~40°C(32°F~104°F)/10%~90% RH, Non-Condensing
· Advanced: Green Technology, 802.3x Flow Control, 802.1p/DSCP QoS
· Devices Supported: Hubs, switches, routers, computers, and more.

For more information, please visit https://www.tp-link.com/products/details/?model=EH310_V1  or scan the QR code left

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Specifications are subject to change without notice. Other brands and product names are trademarks or registered trademarks of their respective holders.
^†Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
