Datasheet

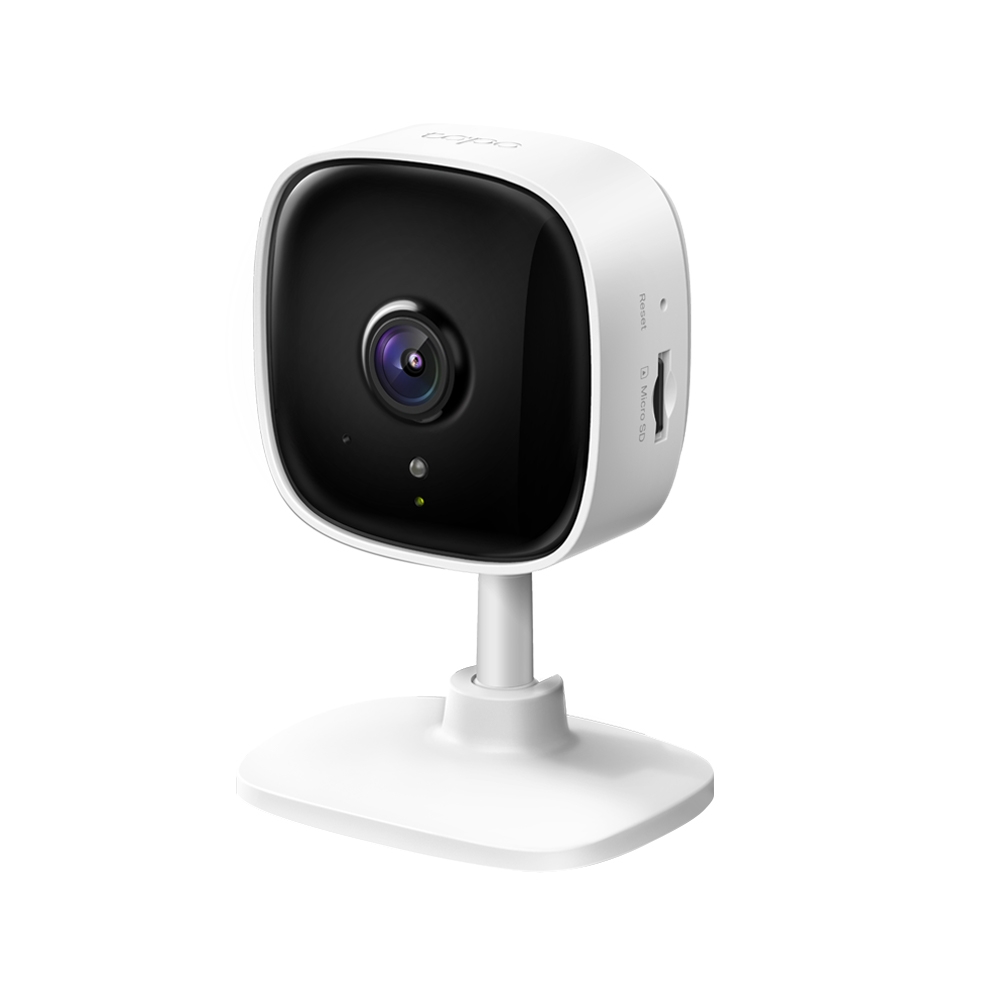

Home Security Wi-Fi Camera
Overview
· Ultra-High Definition Video: Captures every detail with ultra-high 3MP resolution, ensuring unparalleled clarity in your recordings.
· Advanced Night Vision: Offers exceptional night vision capabilities, providing clear visuals for up to 40 feet, even in complete darkness.
· Person Detection and Notifications: Smart detection technology identifies human movement, promptly alerting you via notifications.
· Sound and Light Alarm: Equipped with an integrated alarm system that triggers light and sound effects to deter unwelcome visitors.
· Two-Way Audio: Facilitates real-time communication with a built-in microphone and speaker, allowing for instant interaction or deterrence.
· Safe Storage: Provides secure local storage of up to 512GB on a microSD card, safeguarding your footage from potential data breaches.
· Easy Setup and Management: Streamlines device management with the intuitive Tapo app, making setup and daily use a breeze.
Features
 |
2K Resolution
|
 |
Sharing Share adorable and amusing moments with loved ones. |
 |
Customizable Block Zones Set customizable block zones to keep private areas from being monitored. |
 |
Local† and Cloud‡ Storage Save recorded videos to a microSD card (up to 512 GB)† or by using Tapo Care‡ cloud storage services. |
 |
Alarm System Triggers sound alarms to frighten away unwanted visitors. |
 |
Activity Zones
|
 |
Night Vision up to 40 ft Record your voice and set the spotlight brightness to create an alarm that fits your needs. |
 |
Easy Setup
|
 |
Two-Way Audio Communicate in real time through a built-in microphone and speaker. |
|
Provides greater sharpness and clarity.
Set up your own activity zones to only receive alerts that matter.
Follow in-app instructions to easily set up within minutes.Specifications
| Camera | |
| Image Sensor | 1/2.8'' Progressive Scan CMOS Sensor |
| Lens | Focal Length: 3.15 mm Aperture: F2.0 Field of View: 129.4° (Diagonal), 107.6° (Horizontal), 57.6° (Vertical) |
| Night Vision | 850 nm IR LED (40 ft / 12 m) |
| Night Mode | IR-Mode |
| Day/Night Switch | IR-Cut Filter with Auto-Switching |
| Lighting | / |
| Interface & Button | 1× RESET Button 1× microSD Card Slot (Up to 512 GB) |
| Video & Audio | |
| Maximum Resolution | 2K 3MP (2304 × 1296 px) |
| Frame Rate | 30 fps |
| Digital Zoom | / |
| Live View | Yes |
| Image Enhancement |
3D NR+WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 89dB (Level measured at 4-inch/10-cm distance) |
| Storage | |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) (SD Card Purchased Separately) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Detection & Notification | |
| Sensor | / |
| AI Detection | Motion Detection Person Detection Baby Cry Detection Tampering Detection |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| Network | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi§ |
| Transmission Rate | 11b: 11 Mbps 11g: 54 Mbps 11n: 72.2 Mbps |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Security | |
| Security | 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| Power | |
| Power Source | 9 V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 9 V, 0.6 A (DC Power) |
| DC Power Connector Size | Inside Ø: 2.1 mm Outside Ø: 5.5 mm |
| Power Cord Length | 3 m |
| Typical Power Consumption | 2.0 W |
| Maximum Power Consumption | 4.5 W |
| General | |
| Smart Integration | Google Assistant, Amazon Alexa∆ |
| Weather Resistance | / |
| Mounting Options | Tabletop Wall-Mounted |
| Operating Temperature | 0 ℃ ~ 40 ℃ (32 °F ~ 104 °F ) |
| Storage Temperature | -20 ℃ ~ 60 ℃ (-4 °F ~ 140 °F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Charging Temperature | / |
| Weight | 2.5 oz (70 g) |
| Dimensions | 2.66 × 2.15 × 3.89 in (67.6 × 54.6 × 98.9 mm) |
| Package Contents | Tapo C110 Camera DC Power Adapter Quick Start Guide Mounting Anchors Mounting Screws Mounting Template |

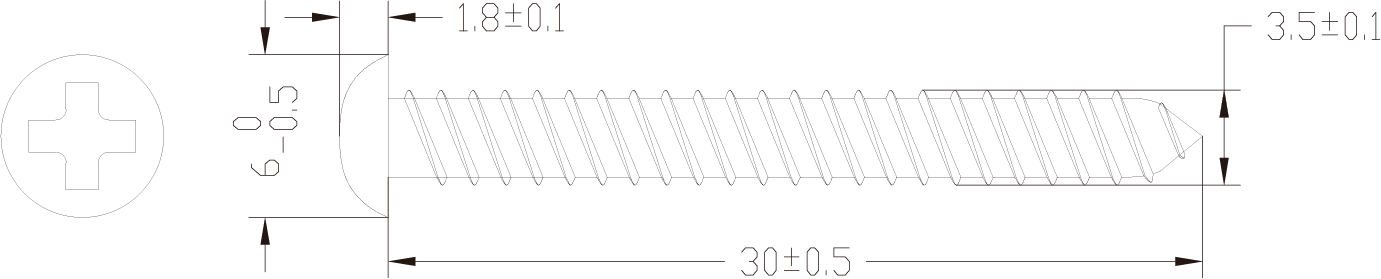

| Mounting Screw Size |  |
†microSD card needs to be purchased separately.
‡Subscribe for cloud storage at https://www.tapo.com/tapocare/
§Tapo C110 does not have an Ethernet port and can only be connected via Wi-Fi.
∆Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected device's specifications.
