Tapo C402/C403 V2 Datasheet
Smart Wire-Free Indoor/Outdoor Security Camera

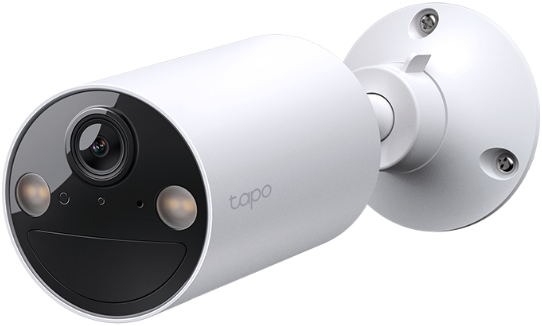

（Tapo C402）

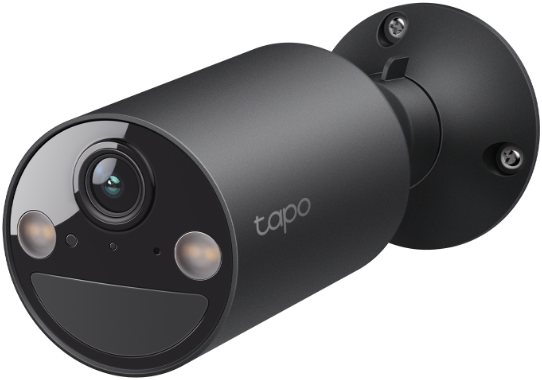

(Tapo C403 - Black Version)
Overview
· Wire-Free, Installs Almost Anywhere: Eliminates the need for outlets and enables flexible placement. Add security to your home, wherever, whenever.
· Color Night Vision: See the night in vivid colors with the large aperture lens and built-in spotlights effective up to 30 feet (9m).
· Extended Battery Life: With up to 180 days of security on a single charge, the Tapo camera minimizes maintenance.1
· Flexible Storage Options: Choose from local microSD storage up to 512GB or the secure Tapo Care cloud service for additional peace of mind.2
· Smart Person Detection: Get alerts when a person is detected, reducing false alerts and unnecessary notifications.
· 1080p Full HD Live View: Reveals clear and sharp images with more details.
· Intelligent Phone Notifications: Customize activity zones for precise motion detection and phone alerts, focusing on what truly matters.
· IP65 Weatherproof: Offers excellent waterproof and dustproof performance for outdoor scenarios.
Features
 |
Long-Lasting Rechargeable Battery The built-in rechargeable battery lasts up to 180 days on a single charge.1 |
 |
Color Night Vision Enhances your nighttime security by revealing vivid colors with the built-in dual spotlights. |
 |
1080p Full HD Live View Captures vivid details in 1080p resolution, with advanced algorithms ensuring perfect exposure day and night. |
 |
Smart Person Detection Receive notifications only when a person is detected, reducing false alerts and prolonging battery life. |
 |
Optional Solar Panel Enjoy a maintenance-free security experience with the Tapo Solar Panel, which provides a continuous power supply.3 |
 |
Local and Cloud Storage Store footage on a microSD card (up to 512 GB)**** without a subscription, or use cloud storage for added convenience.2 |
 |
Customizable Sound and Light Alarm Record your voice and set the spotlight brightness to create an alarm that fits your needs. |
 |
Two-Way Audio Talk and listen through the device with its integrated microphone and speaker. |
 |
IP65 Weatherproof Performs well even in harsh environments with rain and dust, ideal for indoor/outdoor scenarios. |
|
Specifications
| Camera | |
| Image Sensor | 1/2.8”CMOS Sensor |
| Lens | Focal Length: 3.17 mm Aperture: F1.65 Field of View: 125° (Diagonal), 111°(Horizontal), 56°(Vertical) |
| Night Vision | 850 nm IR LED (30 ft / 9.1 m) Full-Color Night Vision |
| Night Mode | IR-Mode/ Full-Color Mode |
| Lighting | 2× Spotlights |
| Interface & Button | 1× POWER Button 1× RESET Button 1× microSD Card Slot (Up to 512 GB) |
| Video & Audio | |
| Maximum Resolution | 1080p Full HD (1920 × 1080 px) |
| Focal Length | 15fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3D DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 94 dB (Level measured at 4-inch/10-cm distance) |
| Storage | |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) (SD Card Purchased Separately) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Detection & Notification | |
| Sensor | Single Motion Sensor (FOV: 110° horizontal) Single Ambient Light Sensors |
| Detection | Motion Detection AI Detection (Person Detection) |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| Network | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Transmission Rate | 11b: 11 Mbps 11g: 54 Mbps 11n: 72.2 Mbps |
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Security | |
| Security | 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| Power | |
| Power Source | • Built-in Rechargeable Lithium-ion Battery • Optional Solar Panel (Sold separately) |
| Camera Adapter Input | 100-240 V, 50/60 Hz (Not included) |
| Camera Adapter Output | 5.0 V, 1.0 A (Not included) |
| Power Cord Length | USB Adapter Cable Length: 0.5 m (19.68 in.) |
| Camera Typical Power Consumption | 1.04 W |
| Camera Maximum Power Consumption | 2.12 W |
| General | |
| Smart Integration | Google Assistant, Amazon Alexa4 |
| Weather Resistance | IP65 |
| Mounting Options | Tabletop Ceiling-Mounted Wall-Mounted |
| Operating Temperature | -20℃~ 45℃ (-4 ℉~ 113℉ ) |
| Storage Temperature | -40℃~ 60℃ (-40 ℉~ 140℉ ) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Charging Temperature | 0℃ ~ 45℃ (32 ℉~ 113℉ ) |
| Weight | 230 g / 8.1 oz |
| Dimensions | D60 mm*89 mm (D2.36 in. * 3.5 in.) |
| Package Contents |
Tapo Camera ×1 |
| Mounting Screw Size |  |
1The time of use includes recording and watching live views. 180-day battery life is based on Tapo laboratory tests with 250s of use per day. Actual battery life may vary due to device settings, usage, router specifications, and environmental factors.
2microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used. Subscribe for cloud storage at https://www.tapo.com/tapocare/
3Tapo solar panel purchased separately. Actual experience may vary due to placement angle, weather conditions, and camera usage.
4Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected device's specifications.
