HX710 Pro
NewAX5400 Whole Home Mesh WiFi System
- Ultra-fast Dual-Band WiFi 6: Speeds up to 5400 Mbps—4804 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.*
- Boosted Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi signals.
- Multi-Gig Connections: Break through the 1 Gbps bottleneck with a 2.5G WAN/LAN port for faster internet access and wired connections.△
- One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.**
- Enhanced Security: WPA3 encryptions, multi-SSID, and parental controls combined ensure personalized and safer online experiences.†
- EasyMesh Compatible: Provides whole home WiFi coverage based on standard mesh technology.**
- Easy Setup: Set up your mesh WiFi in minutes with the powerful Aginet app.
- Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

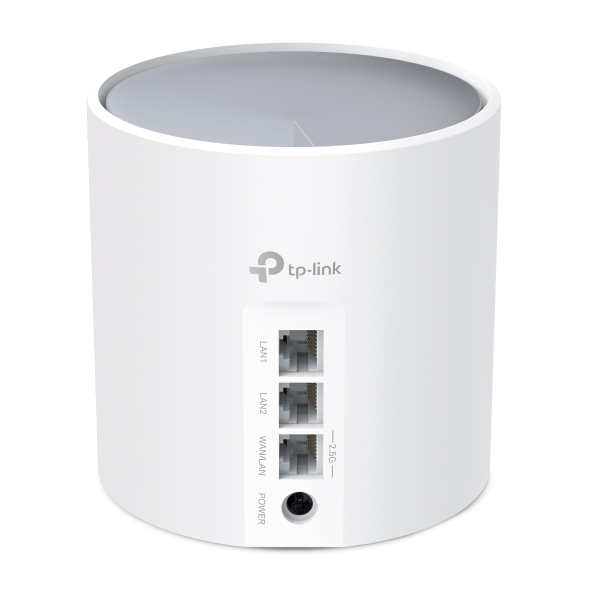

| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5G WAN/LAN Port2× Gigabit LAN Ports*Per Unit 1 Port supports WAN/LAN auto-sensing |
| Button | Reset ButtonWPS Button |
| External Power Supply | 12V DC/1.5.0A (EU version)12V DC/2.0A (US version) |
| Dimensions ( W x D x H ) | 4.33 × 4.33 × 4.49 in(110 × 110 × 114 mm) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | Wi-Fi 6IEEE 802.11a/n/ac/ax 5 GHzIEEE 802.11b/g/n/ax 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | AX54005 GHz: Up to 4804 Mbps (HE160)2.4 GHz: Up to 574 Mbps (HE40) |
| Transmit Power | FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz)CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
| Wireless Security | WPA-PSK/WPA2-PSK/WPA3 Personal encryptions |
| Multi-SSID | 2× 5 GHz Multi-SSID2× 2.4 GHz Multi-SSID |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM |
| Advanced Features | Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule, Guest Network, Network Diagnosis, Traffic Statistic |
| WAN Type | Dynamic IP/Static IP/PPPoE |
| Management | Local management: WebGUI, Aginet app (for end users)Remote management: TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 for service providersAginet App for end users (need to log in with TP-Link ID and bind your device to it)Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
| VPN | PPTP, OpenVPN, IPSec |
| Firewall Security | SPI Firewall |
| Protocols | IPv4 IPv6 |
| Working Modes | Router ModeAccess Point Mode |
| OTHERS | |
|---|---|

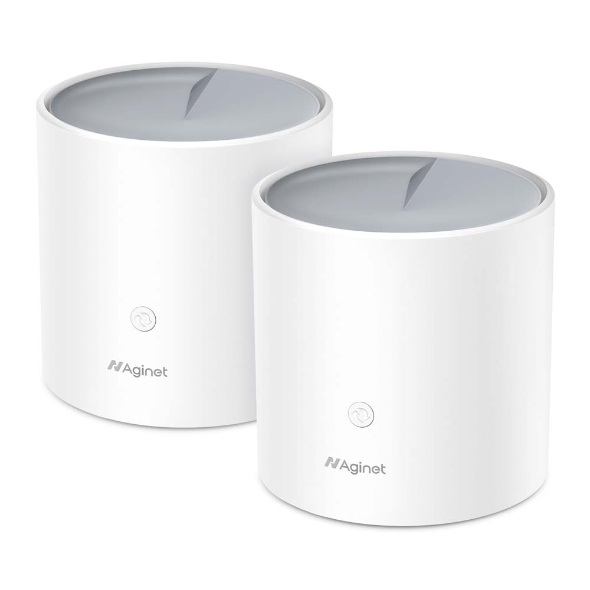

| Package Contents | HX710 Pro(2-pack)2 HX710 Units1 RJ45 Ethernet Cable2 Power Adapters1 Quick Installation GuideHX710 Pro(1-pack)1 HX710 Unit1 RJ45 Ethernet Cable1 Power Adapter1 Quick Installation Guide |
| Certifications | CE, FCC |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
**Mesh networking requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.
†Use of WiFi 6 (802.11ax), and other features, including OFDMA, 1024-QAM, HE160, TWT, MU-MIMO, and WPA3, requires clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.
‡Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v/r protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v/r and may require additional setup. Performance may vary depending on the client device.
△2.5 Gbps or multi-gig internet speeds require compatible service plans and equipment. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
