4G/5G Router NE225-Outdoor

NE225-Outdoor

New

5G Outdoor Gateway

  • Unrivaled Speed with 5G: Download speeds reach up to 7.01 Gbps.

  • LTE-Advanced Cat 19: Download speeds up to 1.6 Gbps.

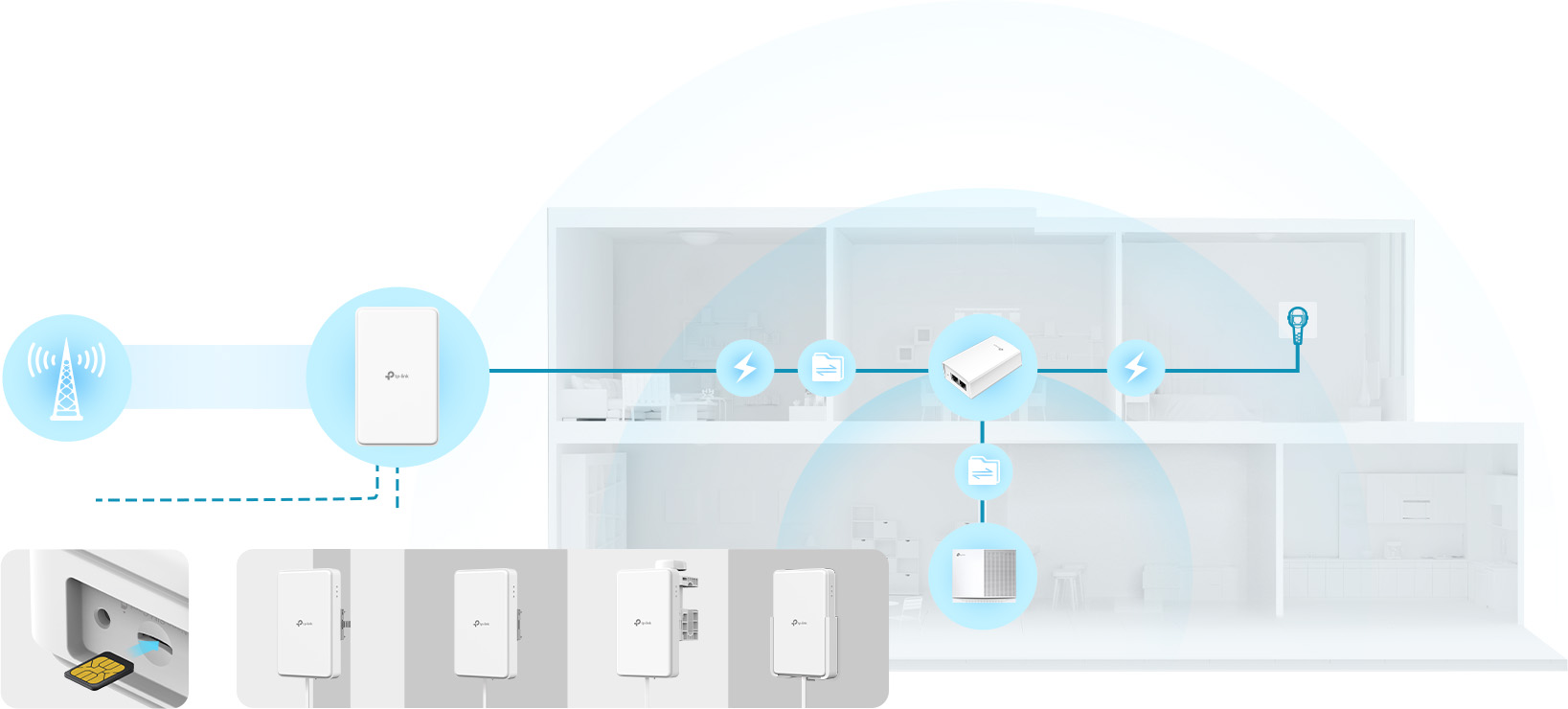

  • Performance-Driven for Outdoor Environments: 1× 2.5GE PoE Port.

  • IP66 Weatherproof: Withstands environments with rain and dust.

  • Plug and Play: No configuration needed. Compatible with SIM cards in 100+ countries.

  • Remote Management: TR-069 and TR-369 protocols are supported.

Specifications

HARDWARE FEATURES
Interface 1× 2.5GE PoE/LAN Port + 1 Nano SIM
Button 1 RESET button
External Power Supply • 802.3at PoE
• 48V Passive PoE (PoE Adapter Included)
Dimensions ( W x D x H ) 7.2 x 4.3 x 1.4 in (183 x 110 x 36mm)
Antenna Internal 5G NR/LTE Antennas
Protection IP66

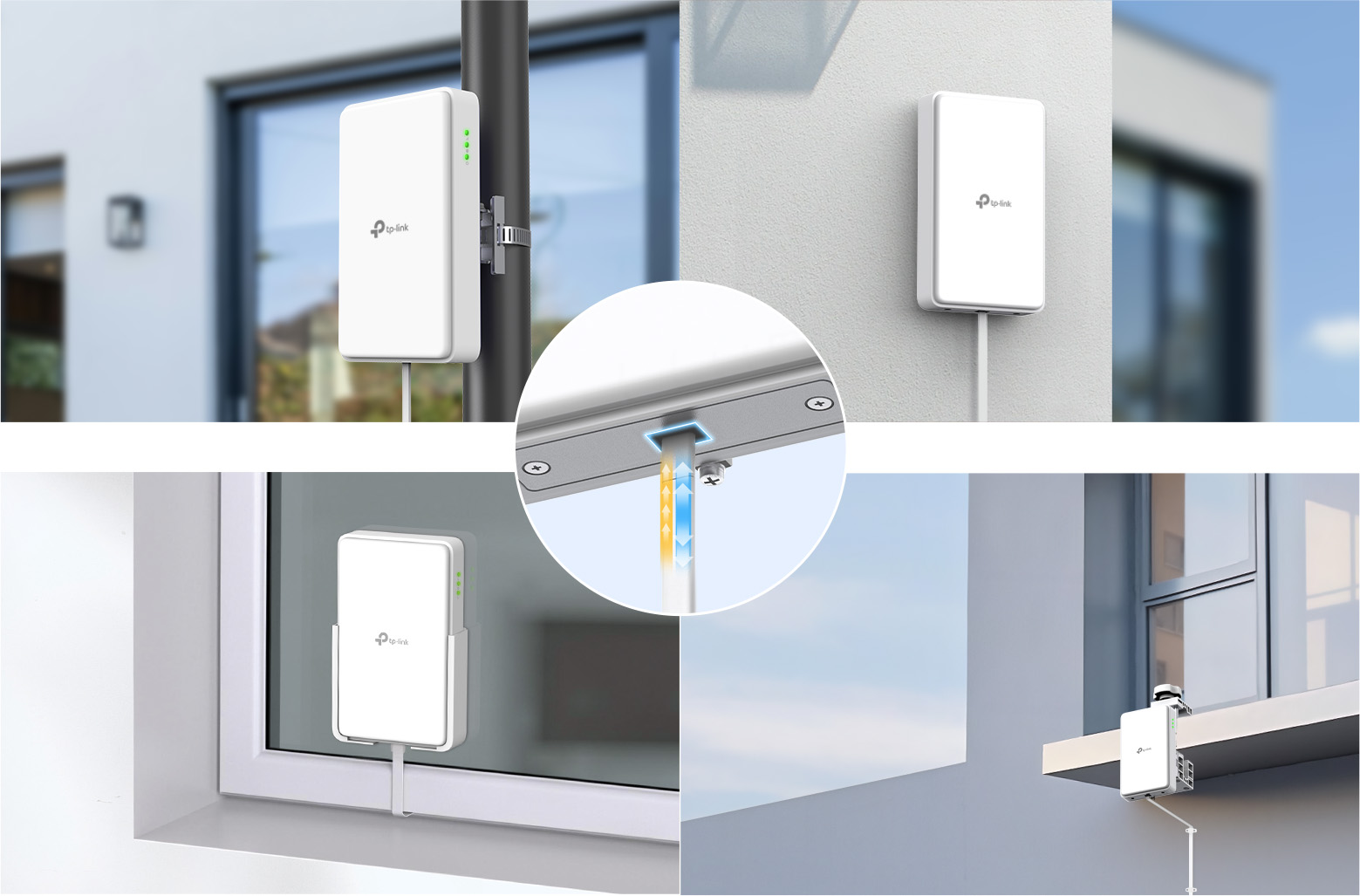

Mounting Pole/Wall/Window Mounting
Bluetooth version v5.4 Supported

WIRELESS FEATURES
Network Type 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
4G: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43
3G: B1/B5/B8

SOFTWARE
Protocols IPv6 Compatible

OTHERS
Package Content 1× NE225-Outdoor
1× PoE Adapter
1× RJ45 Ethernet Cable
1× Quick Installation Guide
Pole/Wall/Window Mounting Kits
For additional version information, please go to the support page.
