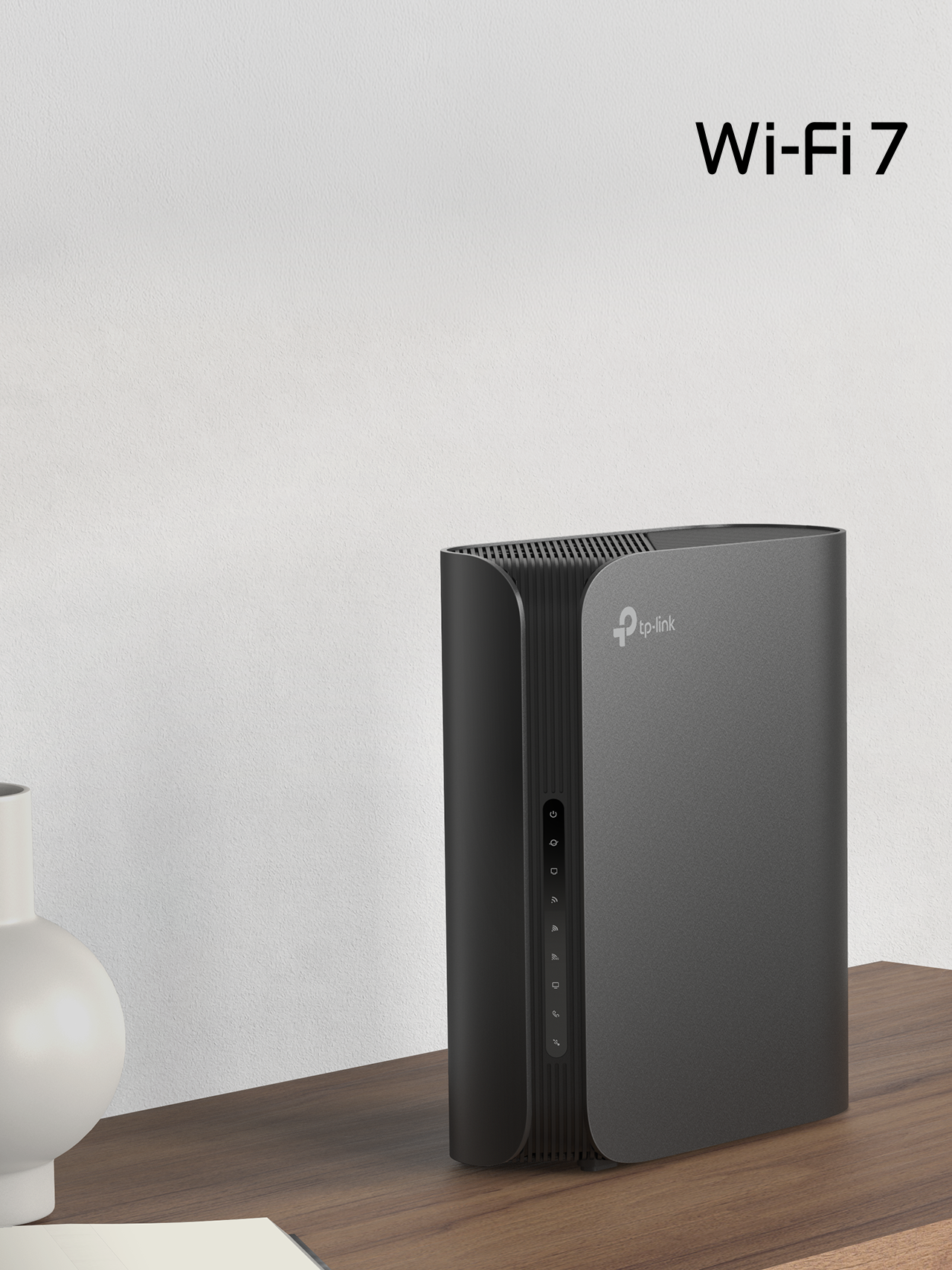

EB831v
Coming SoonBE19000 Tri-Band Wi-Fi 7 VoIP Router

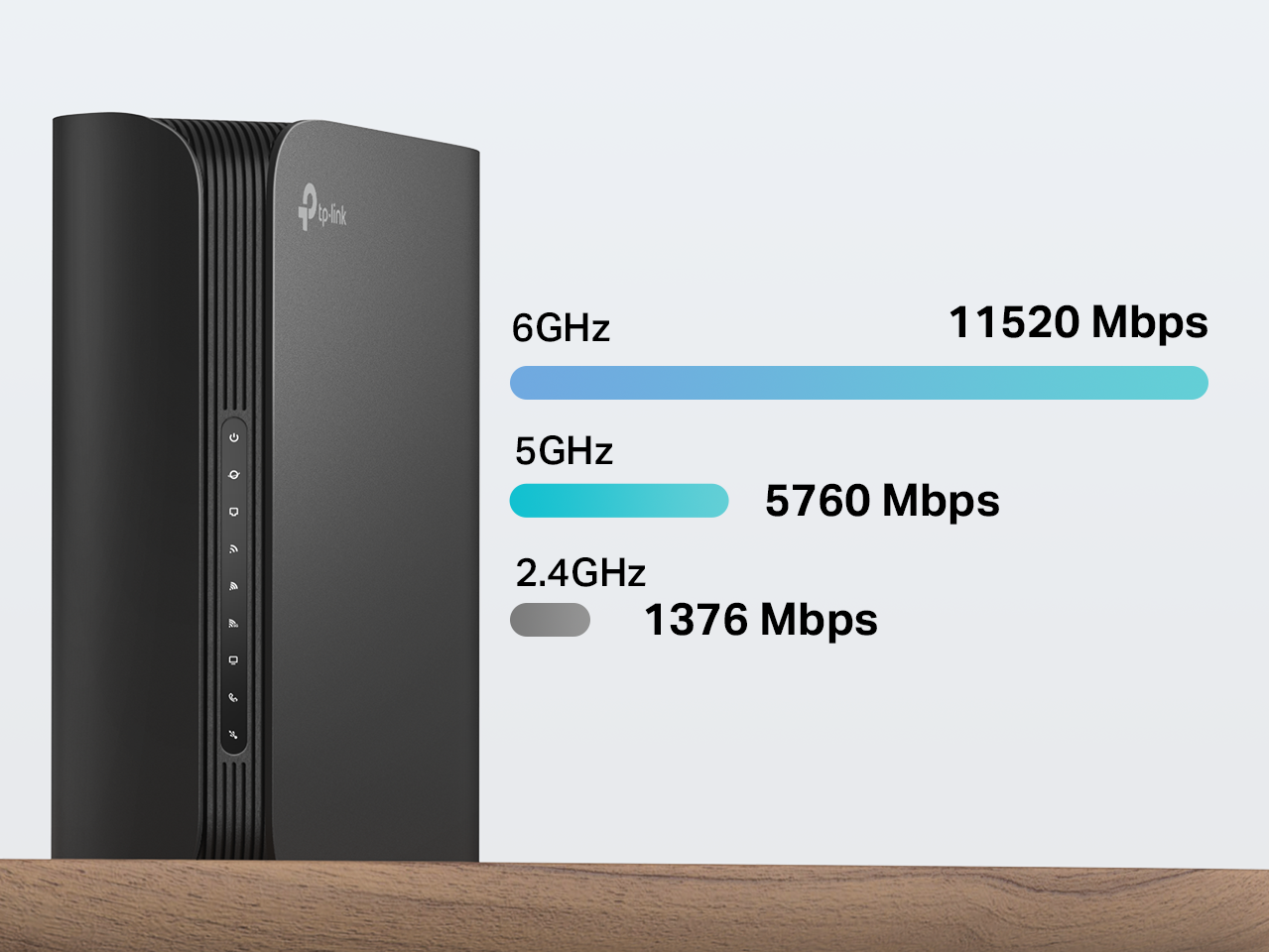

- BE19000 Tri-Band WiFi: 11520 Mbps (6 GHz, EHT320) + 5760 Mbps (5 GHz, EHT160) + 1376 Mbps (2.4 GHz, EHT40).†△

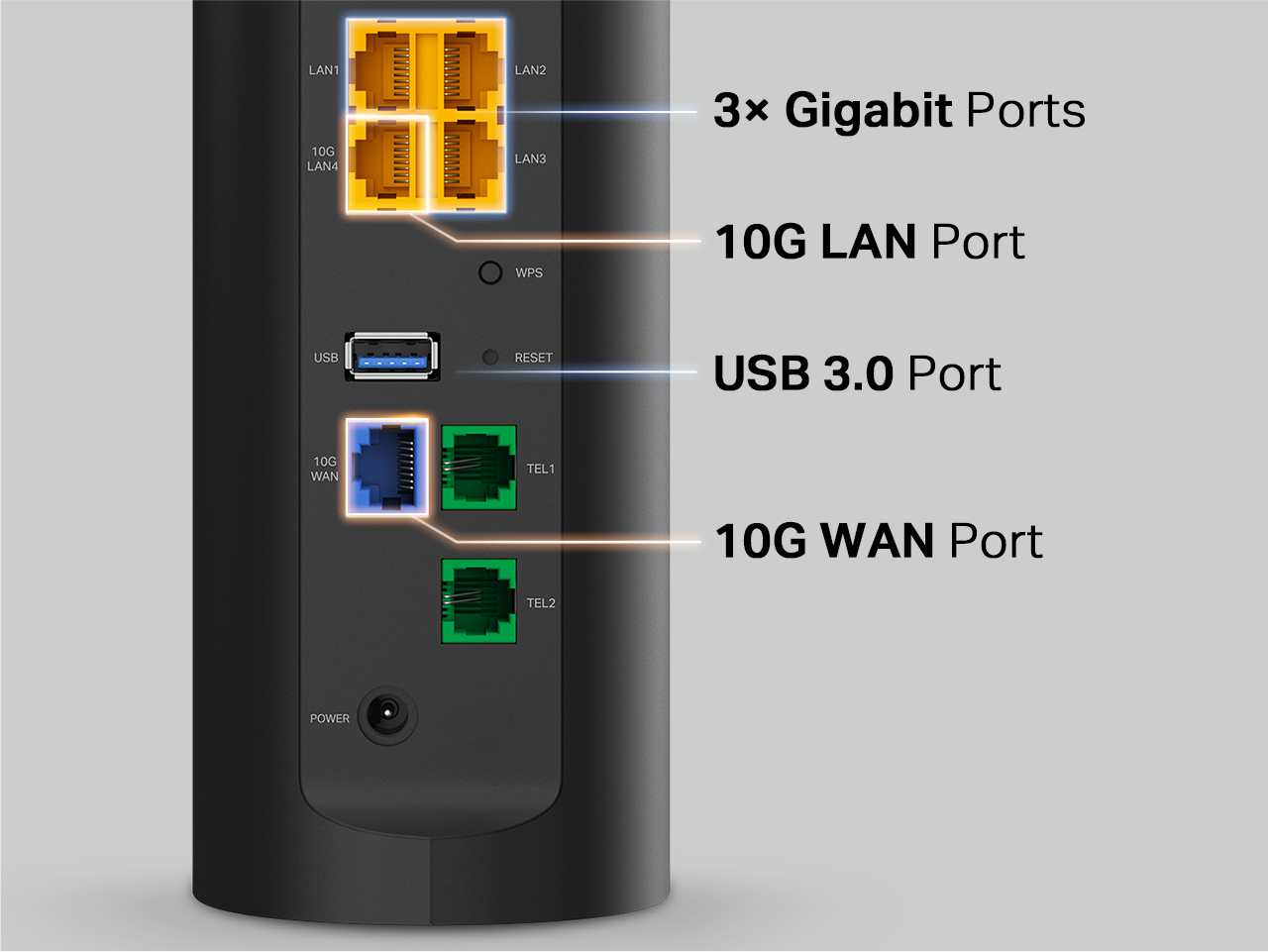

- 10G Ethernet Internet Connections: 1× 10GE WAN port, 1× 10GE LAN port and 3× Gigabit LAN ports ensure the ultimate wired and wireless internet access.§
- Next-Gen Wi-Fi Technology: Enjoy extreme Wi-Fi performance in network speed, efficiency, and capacity with cutting-edge technology.‡
- EasyMesh-Compatible◇: Create a smart mesh network with seamless coverage and greater flexibility.
- VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
- Remote Management: TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported.
Future
of
Connectivity
VoIP Router
efficiency. Join the pros and experience the sheer performance of the next generation of WiFi.
True 10G Connectivity Unlocks the True WiFi 7
Dual-band Antennas
6G Antennas
High Gain, High Isolation, High Integration,
and High Coverage
High Gain, High Isolation, High Integration, and High Coverage
Phone
Storage*
Phone
Storage*
An End-to-End Management
Platform for ISPs
An End-to-End Management
Platform for ISPs
the Planet We All
Share

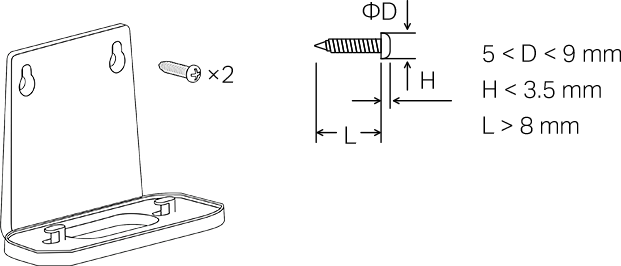

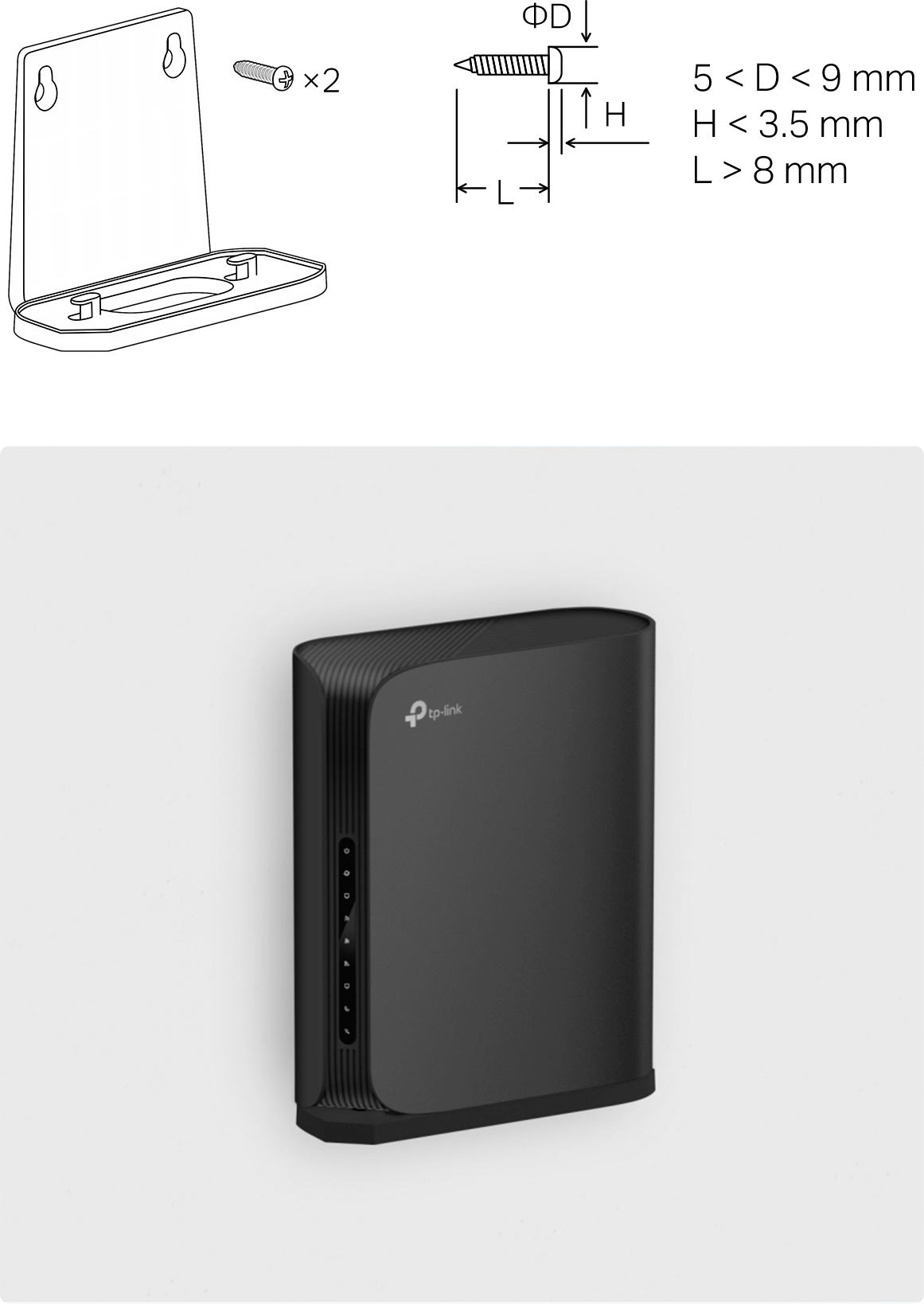

Mounting
(Not included)
(Not included)
Planet We All Share
| Interface | 1× 10GE WAN port1× 10GE LAN port3× Gigabit LAN ports2× Phone Ports1× USB 3.0 Port |
|---|---|
| Button | Power, Reset, WPS, Wi-Fi, ON/OFF |
| External Power Supply | 12V/4A |
| Dimensions ( W x D x H ) | 7.8 × 3.1 × 9.4 in (198 × 80 × 238.2 mm) |
| Quality of Service | WMM |
|---|---|
| Advanced Features | Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU,OFDMA, MU-MIMO, Beamforming, BSS ColorQoS (Quality of Service), Port Forwarding, CWMPParental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |

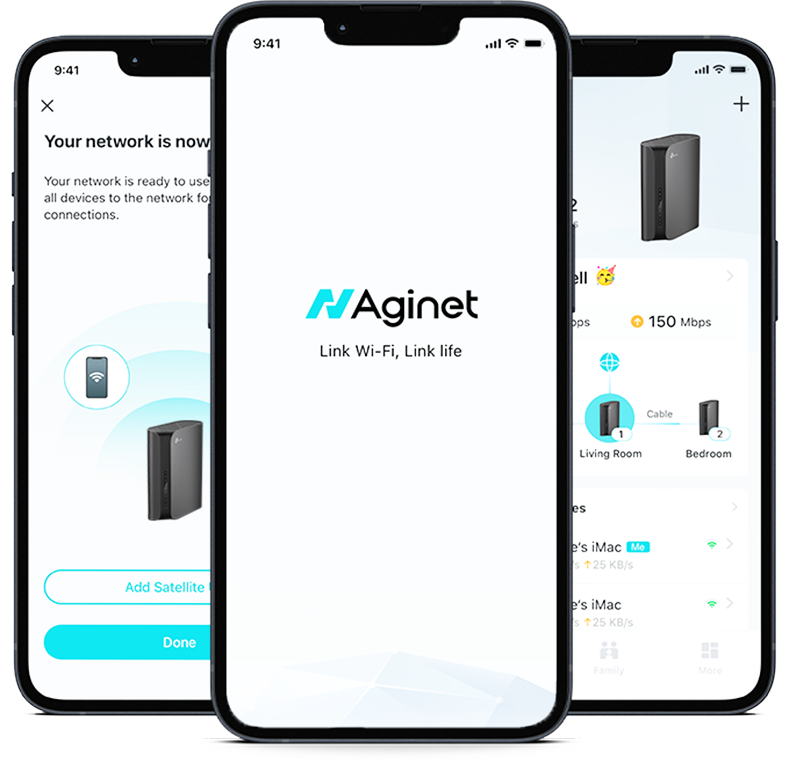

| Management Features | Local management: WebGUI, Aginet app (for end users)Remote management:TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 for service providersAginet App for end users (need to log in wtih TP-Link ID and bind your device to it)Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
| VPN | PPTP, OpenVPN, IPSec |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4IPv6 |
| Working Modes | Router ModeAccess Point Mode |
| Wireless Standards | IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/g/b 2.4 GHz |
|---|---|
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate | BE190006 GHz: Up to 11520 Mbps (EHT320)5 GHz: Up to 5760 Mbps (EHT160)2.4 GHz: Up to 1376 Mbps (EHT40)* |
| Wireless Security | WPA/WPA2/WPA3-Personal |
| Transmission Power | CE:<20 dBm (2.4 GHz)<30 dBm (5 GHz)<23 dBm (6 GHz) |
| Multi-SSID | 2× 6 GHz Multi-SSID2× 5 GHz Multi-SSID2× 2.4 GHz Multi-SSID |
| Mesh Technology | EasyMesh compatible and supports 802.11k/v/r |
| Certification | CE |
|---|---|
| Package Content | 1× EB831v1× Power Adapter1× RJ11 Phone Cable1× RJ45 Ethernet Cable1× Quick Installation Guide |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 100 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.
△The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers.
§10 Gbps internet speeds require compatible service plans and equipment. The two 10 Gbps ports cannot be concurrently configured as WAN ports.
※4× faster Wi-Fi speed refers to the theoretical speeds of Wi-Fi 7 clients when connected to EB831v compared with a Wi-Fi 6 or Wi-Fi 6E router. Wi-Fi 7 clients need to support Multi-Link Operation (MLO) and the 6 GHz band to reach up to 17.3 Gbps when connected to the 5 GHz and 6 GHz bands of EB810v simultaneously. Wi-Fi 6 and Wi-Fi 6E routers may only provide 4804 Mbps on the 5 GHz or 6 GHz bands separately.
☆4× Lower Latency refers to the latency improvement of Wi-Fi 7 routers compared to Wi-Fi 6/6E routers, based on laboratory test data. The test conditions had the same 5 GHz or 6 GHz single-frequency wireless interference and tested the maximum latencies of Wi-Fi 7 clients (with MLO turned on) connecting to the 5 GHz and 6 GHz bands of Archer BE800 (with MLO turned on) simultaneously and to the 5 GHz or 6 GHz bands of a Wi-Fi 6/6E router (without the MLO function).
◇TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.
□Smart Roaming is designed for devices that support the 802.11k/v standard.
**Use of WPA3 requires clients to also support the corresponding feature.
***Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. All devices need to support 802.11 Wi-Fi protocols.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
