EH310

New

1 to 3 Gigabit Ethernet Splitter

  • Ethernet Splitter 1 to 3: Give multiple devices fast, stable wired internet from one connection.
  • 1000Mbps High-Speed Transmission: Supports a maximum of 1000M Ethernet network connections, and backward compatibility with 100Mbps/10Mbps network speeds.
  • Plug and Play: The EH310 handles configuration automatically. Any one of the four LAN ports can be selected as the Internet input. The remaining three LAN ports will automatically function as output ports for your network devices.
  • Precision Engineered: Crafted with an aluminum alloy casing, it ensures long-term reliability and enhanced heat dissipation for consistently stable performance.
  • Compact Design: More compact than traditional designs: the two-Ethernet-ports-per-side layout eliminates bulk, creating a slimmer profile that saves space without sacrificing performance.​​​​​​​
  • High Compatibility: EH310 is compatible with Cat 8/7/6/5e/5 network Ethernet cables and can be used with hubs, switches, routers, computers, and more.
  • Power & Ethernet Cable Included: A USB-C power cable and Cat 5e Ethernet cable are included, so setup is quick and easy.

One port.
Three devices.
Zero compromise.

1 to 3 Gigabit Ethernet Splitter

EH310

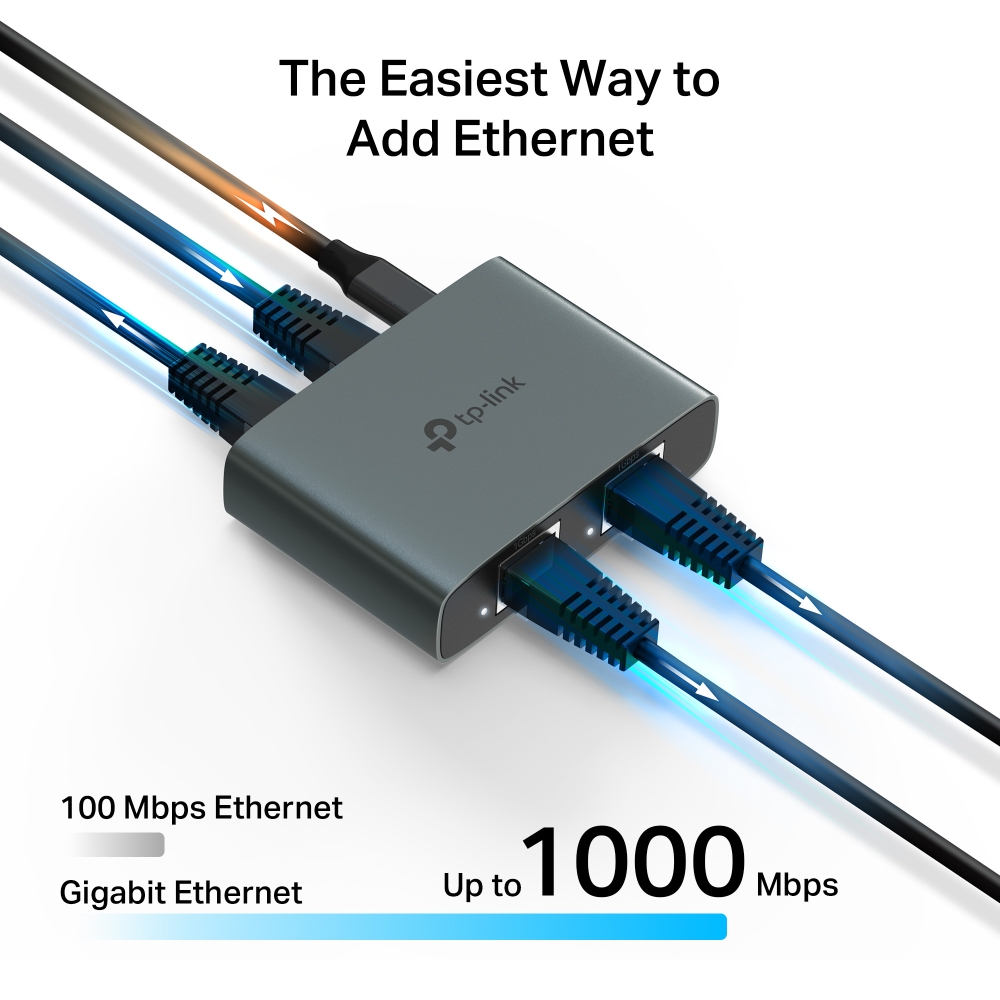

The Easiest Way to Add Ethernet

Give multiple devices fast, stable wired internet from one connection.

100 Mbps Ethernet
Gigabit Ethernet
Up to 1000 Mbps

In actual use, any of the four LAN ports can be selected as the network input. Please note that the EH310 requires an active internet connection from your router, modem or network socket to function.

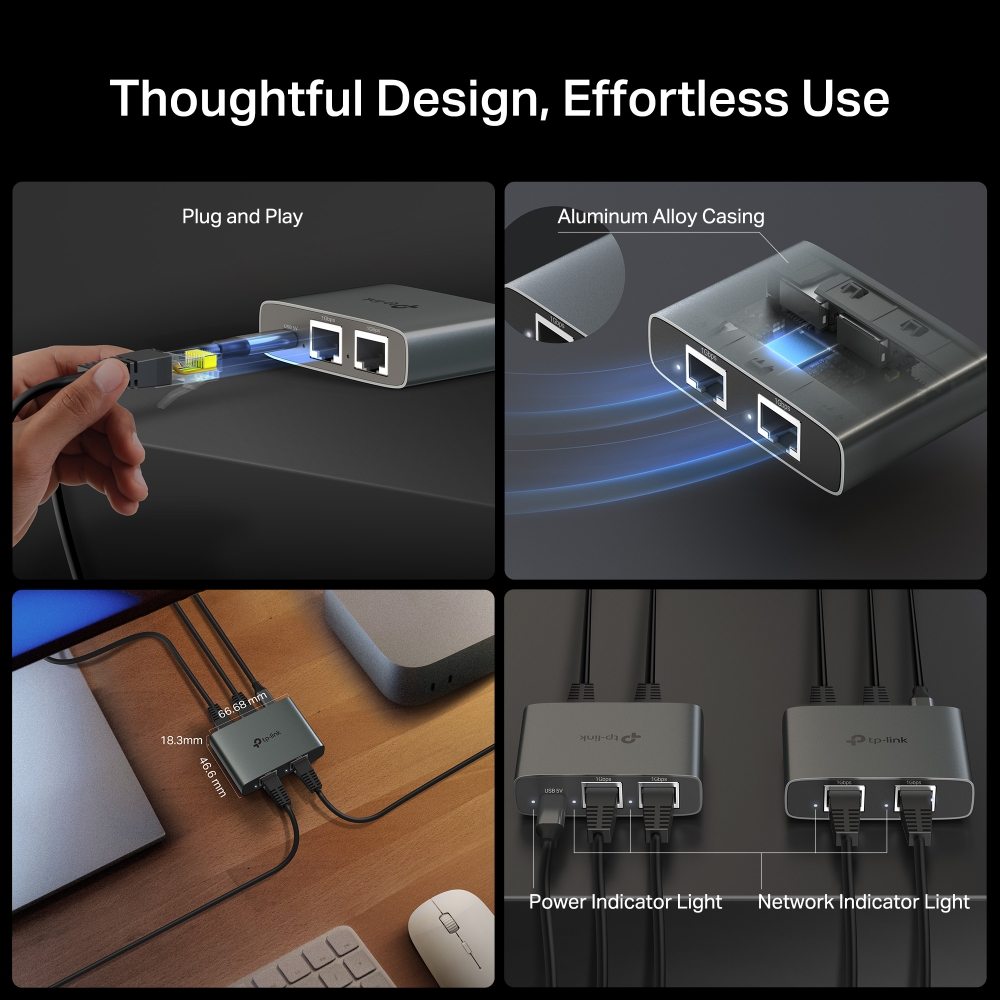

Easy to Use

  • Plug and Play
  • Precision Engineered
  • Compact Design
  • LED Indicator

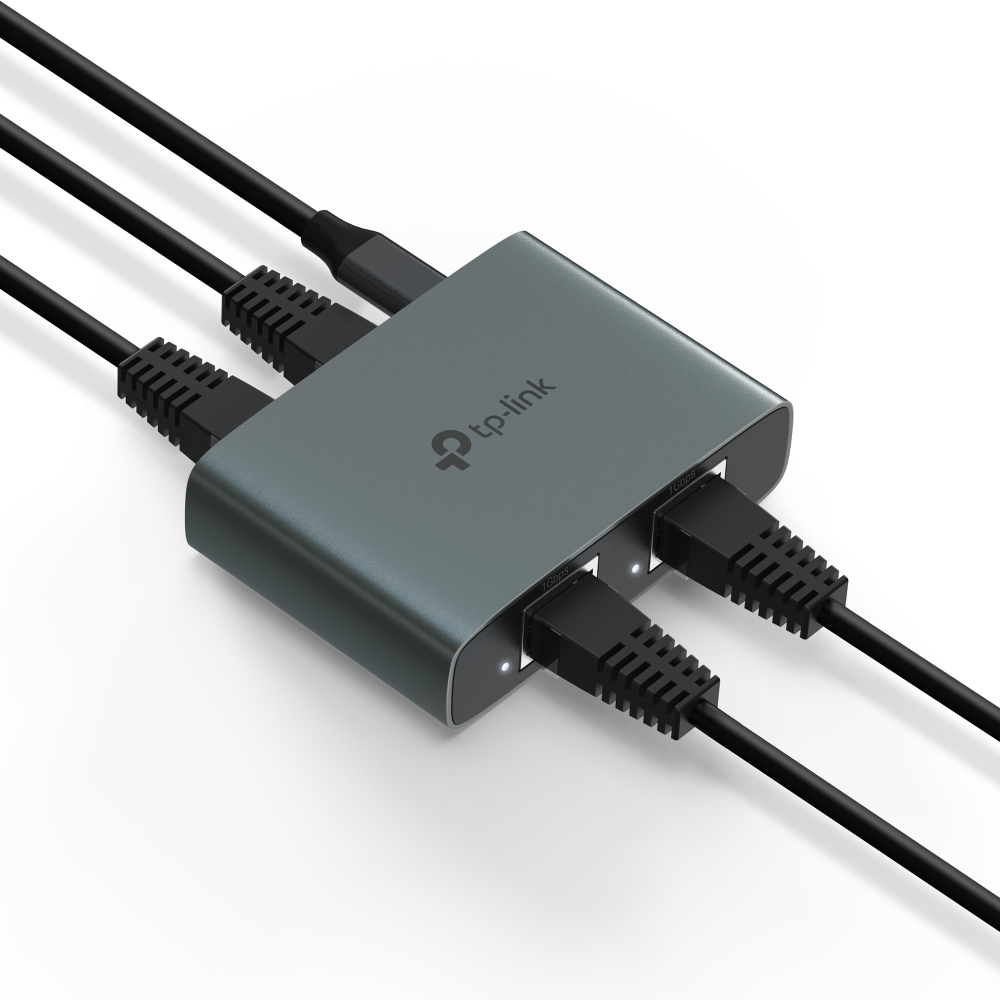

The EH310 handles configuration automatically. Any one of the four LAN ports can be selected as the Internet input. The remaining three LAN ports will automatically function as output ports for your network devices.

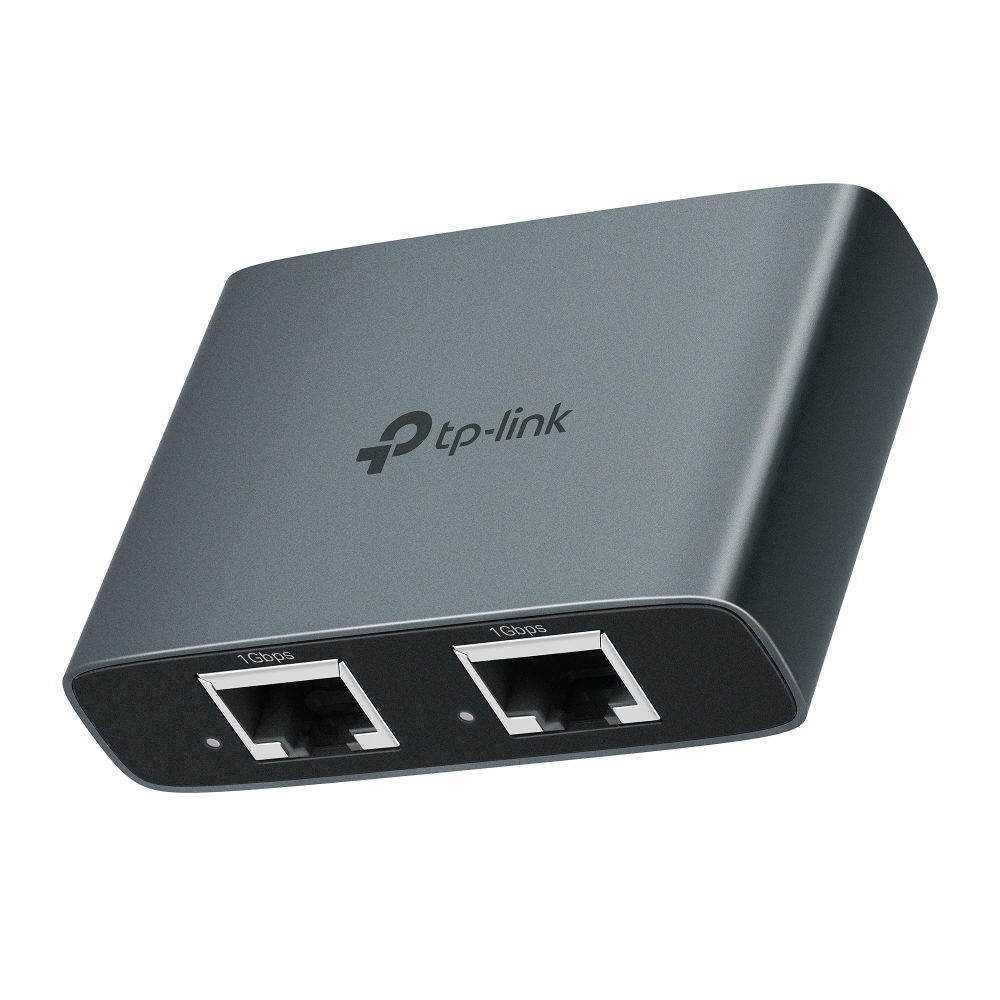

Crafted with an aluminum alloy casing, it ensures long-term reliability and enhanced heat dissipation for consistently stable performance.

Aluminum Alloy Casing

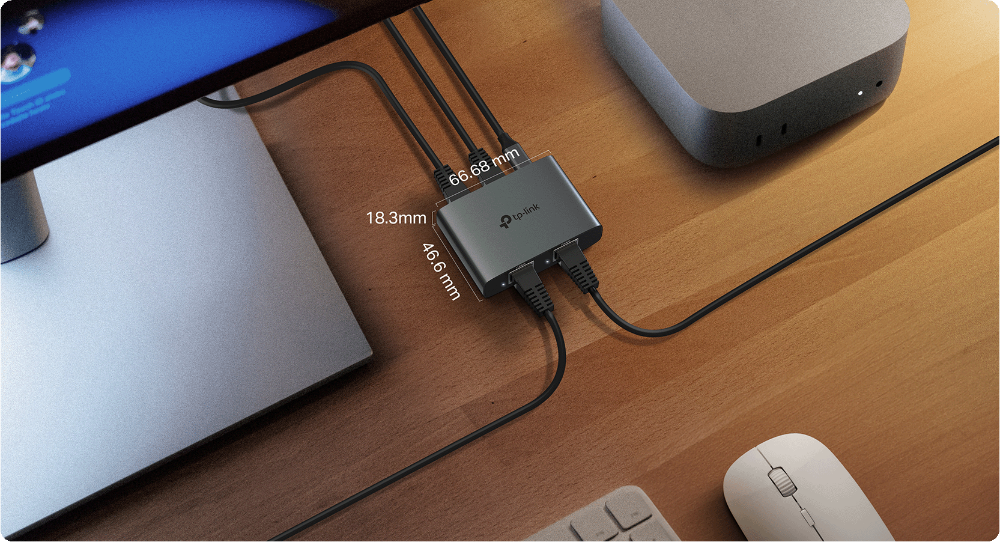

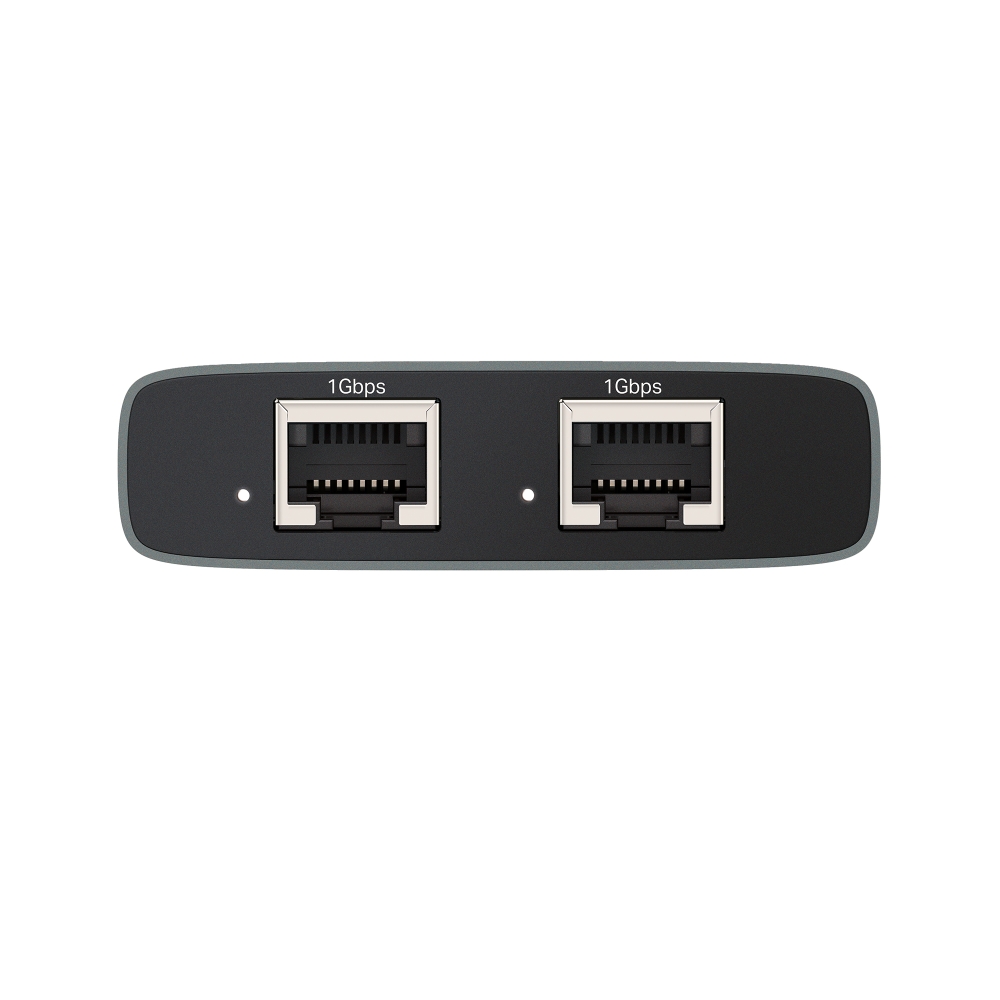

More compact than traditional designs: the two-Ethernet-ports-per-side layout eliminates bulk, creating a slimmer profile that saves space without sacrificing performance.

See your connection status at a glance. The power indicator shows when the EH310 is powered on, while the warm white LEDs confirm active device connections.

Power Indicator Light
Network Indicator Light

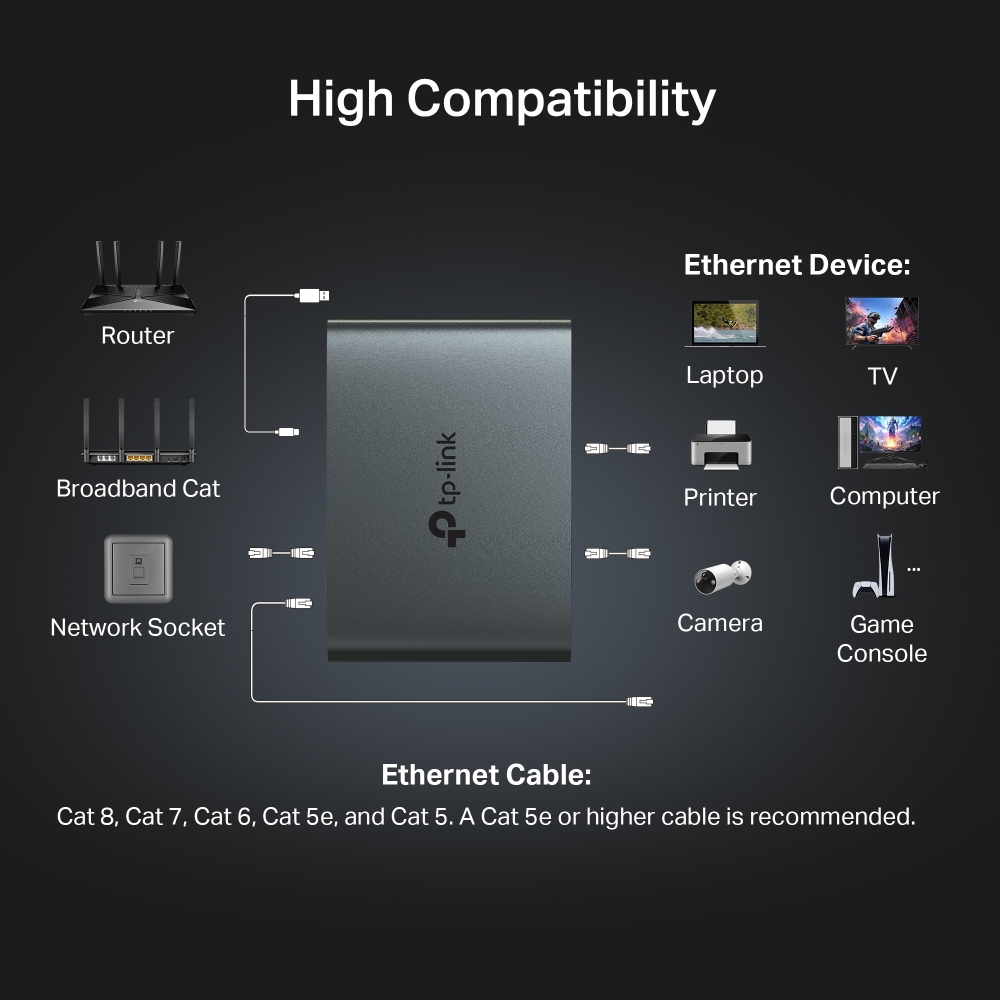

Compatible with the Devices You Already Use

Compatible with Cat 8/7/6/5e/5 Ethernet cables and works with common Ethernet devices, including routers, switches, computers, TVs, and game consoles.

Router
Broadband Device
Network Socket
Ethernet Device:
Laptop
TV
Computer
Printer
Camera
Game Console
Ethernet Cable: Cat 8, Cat 7, Cat 6, Cat 5e, and Cat 5. A Cat 5e or higher cable is recommended.

Adapts to Your Space

  • Home Entertainment
  • Personal Workstation
  • Small Office
  • Home Surveillance

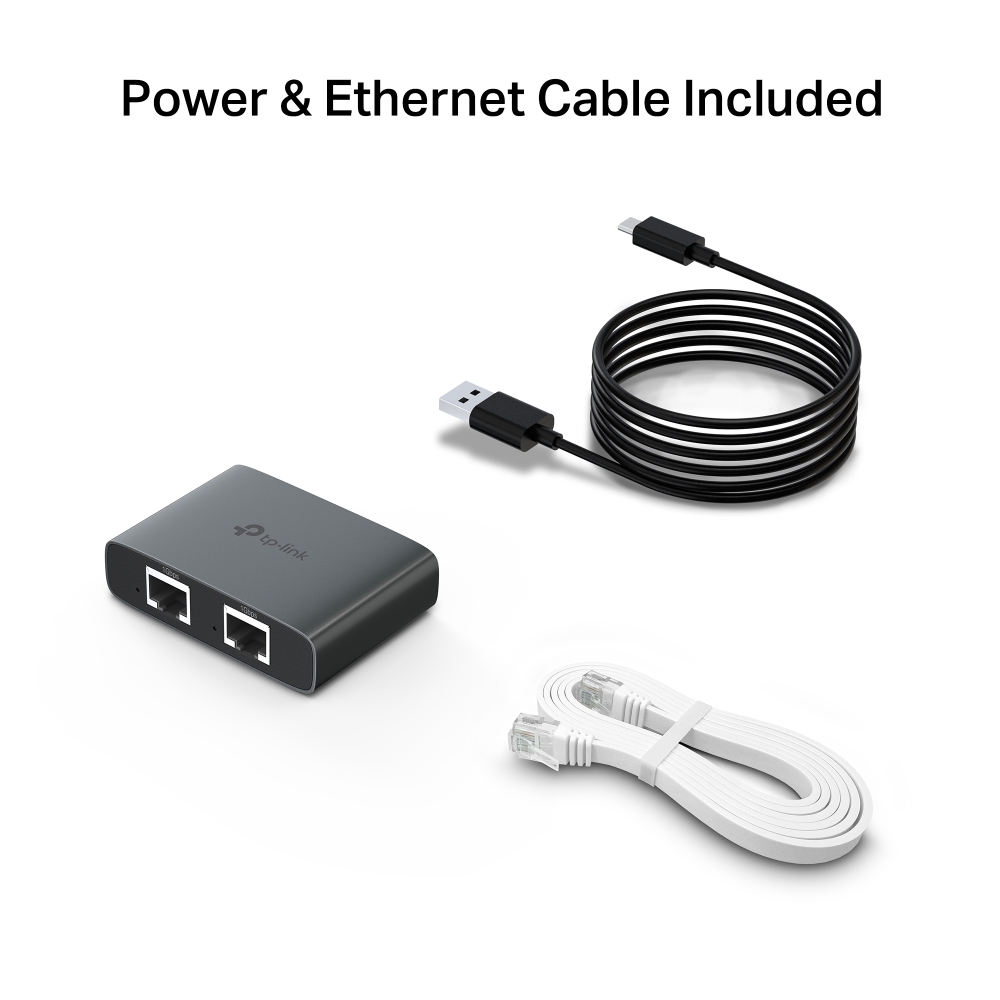

Power & Ethernet Cable Included

A USB-C power cable and Cat 5e Ethernet cable are included, so setup is quick and easy.*

*The images of cable accessories are for illustrative purposes only and may differ from the actual product.

HARDWARE

Indicator LED 1× Power
4× Gigabit Ethernet Ports
Case Aluminum Alloy Case
Ethernet Ports 4× 10/100/1000 Mbps RJ45 Ports
(Auto-Negotiation, Auto MDI/MDIX, Half and Full Duplex)

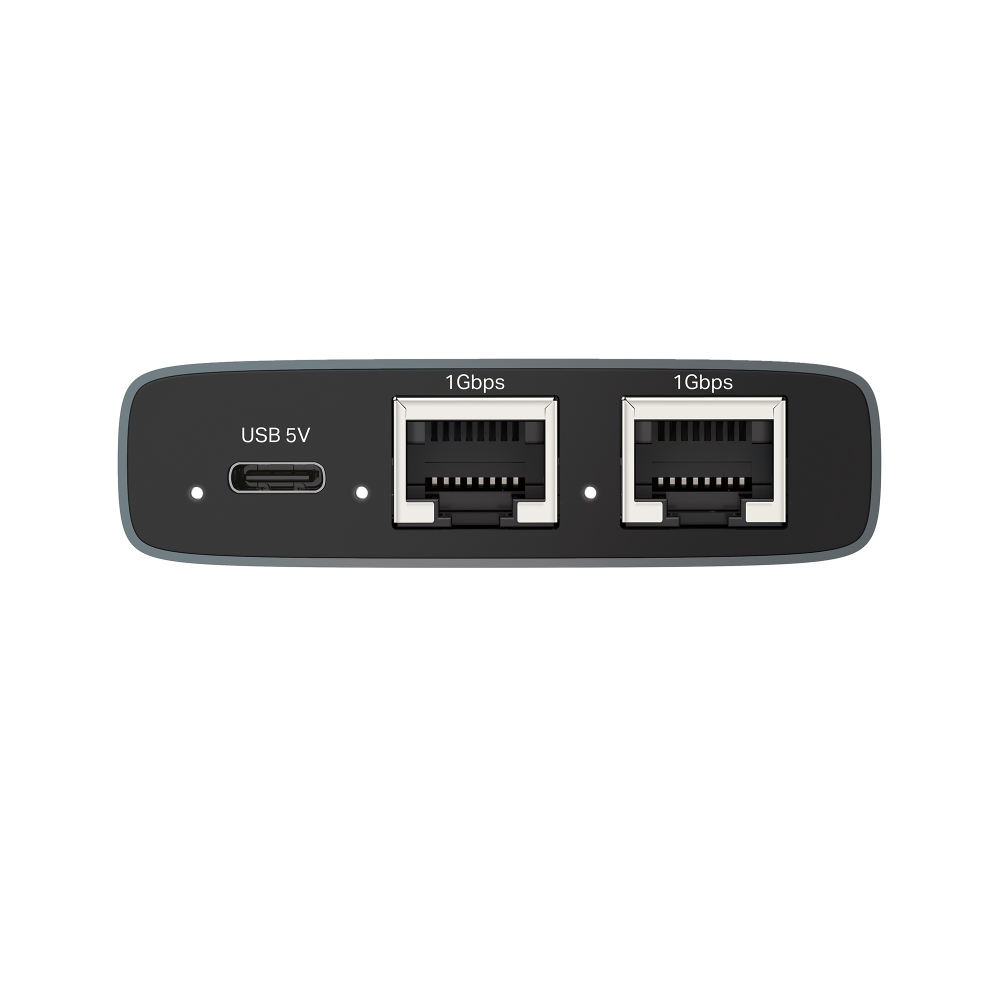

Power USB-C, 5VDC / 0.3A

GENERAL

Compatibility Devices: Hubs, switches, routers, computers, and more.

Cables: Cat 8, Cat 7, Cat 6, Cat 5e, Cat 5

PHYSICAL

Product Dimensions 2.63×1.83×0.72 in (66.68×46.6×18.3 mm)
Package Content 1× Ethernet Splitter (EH310)
1× USB Power Cable
1× Cat 5e Ethernet Cable
Quick Installation Guide

OTHERS

Certification CE, FCC, RoHS, BSMI
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

*This product cannot be used without a power source.

**Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
