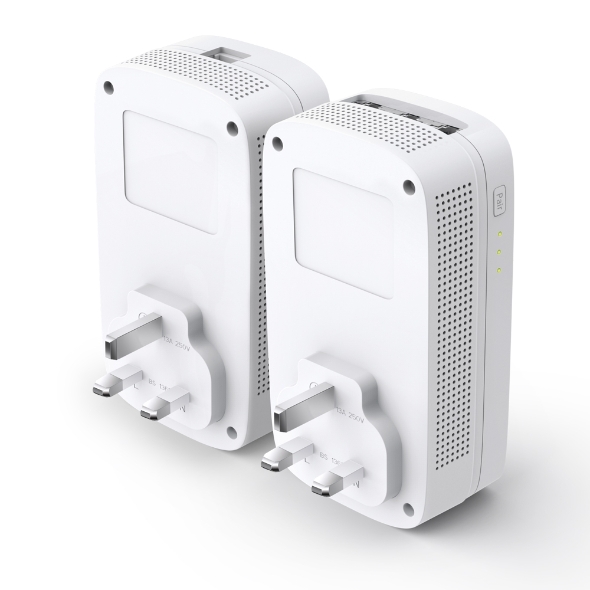

TL-PA8033P KIT

AV1300 3-Port Gigabit Passthrough Powerline Starter Kit

  • HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1300Mbps1, supports all your online needs
  • Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connections
  • 3 gigabit ports create secure wired networks for desktops, smart TVs or games consoles
  • Integrated power socket ensures no power outlet goes to waste
  • Plug and play, no configuration required
  • Patented Power-Saving Mode automatically reduces power consumption by up to 85%2

AV1300 Powerline Kit

Bring Your Network Into New Era

HomePlug AV2

AV1300 3-Port
Gigabit Passthrough
Powerline Starter Kit

TL-PA8033P KIT

Upgraded 1300Mbps!

Perfect for Bandwidth
Demanding Activities

Advanced HomePlug AV2 technology means the TL-PA8033P KIT supports 2x2 MIMO* with
beamforming, so users benefit from ultra-fast data transfer speeds of up to 1300Mbps. Perfect for
bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously,
online gaming and large file transfers.

*The MIMO functionality within HomePlug AV2 significantly improves
data transfer rates especially during peak periods.

Line-Neutral/Line-Ground with Beamforming

Larger Range

MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.

Long Distance Long Distance

MIMO SISO

Higher Transmission Capacity & More Stable Connections

MIMO Technology means the TL-PA8033P KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.

  • Neutral Wire
  • Line Wire
  • Ground Wire

MIMO SISO

Note: MIMO - Multi-input Multi-output                                             SISO - Single-input Single-output

3 Gigabit Ports
for Maximum Connectivity

With 3 gigabit Ethernet ports, TL-PA8033P KIT can simultaneously connect up to 3 wired-only devices. This makes the TL-PA8033P KIT the perfect home entertainment companion. Connect any 3 devices from smart TVs and game consoles to NAS boxes and computers to the Internet at the same time. Just plug the Ethernet cable into the powerline and away you go!

  • Game Console
  • 4K TV
  • Computer

Plug and Play,
No Configuration Required

Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!

Pair for more security

Get  more security for your network with the simple paring process

Extra Power Socket for Additional Devices

The integrated power socket, with power output of up to 13A*, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.

*Power output of up to 13A is suitable for high-power
electrical appliances to be connected.

Power Save by
Up to 85%

TL-PA8033P KIT is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.

  • Working mode
  • Power-Saving mode

Related Products

  TL-PA8030P KIT TL-PA8010P KIT TL-PA8033P KIT AV1300 Gigabit Passthrough Powerline Starter Kit TL-PA8033P KIT
Contents 2Pack TL-PA8030P 2Pack TL-PA8010P 1Pack TL-PA8030P
+1Pack TL-PA8010P

HomePlug AV2 Standard
Powerline Speed 1300Mbps 1300Mbps 1300Mbps
Ethernet Port 3 Gigabit ports
+3 Gigabit ports
1 Gigabit port
+1 Gigabit port
3 Gigabit ports
+1 Gigabit port

Extra Power Socket
One Button Security
Power Saving Mode 85% 85% 85%
HARDWARE FEATURES
Standards and Protocols HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Plug Type EU, UK, AU
Interface TL-PA8030P: 3 * Gigabit Ethernet Port, Power Socket
TL-PA8010P: 1 * Gigabit Ethernet Port, Power Socket
Button Pair Button
Power Consumption Maximum: 5.53W
Typical: 5.32W
Standby: 1.36W
LED Indicator Power, Powerline, Ethernet
Dimensions ( W x D x H ) 5.2×2.8×1.7 in. (131×72×42 mm)
Range 300 Meters over electrical circuit
Power Output to Integrated Socket 16 A
SOFTWARE FEATURES
Modulation Technology OFDM (PLC)
Encryption Powerline Security:
128-bit AES
OTHERS
Certification CE, RoHS
Package Contents Powerline Adapter TL-PA8010P, TL-PA8030P
2 × 6.5 ft. (2 m) Ethernet Cable
Quick Installation Guide
System Requirements Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

*1. The theoretical maximum channel data transfer rate is derived from HomePlug AV2 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.

*2. The Power Saving feature takes effect when your appliances are disconnected or turned off. Actual power saving data will vary in different network conditions and environments.

*3. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
