TL-PA7020 KITEnd of Life
AV1000 Gigabit Powerline Starter Kit
- HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1000Mbps1, supports all your online needs
- 2 gigabit ports create secure wired networks for desktops or IPTVs
- Plug and play, no configuration required
- Patented Power-Saving Mode automatically reduces power consumption by up to 85%2
Ideal for Slick streaming and Smooth Downloads
Comes with advanced HomePlug AV2 technology, TL-PA7020 KIT provides users with high-speed data transfer rates of up to 1000Mbps, which is ideal for bandwidth intensive applications such as multiple HD/3D/4K video streaming, online gaming and large file transfers.
2 Gigabit Ports
for Maximum Connectivity
With 2 gigabit Ethernet ports, TL-PA7020 KIT can simultaneously connect up to 2 wired-only devices. This makes the TL-PA7020 KIT the perfect home entertainment companion. Connect any 2 devices from smart TVs and games consoles to NAS boxes and computers to the Internet at the same time. Just plug the Ethernet cable into the powerline and away you go!
- Game Console
- 4K TV
Plug and Play,
No Configuration Required

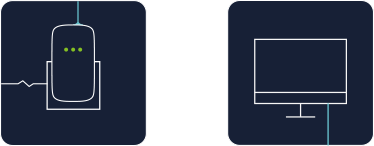

Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!
Reduce Power Consumption by Up to 85%
TTL-PA7020 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%*
*Actual data will vary in different network conditions
- Working mode
- Power-Saving mode
|Plug Type||EU, UK, US|
|Standards and Protocols||HomePlug AV2, HomePlug AV, IEEE 1901,
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
|Interface||2 * Gigabit Ethernet Port|
|Power Consumption||Maximum: 5.7W (220V/50Hz)
Typical: 4.7W (220V/50Hz)
Standby: 1.4W (220V/50Hz)
|LED Indicator||PWR, PLC, ETH|
|Dimensions ( W x D x H )||4.85*2.68*1.18 in. (123*68*30 mm)|
|Range||300 Meters over electrical circuit|
|Power Output to Integrated Socket||13 A|
|Modulation Technology||OFDM (PLC)|
|Encryption||Powerline Security: 128-bit AES|
|Package Contents||Powerline Ethernet Adapter
6.5 ft. (2 m) CAT.5e Ethernet cable (RJ45)
Quick Installation Guide
|System Requirements||Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux|
|Environment||Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
*1. The theoretical maximum channel data transfer rate is derived from HomePlug AV2 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.
*2. Actual data will vary because of the network conditions and environment factors.
*3. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
