TL-WR3012X_V1/V1.60_Datasheet

AX3000 Wi-Fi 6 Portable Router

Highlights

Flexible, Secure Wi-Fi 6 Wherever You Go

Supporting multiple modes (Router / USB Modem (3G/4G/5G) / USB Tethering / Hotspot / Access Point / Range Extender / Client Mode), TL-WR3012X allows you to create Wi-Fi in various scenarios at home, in hotel rooms, or on the road.

	USB Tethering Mode Share your phone's data plan with your devices.		Router Mode Easily turn a wired connection into your own secure Wi-Fi network.
	Hotspot Mode   Turn public Wi-Fi into your secure private network.		USB Modem Mode  Create a Wi-Fi network using a USB modem.

Secure Surfing with Encryptions

· 24/7 Secure Surfing with VPN Encryption

Supporting OpenVPN, PPTP, L2TP, and WireGuard® VPN, TL-WR3012X can keep your network private and secure from anywhere in the world, whether you‘re working remotely abroad, or browsing on the public WiFi

	Encryption Access		Better Adaptability		More Devices
	Remote Network		Auto Connect		Two Functions

· Encryptions for Secure Network

WPA2/PSK and WPA3-Personal encryptions provide active protection against security threats

Features

Reliability

· AX3000 Dual-Band Wi-Fi 6 Portable Router: – Merging Wi-Fi 6 Technology, TL-WR3012X delivers fast wireless speed (2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz) for uninterrupted video streaming, downloading, and online gaming all at the same time^†‡
· Easy Bandwidth Management– Bandwidth Control allocates necessary speed of each connected device to ensure quality of multimedia streaming

Ease of Use

· Intuitive Web UI – Ensures quick and simple Installation without hassle
· Fast Encryption – One-touch WPA2 wireless security encryption with the WPS button
· USB 3.0 Port for Fast Sharing – A USB 3.0 port makes it easy to share photos, videos, and music across your home network. Through the router's FTP server, you can also access your files and media from network devices remotely
· Portable and Durable Design – TL-WR3012X is a pocket-sized portable router compactly designed for your next trip or adventure. Its small size is designed for travel-friendly storage
· Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android and iOS device

Security

· 24/7 Secure Surfing with VPN Encryption – Supporting OpenVPN, PPTP, L2TP, and WireGuard® VPN, TL-WR3012X can keep your network private and secure from anywhere in the world, whether you‘re working remotely abroad, or browsing on the public WiFi
· Guest Network – Keeps your main network secure by creating a separate network for friends and visitors
· Access Control – Establishes an allow list or deny list to allow or restrict certain devices to access the internet
· Parental Controls – Restricts internet access time and contents for children devices
· Encryptions for Secure Network – WPA2/PSK and WPA3-Personal encryptions provide active protection against security threats

Specifications

Hardware

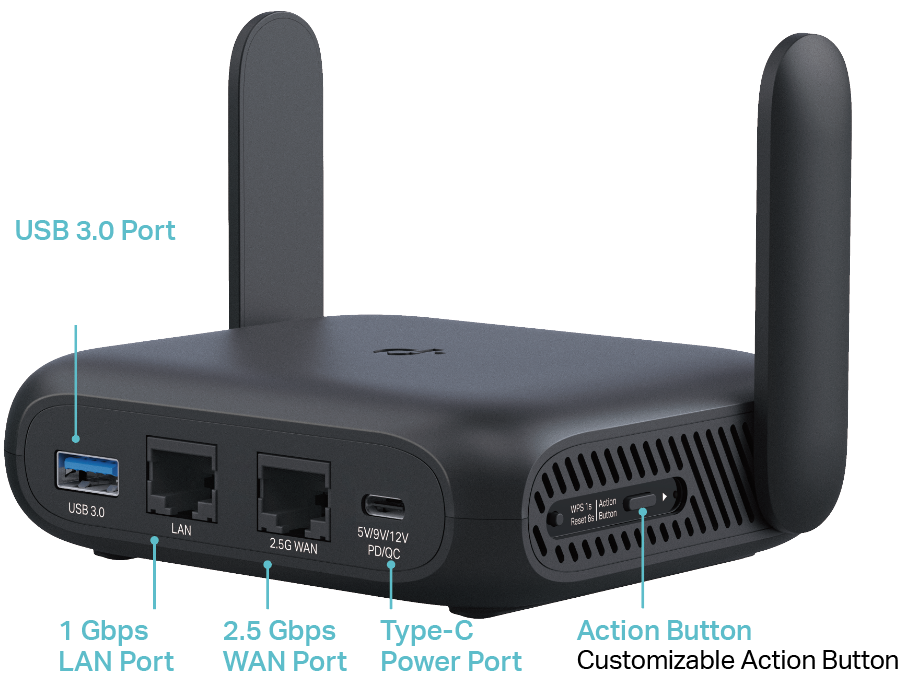

· Ports: 1× 2.5 Gigabit WAN/LAN Port, 1× Gigabit LAN Port, 1× USB 3.0 Port, 1× Type-C Power Port
· Buttons: WPS/Reset Button, Action Button
· Antennas: External Antennas
· Dimensions: 4.7 x 3.6 x 1.3 in (119 x 90.3 x34 mm, including antenna and foot pad), 6.6oz / 187g

Software

· Protocols: IPv4, IPv6
· Parental Controls: Supported
· WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
· Quality of Service: QoS by Device
· Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS
· NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
· DDNS: TP-Link, NO-IP, DynDNS
· VPN: PPTP/L2TP/OpenVPN/WireGuard

Wireless

· Wireless Standards: IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz
· Frequency: 2.4GHz and 5GHz
· Signal Rate: 574Mbps at 2.4GHz, 2402Mbps at 5GHz
· Transmit Power:
FCC: ≤ 30dBm (2.4G & 5.15GHz~5.24GHz & 5.735GHz~5.825GHz), ≤ 24dBm (5.26GHz~5.725GHz)
CE: ≤20dBm EIRP (2.4GHz); ≤23dBm EIRP (5.17GHz~5.35GHz); ≤30dBm EIRP (5.47GHz~5.725GHz)
· Reception Sensitivity:
2.4GHz
11g 54M:-76dBm
11ax HE20M MCS11:-65 dBm
11ax HE40M MCS11:-62 dBm
5GHz
11a 54M :-77 dBm
11ax HE20M MCS11:-63 dBm
11ax HE40M MCS11:-60 dBm
11ax HE80M MCS11:-58 dBm
11ax HE160M MCS11:-55 dBm
· Wireless Function: Enable/Disable Wireless Radio, WMM
· Wireless Security: WPA2/PSK, WPA3-Personal encryptions

Others

· Certification: FCC, CE, RoHS
· System Requirements: Microsoft Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
*You are recommended to use the latest version
· Environment:
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
· Package Contents
Wi-Fi 6 Portable Router TL-WR3012X
RJ45 Ethernet Cable
Power Adapter*
USB Cable
Quick Installation Guide
Wi-Fi Info Card

For more information, please visit https://www.tp-link.com/products/details/?model=TL-WR3012X_V1 or scan the QR code left.

Attention: This device may only be used indoors in all EU member states, EFTA countries and Northern lreland.
Attention: This device may only be used indoors in Great Britain.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Specifications are subject to change without notice. Other brands and product names are trademarks or registered trademarks of their respective holders.
^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
^*Please use the provided power adapter to avoid potential damage. Using other adapters may harm the device.
^**USB Internet Sharing depends on the compatibility of your 3G/4G/5G USB modem or mobile device and may not work with all devices.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
