TL-MR101
300 Mbps Wireless N 4G LTE Router
-
Enjoy 4G internet everywhere: รองรับ 4G LTE ความเร็วการดาวน์โหลดสูงสุด 150 Mbps.
-
Fast Wi-Fi Speed: 300 Mbps บน 2.4 GHz****
-
Plug and Play: การตั้งค่าอินเทอร์เน็ตทำได้ง่าย เพียงเสียบซิมการ์ดที่เปิดใช้งานแล้วและพร้อมที่จะท่องเว็บ. *
-
Up to 32 Concurrent Devices: รับประกันการเชื่อมต่อบ้านและสำนักงานที่แข็งแกร่งและเชื่อถือได้**
-
WAN Ports for Internet access: มอบความเร็วที่เชื่อถือได้ รับรองประสบการณ์เครือข่ายที่ดียิ่งขึ้น.
-
Simplified Setup: ตั้งค่าและจัดการเครือข่ายของคุณได้อย่างง่ายดายด้วยแอป Tether.
Enjoy 4G LTE Sharing Wherever You Want
300 Mbps Wireless N 4G LTE Router
TL-MR100

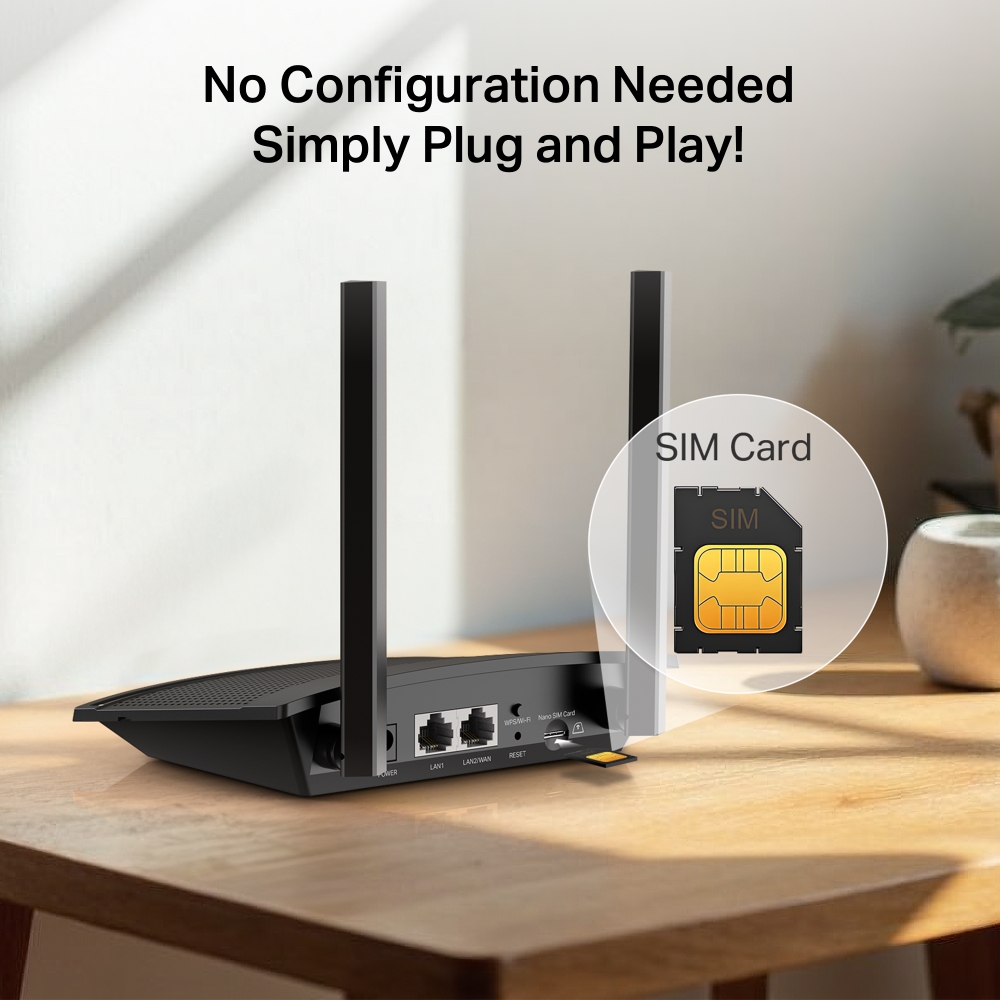

No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.
Share Your 4G LTE Network

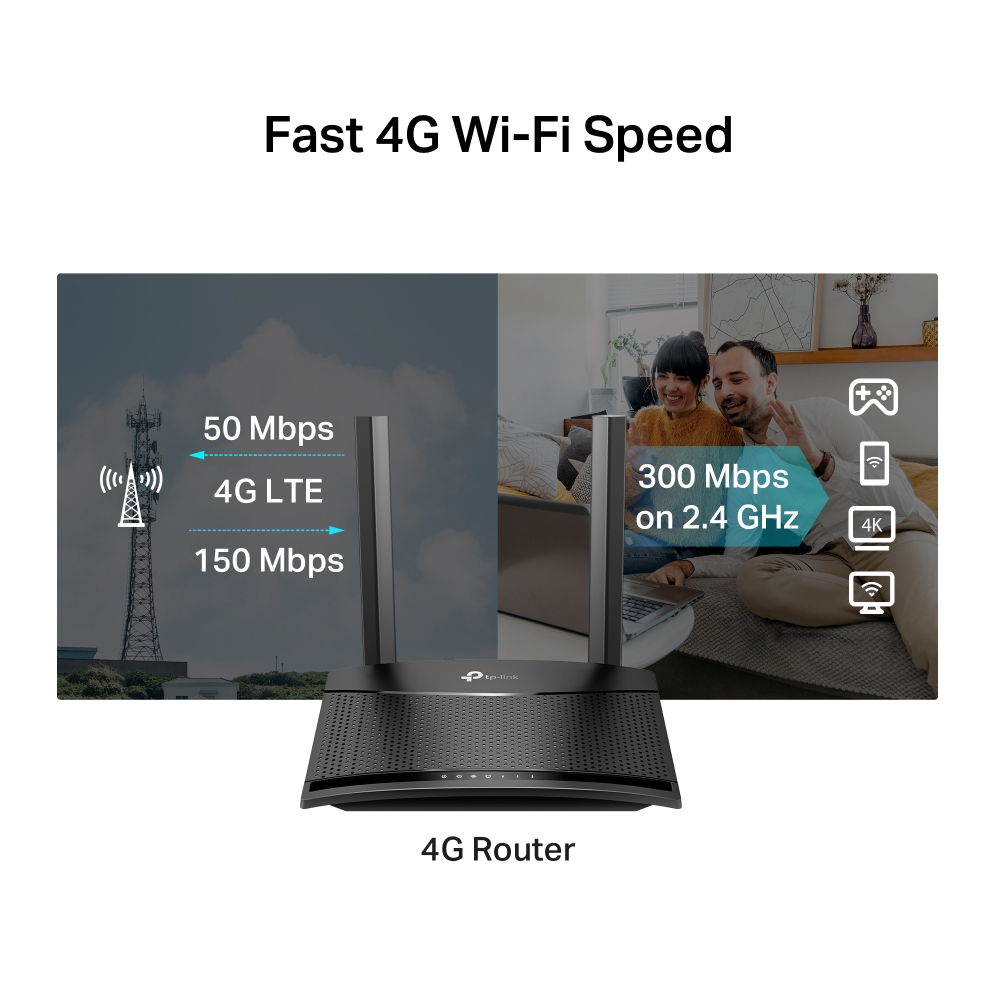

Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Advanced Software Functions Help You Enhance Your Network Safety and Effectiveness
-
Robust Parental Controls
If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.
-
Guest Network
It provides separate Wi-Fi access for guests while securing the whole network.
Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.
-
Conference Room
-
Remote Area
-
Temporary Store
-
Private Villa
Reliable Access for Up to 32 Devices Simultaneously
Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 2 LAN/WAN ports stand ready to provide internet for wired devices like desktop computers.
| HARDWARE FEATURES | |
|---|---|

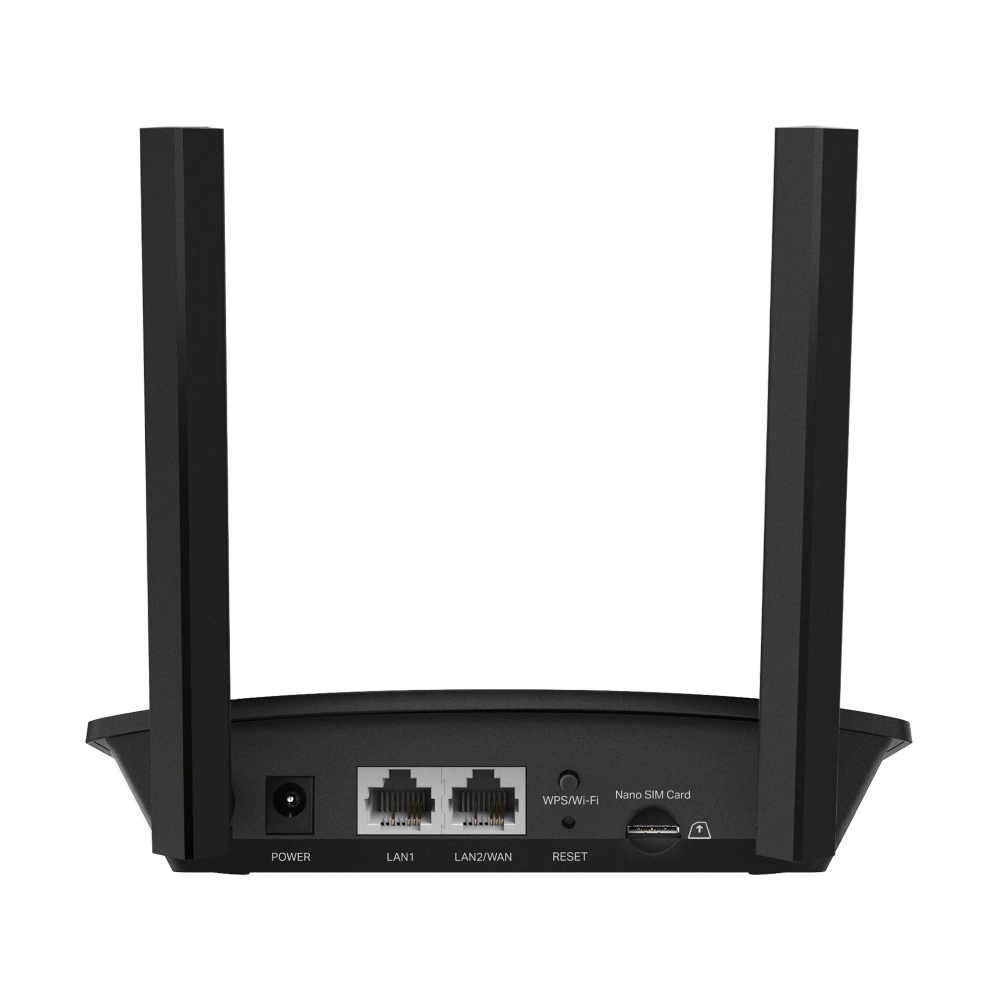

| Interface | 1 10/100Mbps LAN Port1 10/100Mbps LAN/WAN Port1 Nano SIM Card Slot2 External SMA-F Antenna Interface |
| Button | WPS/WiFiReset Button |
| External Power Supply(EU) | 9V/0.85A |
| Dimensions ( W x D x H ) | 6.06×4.49×1.42 in ( 154×114×36 mm) |
| Antenna | 2 Detachable External 4G LTE Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Signal Rate | 300 Mbps |
| Reception Sensitivity | 11g 54M: -74 dBm11n HT20: -71 dBm11n HT40: -68 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, WirelessStatistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Transmission Power | < 20 dBm (2.4 GHz) |
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| SOFTWARE FEATURES | |
|---|---|
| Security | IPv4 SPI Firewall, IP and MAC Address Binding |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features | Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Content | 300 Mbps Wireless N 4G LTE TL-MR1001.5m Power AdapterRJ45 Ethernet CableQuick Installation Guide |
| Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browserNano SIM Card |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
*This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the quick installation guidance for unlocking instructions.
**Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
