Deco BE65

Brevemente

BE9300 Whole Home Mesh WiFi 7 System

  • 9214 Mbps Tri-Band WiFi – 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
  • 2.5 Gbps Wired Connections – 4× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
  • Wireless and Wired Combined Backhaul  Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
  • Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.
  • 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.
  • Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.
  • TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
  • Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.

True Whole Home
Multi-Gigabit Mesh WiFi

BE9300 Whole Home Mesh WiFi 7 System

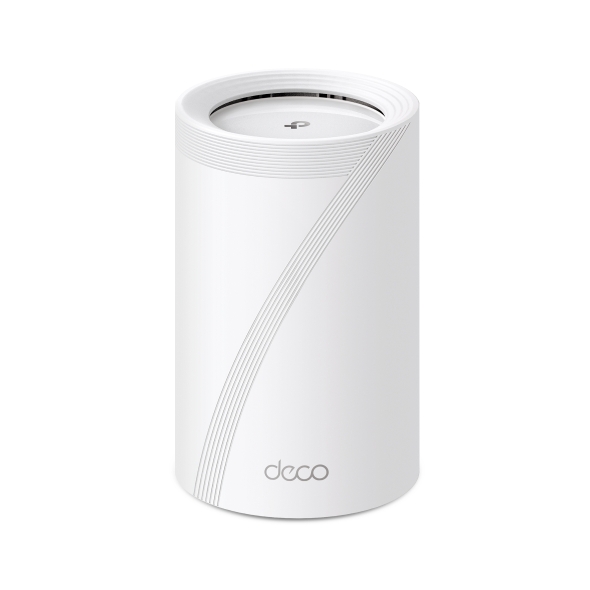

Deco BE65

google home compatible-amazon-alexa HomeShield

Tri-Band WiFi 7
Speeds up to 9214 Mbps

Seamless AI Roaming

Up to 320 MHz Bandwidth

Multi-Link Operation

4K-QAM

A True Whole Home
Multi-Gigabit
Mesh WiFi

Connect Over
200 Devices

The Ultimate 2.5G Connectivity
Wired and Wireless

Wireless and Wired Combined Backhaul

TP-Link HomeShield

WiFi 7, WiFi Like Never Before

WiFi 7 has arrived with jam-dropping performance - offering accelerated throughput, lower latency, stronger anti-jamming and higher efficiency. Join the league of pros and experiance the sheer performance of the next generation WiFi.

  • Extremely High Throughput

  •
    Wi-Fi 6
  •
    Wi-Fi 5
  • 3.6× Faster WiFi

    than WiFi 6E Mesh

  • 4× Lower Latency

    For Smooth Video and Gaming※※

  • Higher Capacity

    Connects over 200 Devices

Unrivaled WiFi 7 Speed
up to 9214 Mbps

Wi-Fi 7 unleashes the full potential of 4K-QAM and the 6 GHz band with up to 320 MHz channels, delivering unprecedented Wi-Fi speeds up to 9214 Mbps. The new 6 GHz band provides exceptional bandwidth congetion-free channels.

  • 6 GHz

    5760 Mbps


  • 5 GHz



    2880 Mbps

  • 2.4 GHz



    574 Mbps

Whole Home Multi-Gigabit Connectivity

Deco BE65 Speed Heatmap

4,600 sq. ft. | 2 Floors | 5 Bedrooms
Tested with 2×2 MLO-compatible clients

4,600 sq. ft. | 2 Floors | 5 Bedrooms
Tested with 2×2 MLO-compatible clients

  • 2.5 Gbps Wired Backhaul

    Most of the home is covered by 2.5 Gbps high-speed connections. The edge of the house also remained at around 2 Gbps. This builds the true whole home Multi-Gigabit mesh WiFi.***

  • Wireless Backhaul

    The 1st-floor Deco BE65 remains the same as with a wired backhaul. But due to the walls and ceiling between the two floors, the center of the other Deco BE65 receives at least 1.5 Gbps speeds.***

Ultra-Fast 2.5 Gbps
Wired Performance

4× 2.5 Gbps ports maximize home internet speeds with up to 2.5× the wired speed of a typical Gigabit Ethernet port. The additional USB 3.0 port makes Deco BE65 an ideal solution for future-proofing your home network. Connect your favorite wired devices to Deco BE65 and get impressed.§

2.5× Faster
than Gigabit Ports

  • Desktop

  • 4K HDTV

  • Computer

4× 2.5 Gbps
WAN/LAN Port

1× USB 3.0 Port

The Ultimate Backhaul: Stronger and More Flexible

Through our self-developed technology, Deco BE65 can connect a wireless and wired backhaul with each unit simultaneously. What’s more, with the latest WiFi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.

Wireless and Wired Combined Backhaul

HomeShield

Smart Security for Smart Living

HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield, safer internet experiences bring more happiness to your smart living.

  •

    Network Protection

    Simply configure your gateway and achieve whole home network security. HomeShield examines your network by scanning and identifying potential risks, stopping them in their tracks before they harm your network.*

  •

    Parental Controls

    Parental Controls protect your kids, while helping them maintain healthy digital habits. Parents can set app blocking, web filtering, YouTube restrictions, SafeSearch, and online time limits to keep kids safe while they’re having fun online.*

  •

    Maintain Protection Away from Home

    KidShield App

    Devices Security App

    Devices remain secure everywhere with devices security app. And through KidShield, parents can monitor their kids’ locations and set geofencing. This way, kids stay digitally protected even on the go.*

VPN Clients and Server Supported

Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. You can create different VPN connection types, including OpenVPN, PPTP, L2TP/IPSec VPN. Besides, Deco can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.



Private IoT Network for More Security

Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.

Seamless AI-Driven Mesh

Uninterrupted Streaming when Moving Between Rooms

Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.

  •

    Seamless Roaming with One WiFi Name

  •

    Sophisticated Algorithms

  •

    Seamless AI-Driven Mesh

  •

    Customized WiFi

Simple. Easy. Yet Powerful.

Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

  • 1 CONNECT
    to a modem and power on both.

  • 2 DOWNLOAD
    and launch the Deco app.

  • 3 CONFIGURE
    by following the in-app instructions.

Easy Management

Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.



Voice Control

Use an Amazon Alexa or Google Assistant-enabled device to control Deco BE65 with just your voice.

Alexa Google



All Decos Work Together

Deco BE65 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.



Gestão da Rede Deco na Ponta dos Seus Dedos!

A aplicação Deco é a forma mais fácil de configurar, gerir e monitorizar o seu Sistema Wi-Fi Mesh para Toda a Casa através dos seus equipamentos iOS ou Android.



A Configuração Ficou Muito Mais Fácil

Retire o Deco da caixa, instale a aplicação e depois basta seguir as indicações no ecrã. A aplicação Deco encarregar-se-á do resto e colocará a sua rede a funcionar em minutos.

  1.

    Ligue o Deco ao seu Router/Modom por cabo e ligue os dois equipamentos

  2.

    Faça o download e inicie a aplicação Deco

  3.

    Siga as instruções para configurar o seu sistema Deco.

Saiba mais detalhes sobre o processo de configuração


Gestão Simples

Deco torna mais fácil gerir o seu Wi-Fi a partir de qualquer lugar, quer esteja no sofá, no trabalho, ou em qualquer outro lucal.

  •

    Painel de Gestão Simples

    Veja o funcionamento da sua rede, verifique os equipamentos ligados e obtenha todas as características que o seu router oferece.

  •

    Múltiplos Decos, Uma Aplicação

    A aplicação Deco gere todas as suas redes Deco, e todos os equipamentos ligados ao seu Wi-Fi Deco.

  •

    Verifique os Equipamentos Ligados

    Veja uma lista dos equipamentos ligados, com a capacidade de fazer uma pausa e retomar o acesso à Internet, testar a velocidade da Internet e estabelecer prioridades ou bloquear equipamentos.

  •

    Gestão Remota

    Controle remotamente a sua rede com um toque no seu telefone - onde quer que esteja.

Robustos Controlos Parentais

Controlos parentais simples e intuitivos, fazem com que seja fácil manter os seus filhos seguros enquanto estão online.

  • Crie facilmente um perfil para cada membro da família e defina limites de tempo personalizados e permissões de tempo online. Atribua equipamentos a perfis de modo a que as regras se extendam aos equipamentos individuais, bem como aos membros da família.

  • Mantenha a sua família segura online através de definições de segurança com um só toque, que bloqueiam conteúdos com base na sua faixa etária.

  • Estabeleça limites para o tempo que cada pessoa da sua família pode passar na internet.

  • Com os relatórios, pode verificar que sites os seus filhos visitam e quanto tempo passam em cada um deles. É uma excelente maneira de saber que os seus filhos estão seguros enquanto se estão a divertir online.

  • Faça uma pausa do Wi-Fi para jantar e noites de jogos em família. Basta tocar num botão para suspender o acesso à Internet para todos na sua casa.







Uma Aplicação Intuitiva Cheia de Funcionalidades

Resumo da Utilização Mensal

Veja todos os meses uma lista completa dos detalhes da sua rede, incluindo utilização, conteúdos bloqueados, ameaças à segurança e muito mais.

Domótica

Facilite a sua vida com poderosas ferramentas de automação e controlo de voz.

*Atualmente apenas para Deco M9 Plus

Atalhos Flexíveis

Controlo abrangente todos os equipamentos IoT no Smartphone ou Tablet com apenas um clique.

*Atualmente apenas para Deco M9 Plus

Proteja a Sua Rede

O Antivírus incorporado ajuda-o a defender-se contra websites maliciosos e acesso à internet mais seguro.

*Atualmente apenas para Deco M9 Plus, Deco P7 e Deco M5

Priorize os Seus Equipamentos

Com a app terá poder para prioritizar equipamentos para obterem maiores velocidades e maior largura de banda ou definir essa mesma prioridade para uma duração de tempo específica.

Definir Prioridades para Aplicações

Defina maior largura de banda para as atividades mais importantes para si com controlos simples.

*Atualmente apenas para Deco M9 Plus, Deco P7 e Deco M5

Partilhar Wi-Fi com Amigos

Partilhe com os seus convidados a informação da rede Wi-Fi Guest de forma simplificada

Verifique a Velocidade

Faça um teste de velocidade para garantir que está a receber as velocidades de internet que está a pagar.
Veja todos os equipamentos na sua rede e a largura de banda que estão a usar.











O Nosso Suporte Apoia-o Sempre

Tem questões sobre Deco? A ajuda está a apenas um clique de distância. Encontre as respostas na aplicação Deco e não hesite em contactar-nos apenas com um simples clique.

Suporte Técnico
Notas: Os interfaces e as funções da aplicação, podem variar ligeiramente com base na versão da aplicação e nos modelos Deco.
WIRELESS
Standards Wi-Fi 7
IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds BE9300
6 GHz: 5760 Mbps (802.11be)
5 GHz: 2880 Mbps (802.11be)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range Broader Whole Home Coverage
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× High-Performance Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Tri-Band
A newly-opened 6 GHz band brings more bandwidth and faster speeds
WiFi Capacity Very High
Tri-Band
Distribute devices to different bands for optimal performance

2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 7 clients

6 Streams
More than enough bandwidth for connected devices
Working Modes Router Mode
Access Point Mode
Advanced Functions • Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• Works with Alexa and Google Assistant
SEGURANÇA
Network Security SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 6 GHz Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

Effective Time
Bandwidth Control
VPN Server • OpenVPN Server
• PPTP VPN Server
• L2TP/IPSec VPN Server
VPN Client • OpenVPN Client
• PPTP VPN Client
• L2TP/IPSec VPN Client
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal
HARDWARE
Ethernet Ports • 4× 2.5 Gbps

*Per Deco Unit
Supports WAN/LAN auto-sensing
USB Support 1× USB 3.0 Port
FTP Server
Media Server
Apple Time Machine
Samba Server
Buttons 1× Reset Button
1× WPS
SOFTWARE
Advanced Features • Reboot Schedule
• Tapo/Kasa Onboarding
• IoT network & Device Isolation
• Static Routing Function
• Node/Band Connection Preference
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
Parental Controls HomeShield Parental Controls
Youtube Restriction
SafeSearch
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
PHYSICAL
Dimensões (L x P x A) 4.23 × 4.23 × 6.93 in (107.5 × 107.5 × 176 mm)
Package Contents Deco BE65 (3-pack)
3 Deco BE65 units
1 RJ45 Ethernet cable
3 Power adapters
Quick Installation Guide

Deco BE65 (2-pack)
2 Deco BE65 units
1 RJ45 Ethernet cable
2 Power adapters
Quick Installation Guide

Deco BE65 (1-pack)
1 Deco BE65 unit
1 RJ45 Ethernet cable
1 Power adapter
Quick Installation Guide
OUTROS
Certificações CE, FCC, RoHS
Temperatura e Humidade Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.

Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh.

§2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.

*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. Some features are under development and will be supported with subsequent software updates.

**Use of WAP3 requires clients to also support the corresponding feature.

***The test was conducted in a 4,600 sq. ft. two-story villa with 5 bedrooms with an interior made up of drywall. The Deco BE65 was tested with 2×2 MLO-compatible clients. Home networking performance may vary, depending on the network's speeds, fiber or Ethernet access, WiFi interference, obstacles, walls, areas, and clients.

3.6× faster Wi-Fi speed refers to the theoretical speeds of Wi-Fi 7 clients when connected to Deco BE65 compared with a 2×2 MIMO Wi-Fi 6 or Wi-Fi 6E mesh. Wi-Fi 7 clients need to support Multi-Link Operation (MLO) and the 6 GHz band to reach up to 8.6 Gbps when connected to the 5 GHz and 6 GHz bands of Deco BE65 simultaneously. 2×2 MIMO Wi-Fi 6 and Wi-Fi 6E mesh may only provide 2402 Mbps on the 5 GHz or 6 GHz bands separately.

※※4× Lower Latency refers to the latency improvement of Wi-Fi 7 mesh compared to Wi-Fi 6/6E mesh, based on laboratory test data. The test conditions had the same 5 GHz or 6 GHz single-frequency wireless interference and tested the maximum latencies of Wi-Fi 7 clients (with MLO turned on) connecting to the 5 GHz and 6 GHz bands of Deco BE65 (with MLO turned on) simultaneously and to the 5 GHz or 6 GHz bands of a Wi-Fi 6/6E mesh (without the MLO function).

WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.



Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

This Deco may not support all the mandatory features as ratified in IEEE 802.11be specification.

Further software upgrades for feature availability may be required.
