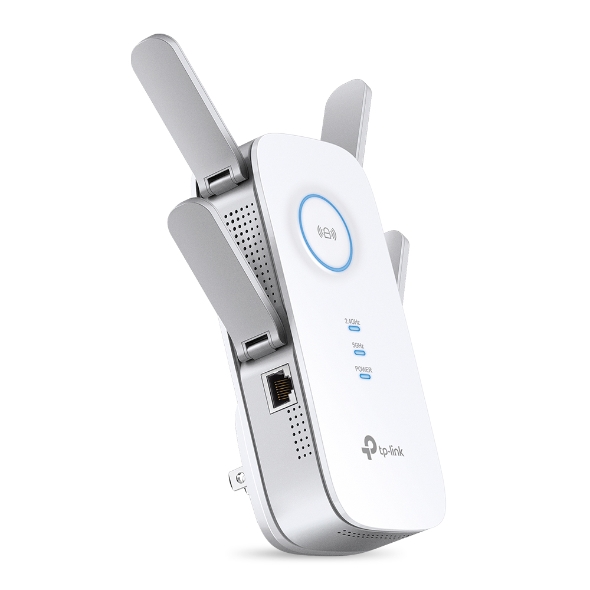

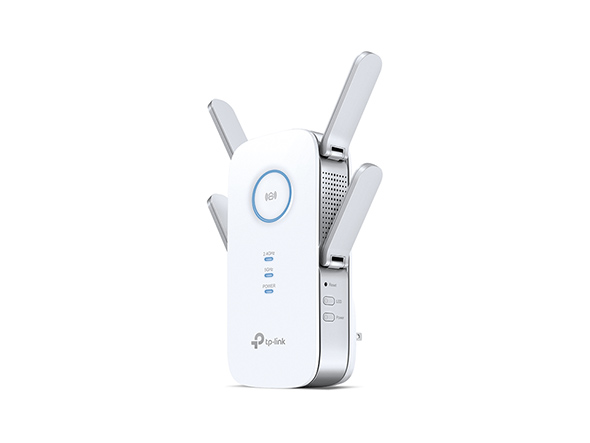

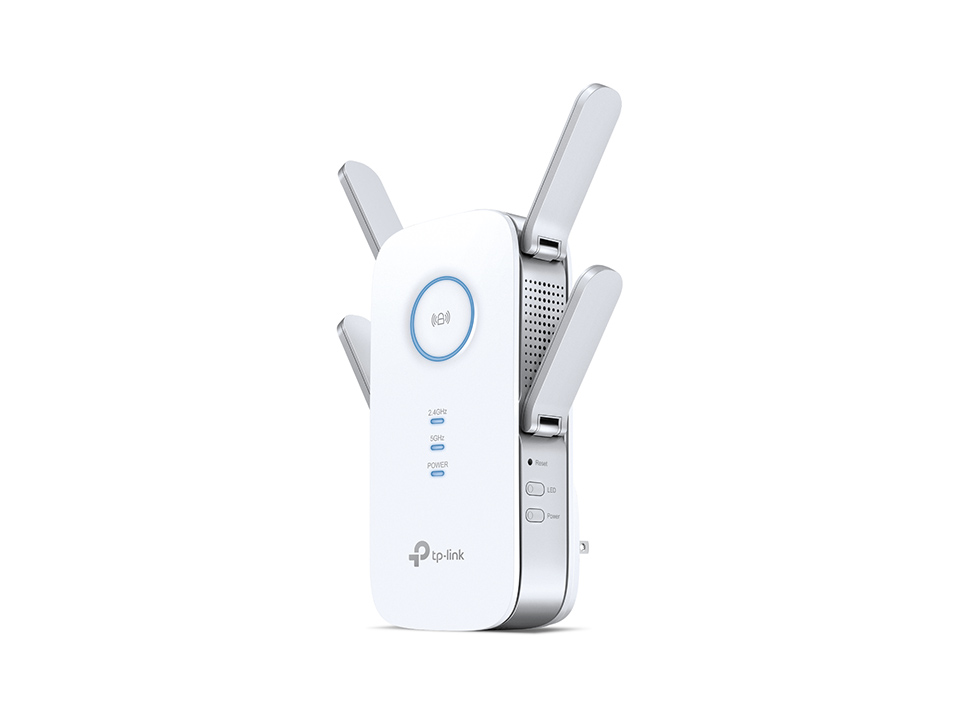

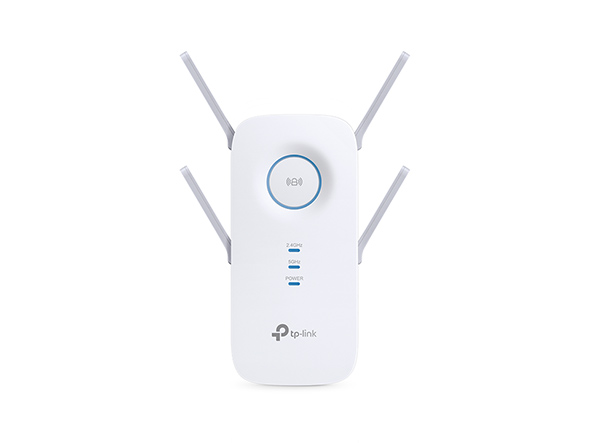

RE650
AC2600 Wi-Fi Range Extender
- Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage by up to 14,000 sq. ft.
- 4-Stream for AC2600 Dual Band Wi-Fi – Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz
- 4×4 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
- Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections
- Gigabit Ethernet Port – Provide faster wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
Ultra-Fast Wi-Fi
for the Whole Home
AC2600 Wi-Fi Range Extender
RE650
Blazing-Fast Dual Band Wi-Fi Extension
With four external and dual band antennas, the RE650 establishes a stable wireless connection to any Wi-Fi router and boost the network's coverage by up to 14,000 square feet*. The 880MHz dual-core processor provides maximum Wi-Fi performance, keeping your smartphones and tablets connected as you move throughout your home.
Beamforming technology detects the location of devices and concentrates Wi-Fi towards them for stronger connections.
-
880MHz
Dual-Core CPU -
4 Antennas
-
Compatible with
any Wi-Fi Router
- RE650 Coverage
- Beamforming
- Router Coverage
- Other RE Coverage
without Beamforming
*Maximum extended Wi-Fi coverage specification is based on performance test results. Actual Wi-Fi coverage may vary due to different environment, building material and wireless interferences.
4-Stream AC2600 Dual Band Wi-Fi
Using 4-Stream technology to boost its Wi-Fi capability, the RE650 reaches industry-leading maximum speeds of up to 800Mbps on 2.4GHz, 1733Mbps on 5GHz. This provides the speed and elite performance necessary to support your most demanding online applications, including simultaneous 4K streaming and lag-free gaming.
Using 4-Stream technology, the RE650 reaches industry-leading maximum speeds of up to 800Mbps on 2.4GHz, 1733Mbps on 5GHz. This provides the speed and elite performance necessary to support your most demanding online applications.
1733Mbps
5GHz Band
800Mbps
2.4GHz Band
TP-Link OneMesh:
Optimize for Smoothest WiFi Experience
OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.
- Smart RoamingUninterrupted streaming when moving around your home
- One Wi-Fi NameNo more switching Wi-Fi network names
- Easy CreationOneMesh™ Router and OneMesh™ Range Extenders pair instantly
- Unified ManagementManage the entire network all from the TP-Link Tether app
- Traditional Router with Extender
- OneMesh™ Router + Range Extender
More Connections and Faster for Everyone
MU-MIMO technology allows the RE650 to serve up to four devices at once, reducing wait time and greatly increasing Wi-Fi throughput for every device. With MU-MIMO, the RE650 runs up to 4x faster than traditional AC range extender.
Traditional RE
Sends data to one device at a time
MU-MIMO RE650
Simultaneously sends data to multiple devices
High-speed Gigabit
Wired Connection
The RE650’s Gigabit Ethernet port lets you connect a wired device such as a game console or smart TV to create a fast, reliable wired connection.
-
4K HDTV
-
Game
-
Laptop
-
Printer

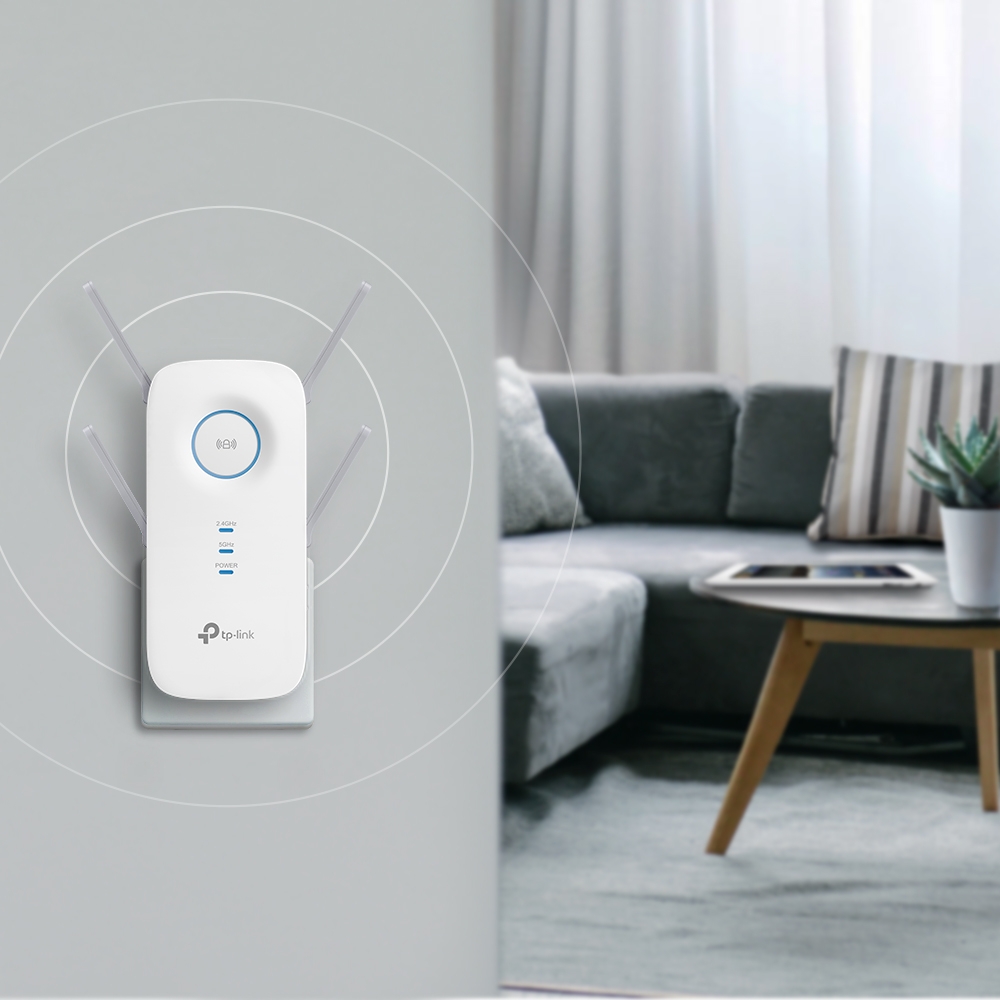

Find the Best Spot with
Intelligent Signal Indicator
The Intelligent Signal Light helps you quickly find the
best location to install the RE650.
- Blue
Good connection
- Red
Too far away from the router
Built-in Access Point Mode
RE650 is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 4×4 MU-MIMO dual band wireless access point.
Drop-Free and Seamless Dual Band Connections
If one of the main router's dual bands drops suddenly, or in case the main router can only deliver single band, the RE650 still provides stable dual-band connections for clients, allowing you to enjoy stable and drop-free experience on all your devices.
- 2.4GHz
- 5GHz
-
Traditional RE
-
Main Router
-
RE650
| ハードウェア機能 | |
|---|---|
| プラグタイプ | EU, UK, US |
| 規格及びプロトコル | IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| インターフェイス | 1 x 10/100/1000M Ethernet Port (RJ45) |
| ボタン | WPS Button, Reset Button, LED Button, Power Button |
| 消費電力 | 12W（max power consumption） |
| 寸法（幅 X 奥行き X 高さ） | 6.4 x 3.4 x 1.6 in. (163 x 86 x 40mm) |
| アンテナ | 4 x external |
| ワイヤレス機能 | |
|---|---|
| 周波数範囲 | 2.4GHz & 5GHz(11ac) |
| 信号レート | 5GHz:Up to 1733Mbps2.4GHz:Up to 800Mpbs |
| 受信感度 | 5GHz：11a 6Mbps:-96dBm@10% PER11a 54Mbps: -78dBm@10% PER11ac HT20 mcs8: -69dBm@10% PER11ac HT40 mcs9: -66dBm@10% PER11ac HT80 mcs9: -63dBm@10% PER2.4GHz11g 54M: -79dBm@10% PER11n HT20 mcs7: -77dBm@10% PER11n HT40 mcs7: -74dBm@10% PER |
| ワイヤレス モード | Range Extender/Access Point |
| ワイヤレス機能 | Wireless StatisticConcurrent Mode boost both 2.4G/5G WiFi bandAccess ControlLED ControlDomain Login Function |
| ワイヤレスセキュリティ | 64/128-bit WEPWPA-PSK / WPA2-PSK |
| 送信パワー | <20dBm(2.4GHz)<23dBm(5GHz) |
| その他 | |
|---|---|
| 認証 | CE, FCC, RoHS |
| 付属品 | AC2600 Wi-Fi Range Extender RE650Quick Installation Guide |
| 梱包サイズ (W X D X H) | 7.9 x 4.9 x 3.8 in. (202 x 125 x 97mm) |
| システム要件 | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
| 動作環境 | Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
Use of MU-MIMO requires clients to also support MU-MIMO.
