RE380DEnd of Life
AC1200 Wi-Fi Range Extender
Simultaneous 600Mbps on 2.4GHz + 867Mbps on 5GHz totals 1.2Gbps Wi-Fi speeds
2 dual band external antennas and 600mW high-powered amplifiers eliminate “dead zones” and greatly extend your existing wireless coverage
5 Gigabit Ethernet ports provide gigabit speed for wired connections
High Speed mode creates a lightning fast wireless connection for bandwidth-intensive tasks
Works with any Wi-Fi router or wireless access point
TP-LINK Tether App provides an easier way to access and manage the range extender on your iOS and Android devices

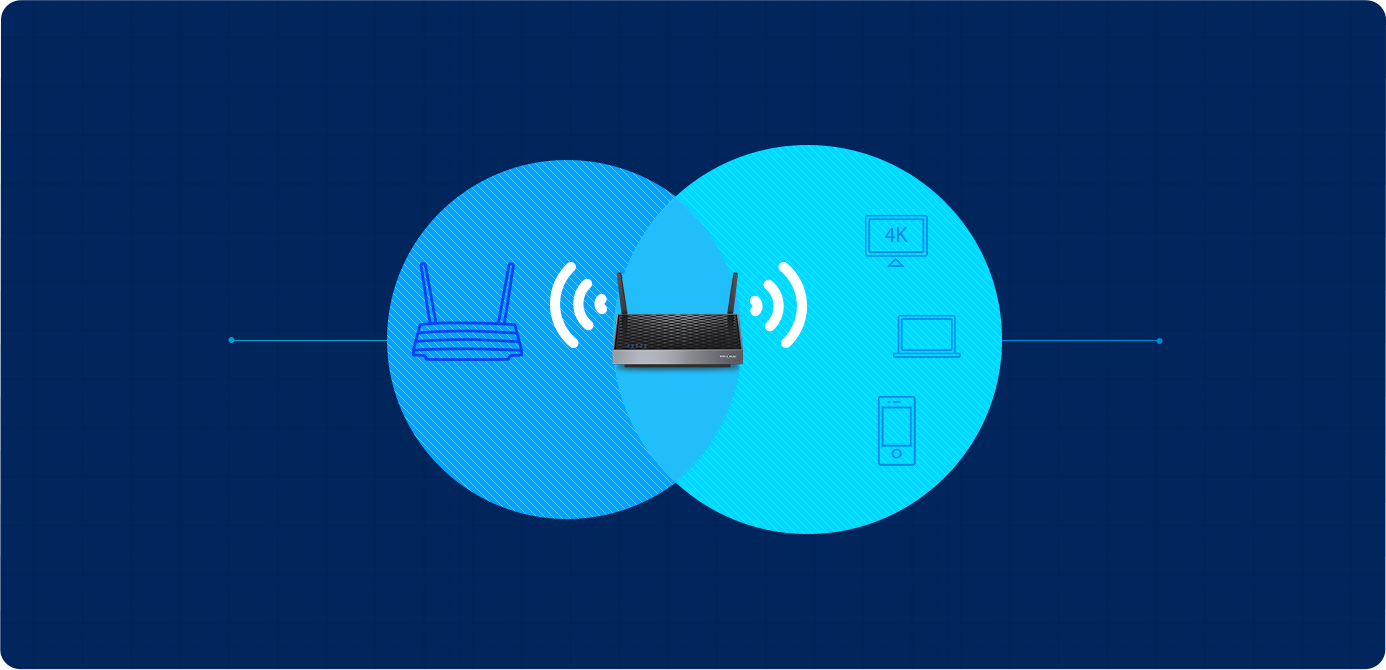

Excellent Wireless Extension
Wi-Fi Range Extender
Up to 10,000 sq.ft* of Additional Wi-Fi Coverage
With two external dual band antennas and high-power amplifiers, the RE380D can establish a stable wireless connection to any router and augment your network's wireless coverage by up to 10,000 square feet. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.
600mW High Power Amplifiers
2 Dual Band Antennas
Works with Any Wi-Fi Router
*Maximum extended Wi-Fi coverage specification is based on performance test results. Actual Wi-Fi coverage may vary due to different environment, building material and wireless interferences.
Dual Band 802.11ac Wi-Fi
With next generation 11ac standard Wi-Fi, the RE380D offers combined data transfer speeds of up to 1.2Gbps, including 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band. You can count on the RE380D to provide reliable connections for bandwidth-intensive tasks, such as HD/4K streaming, lag-free online gaming, and large file downloads.
Amazing Online Experience for Wired Devices
With five built-in gigabit Ethernet ports, the RE380D can provide fast, stable connections to all of your favorite wired devices, including smart TVs, game consoles, and blu-ray players.
High Speed Mode
Uses the 5GHz and 2.4GHz bands at the same time to establish a single, lightning fast connection. This is especially beneficial when performing bandwidth-intensive tasks, such as HD streaming or online gaming.
- Push the WPS Button on the existing router
- Push the RE Button on the range extender
- Connection complete
Sleep in Peace
The LED indicators on the unit can be turned on and off manually, or according to a fixed schedule, ensuring that the lights will not distract you or disturb your sleep. Turning the LED indicators off when they are not in use is also an easy way to conserve electricity.
Easy Monitoring and Remote Control
The intuitive Tether app allows you to easily monitor the status of your range extender, control its functions, and alter its settings using any compatible mobile device remotely.
You can download the Tether App
for your iOS or Android phones.
The RE380D can be oriented vertically, as can its display. This means that you can enjoy expanded coverage and better connections, taking full advantage of the range extender’s functionality without compromising your stringent aesthetic expectations.
|Interface||5 * 10/100/1000Mbps Ethernet Port (RJ45)|
|Button||RE (Range Extender) Button, Reset Button, LED Button, Power Button|
|External Power Supply||12V/2A|
|Dimensions ( W x D x H )||9.5 X 6.4 X 1.7 in. (242 X 162 X 44mm)|
|Antenna||2 dual band detachable antennas|
|Wireless Standards||IEEE 802.11a/b/g/n/ac|
|Frequency||2.4GHz & 5GHz(11ac)|
|Signal Rate||5GHz:Up to 867Mbps
2.4GHz:Up to 300Mpbs
11a 6Mbps: -92dBm@10% PER
11a 54Mbps: -74dBm@10% PER
11ac HT20 MCS8:-66dBm@10% PER
11ac HT40 MCS9: -62dBm@10% PER
11ac HT80 MCS9: -58.5dBm@10% PER
11g 54M: -76dBm@10% PER
11n HT20 MCS7: -73dBm@10% PER
11n HT40 MCS7: -70.5dBm@10% PER
|Wireless Modes||Range Extender|
|Wireless Functions||Concurrent Mode boost both 2.4G/5G Wi-Fi band
High Speed Mode for great speed for HD Gaming and video
Domain Login Function
|Wireless Security||64/128-bit WEP
WPA-PSK / WPA2-PSK
|Certification||CE, FCC, RoHS|
|Package Contents||AC1200 Wi-Fi Range Extender RE380D
RJ-45 Ethernet Cable
2 detachable antennas
Quick Installation Guide
|Box Dimensions (W X D X H)||13.4 X 9.4 X 3.0 in. (340 X 240 X 76mm)|
|System Requirements||Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1,10,
Mac® OS, NetWare®, UNIX® or Linux
|Environment||Operating Temperature: 0°C~30°C (32°F~86°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
