RE605X_V4_Datasheet
AX1800 Wi-Fi 6 Range Extender
Highlights
Eliminate Wi-Fi Dead Zones with Powerful Wi-Fi
Extend AX1800 Wi-Fi to Your Whole Home
Connect with an EasyMesh-compatible router to create a mesh network for seamless whole-home coverage, or any Wi-Fi router to boost your Wi-Fi range.
Faster Wi-Fi 6 Speed
Turbocharge your devices with wireless speeds of up to 1.8 Gbps.†
Larger Capacity△
Wi-Fi 6 builds a more efficient network that increases the average throughput by 4 times and servers more devices.
Ultra-Low Latency
Take advantage of ultra-low latency to enjoy smoother online experience.
Save Clients’ Battery Power
Target Wake Time schedule the connection time of battery-powered devices to reduce their power consumption.
Adaptive Path Selection
Keep your network running at top-speed by automatically choosing the fastest connection path to the router.
Access Point Mode
Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.
Easy Setup Within Minutes
Easy setup and management via WPS button/Tether app/Web UI.
EasyMesh-Compatible
RE605X is more than a traditional range extender. It creates a Mesh network by connecting to an easymesh-compatible router for seamless whole-home coverage.
-
Wi-Fi Dead-Zone Killer
Eliminate weak signal areas with Wi-Fi coverage for the whole home. -
Uninterrupted Streaming§
Enjoy uninterrupted streaming, surfing, and gaming even when moving around your home. -
One Wi-Fi Name
Stay connected to the same network name in every room. -
Unified Management◇
Push the WPS button to set up a Mesh network you can manage from the Tether app or web UI.

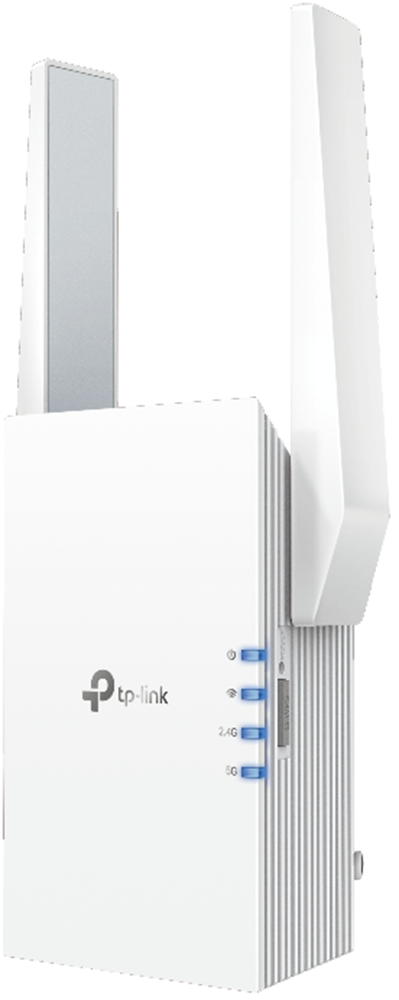

AX1800 Wi-Fi Range Extender

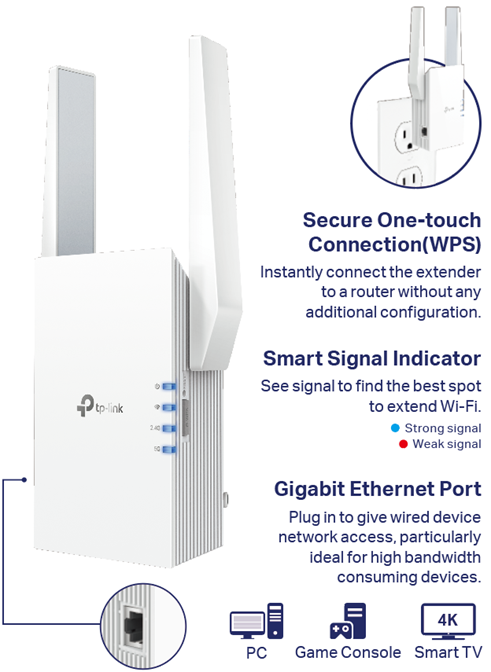

Secure One-touch Connection (WPS)
Instantly connect the extender to a router without interference configuration.
-
Smart Signal Indicator
See signal to find the best spot to extend Wi-Fi.- Blue - Strong signal
- Red - Weak signal
-
Gigabit Ethernet Port
Plug in to give wired device network access, particularly ideal for high bandwidth consuming devices.
Features
| Ease of Use | Speed | Reliability |
|---|---|---|
 |
 |
 |
|
- Intuitive Web UI: Ensures quick and simple installation without hassle. |
- Ultimate Wireless Speed: Combined wireless speeds of up to 574 Mbps (2.4 GHz) and 1201 Mbps (5 GHz). |
- Simultaneous Dual Band: Separate Wi-Fi bands enable reliable connections with your device. |
|
- Fast Encryption: One-touch wireless security with the WPS button. |
- Support Wi-Fi 6: Provides faster speeds and improved capacity for more devices. |
- Reliable Connection: Enhanced stability for optimal Wi-Fi performance. |
|
- Hassle-Free Management with Tether App: Network management made easy via the TPLINK Tether App. |
- Adaptive Path Selection: Keep your network running at top-speed by automatically choosing the fastest connection path to the router. |
- Ultra-Low Latency: Enjoy smoother online experiences with reduced lag. |
Specifications
| Hardware | |
|
· Button: WPS Button, Reset Button · Port: 1 Gigabit Ethernet Port · Antenna: 2 External Antennas · Input Power: 100-240V~50/60Hz · Power Consumption: 11.5W · Dimensions (W × D × H): 2.9×1.8×4.9 in. (74×46×124.7 mm)
|
|
| Wireless | |
|
· Wireless Standards: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz · Frequency: 2.4 GHz and 5 GHz · Signal Rate: 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz · Transmit Power: FCC: 2.4 GHz ≤ 30dBm, 5 GHz ≤ 30dBm · Reception Sensitivity: 5 GHz: 2.4 GHz: · Wireless Security: WPA, WPA2, WPA3 |
|
| Others | |
| Certification | FCC, RoHS |
| System Requirements | Windows 10/8.1/8/7, Mac OS, iOS, Android, or any device with a web browser |
| Package Contents | Wi-Fi Range Extender RE605X, Quick Installation Guide |
Disclaimer
For support and warranty, please visit www.tp-link.com/support
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage per ft² are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
§Uninterrupted Streaming is designed for devices that support the 802.11k/v standard.
△Up to 4x Capacity refers to 4x increase in median throughput under dense environment compared to 11ac wave 2 range extender.
*Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors.
**TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent software updates.
This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.
***Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
◇Unified management is available for TP-Link EasyMesh-compatible devices. This feature is not guaranteed for devices from other vendors.
