How to rotate the image of my VIGI camera

VIGI Camera

Updated 03-19-2026 17:54:56 PM Number of views for this article

100544

This Article Applies to:

Contents

Introduction

Requirements

Configuration

Method 1: Via VIGI APP

Method 2: Via VIGI PC Client

Method 3: Via VIGI NVR

Method 4: Via Web Interface

Conclusion

Introduction

This article will introduce how to rotate the view from a VIGI camera using the VIGI APP, VIGI PC Client, VIGI NVR or Web Interface. VIGI APP has more rotation options than VIGI PC Client, VIGI NVR and Web Interface.

Requirements

VIGI Camera
Mobile Phone/Laptop/VIGI NVR/Network Cable/Screen

Configuration

Here we take C340W as an example.

Method 1: Via VIGI APP

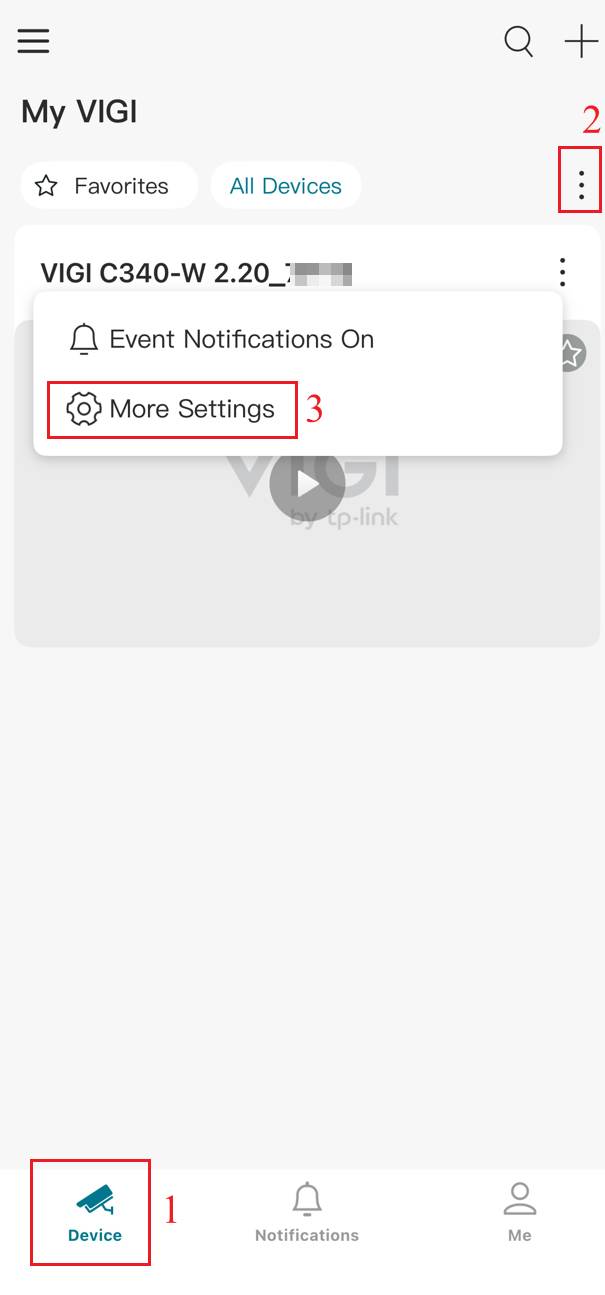

Step 1. Launch the VIGI APP. On the Device page, tap the three-dot icon in the upper-right corner of the device. In the pop-up window, tap More Settings.

Go to VIGI camera’s settings page.

Step 2. On Settings page, tap Video & Display.

Tap video & display button.

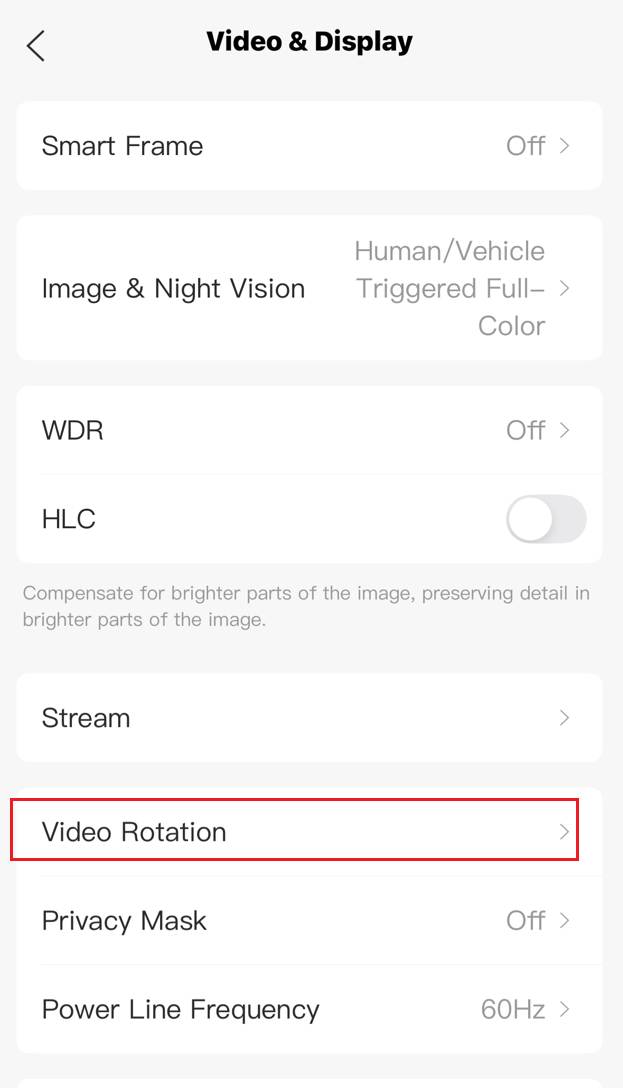

Step 3. On Video & Display page, tap Video Rotation.

Tap video rotation button.

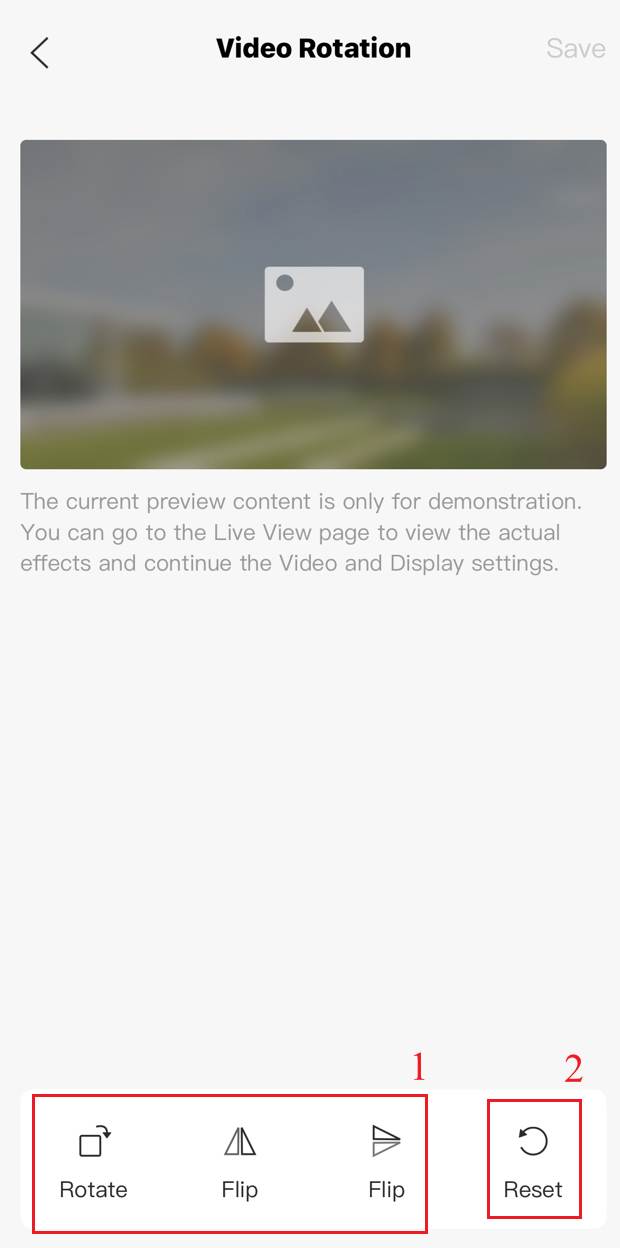

Step 4. You can tap Rotation to rotate the surveillance image clockwise. Each tap will rotate the image 90° clockwise. You can also tap Flip to flip the surveillance image left–right or up–down. You can tap Reset to restore the image to its original view.

Rotate or flip the surveillance image.

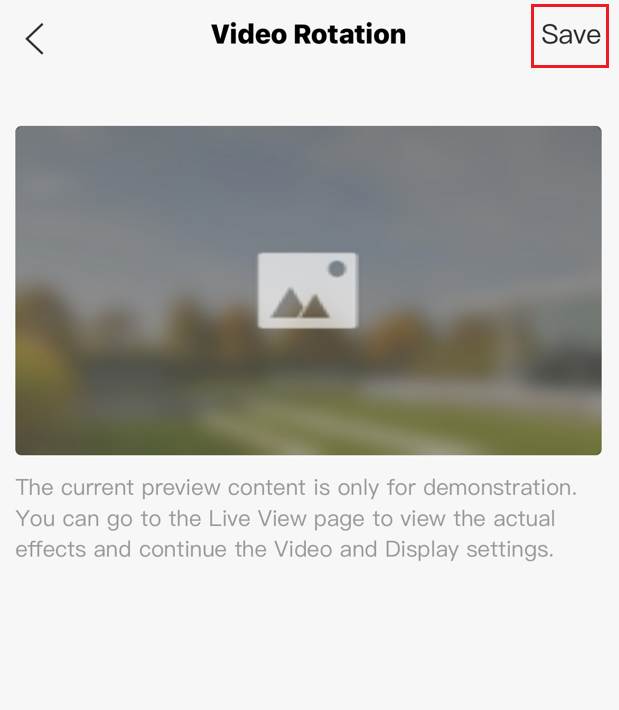

Step 5. After rotating the image to the desired angle (For example, left-right flip), click Save in the upper-right corner to save the configuration.

Show Save button.

Method 2: Via VIGI PC Client

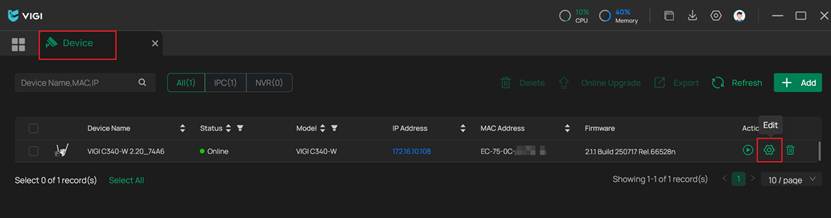

Step 1. On the Device feature page, locate the VIGI camera in the device list and click the Edit button on the right side.

Click the edit button.

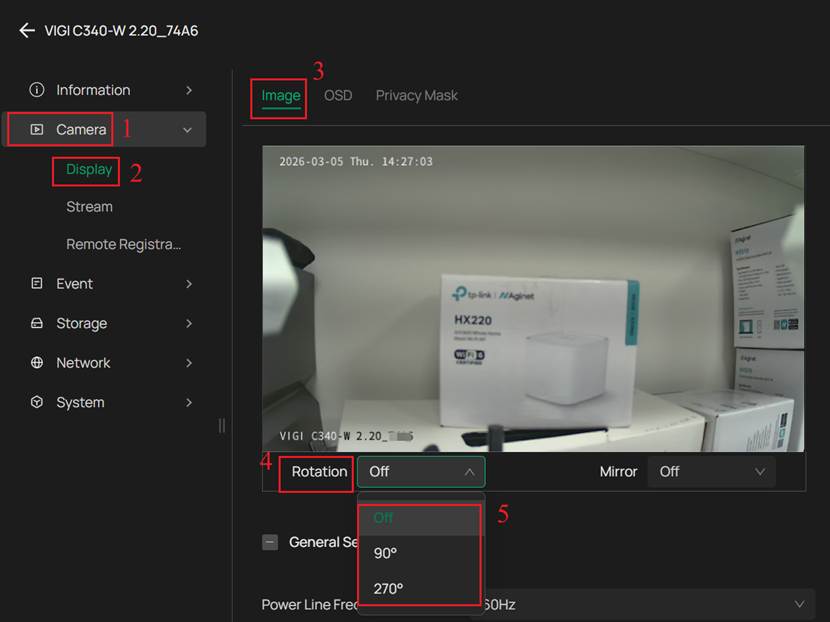

Step 2. Navigate to Camera > Display > Image > Rotation. You can select 90° to rotate the surveillance image 90 degrees clockwise or select 270° to rotate the surveillance image 270 degrees clockwise.

Select the rotation angle.

Method 3: Via VIGI NVR

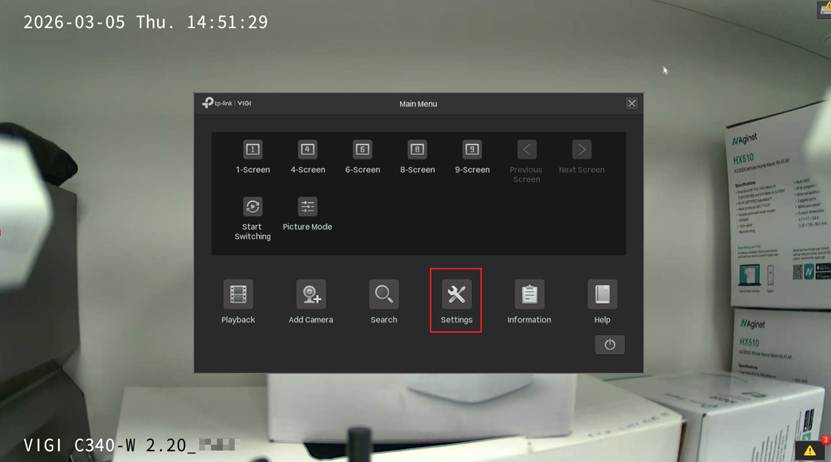

Step 1. On the NVR GUI page, right-click on the screen, in the pop-up window, click the Settings button.

Click settings button on NVR GUI page.

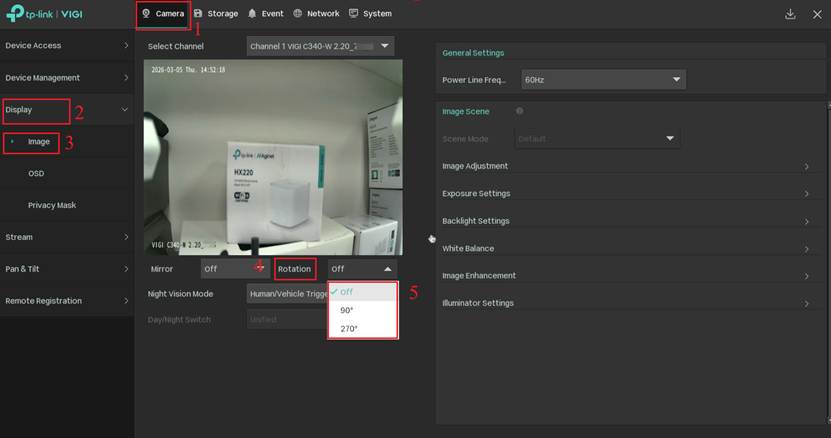

Select the rotation angle.

Method 4: Via Web Interface

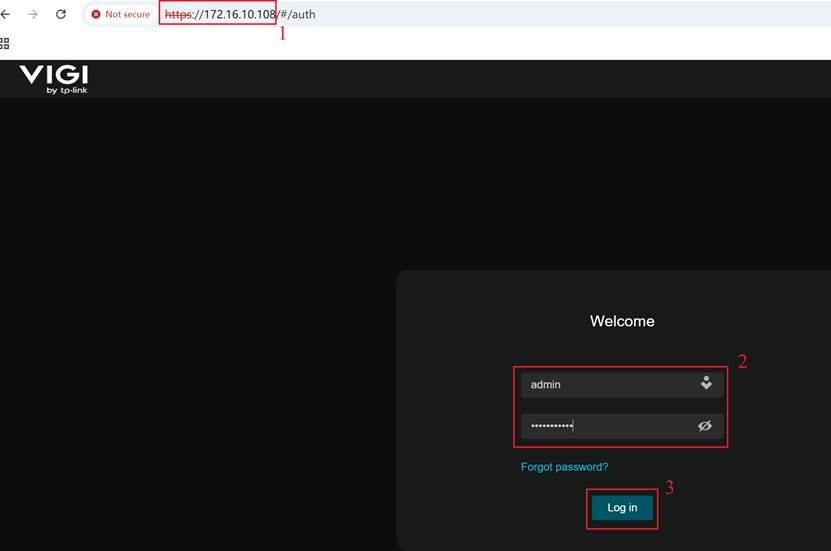

Step 1. Enter the IP address of the VIGI camera in the browser’s address bar, then enter the username and password and click Log in to access the camera’s Web Interface.

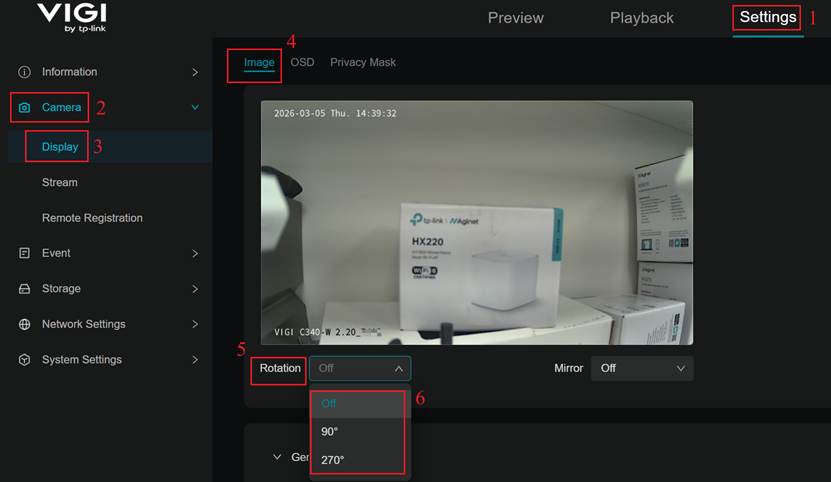

Step 2. Navigate to Settings > Camera > Display > Image > Rotation. You can select 90° to rotate the surveillance image 90 degrees clockwise or select 270° to rotate the surveillance image 270 degrees clockwise.
