NE211-Outdoor

Próximamente

5G Outdoor Gateway



Conectividad 5G – Ultra-Rápida y de Baja Latencia para Exteriores:
Velocidades de descarga de hasta 3.4 Gbps con latencia mínima de solo 1 ms.
Compatible con redes 5G SA/NSA, 4G LTE (FDD y TDD) y 3G WCDMA/HSPA+.

Diseñado para Ambientes Exteriores Exigentes:
Carcasa IP67 resistente al polvo, humedad, vibraciones y temperaturas extremas de -40 °C a 55 °C. Ideal para entornos industriales, rurales o de difícil acceso.

Cobertura Ampliada con Antenas Direccionales Integradas:
Antenas internas de alta ganancia especialmente diseñadas para maximizar la cobertura y estabilidad en aplicaciones 5G al aire libre.

Conectividad Total – WAN y LAN Multi-Gigabit:
Equipado con 1 puerto WAN/LAN PoE de 2.5 Gbps (auto-sensing), con alimentación mediante PoE+ 802.3at o PoE pasivo (adaptador incluido).
Admite WAN tipo Dynamic IP, Static IP y PPPoE.

Modos de Trabajo Flexibles:
Soporta funcionamiento como Router o en modo Bridge, adaptable a diferentes arquitecturas de red.

Aplicaciones y Funcionalidades Avanzadas:
Incluye Redirección de Puertos, NAT Forwarding, IPv6, IPSEC VPN, estadísticas de tráfico, diagnóstico de red y actualización en la nube.

Gestión en la Nube con TAUC:
Compatible con TAUC (TP-Link Aginet Unified Cloud), permitiendo una gestión remota centralizada de flotas de dispositivos y funciones de Wi-Fi Analytics.

Gestión Remota Profesional:
Compatible con TR-069, TR-098, TR-181, TR-111, TR-143 y TR-369 (USP).
Permite administración vía WebGUI local y acceso seguro HTTPS/SNMP.

Montaje Flexible y Accesorios Incluidos:
Se suministra con kits de montaje para poste y pared, ideal para despliegues en zonas remotas o entornos industriales. Incluye cable RJ45 y adaptador PoE.

Performance-Driven 5G Router
for Outdoor Evironments

NE211-Outdoor

wifi7 Certificated the image of port

Unrivaled Speed, Feel No Lag

5G

3.4 Gbps

4G+

1.6 Gbps

IP67

6KV Lightning
Protection

15KV ESD
Protection

Plug &
Play

PoE Powered
Support

Remote
Management

TR-069/TR-369

Simple and Efficient Deployment

Unrivaled Speed with 5G,
Revolutionary Experience

5G greatly boosts the download speed up to 3.4 Gbps–22x faster
than 4G LTE. It brings fast responsive network connections to
tomorrow’s mobile devices, with only 1 ms latency.§

5G

speed1 22× Faster Powerful Broadband Connection

4G-LTE Advanced

speed2 0.6 Gbps

4G-LTE

speed3 0.15 Gbps
  • the icon of feature1 Higher
    Speed
  • the icon of feature1 Lower
    Latency
  • the icon of feature1 Larger
    Capacity

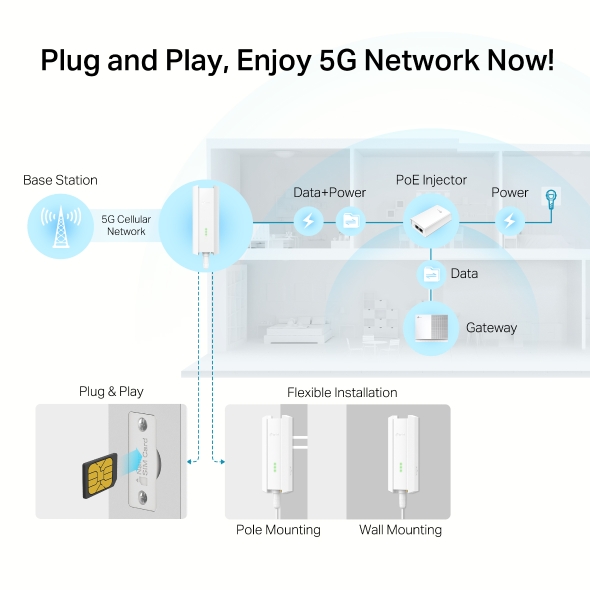

Plug and Play, Enjoy 5G Network Now!

NE211-Outdoor ensures a comfortable and no-block network installation via SIM card and PoE powered supply. Plug in your
SIM card, connect the injector and gateway, and enjoy high-speed internet!

Base Station
5G Cellular
Network
Plug & Play
Flexible Installation
Data+Power
PoE Injector
Power
Data
Gateway
Pole Mounting
Wall Mounting

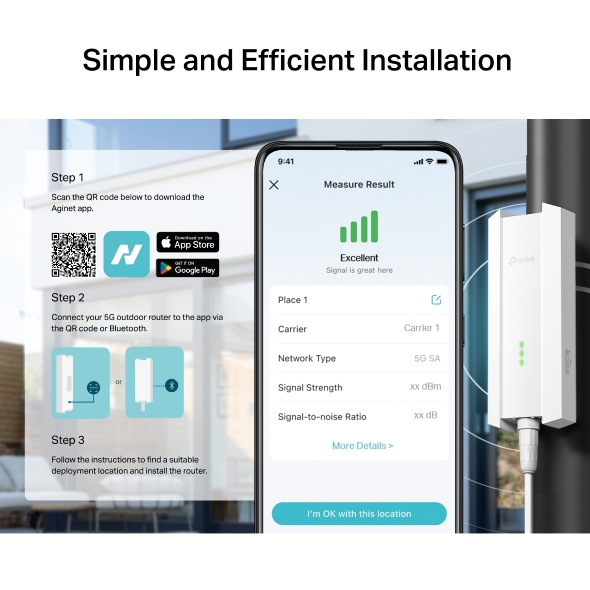

Simple and Efficient Installation

Connect your router to the smart phone, and follow the instructions on the free Aginet app to efficiently find a suitable deployment location and install the router.

Step 1 Scan the QR code below to download the Aginet app. Step 2 Connect your 5G outdoor router to the app via the QR code or Bluetooth. connect
Step 3 Follow the instructions to find a suitable deployment location and install the router.
Single cable for both Ethernet and power
Pole Mounting
Wall Mounting


IP67 Weatherproof Enclosure for Outdoor Environments

NE211-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.

the icon of IP67

6: Completely dust-tight. No ingress of dust.

7: Protection against full immersion in water up to 1 meter deep for half an hour.

  •

    6KV Lightning Protection and
    15KV ESD Protection

  •

    No Ingress of Dust

  •

    Waterproof Enclosure

Conectividad 5G – Ultra-Rápida y de Baja Latencia para Exteriores:
Velocidades de descarga de hasta 3.4 Gbps con latencia mínima de solo 1 ms.
Compatible con redes 5G SA/NSA, 4G LTE (FDD y TDD) y 3G WCDMA/HSPA+.

Diseñado para Ambientes Exteriores Exigentes:
Carcasa IP67 resistente al polvo, humedad, vibraciones y temperaturas extremas de -40 °C a 55 °C. Ideal para entornos industriales, rurales o de difícil acceso.

Cobertura Ampliada con Antenas Direccionales Integradas:
Antenas internas de alta ganancia especialmente diseñadas para maximizar la cobertura y estabilidad en aplicaciones 5G al aire libre.

Conectividad Total – WAN y LAN Multi-Gigabit:
Equipado con 1 puerto WAN/LAN PoE de 2.5 Gbps (auto-sensing), con alimentación mediante PoE+ 802.3at o PoE pasivo (adaptador incluido).
Admite WAN tipo Dynamic IP, Static IP y PPPoE.

Modos de Trabajo Flexibles:
Soporta funcionamiento como Router o en modo Bridge, adaptable a diferentes arquitecturas de red.

Aplicaciones y Funcionalidades Avanzadas:
Incluye Redirección de Puertos, NAT Forwarding, IPv6, IPSEC VPN, estadísticas de tráfico, diagnóstico de red y actualización en la nube.

Gestión en la Nube con TAUC:
Compatible con TAUC (TP-Link Aginet Unified Cloud), permitiendo una gestión remota centralizada de flotas de dispositivos y funciones de Wi-Fi Analytics.

Gestión Remota Profesional:
Compatible con TR-069, TR-098, TR-181, TR-111, TR-143 y TR-369 (USP).
Permite administración vía WebGUI local y acceso seguro HTTPS/SNMP.

Montaje Flexible y Accesorios Incluidos:
Se suministra con kits de montaje para poste y pared, ideal para despliegues en zonas remotas o entornos industriales. Incluye cable RJ45 y adaptador PoE.

CARACTERÍSTICAS DE HARDWARE

Interfaz 1× 2.5GE PoE/LAN Port + 1 Nano SIM
Botones 1 RESET button
Fuente de Alimentación Externa • 802.3at PoE
• 48V Passive PoE (PoE Adapter Included)
Dimensiones 11.0 × 4.2 × 2.2 in ( 280.4 × 106.5 × 56.8 mm)
Antenas Internal 5G NR/LTE Antennas
Protección IP67
Montaje Pole/Wall Mounting
Versión de Bluetooth v5.4 Supported

CARACTERÍSTICAS INALÁMBRICAS

Tipo de Red 5G:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32
TDD-LTE: B38/B40/B41/B42/B43
3G: B1/B5/B8

SOFTWARE

Protocolos IPv6 Compatible

Otros

Contenido del Paquete 1× NE211-Outdoor
1× PoE Adapter
1× RJ45 Ethernet Cable
1× Quick Installation Guide
Pole/Wall Mounting Kits
