What should I do if my battery-powered camera can't detect the motion?

Most Tapo battery-powered devices conserve energy by entering sleep mode when inactive, so they cannot continuously monitor motion like plugged-in cameras.

Detection occurs only when the device is awake, indicated by an illuminated LED. There are 2 methods to wake up the battery-powered devices:

1. PIR sensor detects motion and activates the device

2. Watching the live stream in the app

Specific models with 24/7 Capture feature can continuously capture images within a specific time interval for 7*24 hours, then trigger detections.

This article guides you through troubleshooting issues such as:

• Not receiving notifications or recordings despite motion occurs in front of the camera

• Only receiving notifications and clips while watching the live stream

Step 1. Confirm the detection range and adjust the installation if necessary

Due to the physical limitations of sensors, the detection range of current battery-powered camera products is limited — and Tapo products are no exception.

The mounting location greatly affects the detection range. We highly recommend you install in our recommended height and angle in quick installation guide. Please check the recommended mounting height and angle in the Tapo app: Device Settings > User Guide > Mounting Guide or the Quick Installation Guide.

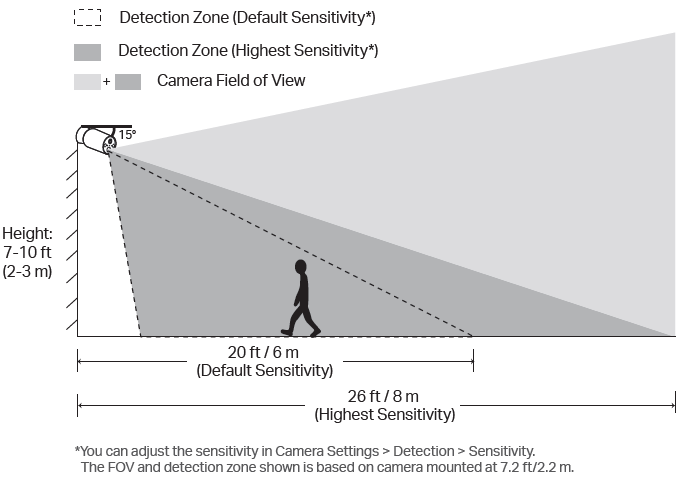

Take C425/TC85 as an example: the recommended height is 2-3 meters, tilted down at an angle of 10°-15°. And the maximum detection distance is about 8 meters (in sensitivity 10). Therefore, if the movement is beyond this range, it can't be detected.

For Tapo battery Pan&Tilt camera, the PIR sensor will move with the camera. So, please keep the PIR sensor level and tilt the camera lens downwards at an angle of about 20°.

Step 2. Adjust the Wake-up sensitivity

Please adjust your Wake-up sensitivity appropriately in conjunction with this FAQ: How to test the detection range of Tapo battery camera

If your camera doesn’t support this feature, try the following method to see if movement can wake it up:

1. Turn on the Alarm in Device Settings > Alarm > Detection Alarm. Choose Alarm Type as sound.

2. Leave the live view and wait for the camera to power off.

3. Slowly approach the camera from a distance, when the Alarm sound turns on, it indicates that here's the maximum wake-up distance. Movement further away cannot trigger detection.

Step 3. If the detection range is still not ideal

For the models that support 24/7 Capture feature:

24/7 Capture refers to a mechanism that captures images at a certain frequency and triggers recording based on the differences between images. Once enabled, the camera can continuously capture images at 1fps within a specific time interval for 7*24 hours. When an event is detected, it will switch back to normal frame rate recording.

24/7 Capture can extend the detection range for comprehensive coverage and achieve a result similar to continuous recording with lower power consumption. It ensures more critical footage is captured. So, if you have a solar panel and or can charge the camera frequently, you can follow this FAQ to turn on the 24/7 Capture feature to extend the detection range: How can I enable the 24/7 Capture on Battery Camera?

If you find the detection feature is not working properly when the 24/7 feature is enabled, refer to the following guidance to troubleshoot: Detection is not working on Tapo/Kasa Camera

For more details about 24/7 feature, refer to: How can I enable the 24/7 Capture on Battery Camera?

For the models that don’t support 24/7 Capture feature:

If the detection range is not ideal. Please try the following methods to improve it.

• Avoid placing the camera behind glass

Situating the camera behind glass can prevent it from detecting movement outside, resulting in missed alerts.

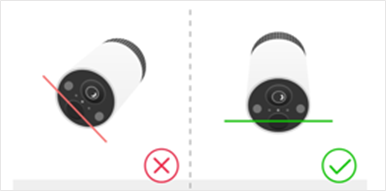

• Keep the motion sensor lens level

Ensure the camera lens is horizontal. If tilted or inverted, the PIR sensor's detection range may be limited, leading to missed motion events.

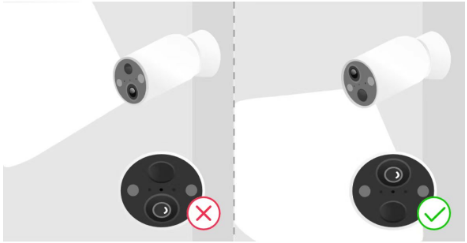

• Don’t mount upside down

Ensure the camera is oriented correctly to maintain proper functionality.

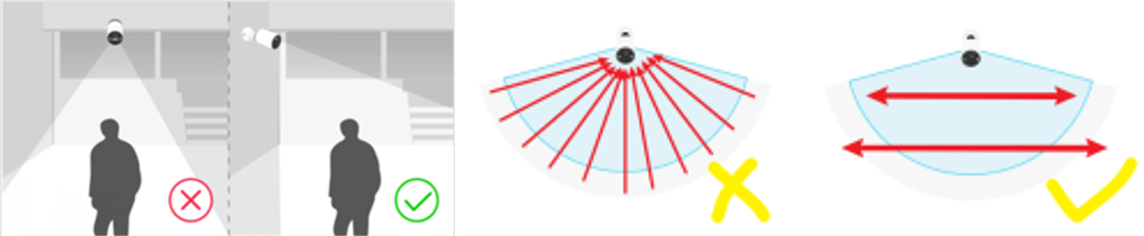

• Mount the camera to the side

Avoid pointing the camera directly at the monitoring area. When someone approaches directly, the PIR sensor may not activate effectively. Position the camera to the side for better sensitivity.

Note: PIR sensors operate by detecting changes in thermal radiation in the environment. When an object or a person moves within the sensor's detection range, it causes a temperature change. The sensor primarily relies on a pyroelectric element to sense these changes, which typically occur through the relative motion between the object and the sensor.

The design of PIR sensors makes them more sensitive to lateral motion (i.e., motion parallel to the sensor) and less sensitive to radial motion (i.e., movement toward or away from the sensor). This is because the sensor's pyroelectric element primarily detects the temperature difference between two heat sources, and radial motion may not produce sufficient temperature changes in the sensor’s detection area to trigger an alarm.

Additionally, some animals may be difficult to detect because their heat signatures are smaller and less likely to trigger the sensor compared to humans.

Step 4. Adjust the Clip Settings

1. Navigate to Camera Settings > Storage & Recording > Clip Settings.

2. Reduce the Retrigger Time, increase the Record Buffer, and extend the Maximum Clip Length.

Step 5. Check firmware

Ensure that the camera's firmware is up to date.

Step 6: Modify detection settings

Adjust the detection types, active zone, and detection sensitivity. Take motion detection for example, go to Camera Settings > Detection > Motion Detection, and modify motion detection sensitivity.
