Deco BE65-5G_Datasheet

5G BE9300 Whole Home Mesh Wi-Fi 7 Router

5G/4G/3G Modem RouterTri-Band Wi-Fi up to 9.3 Gbps^†2.5 Gigabit WAN/LAN Ports

Highlights

The Easiest Way to Bring 5G Home

Deco 5G Mesh keeps your home connected when it counts. Enjoy fast, stable 5G during outages, uninterrupted connectivity for working from home, and steady, always-on support for the smart security and IoT devices your household depends on.

Unrivaled Wi-Fi 7

Connect more devices at faster speeds with smoother connections and less interference.

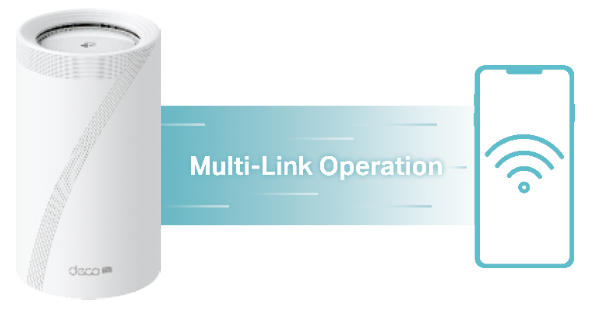

	Multi-Link Operation (MLO)△		4K-QAM△
	Multi-RU△		Stable and Reliable Broader Coverage

Seamless AI-Driven Mesh

Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal Wi-Fi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.^‡

	Seamless Roaming with One Wi-Fi Name		Self-Learning Capability
	Sophisticated Algorithms		Customized Wi-Fi

Enhanced Security – HomeShield

Manage online time and block inappropriate content to keep your family safe online with Parental Controls. Network Protection further keeps your home network safe by preventing potential threats and security issues.^*

	Network Protection		Private IoT Network
	Parental Controls		Quality of Service (QoS)

Features

Wi-Fi Speed
Faster Wi-Fi speed with stronger whole home Wi-Fi generated from Wi-Fi 7

· Superior Wireless Speed – Combines wireless speeds up to 5765 Mbps over 6 GHz, 2882 Mbps over 5 GHz, and 688 Mbps over 2.4 GHz
· OFDMA – Provides 4× greater capacity for more simultaneous connections
· More Devices – Connects over 200 Devices^†

TP-Link HomeShield
TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.^§

· Network Protection – Detects cyber threats to keep your privacy and connected devices well protected
· Parental Controls – Manages online time and block inappropriate content to keep families healthy online
· Quality of Service (QoS) – Prioritizes your bandwidth needs to get a faster networking experience
· Comprehensive Reports– Gains full statistics and insights to help you know your home network better
Note: HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.

Easy Setup by Deco App
Easily set up Decos and find the ideal spot to place each unit

· Auto Connection Test – Tests the internet connection of your Decos and helps to identify a suitable location for them
· Remote Management – Manages your Deco network from a smartphone or tablet via the app, no matter where you find yourself
· Online Upgrade – Keeps informed of the latest firmware updates

Security
Safeguard your home network with a firewall and wireless encryption

· Encryption for Secure Network – WPA/WPA2/WPA3 encryptions provide active protection against security threats
· Firewall – Protects your network devices from malicious attacks
· Blocklist – Add specific devices to blocklist to protect your network from unauthorized users

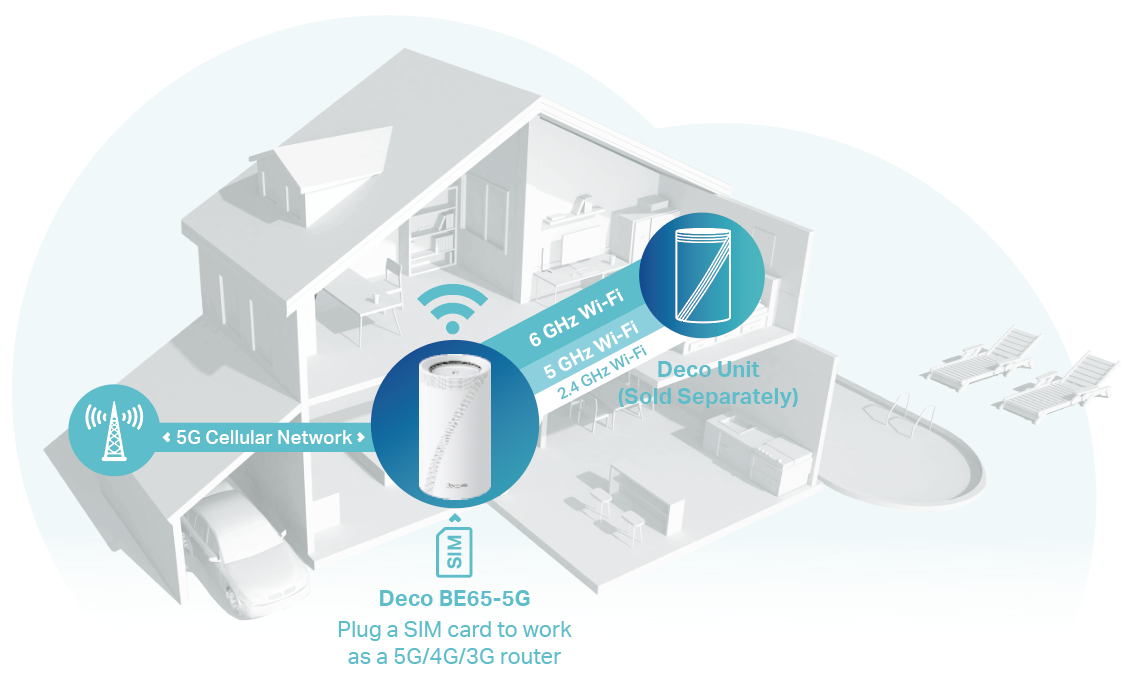

Four Modes in One
Choose the Cellular Router, Wireless Router, Access Point, or Cellular Bridge mode for your network needs

· Cellular Router Mode – Plug a SIM card and enjoy the fast and stable Wi-Fi
· Wi-Fi Router Mode – Creates an instant private wireless network
· Access Point Mode – Creates Wi-Fi access for any existing wired network
· Cellular Bridge Mode – Functions as a simple pass-through device and bypasses the gateway function of the router

Work with All Deco Models
Form a Mesh network with your desired Deco models

· Compatible with All Deco Models – All Deco models can work together. Just expand Mesh Wi-Fi coverage anytime by adding more Decos
· Deco Mesh Technology – Eliminates dead zones and provides uninterrupted WiFi throughout your home

Specifications

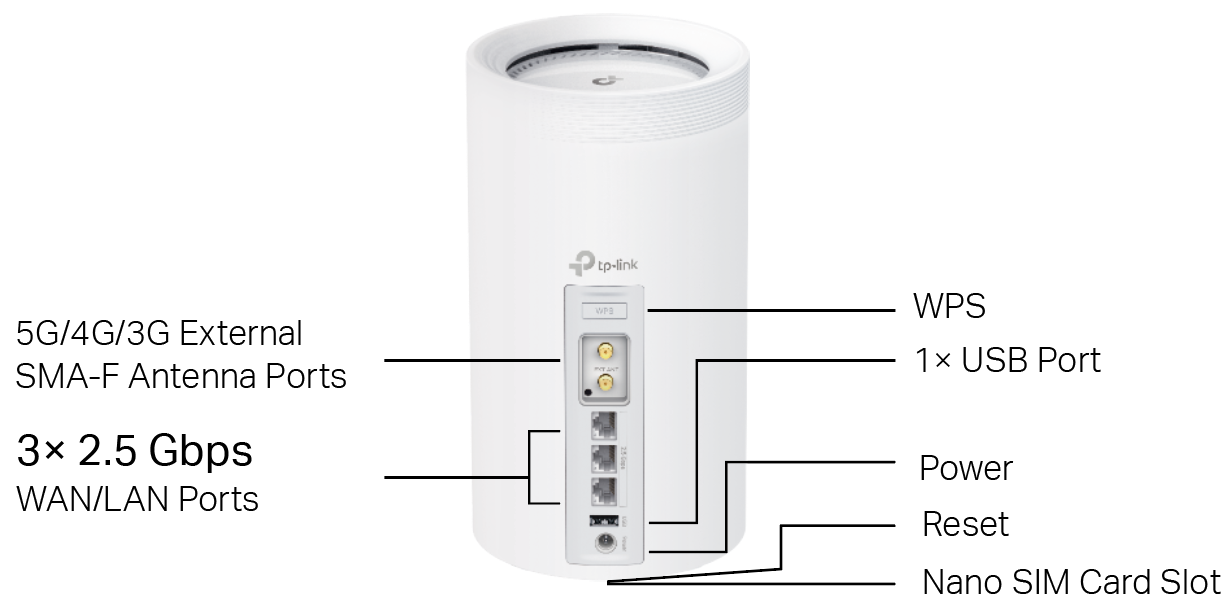

Hardware

· Ethernet Port: 3× 2.5 Gbps ports  (WAN/LAN auto-sensing)^§
· Button: 1 RESET button on the underside
· USB: 1 USB port
· Antenna: 8× 5G/4G/3G internal antennas + 6× Wi-Fi internal antennas + 1× Bluetooth internal antennas + 2× external antennas interface
· Power Consumption (without power adapter): 35 W max
· Dimensions (W × D × H): 5.04×5.04×9.29 in  (128×128×236 mm)
· Power Adapter Input: 100-240 V~ 50-60 Hz 1.5 A
· Power Adapter Output: 12 V 3.3 A

Wireless

· 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N78
· 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32
· 4G TDD-LTE: B38/B40/B41/B42/B43
· 3G: B1/B5/B8
· Wireless Standards: IEEE 802.11ax/be 6GHz，IEEE 802.11a/n/ac/ax/be 5GHz，IEEE 802.11b/g/n/ax/be 2.4GHz
· Mesh Protocol: 802.11k/v/r^‡
· Frequency: 2.4 GHz, 5 GHz, 6GHz
· Wi-Fi theoretical speeds: 688 Mbps on 2.4 GHz + 2882 Mbps on 5 GHz + 5765 Mbps on 6 GHz^†
· 5G theoretical speeds: 7.01 Gbps download, 1.25 Gbps upload*
· Transmit Power: CE ≤20 dBm (2.4 GHz), ≤30 dBm (5 GHz), ≤23 dBm (6 GHz)
· Wireless Security: WPA/WPA2-PSK/WPA3 encryptions^**

Software

· Working Mode: Cellular Router Mode, Wi-Fi Router Mode, Access Point Mode, Cellular Bridge Mode
· WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
· DHCP: Server
· Protocols: Supports IPv4 and IPv6
· Guest Network: 2.4 GHz Guest Network×1, 5 GHz Guest Network×1, 6 GHz Guest Network×1
· IoT Network: 2.4 GHz IoT Network×1, 5 GHz IoT Network×1
· Features: TP-Link HomeShield*, Address Reservation, Port Forwarding, TP-Link DDNS, IPTV, IPv6, LED Control, Smart Connect, Optional Ethernet backhaul,4096-QAM^△, MU-MIMO^△, OFDMA^△, BSS Color^△
· Management: Local Management; Remote Management; Multi-Managers

Others

· Certification: RoHS, CE
· Environment:
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90%RH
Storage Humidity: 5%~90%RH
· Package Contents for Deco BE65-5G(1-pack):
1 Deco BE65-5G unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide

Specifications are subject to change without notice. TP-Link is a trademark of TP-Link Systems Inc. or its affiliates. Google, Google Home, and Google Play are trademarks of Google LLC. Other brands and product names are trademarks or registered trademarks of their respective holders. ©2026 TP-Link Systems Inc. All rights reserved.
^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to up to 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other loT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
^‡Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
^△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz bandwidth and 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh.
^§2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
^※Use of WPA3 requires clients to also support the corresponding feature.
^*Maximum 5G download and upload speeds depend on external factors such as the local 5G network coverage, data plan, real-time network capacity, client limitations, and environmental factors. Supported 5G frenquency bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78. Actual supported frequency bands may vary slightly in different regions due to certification.
**Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. All devices need to support 802.11 Wi-Fi protocols.
^***Combined Backhaul is not supported in the current firmware version, but it will be available in a future firmware update. Please ensure your Deco device is running the latest firmware version.
^☆HomeShield includes both basic and advanced features. Advanced features require a paid subscription. For details, visit tp-link.com/homeshield. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This Deco may not support all the mandatory features as ratified in the IEEE 802.11be specification.Further software upgrades for feature availability may be required.
