Archer TXE72E_Datasheet
Overview

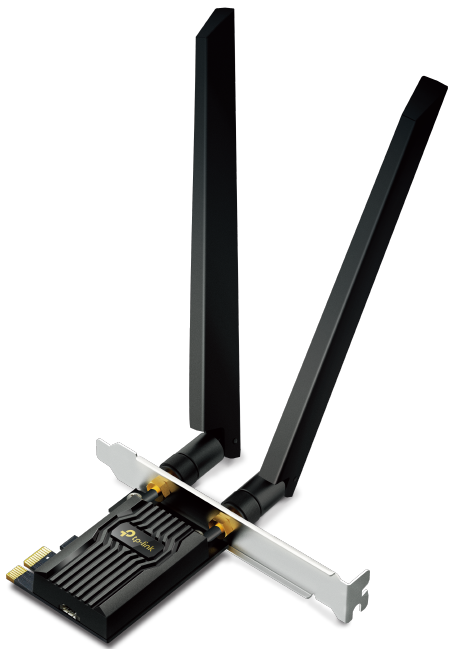

AXE5400 Wi-Fi 6E Bluetooth PCIe Adapter
Highlights
Arm Your PC with the Wi-Fi 6E
|

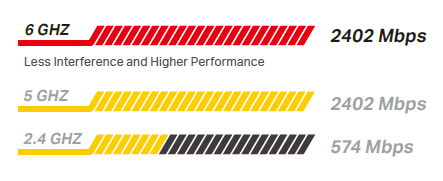

Upgrade Your PC to the Latest Wi-Fi 6E Archer TXE72E arms your PC with Wi-Fi 6E technology and the brand-new 6 GHz band, unlocking your Wi-Fi 6E router’s full potential. The latest band is wide enough for 7 extra 160 MHz channels and exclusive to Wi-Fi 6E devices, which prevents drops in speed and interference from legacy devices.‡ |
|
 |
|
|

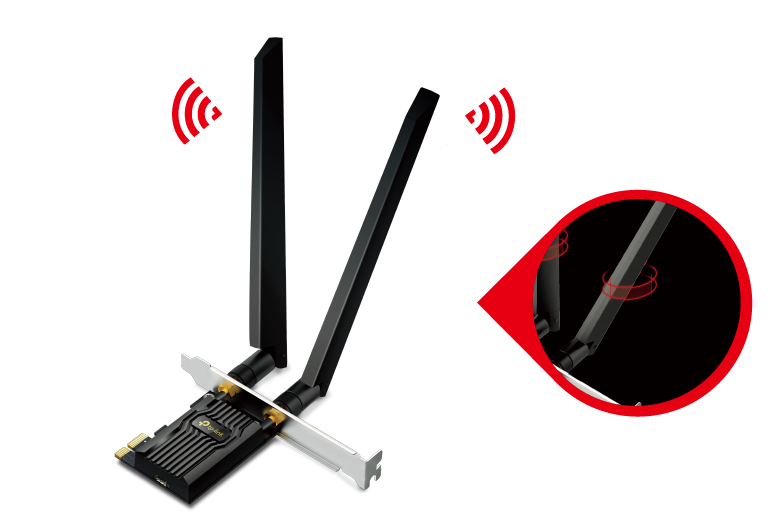

Broader Coverage Two powerful signal-boosting high-gain antennas ensure stronger signal transmission and reception to greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away. |
|
|
|
|
|

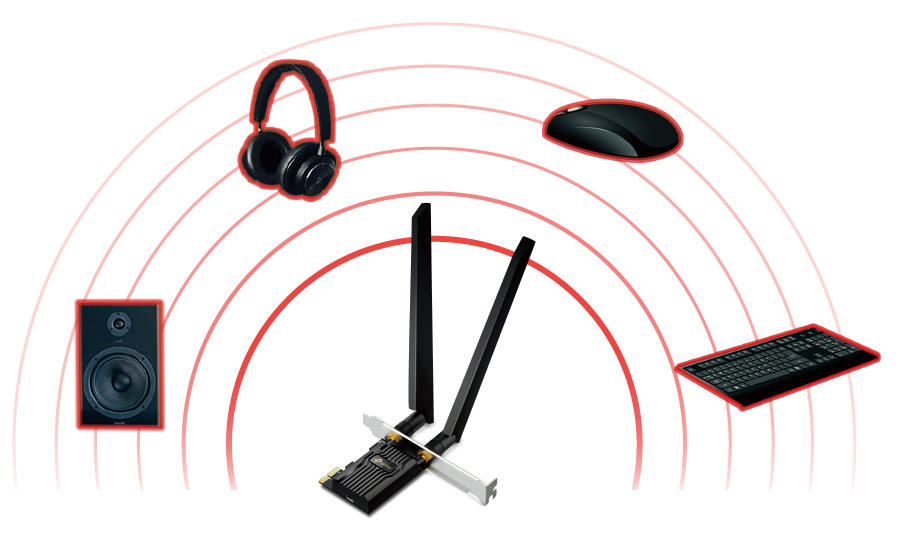

Bluetooth 5.3 TXE72E equips your PC with more advanced Bluetooth 5.3 that achieves faster speed and broader coverage than older versions to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.** |
|
 |
|
|
Refined Security The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.** |
|
 |
|
|

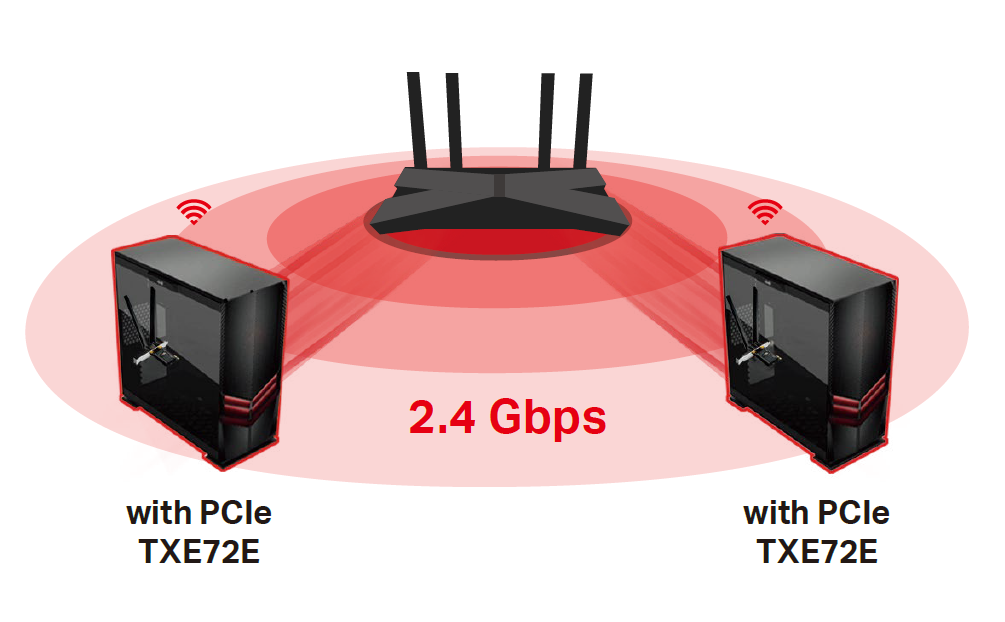

Superior Wi-Fi Reception Bring your PC’s Wi-Fi reception to the next level and take full advantage of your Wi-Fi 6E router. Archer TXE72E delivers faster and clearer Wi-Fi thanks to its equipped 1024-QAM and MU-MIMO technology.‡ |
|
 |
|
|

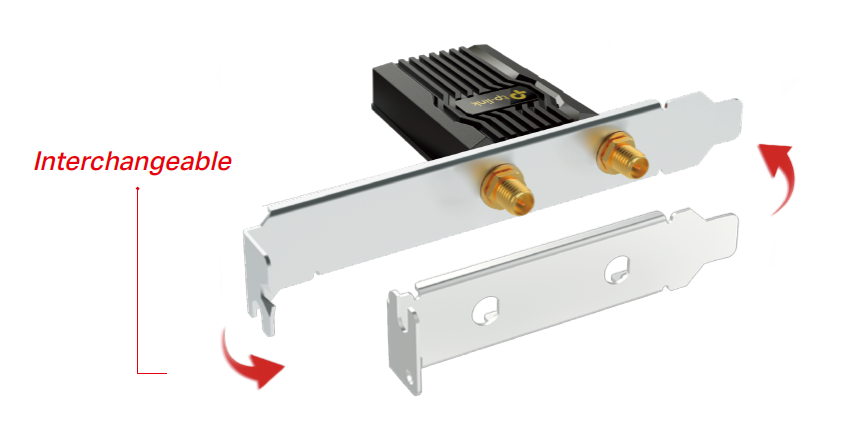

Low-Profile Bracket In addition to the full-height bracket, a low-profile bracket is also provided for mini tower computer cases. These customized options give you the flexibility to find a bracket that fits your board design perfectly. |
|
 |
Specification
| WLAN Features | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Signal Rate |
6 GHz: 5 GHz: |
| Reception Sensitivity |
11ac VHT80 MCS0: -89dBm |
| Transmit Power | 6 GHz: 14dBm (FCC) / 18dBm (CE) (EIRP) 5 GHz: 23dBm (FCC) / 18dBm (CE) (EIRP) 2.4 GHz: 23dBm (FCC) / 18dBm (CE) (EIRP) |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK* |
| Hardware | |
| Antennas | 2× High-Gain Tri-Band Antennas |
|
Dimensions |
4.7 × 3.1 × 0.8 in (120*78.5*21 mm) (without the antenna base) |
| Others | |
| Package Contents | Archer TXE72E 2× High-Gain Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| Certification | FCC/IC |
| System Requirements | Supported operating systems include Windows 10, 11(64-bit) |
| Environment | |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
Disclaimers
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.
‡Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, MU-MIMO, 1024-QAM, or HE160 require APs to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.
§Functionality of Archer TXE72E may be restricted on some computing systems and platforms. Please try to update the device’s driver for feature compatibility.
△Based on IEEE 802.11ax specification Intel Engineering simulation. 160 MHz channels and Wi-Fi 6/6E technology advantages related to network managed traffic enable lower latencies, more efficient operation, and higher reliability vs. random contention-based traffic of standard Wi-Fi 5 networks. Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
*Use of WPA3 requires APs to also support the corresponding feature.
**Several new features are introduced in the Bluetooth Core Specification 5.0, 5.2 and 5.3 Release, including 2× faster speed and 4× broader coverage compared with Bluetooth 4.2.
