BE19000 Tri-Band Whole Home Mesh WiFi 7 System
- 12-Stream 19 Gbps Tri-Band WiFi – 11520 Mbps (6 GHz) + 5760 Mbps (5 GHz) + 1376 Mbps (2.4 GHz).†
- Unprecedented 10 Gbps Network – 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△
- Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.☆

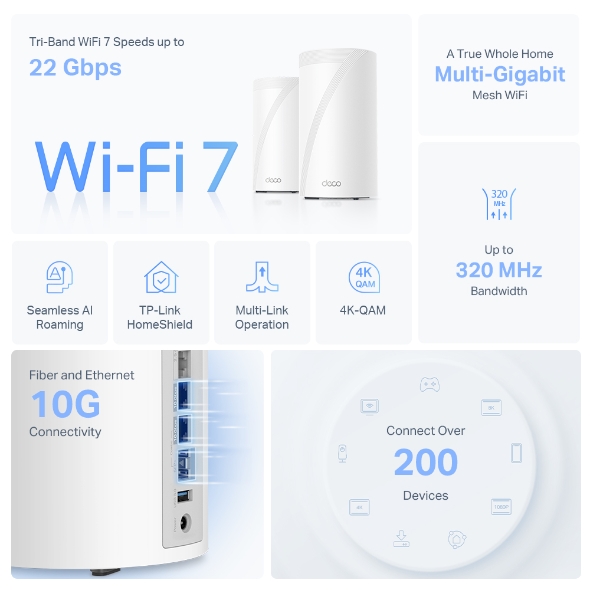

Tri-Band WiFi 7 Speeds up to
Seamless AI Roaming
A True Whole Home
Fiber and Ethernet
WiFi 7, WiFi Like Never Before
WiFi 7 has arived with jam-dropping performance - offering accelerated throughput, lower latency, stronger anti-jamming and higher efficiency. Join the league of pros and experiance the sheer performance of the next generation WiFi.
Extremely High Throughput
3.6× Faster WiFi
than WiFi 6E Mesh※
4× Lower Latency
For Smooth Video and Gaming※※
Connects over 200 Devices†

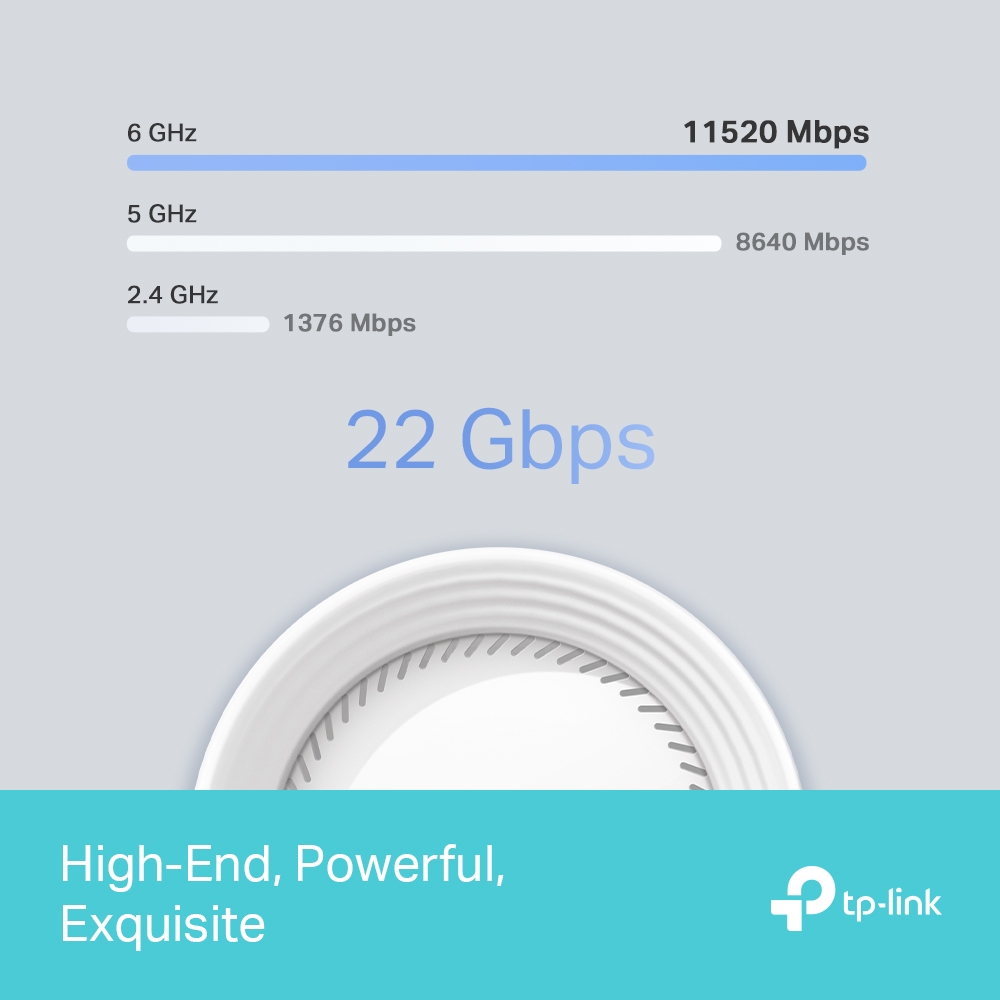

High-End, Powerful, Exquisite
Blazing-Fast WiFi for Top Performance
Experience a high-end Tri-Band Whole Home WiFi 7 Mesh system with blazing-fast WiFi speeds up to 19 Gbps.† Now, every device in your home network will run at top performance. The exclusive 6 GHz band provides exceptional bandwidth and congestion-free channels exclusive to your devices.‡
Industry’s Fastest WiFi 6E Mesh
Whole Home Multi-Gigabit Connectivity

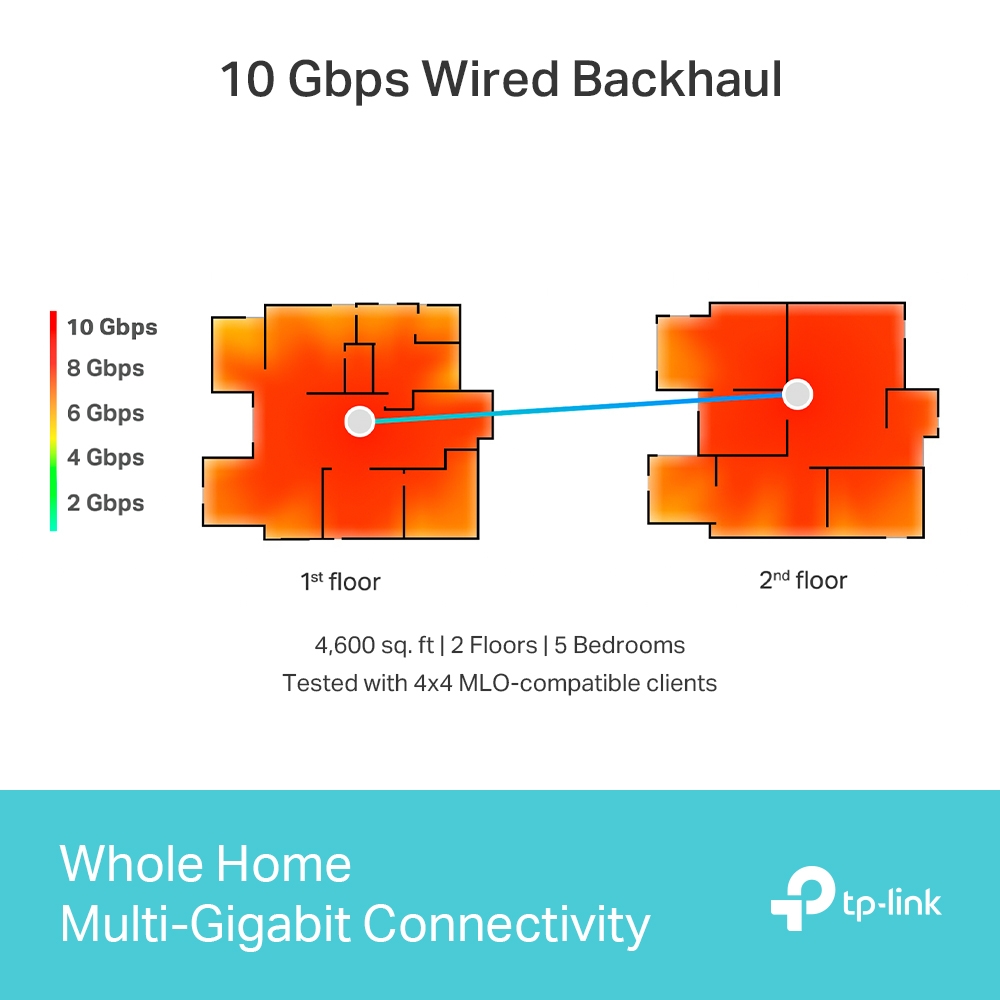

Deco BE85 Speed Heatmap
4,600 sq. ft | 2 Floors | 5 Bedrooms
Tested with 4x4 MLO-compatible clients
4,600 sq. ft | 2 Floors | 5 Bedrooms
Tested with 4x4 MLO-compatible clients
10 Gbps Wired Backhaul
Every room where a Deco BE85 is located receives 6-7.5 Gbps of wireless speeds, gradually decreasing with distance. Most of the tested villa clocks in at 6-6.5 Gbps. Due to a large number of walls, the edge of the home receives around 5 Gbps.
The 1st-floor Deco BE85 remains the same as with a wired backhaul. But due to the walls and ceiling between the two floors, the center of the other Deco BE85s receives around 3.5 Gbps with the rest of the house’s speed reaching 3-3.5 Gbps.

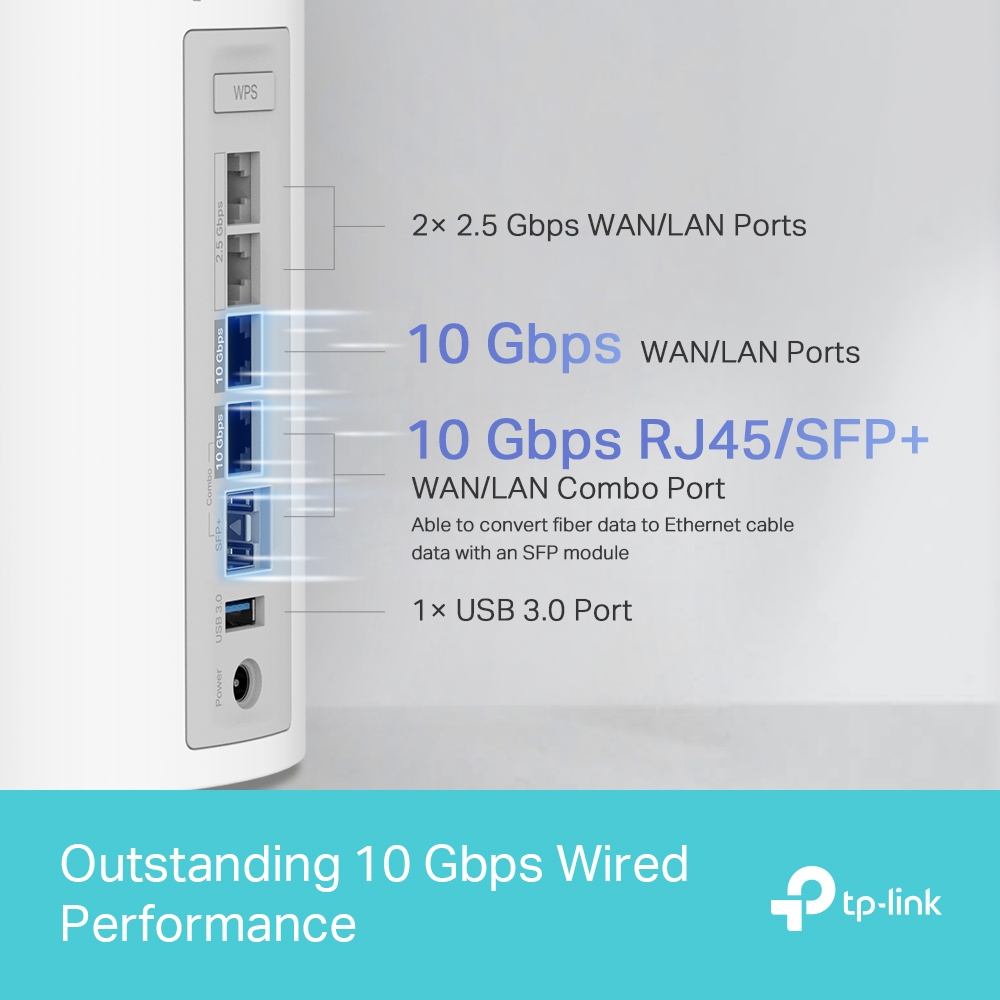

Outstanding 10 Gbps Wired Performance
Equipped with two 10 Gbps WAN/LAN ports — one RJ45 port and a RJ45/SFP+ combo port — Deco BE85 provides flexible support for both fiber and copper connections.§ The additional 2.5 Gbps ports and USB 3.0 port make it an ideal solution for future-proofing your home network.
2× 2.5 Gbps WAN/LAN Ports
10 Gbps WAN/LAN Ports
10 Gbps RJ45/SFP+
WAN/LAN Combo Port
Able to convert fiber data to Ethernet cable data with an SFP module
1× USB 3.0 Port

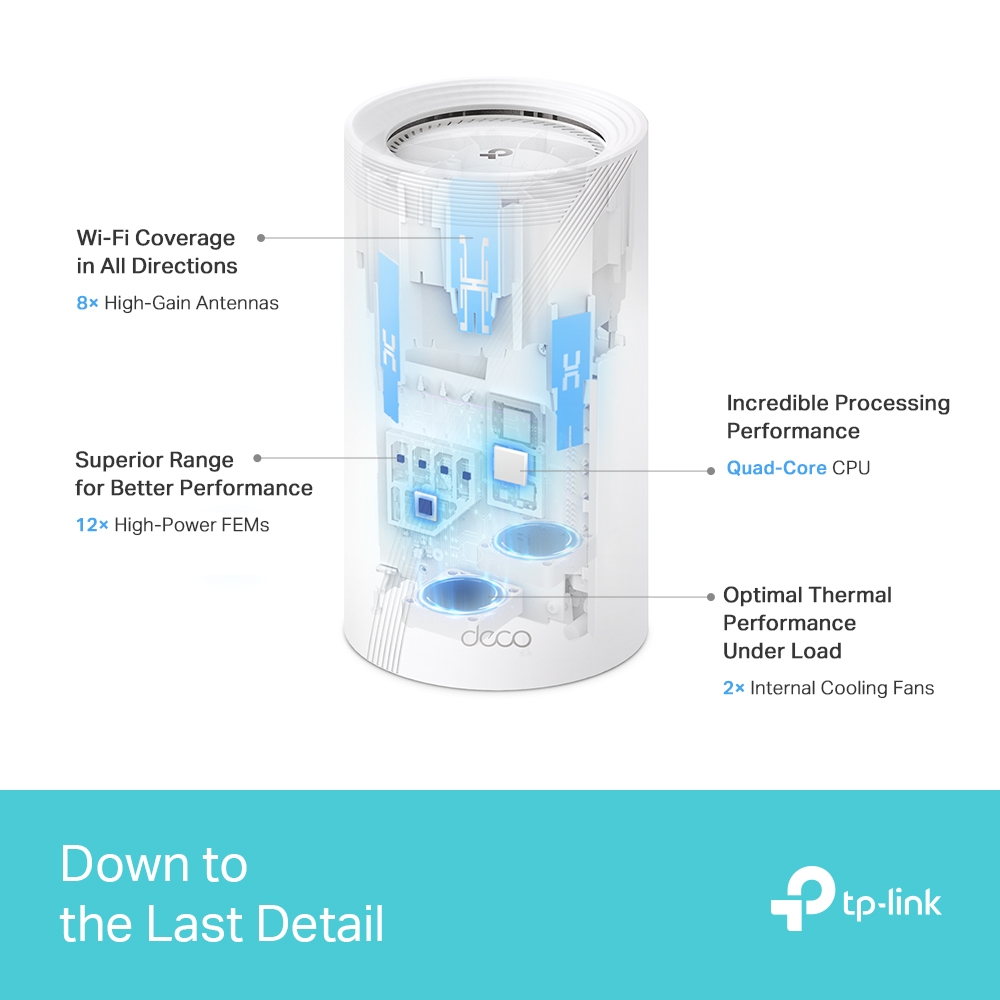

Down to the Last Detail
TP-Link’s in-house component research and thorough hardware selection ensure the quality and value of the entire Deco BE85 system. Everything comes together to form the perfect Mesh device.
Wi-Fi Coverage in All Directions
8× High-Gain Antennas
Incredible Processing Performance
Superior Range for Better Performance
12× High-Power FEMs
Optimal Thermal Performance Under Load
2× Internal Cooling Fans

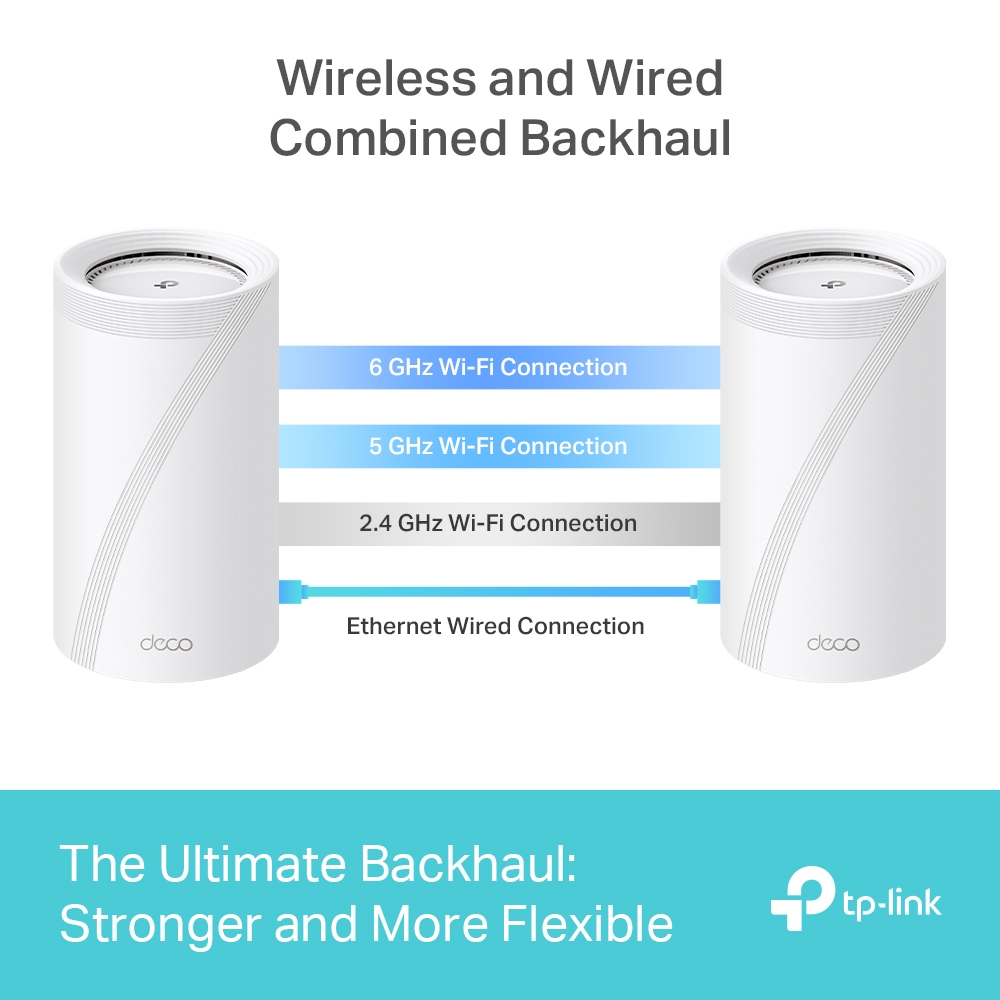

The Ultimate Backhaul: Stronger and More Flexible
Through our self-developed technology, Deco BE85 can connect a wireless and wired backhaul with each unit simultaneously. What’s more, with the latest WiFi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.
Wireless and Wired Combined Backhaul
Smart Security for Smart Living
HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield, safer internet experiences bring more happiness to your smart living.
Simply configure your gateway and achieve whole home network security. HomeShield examines your network by scanning and identifying potential risks, stopping them in their tracks before they harm your network.*
Parental Controls protect your kids, while helping them maintain healthy digital habits. Parents can set app blocking, web filtering, YouTube restrictions, SafeSearch, and online time limits to keep kids safe while they’re having fun online.*
Maintain Protection Away from Home
Devices Security App
Devices remain secure everywhere with devices security app. And through KidShield, parents can monitor their kids’ locations and set geofencing. This way, kids stay digitally protected even on the go.*
Seamless AI-Driven Mesh
Uninterrupted Streaming when Moving Between Rooms
Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.‡
Seamless Roaming with One WiFi Name
Seamless AI-Driven Mesh
Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
to a modem and power on both.
and launch the Deco app.
by following the in-app instructions.
Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.
Use an Amazon Alexa or Google Assistant-enabled device to control Deco BE85 with just your voice.
All Decos Work Together
Deco BE85 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.
True Seamless Roaming
Deco units work together to form one unified network with a single network name. Your phone or tablet automatically connects to the fastest Deco as you move through your home. The switching takes less than 0.3 second and is smooth and unnoticeable, creating a truly seamless online experience.
Adaptive Path Selection
TP-Link Mesh Technology dynamically chooses the best route and band for your connections and applications, guaranteeing a fast Wi-Fi no matter where you are in the home.
If one Deco has an issue, the system will automatically reroute data via the other Decos to make sure you stay online.
Wi-Fi + Powerline
Powerline connections utilize your home's electrical circuit to link Decos, bypassing even the thickest of walls and ceilings.
The dual-band Wi-Fi and powerline work together to transmit data between Deco units. The total network speed is greatly improved compared with using Wi-Fi only.
- Wi-Fi + Powerline:
- Hybird Wi-Fi System Boosted Speeds
- Traditional Mesh Wi-Fi:
- Standard Wi-Fi System
- Note：Wi-Fi + Powerline is only for Deco P9
Unlike traditional smart hubs, TP-Link Mesh Technology provides whole-home IoT coverage with Wi-Fi, Bluetooth and Zigbee integrated into a single system.Enjoy the magic of your smart home in every room with TP-Link Mesh Technology. Say goodbye to countless hubs.
- - - - Wi-Fi
- - - - Zigbee
- - - - Bluetooth
Wi-Fi 6 Mesh
Armed with Wi-Fi 6 technology,
Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.
Faster Wi-Fi 6 Speed
Armed with AI Mesh technology, Deco automatically learns and improves itself from experience.
This provides the ideal mesh Wi-Fi unique to your home and network environment.
Walk through your home and enjoy seamless streaming at the fastest possible speeds.
Why TP-Link Mesh Technology
an industry leading solution?
|Model Number||TP-Link Deco||Netgear Orbi||Google WiFi|
|Wireless Backhaul||Tri-Band(2.4G+5G_1+5G_2)¹||Single-Band(5G_1 Only)||Dual-Band(2.4G+5G)|
|Mesh Protocol Supported||IEEE 802.11k/v/r||IEEE 802.11k/v||IEEE 802.11s|
|True Seamless Roaming||✔||×||×|
|APS(Adaptive Path Selection)||✔||×||✔|
|Wi-Fi 6 Mesh||✔5||✔||×|
|Wireless + Powerline Bandwidth||✔⁴||×||×|
|Notes: 1&2 For Deco M9 Plus Only;5 for Deco X20;Deco X90;6 for Deco X90 only.
Spec sourced by Dec. 2019
AXE5400 Tri-Band Mesh Wi-Fi 6E System
AX6600 Whole Home Mesh Wi-Fi System
5G Whole Home Wi-Fi 6 Gateway (Availability based on regions)
AX3000 Whole Home Mesh WiFi 6 Unit
Deco Voice X20
AX1800 Mesh Wi-Fi 6 System with Alexa Built-In
AX5400 VDSL Whole Home Mesh Wi-Fi 6 System
AX1800 Whole Home Mesh Wi-Fi 6 System
AC1300 Whole Home Mesh Wi-Fi System
AX3000 Whole Home Mesh WiFi 6 System
AC1200 + AV1000 Whole Home Hybrid Mesh Wi-Fi System
Deco Network Management at Your Fingertips!
The Deco app provides the easiest way to set up, manage and monitor your Deco Whole Home Mesh Wi-Fi System through your iOS or Android devices.
Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest and get your network up and running in minutes.
Connect Deco to your cable modem and turn on both devices
Download and launch the Deco app
Follow the in-app instructions to configure your Deco system.
Deco makes it easy to manage your Wi-Fi from anywhere, whether you’re on the couch, at work, or anywhere in between.
Simple Management Dashboard
View the working status of your network, check the connected devices and get all the features your router offers.
Multiple Decos, One App
The Deco app manages all your Deco networks and devices connected to your Deco Wi-Fi.
Check the Connected Devices
View a list of your connected devices with the ability to pause and resume internet access, test the internet speed and prioritize or block the devices.
Remotely take control of the network with a tap of your phone—no matter where you find yourself.
Powerful Parental Controls
Simple, intuitive parental controls make it easy to keep your children safe while they’re online.
Easily create a profile for each family member and set custom time limits and online time allowances. Assign devices to profiles so rules extend to individual devices as well as family members.
Keep your family safe online with one-touch security settings that block content based on age-appropriateness.
Set limits on how much time each person in your family can spend online.
With Insights, you can check out which sites your children visit and how much time they spend on each. It’s a great way to know your children are safe while they’re having fun online.
Take a break from Wi-Fi for dinner and family game nights. Just tap a button to suspend internet access for everyone in your home.
An Intuitive App Full of Features
Monthly Usage Summary
See a comprehensive list of your network details every month, including usage,
blocked content, security threats and more.
Make your life easy with powerful automation and voice control tools.
*Currently only for Deco M9 Plus
Flexibly control all devices from your phone or tablet with just one click.
*Currently only for Deco M9 Plus
Protect Your Network
Built-in Antivirus helps you defend against malicious website and guard your online payment.
*Currently only for Deco M9 Plus, Deco P7 and Deco M5
Prioritize Your Devices
Choose which devices always have the fastest connections
or set priority for a specific time duration.
Set Application Priorities
Allocate more bandwidth for the activities most important to you with simple controls.
*Currently only for Deco M9 Plus, Deco P7 and Deco M5
Share Wi-Fi with Friends
Set up separate Wi-Fi profiles for guests and share the password to
make it easier for them to hop online.
Check Your Speed
Run a speed test to ensure you’re getting the internet speeds you’re paying for.
View every device on your network and see how much bandwidth they’re using.
Our Support Always Has Your Back
Have questions about Deco? Help is always just a click away. Find the answers in Deco app and don’t hesitate to contact us with just a simple click.Support
|Standards||Wi-Fi 7IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/b/g 2.4 GHz|
|WiFi Speeds||BE190006 GHz: 11520 Mbps (802.11be)5 GHz: 5760 Mbps (802.11be)2.4 GHz: 1376 Mbps (802.11be)|
|WiFi Range||Broader Whole Home Coverage
TP-Link Mesh TechnologyOptional Ethernet backhaul work together to link Deco units to provide seamless coverageAI-Driven MeshIntelligently learns the network environment to provide ideal Wi-Fi unique to your home8× High-Gain Antennas (Internal)Multiple antennas form a signal-boosting array to cover more directions and large areasTri-BandThe greenfield 6 GHz band brings more bandwidth and faster speeds
|WiFi Capacity||Very High
Tri-BandDistribute devices to different bands for optimal performance4×4 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsOFDMASimultaneously communicates with multiple WiFi 7 clients12 StreamsMore than enough bandwidth for connected devices
|Working Modes||Router ModeAccess Point Mode|
|Advanced Functions||• Multi-Link Operation (MLO)• 320 MHz Channel• 4K-QAM• Multi-RUs• Works with Alexa and Google Assistant|
|Ethernet Ports||• 1× 10 Gbps• 1× 10 Gbps SFP+/RJ45 Combo• 2× 2.5 Gbps*Per Deco UnitSupports WAN/LAN auto-sensing|
|USB Support||1× USB 3.0 Port
FTP ServerMedia ServerApple Time MachineSamba Server
|Buttons||1× Reset Button1× WPS|
|Network Security||SPI FirewallAccess ControlHomeShield Security
Real-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner
|Guest Network||1× 6 GHz Guest Network1× 5 GHz Guest Network1× 2.4 GHz Guest Network
Effective TimeBandwidth Control
|VPN Server||• OpenVPN Server• PPTP VPN Server• L2TP/IPSec VPN Server|
|VPN Client||• OpenVPN Client• PPTP VPN Client• L2TP/IPSec VPN Client|
|Advanced Features||• Reboot Schedule• Tapo/Kasa Onboarding• IoT network & Device Isolation• Static Route Function• Node/Band Connection Preference|
|Service Kits||HomeShieldLearn More>|
|Parental Controls||HomeShield Parental Controls
Youtube RestrictionSafeSearchCustom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports
|WAN Types||Dynamic IPStatic IPPPPoEPPTPL2TP|
|Quality of Service||HomeShield QoS
QoS by Device
|Cloud Service||OTA Firmware UpgradeTP-Link ID DDNS|
|NAT Forwarding||Port Forwarding
|IPTV||IGMP ProxyIGMP SnoopingBridge Tag VLAN|
|DHCP||Address ReservationDHCP Client ListServer|
|Dimensions (W×D×H)||5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm)|
|Package Contents||Deco BE85 (2-pack)2 Deco BE85 units1 RJ45 Ethernet cable2 Power adaptersQuick Installation GuideDeco BE85 (1-pack)1 Deco BE85 unit1 RJ45 Ethernet cable1 Power adapterQuick Installation Guide|
|Certifications||CE, FCC, RoHS|
|Environment||Operating Temperature: 0°C~40°C (32 °F~104 °F)Storage Temperature: -40°C~60°C (-40 °F~140 °F)Operating Humidity: 10%~90% RHStorage Humidity: 5%~90% RH|
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh.
§10 Gbps and 2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. Some features are under development and will be supported with subsequent software updates.
***The test was conducted in a 4,600 sq. ft. two-story villa with 5 bedrooms with an interior made up of drywall. The Deco BE85 was tested with 4x4 MLO-compatible clients. Home networking performance may vary, depending on the network's speeds, fiber or Ethernet access, WiFi interference, obstacles, walls, areas, and clients.
☆WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
※3.6× faster Wi-Fi speed refers to the theoretical speeds of Wi-Fi 7 clients when connected to Deco BE85 compared with a Wi-Fi 6 or Wi-Fi 6E mesh. Wi-Fi 7 clients need to support Multi-Link Operation (MLO) and the 6 GHz band to reach up to 17.3 Gbps when connected to the 5 GHz and 6 GHz bands of Deco BE85 simultaneously. Wi-Fi 6 and Wi-Fi 6E mesh may only provide 4804 Mbps on the 5 GHz or 6 GHz bands separately.
※※4× Lower Latency refers to the latency improvement of Wi-Fi 7 mesh compared to Wi-Fi 6/6E mesh, based on laboratory test data. The test conditions had the same 5 GHz or 6 GHz single-frequency wireless interference and tested the maximum latencies of Wi-Fi 7 clients (with MLO turned on) connecting to the 5 GHz and 6 GHz bands of Deco BE85 (with MLO turned on) simultaneously and to the 5 GHz or 6 GHz bands of a Wi-Fi 6/6E mesh (without the MLO function).
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This Deco may not support all the mandatory features as ratified in IEEE 802.11be specification.
Further software upgrades for feature availability may be required.
