RE235BE

CES 2024

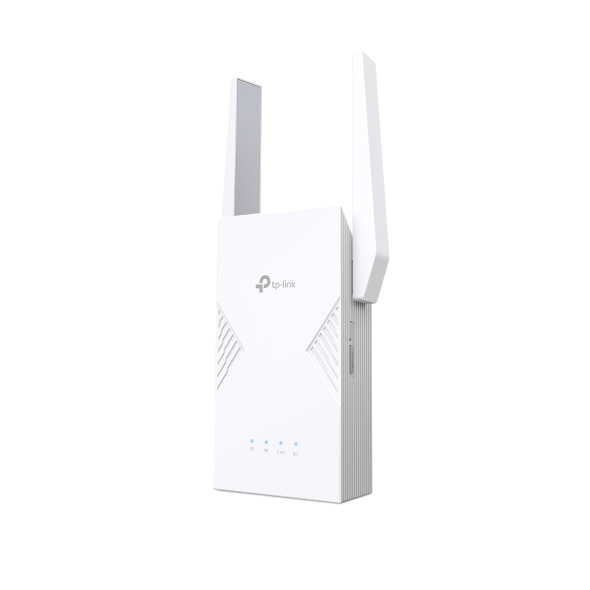

BE3600 Dual-Band Wi-Fi 7 Range Extender

  • Lightning-Fast 3.6 Gbps Dual-Band Wi-Fi 7: 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).
  • Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.
  • 2.5G Multi-Gigabit Ethernet Port: 1× 2.5 Gbps port ensures max flexibility and boosted throughput.
  • Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
  • EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*

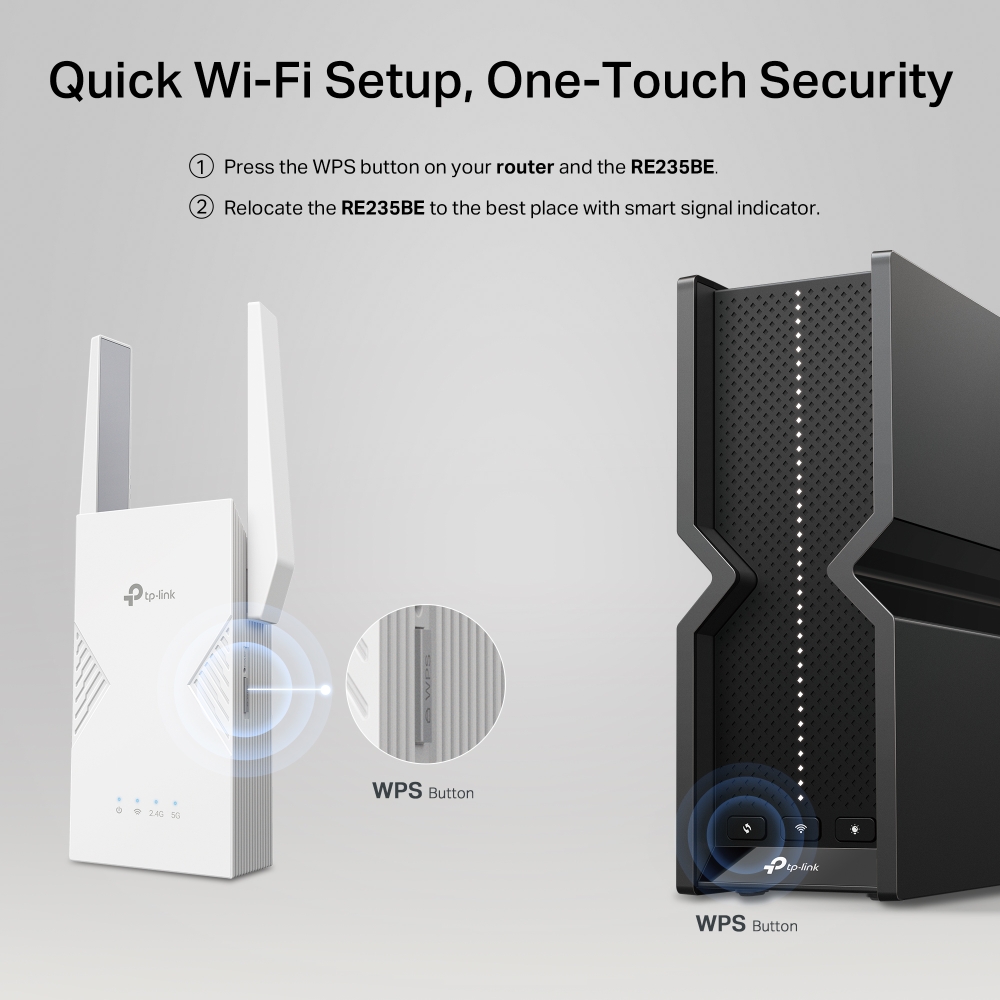

  • Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
  • Great Compatibility: Works with all Wi-Fi generations and devices and all internet providers.***

Lightning-Fast Wi-Fi 7
in Every Corner

BE3600 Wi-Fi 7 Dual-Band Range Extender

RE235BE

wifi7 easymesh
  •

    3.6 Gbps Dual-Band Lightning-Fast Wi-Fi

  •

    2.5 Gbps
    Multi-Gigabit Port

  •

    Multi-Link Operation
    (MLO)

  •

    4K-QAM

Dual-Band WiFi 7 Speed up to

3.6 Gbps

1×2.5 Gbps

LAN Port

5 GHz

2.4 GHz

Multi-Link Operation

Higher Speed, Lower Latency

Whole Home Coverage

4K-QAM

160 MHz

Bandwidth

Larger Capacity

Características de Hardware
Portas 1× 2.5 Gbps Ethernet Port
Botão • WPS Button
• Reset Button
Entrada de Alimentação 100-240V~50/60Hz 0.3A
Consumo de Energia 15W
Dimensões (L X C X A) 3.8 × 1.8 × 6.2 in (97 × 46 × 158 mm)
Antena 2 External Antennas
Características Wireless
Padrões Wireless Wi-Fi 7
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz
Frequência • 5 GHz
• 2.4 GHz
Taxa de Sinal • 2882 Mbps at 5 GHz
• 688 Mbps at 2.4 GHz
Working Modes Range Extender/Access Point
Sensibilidade de Recepção 5GHz:
11be EHT20 MCS0:-96dBm
11be EHT40 MCS0:-94dBm
11be EHT80 MCS0:-91dBm
11be EHT160 MCS0:-88dBm
11be EHT20 MCS13:-59dBm
11be EHT40 MCS13:-57dBm
11be EHT80 MCS13:-54dBm
11be EHT160 MCS13:-51dBm

2.4GHz:
11be EHT20 MCS0:-95dBm
11be EHT40 MCS0:-93dBm
11be EHT20 MCS13:-58dBm
11be EHT40 MCS13:-56dBm
Segurança Wireless • WPA/WPA2-PSK encryptions
• WPA2/WPA3
Funções Avançadas • Multi-Link Operation (MLO)
• 160 MHz Channel
• 4K-QAM
• Multi-RUs
Potência de Transmissão FCC:
• 2.4GHz < 30dBm
• 5GHz < 30dBm
Mesh Technology EasyMesh-Compatible
Wireless Function • LED Control
• Access Control
• Power Schedule
• Wi-Fi Coverage
Outros
Certificação FCC, RoHS
Conteúdo do Pacote • Wi-Fi 7 Range Extender RE235BE
• Quick Installation Guide
Requerimentos do Sistema Internet Explorer, Firefox, Chrome, Safari, or other
JavaScript-enabled browser
Ambiente • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Higher capacity is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard orl outdated.

§Uninterrupted Streaming is designed for devices that support the 802.11k/v standard.

Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU, OFDMA, and MU-MIMO requires clients to also support the corresponding features. The 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions.

*TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.

**Unified management is available for TP-Link EasyMesh-compatible devices. This feature is not guaranteed for devices from other vendors.

***Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. All devices need to support 802.11 Wi-Fi protocols.



Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

This range extender may not support all the mandatory features as ratified in the IEEE 802.11be specification. Further software upgrades for feature availability may be required.
