Router F (FTTH, FTTB, Ethernet) Archer C2

Archer C2

Router (Ethernet) Wi-Fi AC900

  • Supporto IEEE 802.11ac
  • Dual band simultaneo 450Mbps a 2.4GHz e 433Mbps a 5GHz
  • 2 antenne esterne
  • Porte Gigabit per elevata velocità di trasferimento dati

  • Why 802.11ac

Panoramica



Velocità Wireless elevata | 802.11ac

Sfruttando il nuovo standard Wi-Fi – 802.11ac, 3 volte più veloce dello standard N, Archer C2 raggiunge velocità fino a 833Mbps. 433Mbps a 5GHz e 450Mbps a 2.4GHz rendono Archer C2 ottimo per le performance wireless.s.

802.11ac 5GHZ433Mbps

802.11n 2.4GHZ450Mbps

Dual Band per connessioni senza interruzioni

La gestione simultanea delle due frequenze permette di distribuire il traffico e di conseguenza di ridurre i tempi di trasferimento, a vantaggio di tutte le applicazioni in tempo reale.

Copertura omnidirezionale omogenea e stabile

Le antenne di alta qualità ottimizzano le performance Wi-Fi.

  • Gigabit LAN
  • Gigabit WAN

Porte Gigabit Ethernet

Con una porta Gigabit WAN e 4 porte Gigabit LAN, le connessioni cablate raggiungono velocità 10 volte superiori rispetto a quelle fast Ethernet. Lo switch integrato è full gigabit, a garanzia delle performance come da standard Gigabit Ethernet.

Semplice configurazione ed utilizzo

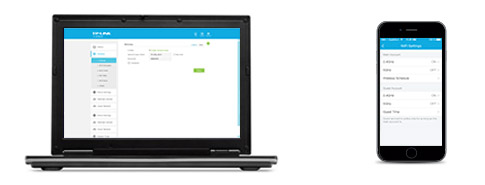

Archer C2 si installa in pochi minuti grazie all'interfaccia web intuitiva e alla potente app Tether. La app Tether permette di gestire le impostazioni di rete da qualsiasi dispositivo Android o iOS, compresi Parental Control e condivisione multimediale.

Scopri di più sull'interfaccia web >
  • Interfaccia web intuitiva
  • Tether App
  • Rete Ospiti
    La Rete Ospiti è particolarmente indicata per la connessione di dispositivi "ospite" ai quali è imposto un alto livello di sicurezza ed isolamento dal resto della rete.
  • Parental Control
    Il Parental Control permette a genitori o amministratori to stabilire un accesso limitato alla rete a figli o personale non autorizzato.
  • Configurazione Semplice
    Installazione veloce e semplice grazie all'utility di configurazione ottimizzata.
  • IPv6
    Archer C2 supporta pienamente il protocollo IPv6.

Specifiche

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX11000
5 GHz: 4804 Mbps (802.11ax)
5 GHz: 4804 Mbps (802.11ax)
2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

12 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
CARATTERISTICHE HARDWARE
Interfaccia 4 10/100/1000Mbps LAN ports
1 10/100/1000Mbps WAN port
Tasto WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
Alimentatore esterno 9V/0.85A
Dimensioni ( L x P x A ) 230 x 144 x 35mm
Antenna 2 × 2.4GHz Antennas
1 × 5GHz & 2.4GHz Dual Band Antenna
Tipo di antenna 2 × 2.4GHz Antennas
1 × 5GHz & 2.4GHz Dual Band Antenna
HARDWARE
Processor 1.8 GHz 64 Bit Quad-Core CPU
Ethernet Ports 1× 2.5 Gbps WAN Port
8× Gigabit LAN Ports

Link Aggregation (802.3ad) available with 2× LAN ports
USB Support 1× USB-C 3.0 Port
1× USB-A 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ⎓ 5 A
CARATTERISTICHE WIRELESS
Standard wireless IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequenza 2.4GHz e 5GHz
Signal rate 5GHz: Up to 433Mbps(Only with 11AC Wireless Adapter); Up to 150Mbps with 11N Wireless Adapter
2.4GHz: Up to 450Mbps
Sensibilità di ricezione 5GHz:
11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm;
11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9:
-61.5dBm
2.4GHz:
11g 54M: -76dBm11n; HT20 MCS7: -74dBm;
11n HT40 MCS7: -71dBm
Potenza di trasmissione CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
Funzionalità wireless Wireless ON/OFF
Bridge WDS
WMM
Statistiche
Sicurezza wireless 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
CARATTERISTICHE SOFTWARE
QoS (Quality of Service) WMM, Bandwidth Control
Tipo WAN Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Gestione Controllo accessi locali e remoti
DHCP Server, Client, DHCP Client List,
Address Reservation
Port forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN pass-through PPTP, L2TP, IPSec
Gestione accessi Parental Control, Local Management Control, Host List,
Access Schedule, Rule Management
Firewall DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocolli IPv4
IPv6
Rete ospiti 1 rete guest a 2.4GHz
1 rete guest a 5GHz
SICUREZZA
WiFi Encryption WPA
WPA2
WPA3
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
SOFTWARE
Protocols IPv4
IPv6
Game Center Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible

Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

Game Protector
Keep your accounts and system safe with HomeCare™ antivirus protection
Service Kits HomeCare™
Learn More>
Parental Controls HomeCare™ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight
Monthly Report
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service Game Accelerator QoS
QoS by Device

HomeCare™ QoS
QoS by Application
Cloud Service Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H) 11.3 × 11.3 × 7.2 in
(288 × 288 × 184 mm)
Package Contents Wi-Fi Router Archer AX11000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
ALTRO
Certificazione CE, FCC, RoHS
Contenuto della confezione AC900 Wireless Dual Band Router Archer C2
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Requisiti di sistema Nessuno (*1) (*2).
Ambiente Temperatura di funzionamento: 0°C ÷ 40°C
Temperatura di stoccaggio: 40°C ÷ 70°C
Umidità di funzionamento: 10% ÷ 90% senza condensa
Umidità di stoccaggio: 5% ÷ 90% senza condensa
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity 5 GHz_1:
11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm
11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm
11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm
11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm
11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm
11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm
11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm
5 GHz_2:
11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm
11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm
11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm
11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm
11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm
11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm
11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm
2.4 GHz：
11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm
11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
Per informazioni sulle altre versioni hardware disponibili, consultare la sezione Supporto.
