Archer TBE230U
NewBE3600 Dual Band Wi-Fi 7 Mini Wireless USB Adapter
- Ultra-fast Dual Band Wi-Fi 7: Boost network speeds up to 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).†
- Boosted Throughput, Unmatched Reliability: Wi-Fi 7's Multi-Link Operation delivers reduced latency and a lag-free experience for gaming and streaming.‡
- Ultimate Flexibility: Switch effortlessly between USB-C and USB-A so you can enjoy seamless connectivity and the ultimate flexibility without interface constraints.
- SuperSpeed USB 3.0: USB 3.0 offers 10× faster speeds, shorter response times, and improved power management compared to USB 2.0.§
- Enhanced Data Security: The latest security enhancement, WPA3, provides enhanced protection for personal password safety.△
- Plug & Play Simplicity: CD-Free installation for Win 10/11, ensuring effortless setup.☆
- Supported Operating System: Windows 10/11(64-bit).☆
Wi-Fi 7 Ready,
Wherever You Go

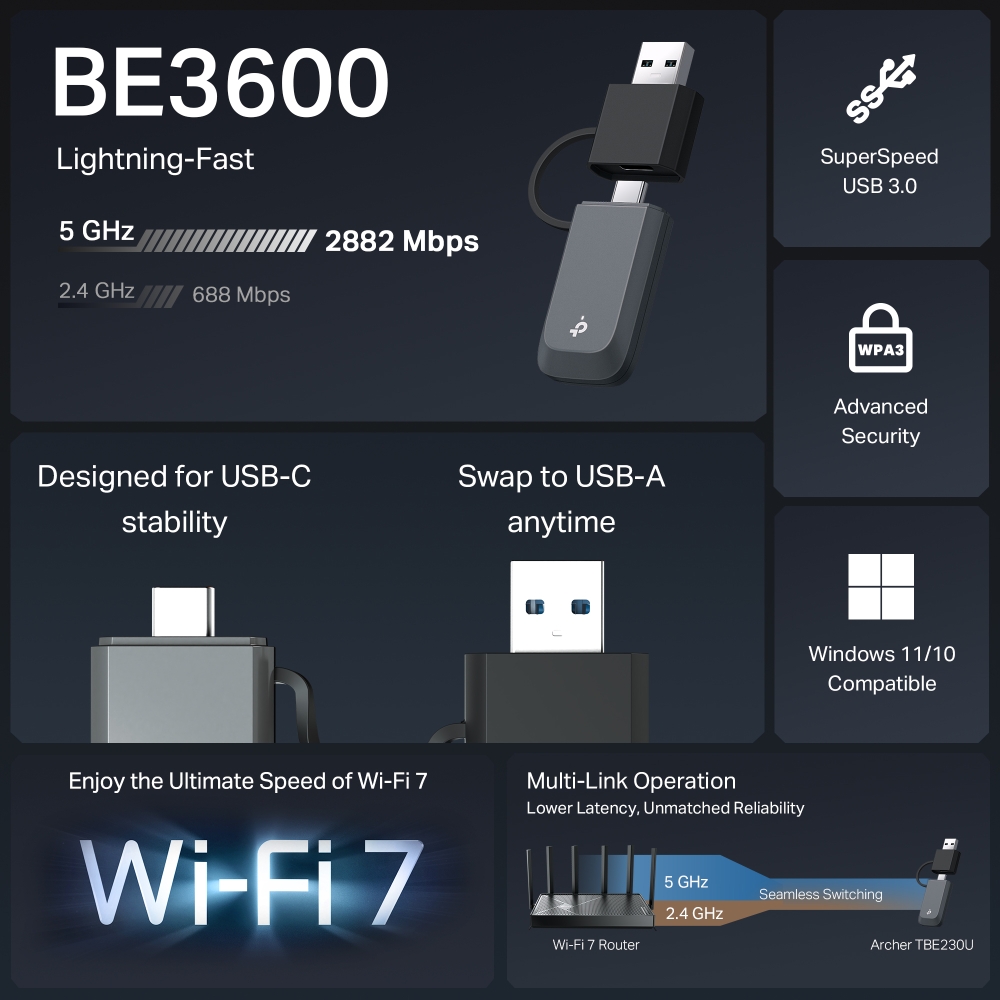

BE3600 Dual-Band Wi-Fi 7 Mini
Wireless USB Adapter
Archer TBE230U
Windows 11/10 CompatibleBE3600 Lightning-Fast
2882 Mbps
688 Mbps
Enjoy the Ultimate Speed of Wi-Fi 7
Multi-Link Operation Lower Latency. More Reliable Connections.
Seamless Switching
Wi-Fi 7 Router
Archer TBE230U
Designed for USB-C stability
Swap to USB-A anytime
SuperSpeed USB 3.0
Advanced Security
Windows 11/10 Compatible

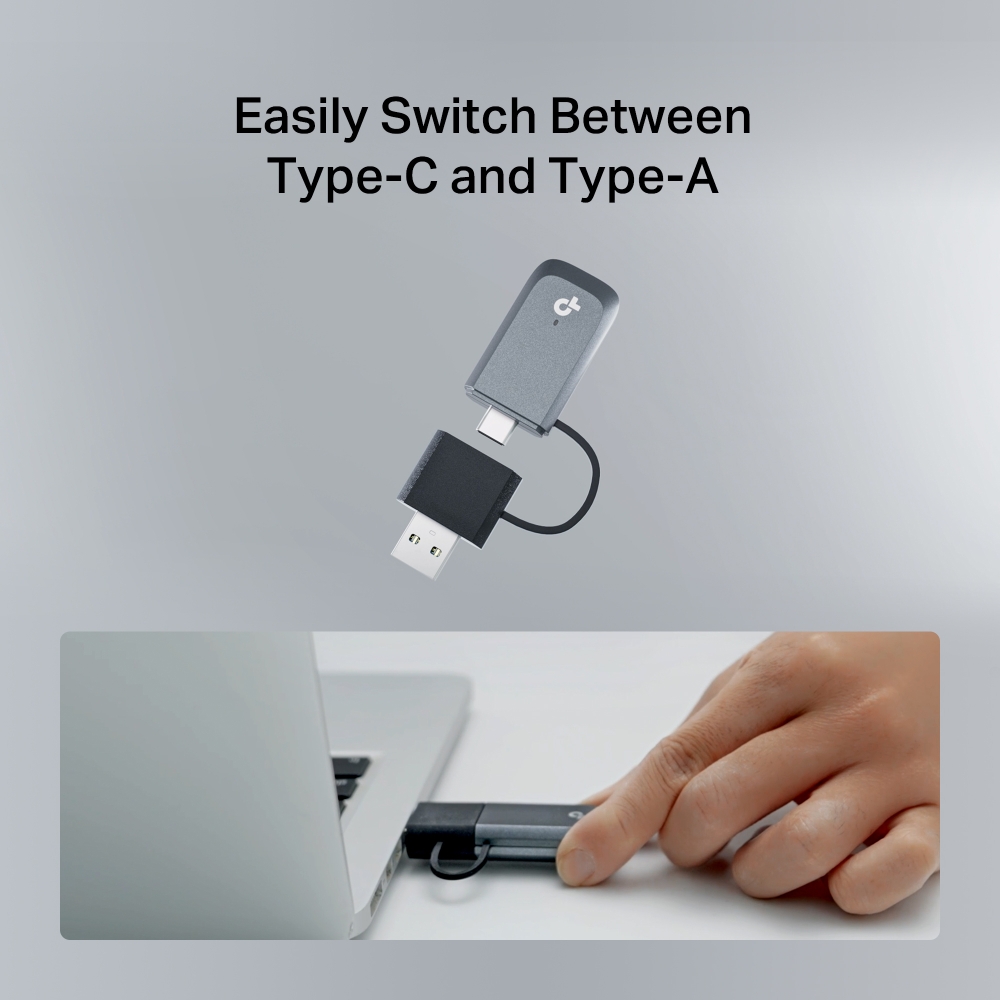

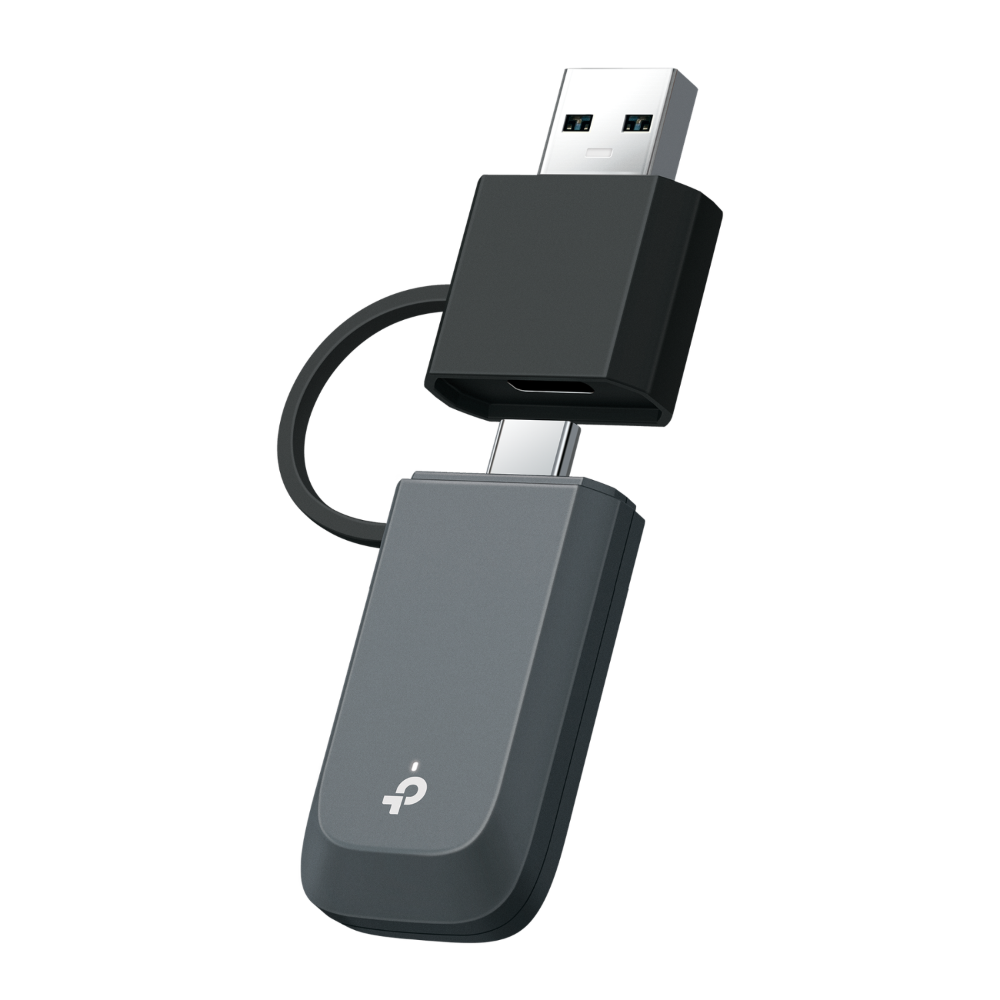

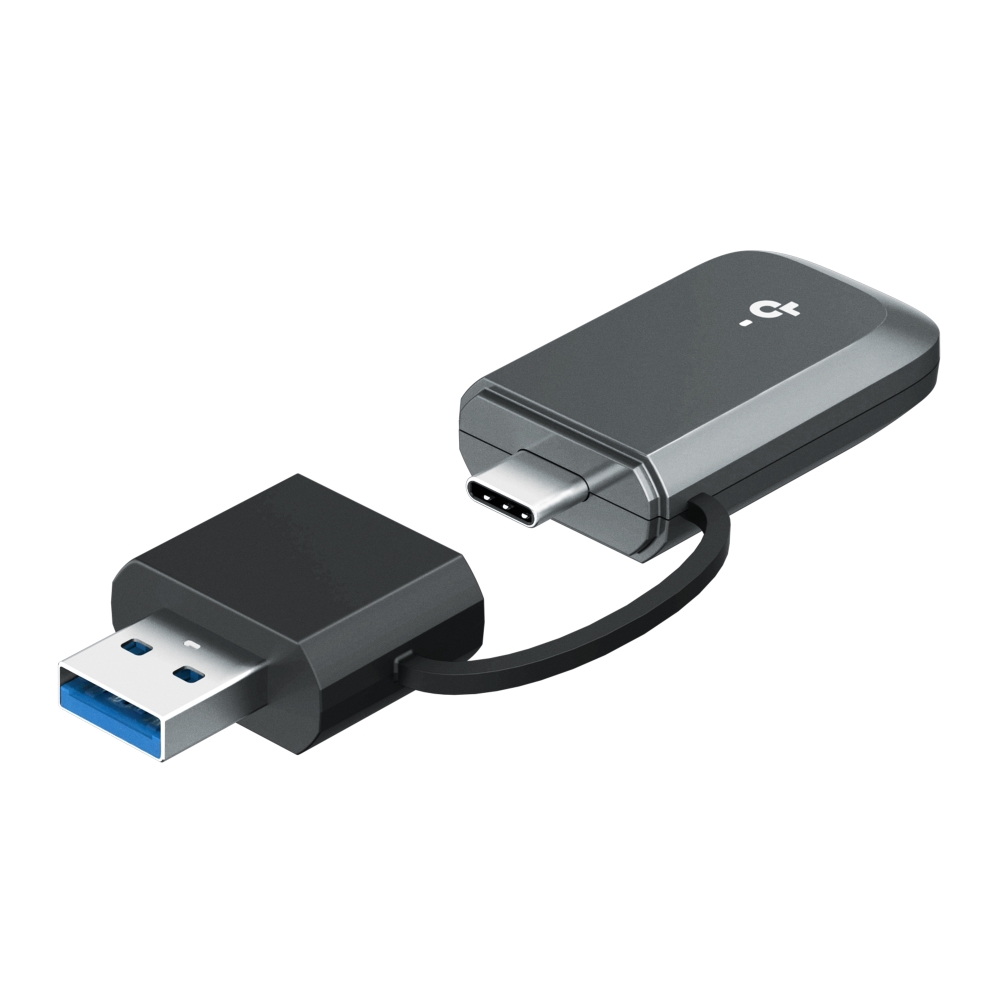

Easily Switch Between USB-C and USB-A
Connect to a wide range of devices with the dual-port design of Archer TBE230U. No extra adapters needed, just plug in with ease.
WiFi 7 — WiFi Like Never Before
Experience faster, smoother, and more reliable connections with Wi-Fi 7. Enjoy streaming, gaming, and multitasking without slowdowns or interruptions. ‡
-
Boosted Speed & Reliability
Multi-Link Operation (MLO)
-
Higher Data Efficiency
4K-QAM
-
More Users, Faster Speeds
Multi-RUs

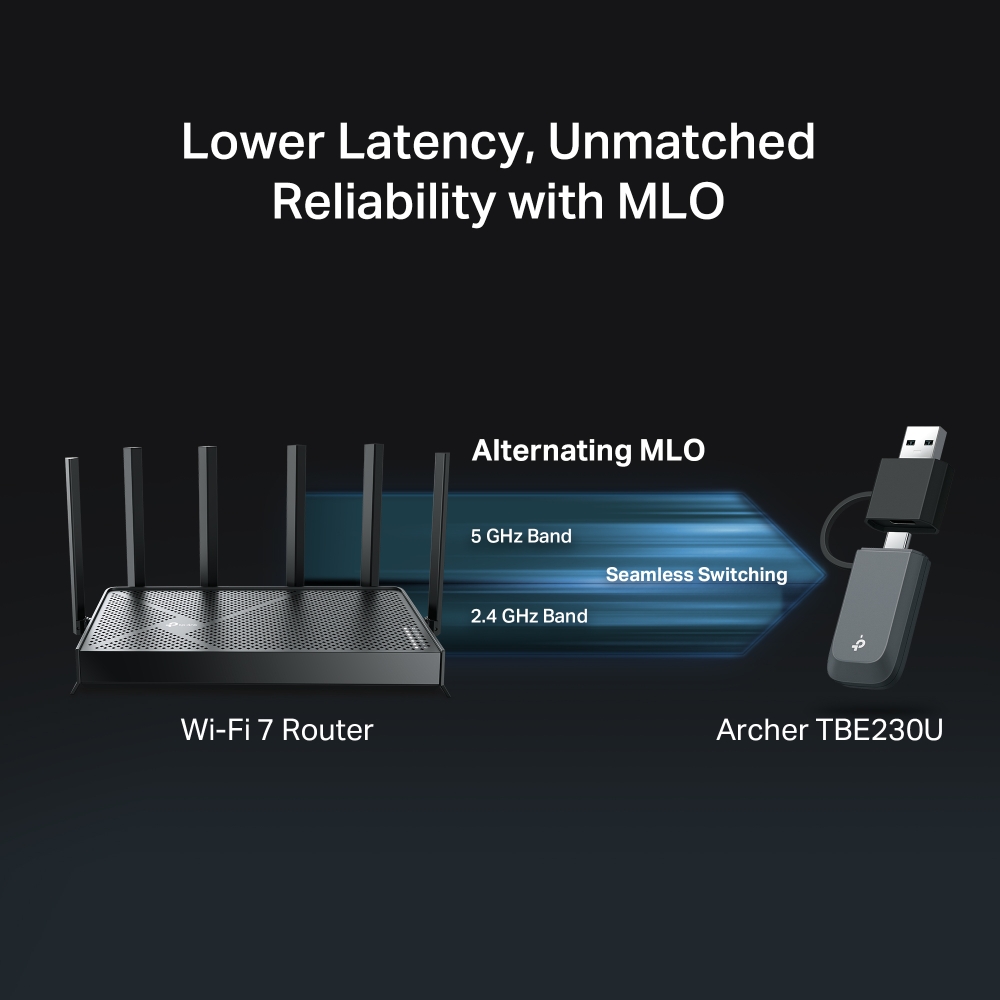

Lower Latency. More Reliable Connections.
Powered by Wi-Fi 7 Multi-Link Operation.
Archer TBE230U's Multi-link Operation (MLO) dynamically optimizes frequency band usage, ensuring your device always operates on the best available channel. Experience faster speeds, reduced interference, and seamless performance for all your online activities. ‡
Powerful Wi-Fi Wherever You Connect
Airport
School
Café

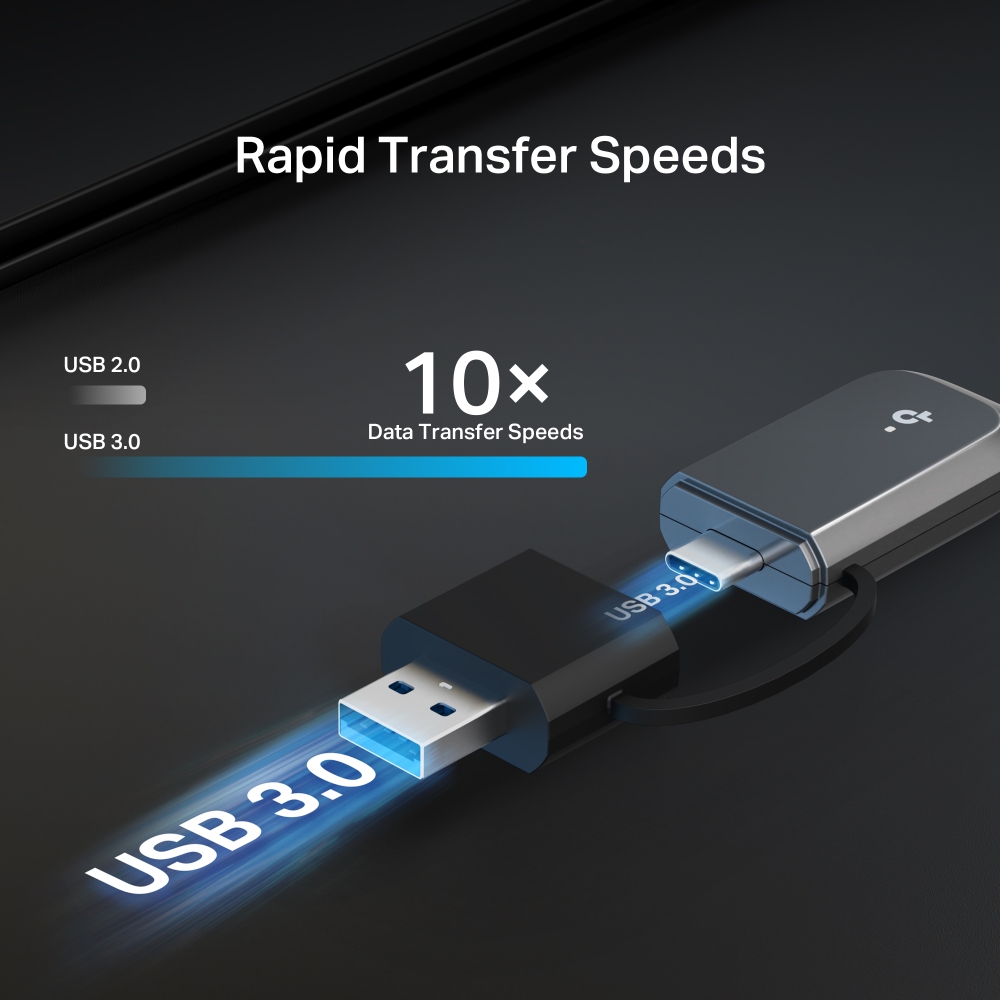

ParkRapid Transfer Speeds
Move files, stream content, and sync devices faster with the high-performance USB 3.0 connection.§

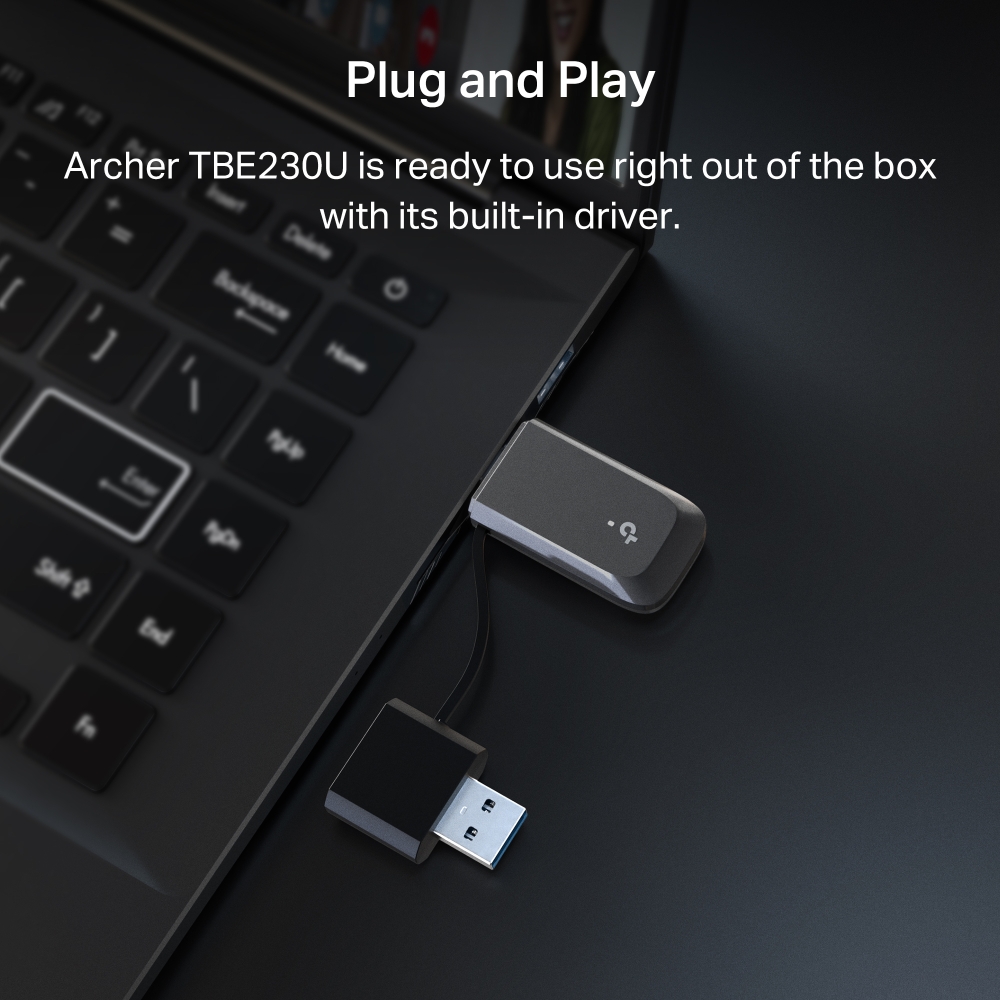

Easy and Quick Setup
Archer TBE230U is ready to use right out of the box with its built-in driver.
Windows 11/10 CompatibleAdvanced Security Against Threats
Safeguard your network with advanced encryption and add protection against brute-force attacks with WPA3. As the latest WiFi security protocol, it works to keep your WiFi and personal data more secure.△
| Dimensions ( W x D x H ) | 2.83 × 0.94 × 0.42 in (72 × 24 × 10.8 mm) |
|---|---|
| Antenna | Internal Antennas |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
|---|---|
| WLAN Signal Rate | 5 GHz:11be: Up to 2882 Mbps(dynamic)11ax: Up to 2402 Mbps(dynamic)11ac: Up to 1732 Mbps(dynamic)11n: Up to 400 Mbps(dynamic)11a: Up to 54 Mbps(dynamic)2.4 GHz:11be: Up to 688 Mbps(dynamic)11ax: Up to 574 Mbps(dynamic)11n: Up to 400 Mbps(dynamic)11g: Up to 54 Mbps(dynamic)11b: Up to 11 Mbps(dynamic) |
| Wireless Modes | Client Mode, Hotspot Mode |
| Wireless Security | WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| Certification | FCC, CE, RoHS |
|---|---|

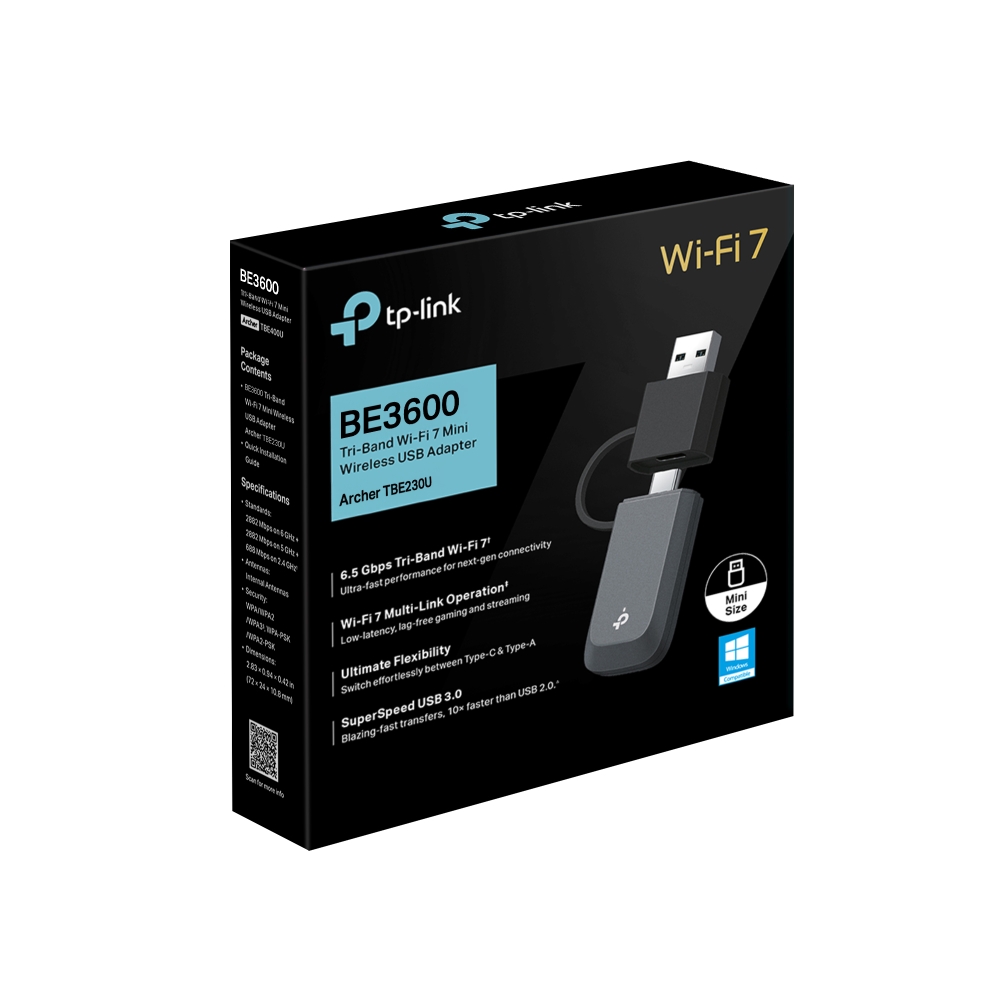

| Package Content | BE3600 Dual Band Wi-Fi 7 Mini Wireless USB AdapterQuick Installation Guide |
| System Requirements | Supported operating system: Windows 10/11 (64-bit) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), and other features, including MLO, 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, and BSS Color requires the AP and PC OS to also support the corresponding features. The MLO is still being developed on some Wi-Fi 7 models and will be supported in subsequent driver updates.
§Tested by the USB-IF, and your computers are required to also support USB 3.0.
△Use of WPAЗ requires APs to also support the corresponding feature.
☆To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can find our latest drivers in the download centre at https://www.tp-link.com/en/support download/
