AX1800 Dual-Band Wi-Fi 6 Router
- Dual-Band Wi-Fi 6 – Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Next-Gen 1.8 Gbps Speeds – Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8 Gbps.†
- Connect More Devices – Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.△§
- Extensive Coverage – Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away.
- OneMesh Compatible – Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals.
- Increased Battery Life – Target Wake Time technology reduces your devices' power consumption to extend their battery life.‡
- USB Easy Sharing – A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage.
- Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.
- Backward Compatible – Supports all previous 802.11 standards and all Wi-Fi devices.
New Era of Wi-Fi
Wi-Fi 6 Router
Faster Speeds. More Connected Devices.
Up to 1.8 Gbps Speeds
Connect More, Stay Fast
Reduced Power Consumption
Refined Password Security
Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Dual-Band Wi-Fi 6 Up to 1.8 Gbps
Every application feels more fluid with drastically improved Wi-Fi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading.
Wi-Fi 4, 2.4 GHz
40 MHz, 2×2 300 MbpsWi-Fi 6, 2.4 GHz
40 MHz, 2×2 574 Mbps
Wi-Fi 5, 5 GHz
80 MHz, 2×2 867 MbpsWi-Fi 6, 5 GHz
80 MHz, 2 ×2 1201 Mbps
Extensive Wi-Fi Coverage with Advanced Technologies
Beamforming technology, high-power Front-End Module, and four high-gain antennas combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.
Easily handle dozens of devices streaming and gaming at the same time—OFDMA future-proofs your home networks by providing greater capacity to connect more devices.
OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.
Easy File Sharing
Share music, movies, and documents easily on every device across your home network.
Full Gigabit Ports
Connect to your devices using a wired network for robust stability.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
(Router + Range Extender)
with Extender Wi-Fi
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
Enjoy a Mesh Network with Your Existing Router
Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set?
TP-Link OneMesh™ resolves your dilemma.
Easy Setup and Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX20 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.
|Standards||Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz|
|WiFi Speeds||AX18005 GHz: 1201 Mbps (802.11ax)2.4 GHz: 574 Mbps (802.11ax)|
|WiFi Range||2-3 Bedroom Houses
4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi rangeHigh-Power FEMImproves transmission power to strengthen signal coverage
Dual-BandAllocate devices to different bands for optimal performanceOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupation4 StreamsConnect your devices to more bandwidth
|Working Modes||Router ModeAccess Point Mode|
|Processor||Dual-Core CPU (V3)|

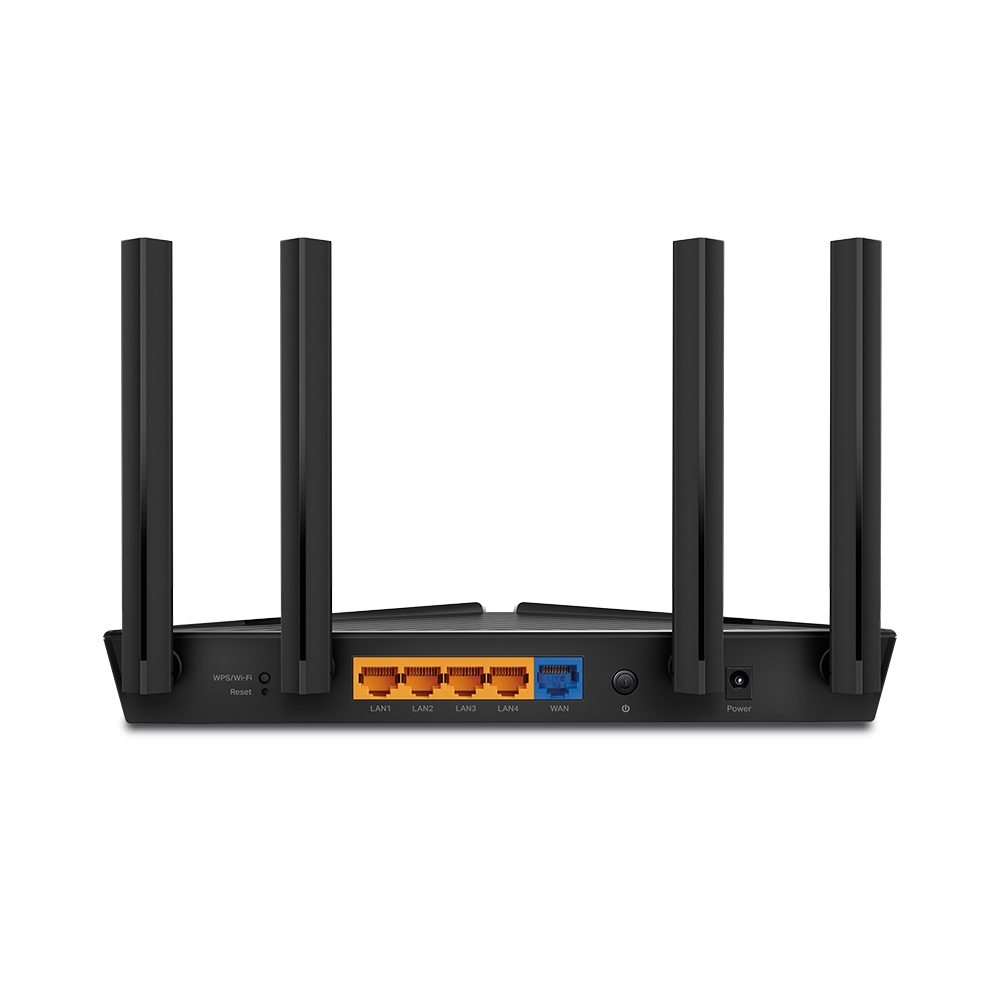

|Ethernet Ports||1× Gigabit WAN Port4× Gigabit LAN Ports|
|USB Support||1× USB 2.0 PortSupported Partition Formats:NTFS, exFAT, HFS+, FAT32Supported Functions:Apple Time MachineFTP ServerMedia ServerSamba Server|
|Buttons||WPS/Wi-Fi ButtonPower On/Off ButtonReset Button|
|Power||V1, V2: 12 V ⎓ 1.5 AV3: 12 V ⎓ 2.0 A|
|WiFi Encryption||WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)|
|Network Security||SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway|
|Guest Network||1× 5 GHz Guest Network1× 2.4 GHz Guest Network|
|VPN Server||OpenVPN/ PPTP/ L2TP VPN Server|
|VPN Client||OpenVPN/ PPTP/ L2TP VPN Client|
|OneMesh™||OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products>|
|Parental Controls||URL FilteringTime Controls|
|WAN Types||Dynamic IPStatic IPPPPoEPPTPL2TP|
|Quality of Service||QoS by Device|
|Cloud Service||Auto Firmware UpgradeOTA Firmware UpgradeTP-Link IDDDNS|
|NAT Forwarding||Port ForwardingPort TriggeringDMZUPnP|
|IPTV||IGMP ProxyIGMP SnoopingBridgeTag VLAN|
|DHCP||Address ReservationDHCP Client ListServer|
|Management||Tether AppWebpageCheck Web Emulator>|
|Certifications||FCC, CE, RoHS|
|Environment||Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing|
|WiFi Transmission Power||CE: <20dBm(2.4 GHz)<23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)|
|WiFi Reception Sensitivity||5 GHz:11a 6Mbps:-97dBm11a 54Mbps:-79dBm11ac VHT20_MCS0:-96dBm11ac VHT20_MCS11:-66dBm11ac VHT40_MCS0:-94dBm11ac VHT40_MCS11:-63dBm11ac VHT80_MCS0:-91dBm11ac VHT80_MCS11:-60dBm11ax HE20_MCS0:-95dBm11ax HE20_MCS11:-63dBm11ax HE40_MCS0:-92dBm11ax HE40_MCS11:-60dBm11ax HE80_MCS0:-89dBm11ax HE80_MCS11:-58dBm2.4 GHz:11g 6Mbps:-97dBm11n HT20_MCS0:-97dBm11n HT20_MCS7:-78dBm11n HT40_MCS0:-95dBm11n HT40_MCS7:-75dBm11ac VHT20_MCS0:-96dBm11ac VHT20_MCS11:-67dBm11ac VHT40_MCS0:-94dBm11ac VHT40_MCS11:-64dBm11ax HE20_MCS0:-96dBm11ax HE20_MCS11:-64dBm11ax HE40_MCS0:-93dBm11ax HE40_MCS11:-61dBm|
|Dimensions (W×D×H)||10.2 × 5.3 ×1.5 in(260.2 × 135.0 × 38.6 mm)|
|Package Contents||Wi-Fi Router Archer AX20Power AdapterRJ45 Ethernet CableQuick Installation Guide|
TP-Link Archer AX20 met the 3 most important aspects of a good wireless router. The speed is excellent, the coverage is strong and the stability is great. At this price point, there’s nothing that perform just as good as this Archer AX20. This will probably be my best budget mid-range router that I will recommend in 2020.
Press Release: TP-Link® Launches AX1800 Dual-Band Wi-Fi 6 Router Archer AX20 at CES 2020
*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications are based upon test results under normal usage conditions. Actual wireless transmission rate and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
△Use of DL/UL OFDMA and 1024QAM requires clients to also support those functions.
‡Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors.
§Latency improvement requires that the AP and all clients support OFDMA.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
TP-Link EasyMesh-Compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent software updates.
