AV600 Powerline Wi-Fi Kit
- One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV2 standard provides up to 600Mbps1 high speed data transmission over a home's existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
- Integrated power socket makes sure that no power outlet is going to waste
* TL-WPA4226 KIT contains TL-WPA4220 and TL-PA4020P
Wired or Wireless? Why not Both!
Meet an Excellent Home Network Solution
AV600 Powerline Wi-Fi Kit

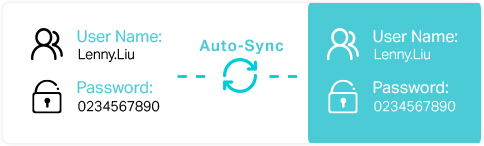

Wi-Fi Auto-Sync for
Unified Wi-Fi Network
Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.
Extend Your Network to Any Room by Powerline
Based on the Powerline technology, your network extension is never limited to the primary coverage of your router. With advanced HomePlug AV2, TL-WPA4226 KIT is perfect for providing stable, high-speed data transfer rates of up to 600 Mbps on a line length of up to 300 meters, bring network to anywhere there is a power outlet.
AV2 600Mbps 300Mbps
Extra Power Socket
for Additional Devices
The integrated power socket of TL-PA4020P allows an additional device or power bar to be connected to the adapter as though it were a normal wall socket. This ensures that even with the TL-PA4020P plugged in, no power outlet is going to waste.
Plug and Play!
Plug the TL-PA4020P in the wall and connect it to the router with an Ethernet cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! Just enjoy the seamless, high speed wired and wireless network.
Press the “Pair” buttons on both adapters to create a more secure network.
* Powerline adapters need to be connected to the same electrical circuit.
Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices. You can download the intuitive new tpPLC Utility for your PC at www.tp-link.com/support/download/.
|Standards and Protocols||HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE802.3u, IEEE 802.3ab|
|Interface||2 * 10/100Mbps Ethernet Ports –TL-WPA42202 * 10/100Mbps Ethernet Ports – TL-PA4020PPower Socket|
|Button||Pair Button, Wi-Fi Button, Reset Button|
|Power Consumption||TL-WPA4220 Power Consumption: Maximum: 5.6W, Typical: 5.2WTL-PA4020P Power Consumption: Maximum: 3.26W, Typical: 2.58W, Standby: 0.83W|
|LED Indicator||Power, Powerline, Ethernet, Wi-Fi|
|Dimensions ( W x D x H )||TL-WPA4220: 2.1 × 1.6 ×3.7 in (54 × 40 × 94 mm)TL-PA4020P: 2.3 × 1.7 × 3.7 in (58 × 42 × 95mm)|
|Range||Up to 300 meters/1,000 feet over existing electrical wiring|
|Modulation Technology||OFDM (PLC)|
|Encryption||Wireless Security: WPA-PSK / WPA2-PSK, WEP EncryptionsPowerline Security: 128-bit AES|
|Package Contents||AV600 Powerline Wi-Fi Kit1 × TL-WPA4220 (Wi-Fi Extender)1 × TL-PA4020P2 × Ethernet Cables1 × Quick Installation Guide|
|System Requirements||Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux|
|Environment||Operating Temperature: 0°C~40°C (32°F ~104°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing|
*1. The theoretical maximum channel data transfer rate is derived from HomePlug AV specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.
*2. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
*3. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
