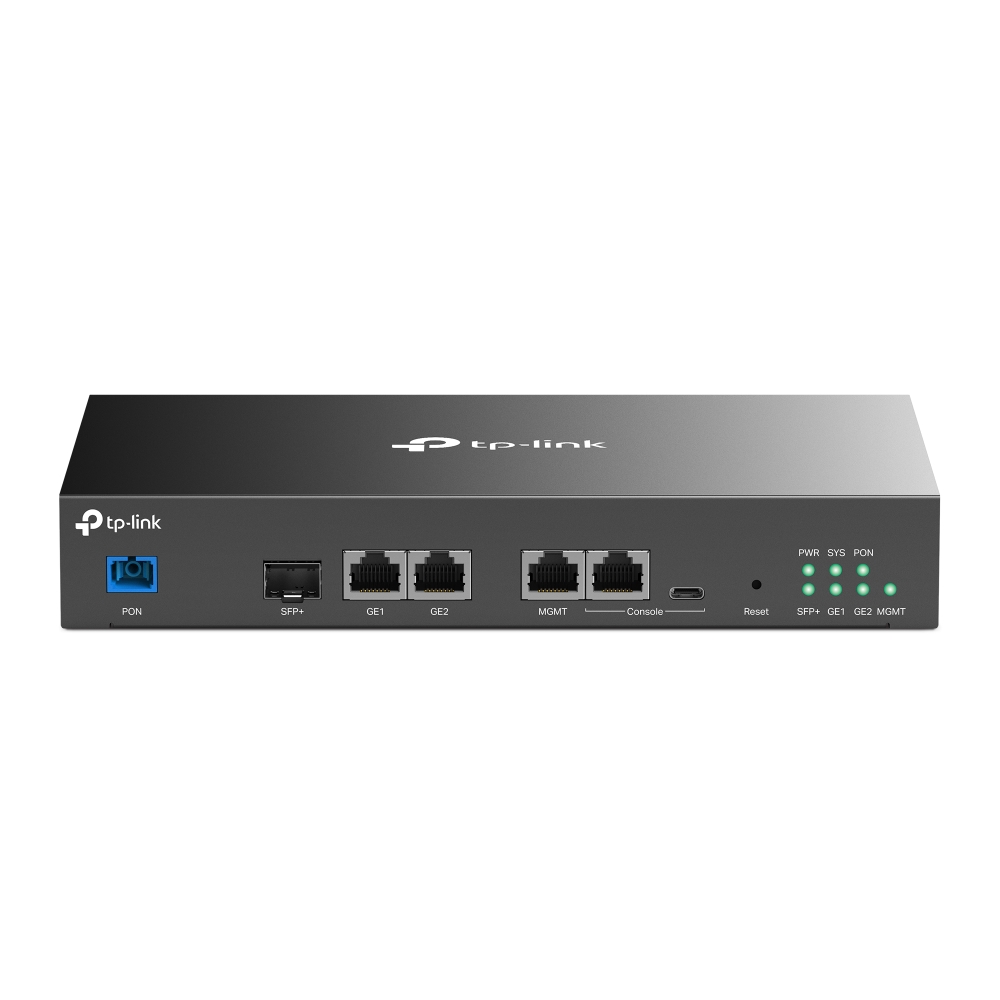

DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal 1

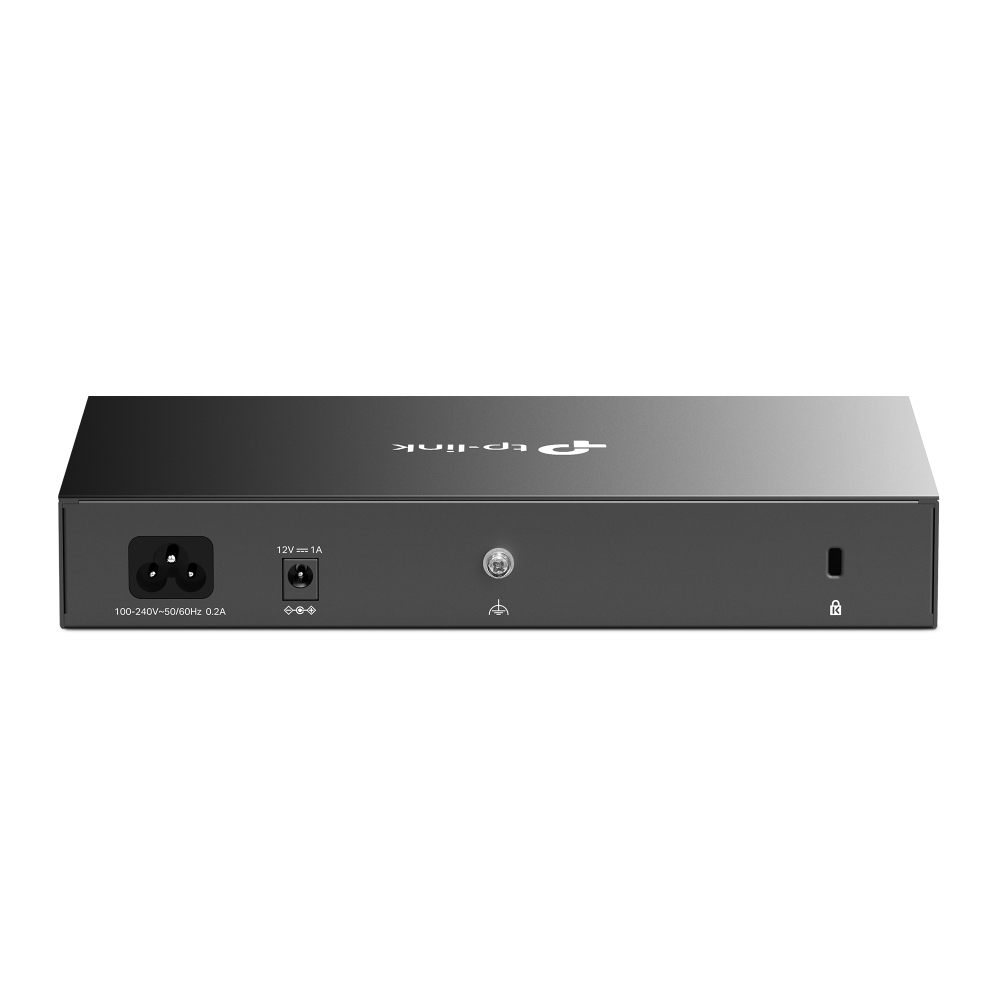

DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal 2

DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal 3

DS-P7002-01

Coming Soon

DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal

Flexible Scalability: Supports 1:64 splitting ratio—up to 64 ONUs by one device—perfect for small communities, businesses, and home offices.
High-Speed Uplink Ports: 1× 10G SFP+ port and 2× GbE uplink ports offer high-bandwidth and flexible connectivity options.
Dual Power Supplies: Carrier-class reliability with dual power supplies: AC or DC.
Zero-Touch Activation: Simplifies field operations with automated ONU onboarding.
Auto Provisioning: Deliver personalized broadband plans based on predefined service profiles.
Multi-Level QoS: Delivers differentiated services to meet Service Level Agreements (SLAs) and enhance user experience.
Advanced L2/L2+ Functions: Rich, robust functions meet flexible deployment and scalability needs.
Centralized Management: Supports management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.

Powering Your Service, Scale with Your Ambition

DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal

DS-P7002-01

GPON Access
High Speed Uplink
Dual Power Supplies
Centralized Cloud Management
Backed by a Comprehensive FTTH Solution

Flexible Scalability

Flexible Deployment and Scalability

With its compact, 1RU rack-mountable design, the DS-P7002-01 delivers high-speed GPON services, offering flexible scalability to meet the internet needs of small communities, hotels, Multi-Dwelling Units (MDUs) and more. Additionally, its compact casing and redundant power supply enable efficient and versatile deployment.

Covers up to 64 households/ONUs^△
2.5G downstream/1.25G upstream

10G SFP+ uplink port

2× Ethernet uplink ports

Zero-Touch
Activation

Auto Provisioning
Based on Profiles

^△Based on the theoretical splitting ratios of 1:64, the actual number of covered households may vary depending on bandwidth requirements.

Dual power supplies provide reliable performance and continuous service by utilizing both DC and AC power sources, with the AC power supply prioritized.

AC Input: 100V—240V, 50/60Hz, 0.2A

DC Input: 12V, 1A

Multi-Level QoS Strategy Offers Differentiated Services

Adopting a hierarchical Quality of Service (QoS) strategy, DS-P7002-01 delivers differentiated services to meet Service Level Agreements (SLAs) and enhance user experiences. It prioritizes critical, time-sensitive traffic, optimizes overall bandwidth based on refined policies, and implements detailed scheduling at the port, ONU, user, and service flow levels.

Video Calls

Online Gaming

Live Streaming

VoIP Calls

Web Browsing

Downloading

Total Bandwidth Available

Video - Very High Priority Queue

Gaming - High Priority Queue

Voice - Priority Queue

Best Effort Queue

Uninterrupted Connectivity with Type B PON Protection

Safeguards against service disruption by providing single-homing protection at the Optical Line Terminal (OLT) level. With active‑standby PON ports and independent fiber paths, this architecture ensures seamless switchover and service continuity in the event of a PON or fiber failure.

ONU 1

ONU N

Splitter

Protection Range

OLT

Active PON Port

Standby PON Port

PON Port

Active Link

Standby Link

Streamline OLT Operations with Easy Mode

Easy Mode transforms the complicated configuration process by turning the OLT into a centralized platform for ONT management. Simply apply a service profile based on the end‑user’s broadband needs and the system does the rest. All technical parameters are auto-configured in the background, making deployment faster, smarter, and easier than ever.

Faster service
provisioning
Reduced training and operational costs
Minimized
configuration errors
Efficient network management

Centralized Management via Cloud

With the DeltaStream PON Management System (DPMS), service providers can easily configure and manage multiple devices simultaneously, either locally or remotely via the cloud anytime, anywhere. Command‑line interface (CLI) compatibility and out‑of‑band management through the TR‑069/TR‑369 protocols enhances flexibility and efficiency while reducing operation costs.

Easy‑to‑use dashboard and UI ensures hassle‑free configuration
Gain insights into the traffic rates of the managed devices
Multi‑site management through one system
Batch management for OUN

Backed by a Comprehensive FTTH (Fiber-to-the-Home) Solution

Under the Aginet flagship, TP‑Link offers comprehensive one‑stop solutions for FTTH applications to service providers, whether based on GPON or XGS-PON. Service providers can roll out their service plans with reduced operation and maintenance costs and increase ARPU with improved user satisfaction, while home users can enjoy a better networking experience.

ISP’s OSS/BSS Systems

Network and Device Data Exchange

Inventory Data Exchange

Mesh AP

WiFi Router /Mesh AP

XGS-PON Router

Mesh AP

XGS-PON SFU

WiFi Router /Mesh AP

GPON Router

Splitter

GPON SFU

Splitter

XGS-PON XGS-PON OLT

IPTV Internet VoIP

GPON GPON OLT

HARDWARE FEATURES
Interface	1× SC/UPC GPON Port 1× 10G SFP+ Uplink Port 2× Gigabit RJ45 Uplink Ports 1× RJ45 Console Port 1× USB Type-C Console Port 1× RJ45 MGMT Port
Button	Reset Button
Power Supply	Dual Power Supplies: DC and AC DC Adapter: 12.0V/1.0A, AC Adapter: 100V-240V, 50/60Hz 0.2A
Max. Power Consumption	Max. 10W
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

SOFTWARE FEATURES
Security	ACL (IPv4/IPv6) DHCP Filter Port Security Access Security
DHCP	DHCP Server DHCP Relay
OMCI	Standard OMCI Management Supported
ONU Authentication	ONU Auto Authentication
ONU Security	Rouge ONU Detection and Isolation Uplink and Downlink Data Encryption
Multi-Service	Multi-Service Traffic Identify and Rate Limit
QoS	Port/IEEE 802.1p/DSCP Priority Remap Scheduler Mechanism: WRR/SP Ingress/Egress Rate Limit Broadcast/Multicast/UL-Frame Storm Control Voice VLAN Auto VOIP
Routing	Static Routing
Mulitcast	IGMP Snooping MLD Snooping
Centralized Management	Large-Scale Devices Management OLT Batch Configure, Upgrade, Reboot Multi-Site Management Intelligent Network Monitoring Real-time Network Overview

GPON port attribute
Max. Splitting Ratio	1:64
Transmission distance	60 KM
Data rate	Downstream: 2.5 Gbps Upstream: 1.25 Gbps*
Wave Length	Tx: 1490 nm Rx: 1310 nm

OTHERS
Certification	CE,FCC
Package Content	DC Adapter AC Cable Console Cable Mounting Brackets, Screws, and Rubber Feet Installation Guide
Environment	Operating Temperature: 0℃–50℃ (32℉–122℉) Storage Temperature: -40℃–70℃ (-40℉–158℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing

For additional version information, please go to the support page.

*Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
