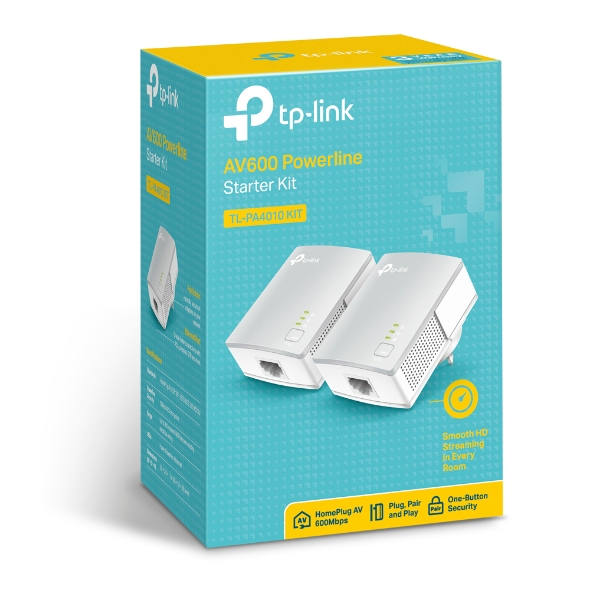

AV600 Powerline Starter Kit

  • HomePlug AV standard compliant, high-speed data transfer rates of up to 600Mbps1
  • Miniature design, smaller than most powerline adapters at the market, blends discreetly in front of any power outlet
  • No new wires, Easy Plug and Play operation, No configuration required
  • Patented Power-Saving Mode automatically reduces power consumption by up to 85%2

Internet Goes Further with Your Home's Electricity System

AV600 Powerline Adapter Starter Kit

TL-PA4010 KIT

Extend Wired Network to Any Room Using Existing Electricity System

With advanced HomePlug AV600, the TL-PA4010 KIT transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired network to anywhere there is a power outlet.

Note: Powerline adapters must be deployed in sets of two or more. And TL-PA4010 KIT is compatible with all Routers and other powerline products.
Internet
HomePlug AV600
HomePlug AV600
TL-PA4010
TL-PA4010
Powerline

Plug and Play with No Configuration Required

Ditch the complicated setup process for good. Get started with powerline in just two steps:

  1. Step1: connect one adapter to your router.
  2. Step2: plug in another adapter wherever you need wired internet service.

Tip:
Press the Pair button on each adapter to encrypt the data sent between them, enhancing your network security.

AV600 Speeds and 300 Meters Range

Using advanced Home Plug AV technology, TL-PA4010 KIT provides stable and high-speed data transmissions of up to 600 Mbps* for ranges of up to 300 meters where there is a power outlet. No interference on electrical or electronic equipment. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

Internet
Router
TL-PA4010
TL-PA4010
HOMEPLUG
AV600
Up to 300 Meters

*Listed HomePlug AV speed refers to the theoretical maximum physical-layer data transfer rate. Actual data speeds vary and are limited by the product’s Ethernet port and other network conditions such as data traffic, electrical noise, and wiring issues.

Miniature Design, Ultra-compact

With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than almost general 600Mbps Powerline Products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.

52mm
65mm
86mm
54mm
28.5mm
23mm

Saves Up to 85% on Power

TL-PA4010 KIT automatically switches from its "Working" mode to efficient "Power-Saving" mode when not in use, reducing energy consumption by up to 85%*.

*Actual data will vary because of the network conditions and environmental factors.
LESS
HARDWARE FEATURES
Standards and Protocols HomePlug AV, IEEE802.3, IEEE802.3u
Plug Type EU, UK, US
Interface 1*10/100Mbps Ethernet Port
Button Pair Button
Power Consumption Maximum: 3.12W (230V/50Hz)
Typical: 2.34W (230V/50Hz)
Standby: 0.71W (230V/50Hz)
LED Indicator PWR, PLC, ETH
Dimensions ( W x D x H ) 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm)
Range Up to 300 meters/1000 feet over existing electrical wiring
SOFTWARE FEATURES
Modulation Technology OFDM
Encryption 128-bit AES Encryption
OTHERS
Certification CE, FCC, RoHS
Package Contents Powerline Ethernet Adapter
Ethernet cable (RJ45)
Quick Installation Guide
System Requirements Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10/11, Mac, Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

*1. The theoretical maximum channel data transfer rate is derived from HomePlug AV2 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.

*2. The Power Saving feature takes effect when your appliances are disconnected or turned off. Actual power saving data will vary in different network conditions and environments.

*3. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
