Archer BN800 1.0_Datasheet

BN19000  Tri-Band Wi-Fi 8 Router   The Most Reliable Wi-Fi Ever Built. · 19 Gbps Tri-Band Speed · 2× 10 Gig Multi-Gig Ports · 18× Antennas Multi-Floor Coverage · 6 GHz Latest Wi-Fi Band · Up To 200 Connected Devices · Built-In AI Self-Diagnosis & Healing

Features
	10 Gbps Wired Connection: Built for up to 10 Gbps internet plans, with 10 Gbps and 2.5 Gbps LAN ports for stable, lightning-fast wired connections to gaming rigs, workstations, and NAS drives.
	Powerful Wi-Fi 8 Speeds: Archer 8 Ultra delivers up to 19 Gbps, with steadier performance and lower latency for seamless 4K/8K streaming, immersive AR/VR, and fast downloads.‡
	Easy Setup. No Technical Skills Required: Get your network ready without hassle, and let family or guests join the Wi-Fi instantly via NFC with no password entry required.
	AirealTM AI Assistant: Aireal is your go-to assistant for your home network. It continuously monitors and optimizes your connection automatically in real time.
	Zero drops, peak performance: Multi-WAN blends ultra-reliable failover, load balancing, and flexible USB/hotspot access, ensuring you stay seamlessly connected during high-stakes online activities.
	Integrated VPN Support: Privacy comes built in. With a hardware-level VPN, Archer 8 Ultra automatically encrypts your selected devices’ traffic. No on-device software, no apps required.
	Advanced Security: HomeShield provides real-time protection against online threats, malware, and intrusions. WPA3 adds next-gen Wi-Fi security to your network.
	Hassle-free Management with Tether App: Network management is made easy with the TP-Link Tether app, available on any Android and iOS device.

Specifications

Hardware

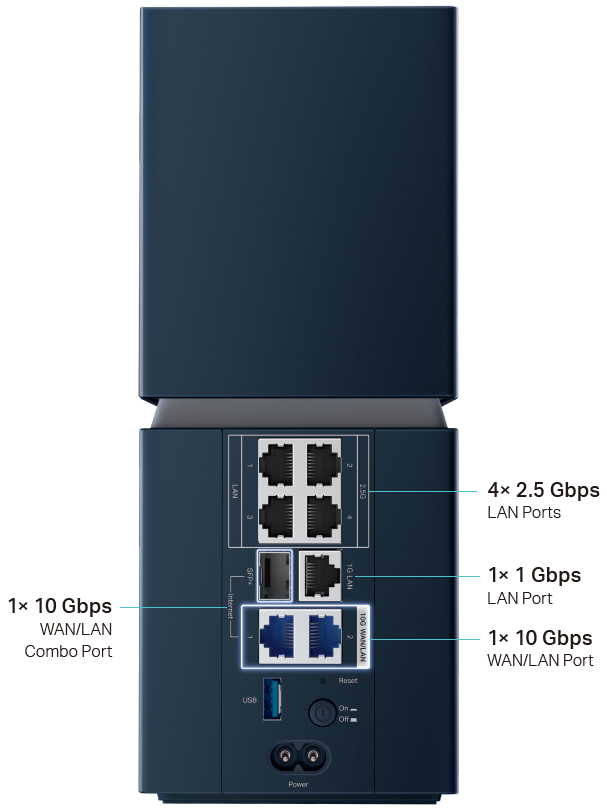

Ethernet Ports	1× 10 Gbps SFP+/RJ45 WAN/LAN Combo 1× 10 Gbps RJ45 WAN/LAN 4× 2.5 Gbps LAN 1× 1 Gbps LAN△
Antennas	18× High-Performance Antennas with Optimized Layout
Buttons	Reset Button, On/Off Button, WPS Button, Wi-Fi Button, LED Button
Wireless
Standards	IEEE 802.11bn/be/ax 6 GHz IEEE 802.11bn/be/ax/ac/n/a 5 GHz IEEE 802.11bn/be/ax/n/g/b 2.4 GHz
Wi-Fi Speeds	11528 Mbps (6 GHz) + 5764 Mbps (5 GHz) + 1376 Mbps (2.4 GHz)‡

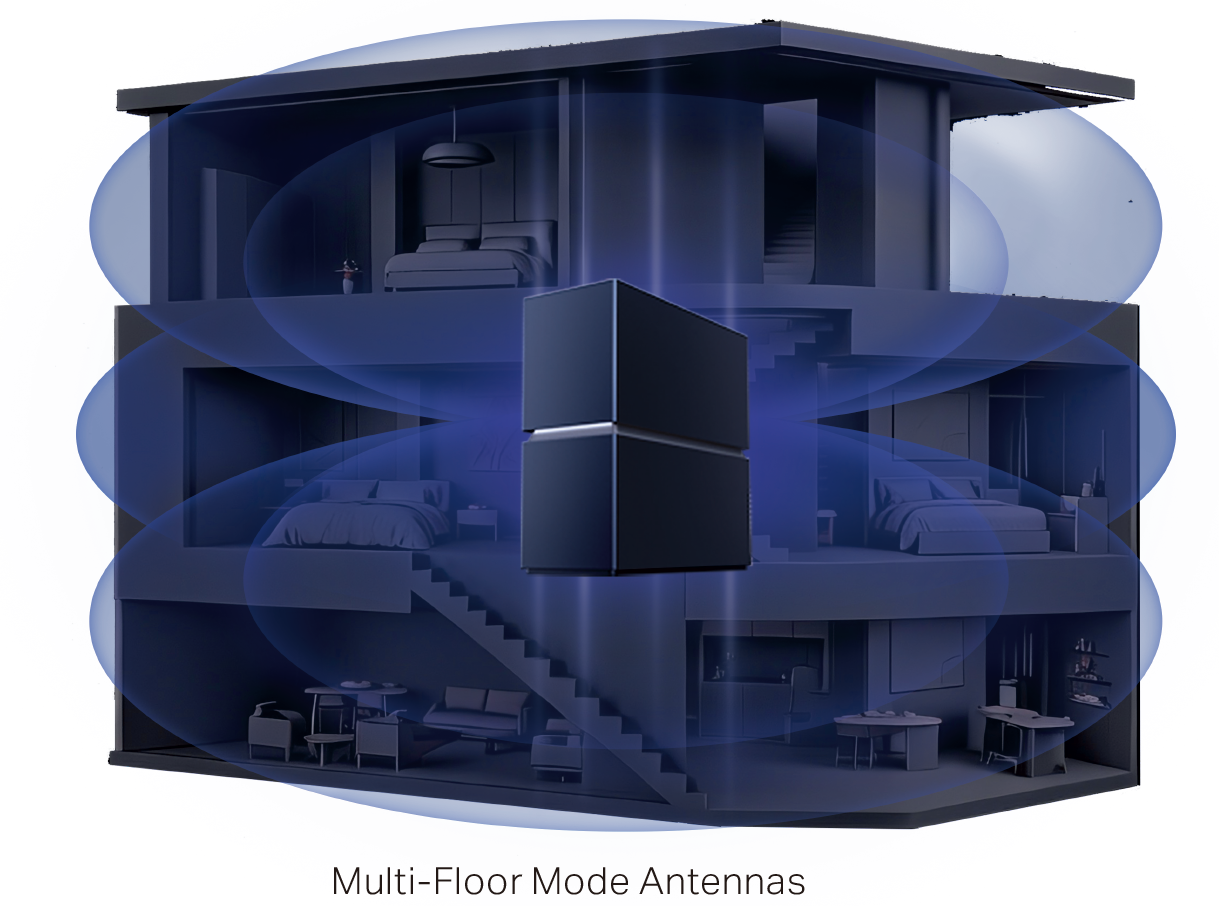

Wi-Fi Range	18 × Internal Wi-Fi Antennas 3 × Antenna Operating Modes
Wi-Fi 8 Features	IEEE 802.11bn Unequal modulation (UEQM) New MCS rates 2x LDPC
Working Modes	Router Mode, Access Point Mode, EasyMesh Agent Mode
Security
Wi-Fi Encryption	WPA3, WPA2,WPA/WPA2-Enterprise (802.1x)
Network Security	HomeShield,☆ IoT Network, and Guest Network*
Guest Network	6 GHz Guest Network, 5 GHz Guest Network, 2.4 GHz Guest Network
VPN Server	OpenVPN, PPTP, L2TP, Wireguard VPN
VPN Client	OpenVPN, PPTP, L2TP, Wireguard VPN
Software
Protocols	IPv4, IPv6
Service Kits	HomeShield
EasyMesh	Supported
Parental Controls	HomeShield Parental Controls
WAN Types	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service	QoS by Device, App QoS, AI QoS
Cloud Service	Auto Firmware Upgrade, TP-Link ID, DDNS, APP Remote Control
NAT Forwarding	Port Forwarding, Port Triggering, DMZ, UPnP
DDNS	TP-Link, NO-IP, DynDNS
Physical
Dimensions	8.9 × 3.9 × 9.7 in (226 × 98 × 245.6 mm)
Package Contents	BN19000 Tri-Band Wi-Fi 8 Router Power Cord RJ45 Ethernet Cable Quick Installation Guide
Test Data
Wi-Fi Transmission Power	FCC: ≤ 30 dBm (2.4 GHz), ≤ 30 dBm (5 GHz), ≤ 25 dBm (6 GHz) CE: ≤ 23 dBm EIRP (5.17 GHz-5.35 GHz), ≤ 30 dBm EIRP (5.47GHz-5.725 GHz); ≤ 20 dBm EIRP (2.4 GHz); ≤ 23 dBm EIRP (6GHz)
Wi-Fi Reception Sensitivity	2.4 GHz: 11BN UHR40 MCS13:-59dBm 11BN UHR20 MCS0:-96dBm 5 GHz: 11BN UHR160 MCS13:-50dBm 11BN UHR20 MCS0:-96dBm 6GHz 11BN UHR320 MCS13:-45dBm 11BN UHR20 MCS0:-95dBm
Other
System Requirements	Microsoft Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	VCCI, JATE, PSE, JRF
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing

^†Use of Wi-Fi 8 (802.11bn) and features requires clients to also support the corresponding features.
^‡Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
^△10 Gbps internet speeds require compatible service plans and equipment. Actual internet speeds are limited by the internet bandwidth available from an internet service provider. For the 10 Gbps SFP+ & RJ45 combo port, users can only use one of them at a time.
^※Use of WPA3 requires clients to also support the corresponding feature.
^☆HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
^◇TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This router may not support all the mandatory features as ratified in the IEEE 802.11bn specification.
Further software upgrades for feature availability may be required.
**Future feature availability, including but not limited to ELR, DRU, and DSO functionality, is planned for deployment via free software updates between 2027 and 2028. Actual availability, feature specifications, and compatibility may vary by model, region, and hardware configuration.
