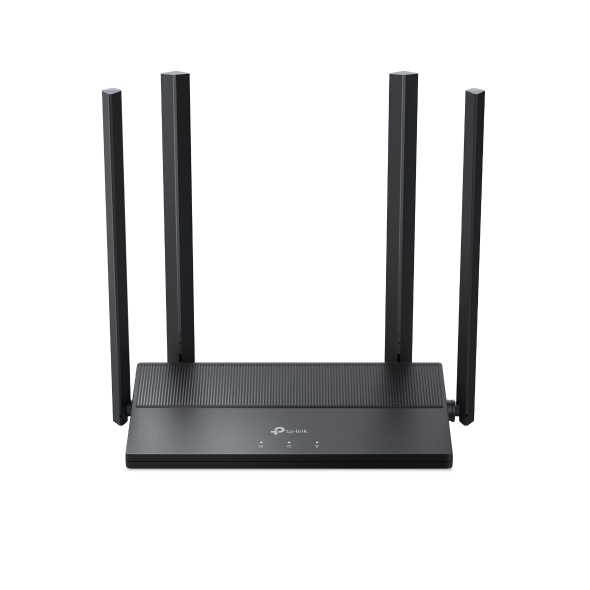

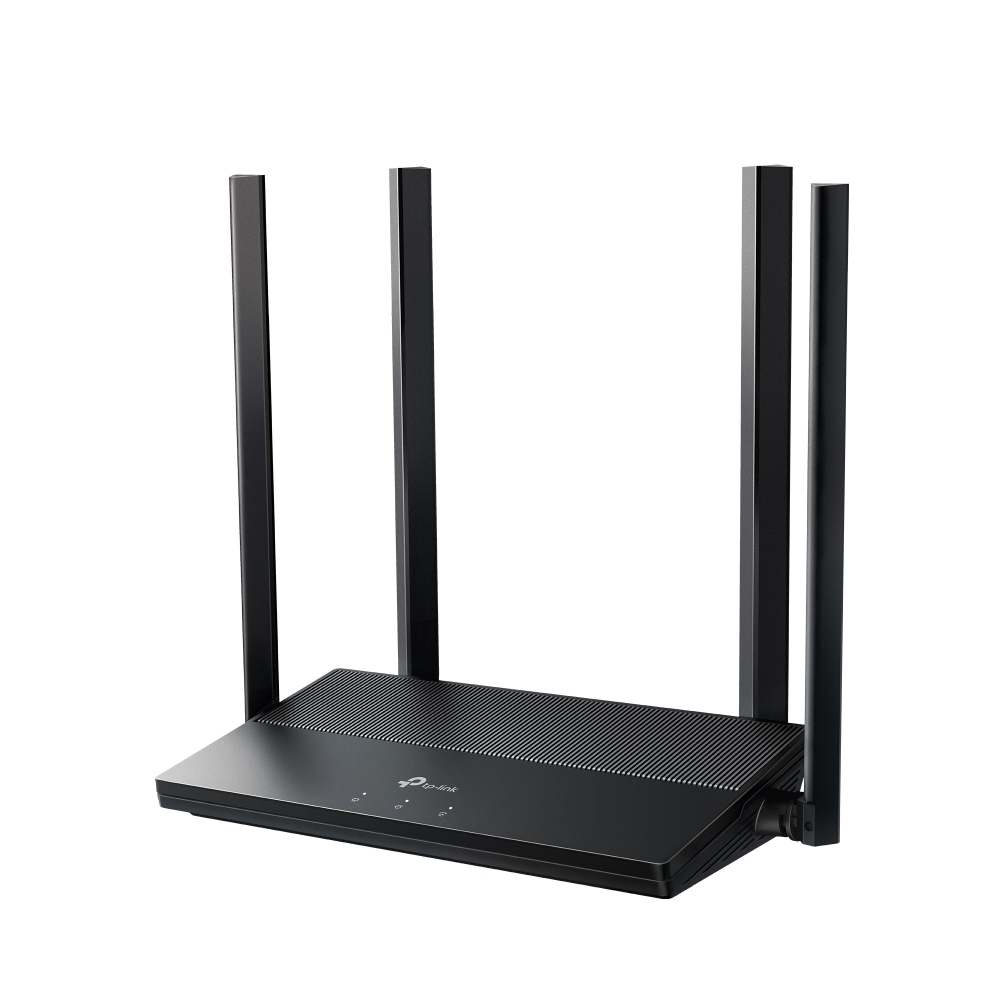

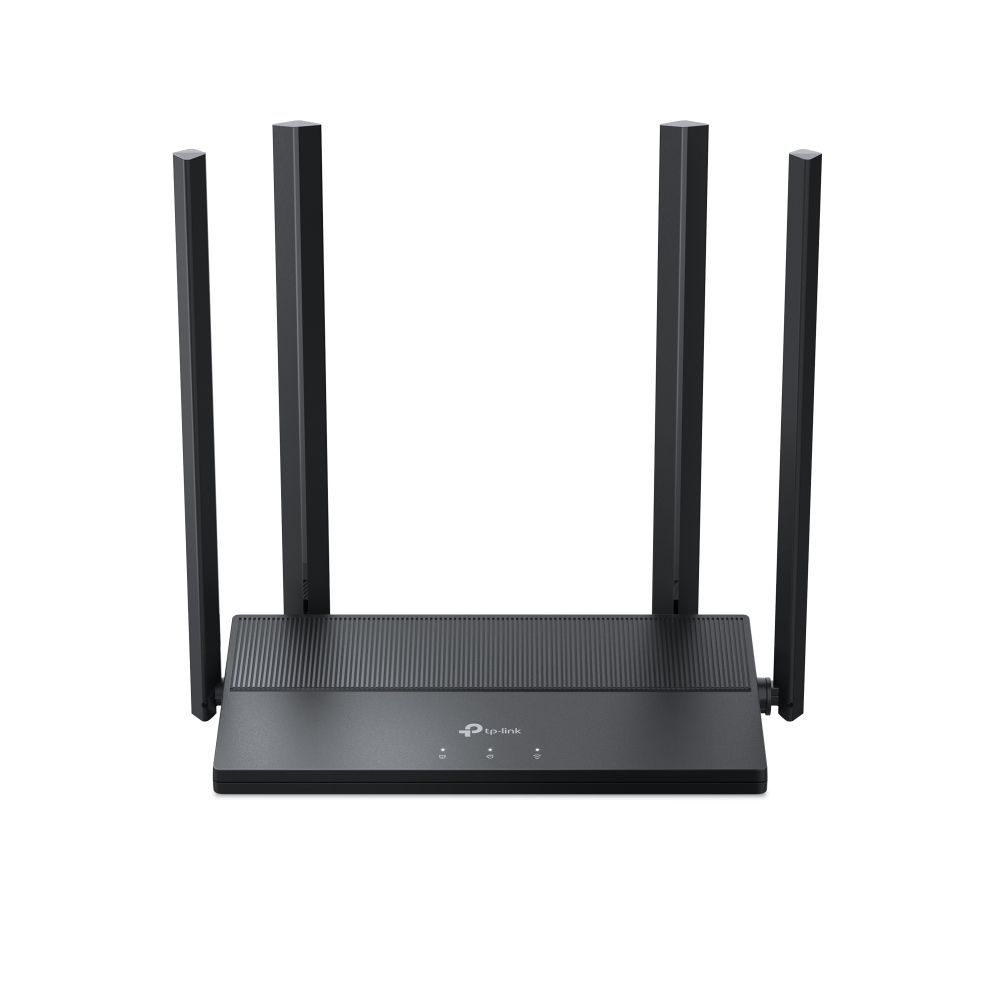

TL-WR846N
300 Mbps Multi-Mode Wi-Fi Router
- High-Speed Wi-Fi - 300 Mbps wireless transmission rate is ideal for both bandwidth sensitive tasks and basic work.†
- Boosted Coverage - 4× 5dbi antennas and 2×2 MIMO deliver strong Wi-Fi signal and reliable connections.※
- Multi-Mode 4 in 1 - Supports Router, Access Point, Range Extender, and WISP modes to meet any network need.
- Cloud Service - Remote router control via the cloud.

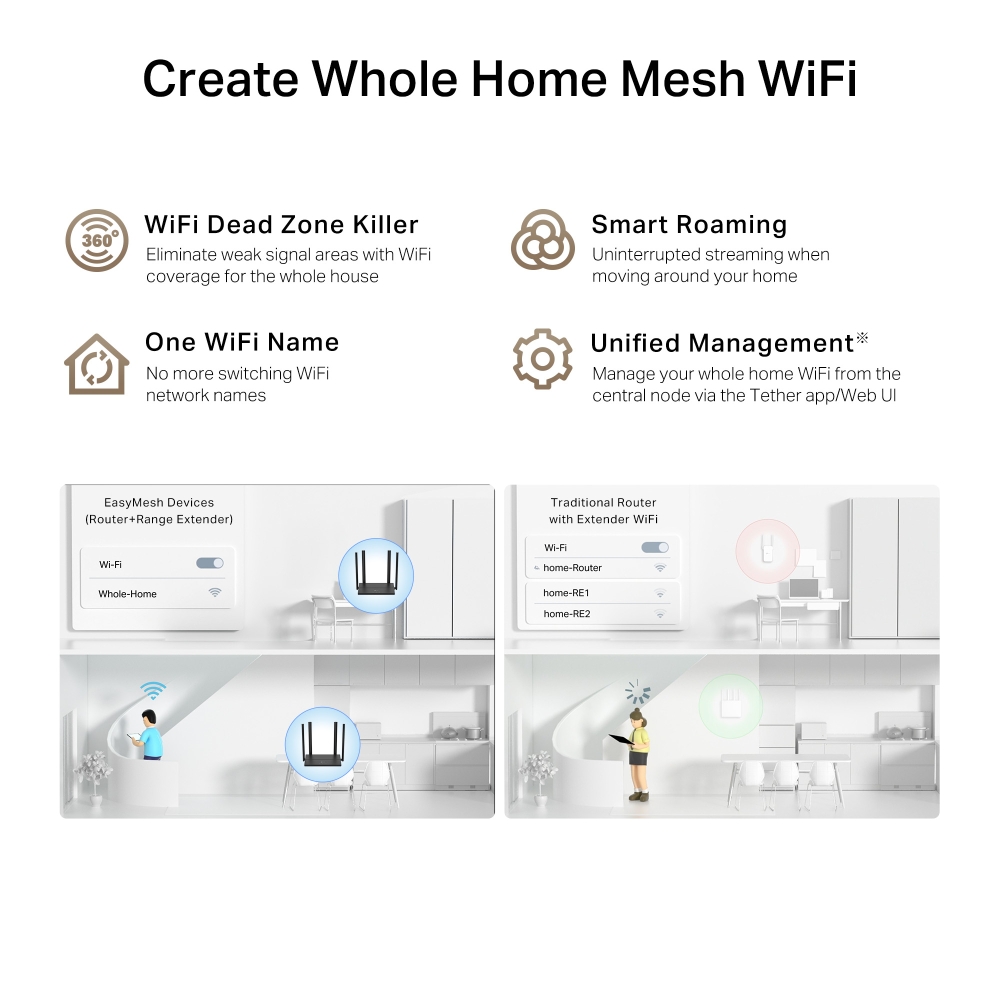

- EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.§
- Parental Controls - Manages when and how connected devices can access the internet.
- Guest Network - Provides separate access for guests while securing the host network.
- Smooth HD Streaming - Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported - Compatible with the IPv6 (the latest Internet Protocol version 6).
| WIRELESS | |
|---|---|
| Standards and Protocols | Wi-Fi 4IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | N3002.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses 2× Fixed Antennas |
| WiFi Capacity | Legacy |
| Working Modes | Router ModeAccess Point ModeRange Extender ModeWISP Mode |
| SECURITY | |
|---|---|
| Network Security | SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway |
| Guest Network | 1× 2.4 GHz Guest Network |
| WiFi Encryption | WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN Port3× 10/100 Mbps LAN Ports |
| Buttons | Reset ButtonWPS/Wi-Fi Button |
| Power | 5 V ⎓ 0.6 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4IPv6 |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. TL-WR846N can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.Learn More> |
| Parental Controls | URL FilteringTime Controls |
| WAN Types | Dynamic IPStatic IPPPPoEPPTPL2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware UpgradeTP-Link IDDDNS |
| NAT Forwarding | Port ForwardingPort TriggeringDMZUPnP |
| IPTV | IGMP ProxyIGMP SnoopingBridgeTag VLAN |
| DHCP | Address ReservationDHCP Client ListServer |
| DDNS | NO-IPDynDNS |
| Management Features | Tether AppWebpageCheck Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE:<20dBm(2.4GHz)FCC:<30dBm |
| WiFi Reception Sensitivity | 270M: -70dBm@10% PER130M: -74dBm@10% PER108M: -74dBm@10% PER54M: -77dBm@10% PER11M: -87dBm@8% PER6M: -90dBm@10% PER1M: -98dBm@8% PER |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 7.2 × 3.7 × 1.3 in(182.7 × 94 × 33.3 mm) |
| Package Content | Wi-Fi Router TL-WR846NPower AdapterRJ45 Ethernet CableQuick Installation Guide |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and the maximum number of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
‡Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
※Use of MU-MIMO requires clients to also support MU-MIMO.
§TP-Link EasyMesh-Compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent software updates.
