HB813-SGST

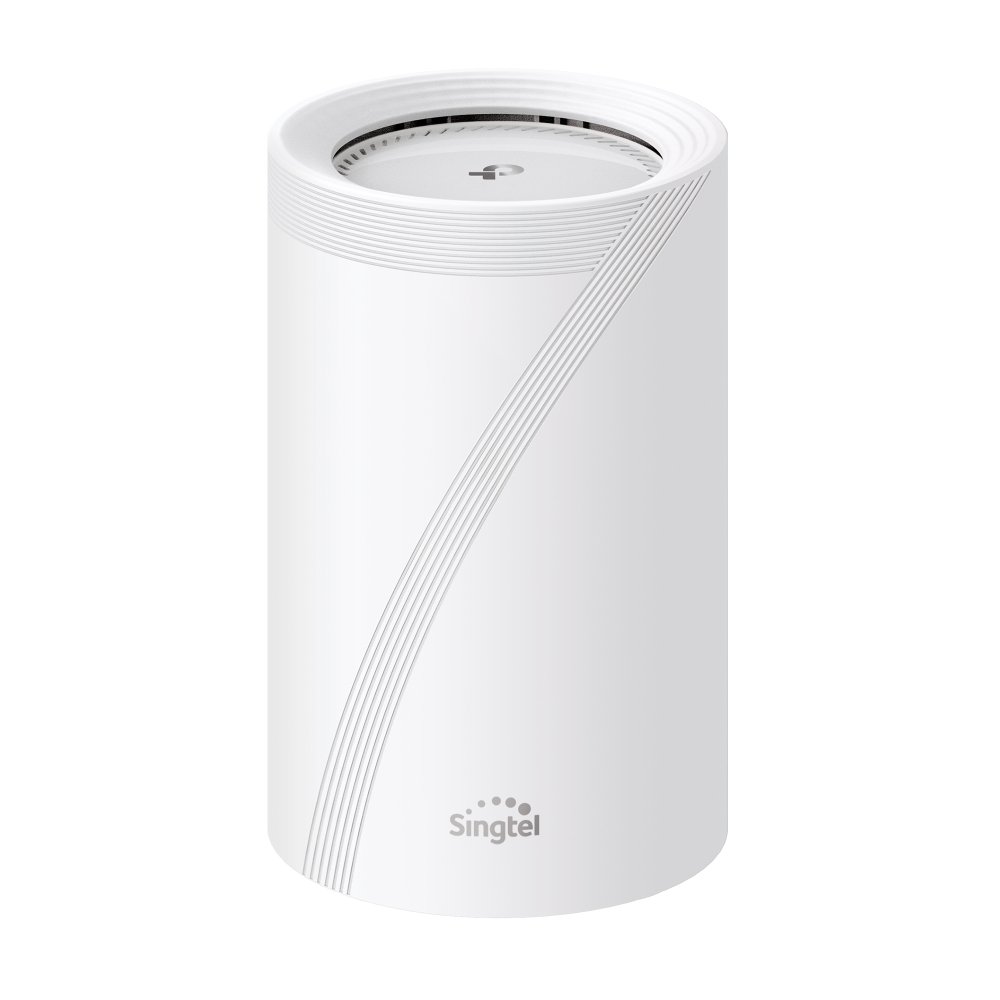

Singtel WiFi 7 Router
- 22 Gbps Tri-Band WiFi 7: 12-stream tri-band WiFi enables gaming, 4K/8K streaming, AR/VR, and high-speed downloading on multiple devices—all at the same time.*
- 10G Internet Access: Take advantage of bandwidth speeds of up to 10 Gbps through a 10 GbE/SFP+ combo WAN port for both Ethernet and direct fiber access.△
- Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
- Multi-Link Operation (MLO): Achieve higher throughput per device, lower latency, and higher reliability via multi-link aggregation across three bands.†
- Clear 320 MHz Channels: Enjoy robust, high-speed connectivity with doubled throughput on 320 MHz channels in the expansive, less-congested 6 GHz band.†
- Whole Home Coverage: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.‡
- Energy Efficiency: Offers flexible power-saving options that benefit both the planet and your bill.
- Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide a personalized and safer online experience.†
- Easy Setup and Use: Simplify the setup and management of your mesh network with the powerful Aginet app.
- Remote Management: Supports TR-069, TR-369, TR-181, TR-111, and TR-143 protocols.

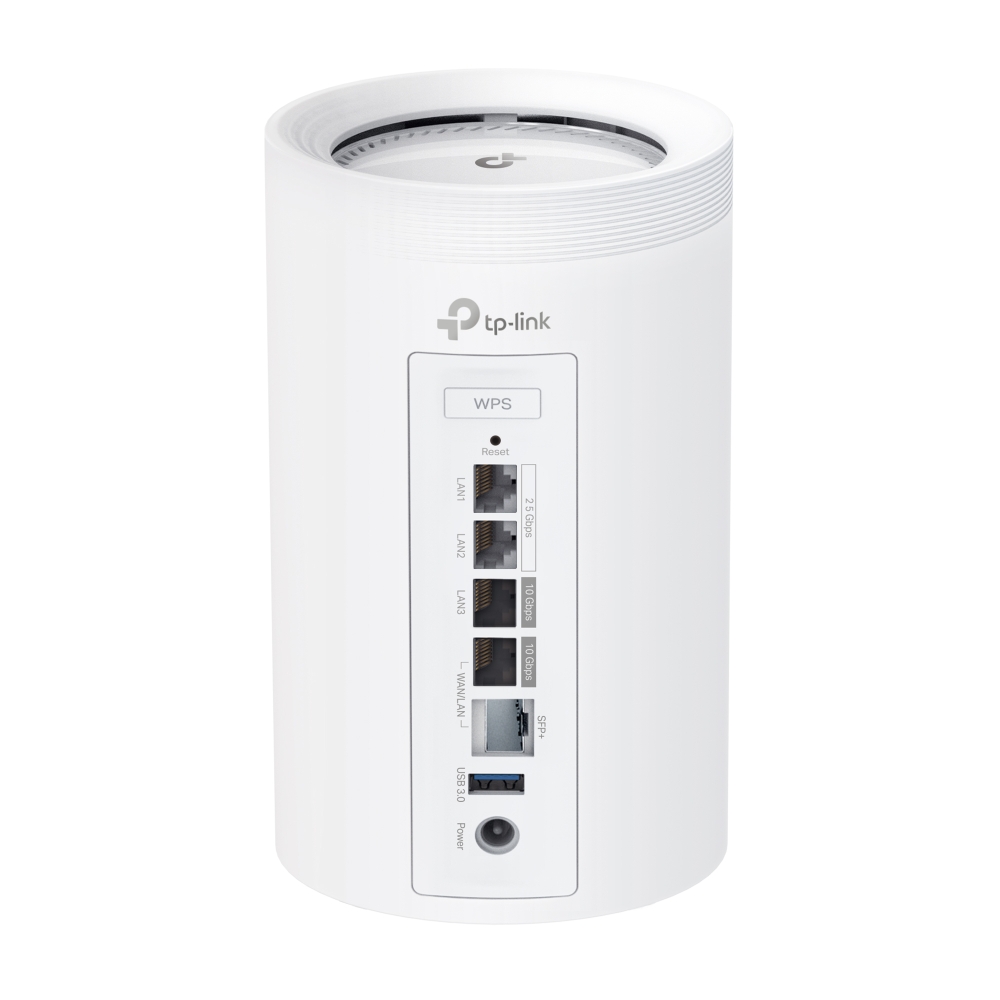

| Interface | 1× 10 GbE/SFP+ Combo WAN/LAN Port1× 10 GbE LAN Port2× 2.5 GbE LAN Ports1× USB 3.0 Port*Per Unit |
|---|---|
| Button | WPS ButtonReset Button |
| External Power Supply | 12V/4.5A |
| Dimensions ( W x D x H ) | 4.65 × 4.65 × 7.80 in(118 × 118 × 198 mm) |
| Quality of Service | WMM |
|---|---|
| Advanced Features | Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU, OFDMA, MU-MIMO, Beamforming, BSS ColorQoS (Quality of Service), Port Forwarding, CWMPParental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistics |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
| Management Features | Local management: WebGUI, Aginet app (for end users)Remote management:TR-069, TR-181, TR-369, TR-111, and TR-143 for service providersAginet App for end users (need to log in with TP-Link ID and bind your device to it) |
| VPN | PPTP, OpenVPN, IPSec |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4 IPv6 |
| Working Modes | Router ModeAccess Point Mode |
| Wireless Standards | IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/g/b 2.4 GHz |
|---|---|
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate | BE220006 GHz: Up to 11520 Mbps (EHT320)5 GHz: Up to 8640 Mbps (EHT240)2.4 GHz: Up to 1376 Mbps (EHT40)* |
| Wireless Security | WPA/WPA2/WPA3-Personal |
| Transmission Power | IMDA:<23 dBm(2.4 GHz)<30 dBm(5 GHz)<24 dBm(6 GHz) |
| Multi-SSID | 2× 6 GHz Multi-SSID2× 5 GHz Multi-SSID2× 2.4 GHz Multi-SSID |
| Mesh Technology | EasyMesh compatible and supports 802.11k/v/r |
| Package Content | HB813-SGST (1-Pack)1× HB813-SGST Unit1× Power Adapter1× RJ45 Ethernet Cable1× Quick Installation Guide |
|---|---|
| Certifications | IMDA |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†Use of WiFi 7 (802.11be), WiFi 6E/WiFi6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, BSS Color, and WPA3 requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 mesh.
‡Mesh networking requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. It supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to WiFi roaming that supports the IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v and may require additional setup. Performance may vary depending on the client device.
△10 Gbps or multi-gig internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
