Wi-Fi Router HB811

HB811

BE22000 Whole Home Mesh Wi-Fi 7 AP

22 Gbps Tri-Band WiFi 7: 12-stream tri-band WiFi enables gaming, 4K/8K streaming, AR/VR, and high-speed downloading on multiple devices—all at the same time.*
10G Internet Access: Take advantage of bandwidth speeds of up to 10 Gbps through a 10 GbE/SFP+ combo WAN port for both Ethernet and direct fiber access.^△
Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
Multi-Link Operation (MLO): Achieve higher throughput per device, lower latency, and higher reliability via multi-link aggregation across three bands.^†
Clear 320 MHz Channels: Enjoy robust, high-speed connectivity with doubled throughput on 320 MHz channels in the expansive, less-congested 6 GHz band.^†
Whole Home Coverage: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.^‡
Smart Home Ready: Connect and manage numerous IoT devices to enable a truly connected home via Matter.**
Energy Efficiency: Offers flexible power-saving options that benefit both the planet and your bill.
Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide a personalized and safer online experience.^†
Easy Setup and Use: Simplify the setup and management of your mesh network with the Aginet app.
Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Overview

Super Mesh‑Powered WiFi 7 BE22000 Whole Home Mesh WiFi 7 AP

HB811

22 Gbps Tri‑Band WiFi

4 + 4 + 4 Simultaneous Spatial Streams

320 MHz Channels

4K-QAM

Multi‑Link Operation

Matter-Compatible

Seamless Roaming

Easymesh-Compatible

10G Ethernet/Fiber Internet Access

10G Wired Connectivity

Aginet Solution End‑to‑End Management Platform

Parental Controls

Enhanced Security

TR‑069/TR‑369 Remote Management

22 Gbps Tri‑Band WiFi Speeds Next-gen 2.4 GHz, 5 GHz, and 6 GHz bands take WiFi speeds and efficiency to the next level, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive AR/VR, online gaming, and blazing-fast downloads.^*†

320 MHz Double the width, double the speed

4K‑QAM Packs 120% data for higher speeds

Multi‑Line Operation Increases throughput, reduces latency, and improves reliability

Multi‑RUs Make full use of every resource for maximum efficiency

6 GHz

4x4 Spatial Streams

11520 Mbps

5 GHz

4x4 Spatial Streams

8640 Mbps

2.4 GHz

4x4 Spatial Streams

1376 Mbps

The Ultimate 10G Internet Access and Wired Connectivity HB811 meets high-bandwidth needs with 10 Gbps internet access via Ethernet or fiber through its 10 GbE/SFP+ Combo WAN/LAN port. Its 10G LAN port enables faster, more stable wired backhaul, while the two 2.5G LAN ports add network flexibility.^△

① Multi-Gig Ethernet/Fiber Internet Access ② Multi-Gig Wired Connections ③ Superfast Media Sharing

10G LAN Connectivity

10G WAN/LAN Connectivity

10G Fiber Access via SFP+ Slot

Superfast Media Sharing

Extensive WiFi Coverage and Stronger Signals Get a solid connection in every corner of your home thanks to a high‑performance antenna array and beamforming technology. Your WiFi coverage adapts to your home and concentrates signals to your devices.

Beamforming

8× High‑Gain Antennas The optimally positioned antenna array ensures balanced WiFi coverage with high isolation and less interference

12× High‑Power FEMs Maximize range for better performance

Whole Home Coverage with Seamless Roaming HB811 works with other EasyMesh‑compatible routers and mesh APs to deliver strong WiFi signals throughout your home for true seamless coverage. Want more coverage? Simply add another HB811 wherever you want.^‡

Whole Home Coverage Eliinate your home's weak WiFi coverage areas

Smart Roaming Stream flawlessly while on the move

One WiFi Name No more changing WiFi networks when you move around

Robust Backhaul Supports both wireless and Ethernet backhaul

More Connections, Less Buffering Enhanced by WiFi 7 and featuring OFDMA, Multi‑Link Operation (MLO), and MU‑MIMO, connect up to 250 devices simultaneously for a fully connected home. Enjoy a more efficient network that loads faster without dragging down performance.^†

Connects up to 250 devices ^§ ^§Testing of multiple applications and devices is conducted in TP-Link labs. Actual results may vary.

Web Browsing

Smart Home Devices

IP Camera Streaming

High‑speed Downloading

Online Gaming

8K Streaming

720p Streaming

1080p Streaming

4K Streaming

Smart Home Ready Built with Matter, HB811 can work as a central controller to connect and manage Matter‑certified IoT devices, enabling a truly connected smart home.^**

woman journaling on a sofa behind the HB811

Smart Power Saving By implementing a granular, component‑level power management mechanism, HB811 offers flexible power‑saving options without significantly impacting performance.

Smart Mode

Automatically adjusts module performance and strategies based on your actual network usage

~35%Less power than normal mode^§

70 KW/hSaved per year

Standby Mode

Custom Mode

^§Tests were conducted in the TP‑Link lab, where 36 wireless devices were connected across three bands. Actual results may vary depending on the behaviors of the connected devices.

Robust Network Protection

WPA3 Security Higher password safety and enhanced protection against attacks^†

Parental Controls Block inappropriate content and restrict time spent online

Multi-SSID Create separate networks for visitors and keep your main network secure

2‑in‑1 Router and Access Point HB811 works as either a router or access point, giving you flexibility where you need it. Choose the mode that fits your needs for adaptable wireless and wired connectivity.

diagram of products with router mode in a house

Router Mode Create a private wireless and wired network

Access Point Mode Create WiFi access for your existing wired network

Easy Management and Control via the App The Aginet app lets you manage your network on a smartphone or tablet.

Easy Setup and Onboarding

Automatically detect new devices via Bluetooth and get online with step‑by‑step instructions.

Easy WiFi Sharing

Network Status at a glance

Remote Management

phone showing the TP-Link app finding a new device to connect

Easy Setup and Onboarding

Automatically detect new devices via Bluetooth and get online with step‑by‑step instructions.

Easy WiFi Sharing

Network Status at a glance

Remote Management

Supports TR‑069/TR‑369 Remote Management ISPs can remotely configure and manage devices via their Auto‑Configuration Server (ACS) system or Aginet ACS. With TR‑181, TR‑111, and TR‑143 supporting high‑level operations, home users get to enjoy faster, more efficient service.

TR‑069/TR‑369 Remote Management

TR‑181

TR‑111

TR‑143

diagram of ACS system connected to an office network

Aginet Solution: An End‑to‑End Management Platform for ISPs The Aginet solution offers ISPs powerful and flexible platforms to manage mulitple devices for connected homes, such as dynamic service provisioning, zero‑touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics. Learn more about the Aginet Solution>

Specifications

HARDWARE FEATURES

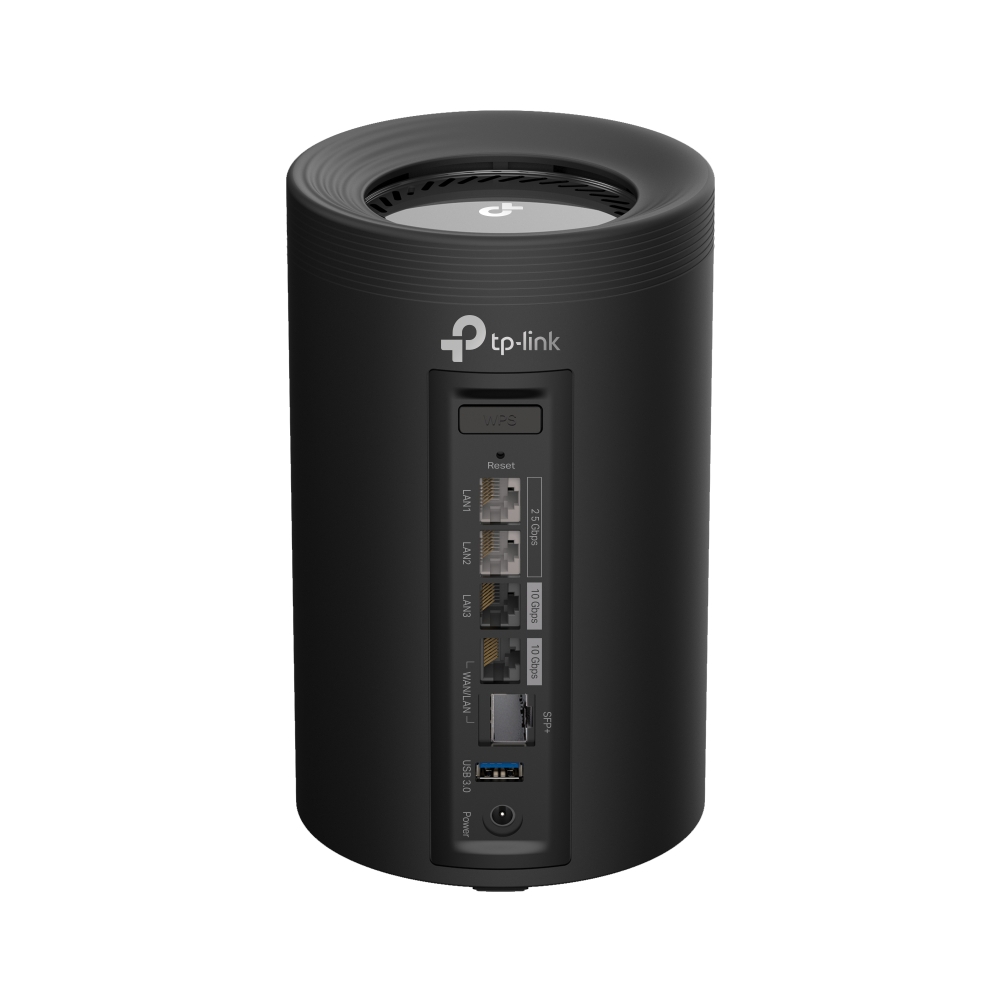

Interface	1× 10 GbE/SFP+ Combo WAN/LAN Port 1× 10 GbE LAN Port 2× 2.5 GbE LAN Ports 1× USB 3.0 Port *Per Unit
Button	WPS Button Reset Button
External Power Supply	12V/4.5A
Dimensions ( W x D x H )	4.65 × 4.65 × 7.80 in (118 × 118 × 198 mm)

SOFTWARE FEATURES
Quality of Service	WMM
Advanced Features	Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU,OFDMA, MU-MIMO, Beamforming, BSS Color QoS (Quality of Service), Port Forwarding, CWMP Parental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management Features	Local management: WebGUI, Aginet app (for end users) Remote management: TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 for service providers Aginet App for end users (need to log in with TP-Link ID and bind your device to it) Cloud management: TP-Link Aginet Unified Cloud (TAUC)
VPN	PPTP, OpenVPN, IPSec
Firewall Security	DoS, SPI Firewall, IP and MAC Address Binding
Protocols	IPv4 IPv6
Working Modes	Router Mode Access Point Mode

WIRELESS FEATURES
Wireless Standards	IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/g/b 2.4 GHz
Frequency	2.4 GHz, 5 GHz, and 6 GHz
Signal Rate	BE22000 6 GHz: Up to 11520 Mbps (EHT320) 5 GHz: Up to 8640 Mbps (EHT240) 2.4 GHz: Up to 1376 Mbps (EHT40)*
Wireless Security	WPA/WPA2/WPA3-Personal
Transmission Power	IMDA: <23 dBm (2.4 GHz) <30 dBm(5 GHz) <24 dBm(6 GHz)
Multi-SSID	2× 6 GHz Multi-SSID 2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID
Mesh Technology	EasyMesh compatible and supports 802.11k/v/r

OTHERS
Package Content	HB811 (1-Pack) 1× HB811 Unit 1× Power Adapter 1× RJ45 Ethernet Cable 1× Quick Installation Guide
Certifications	IMDA, CLS Level 1
Environment	Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing

For additional version information, please go to the support page.

Support

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**This product only supports the management of Matter v1.0-compatible devices.

^†Use of WiFi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, BSS Color, and WPA3 requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 mesh.

^‡Mesh networking requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMesh^TM certification. Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.

^△10 Gbps or multi-gig internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
